YH51LV-JRBF (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2Y,3Y,4Y

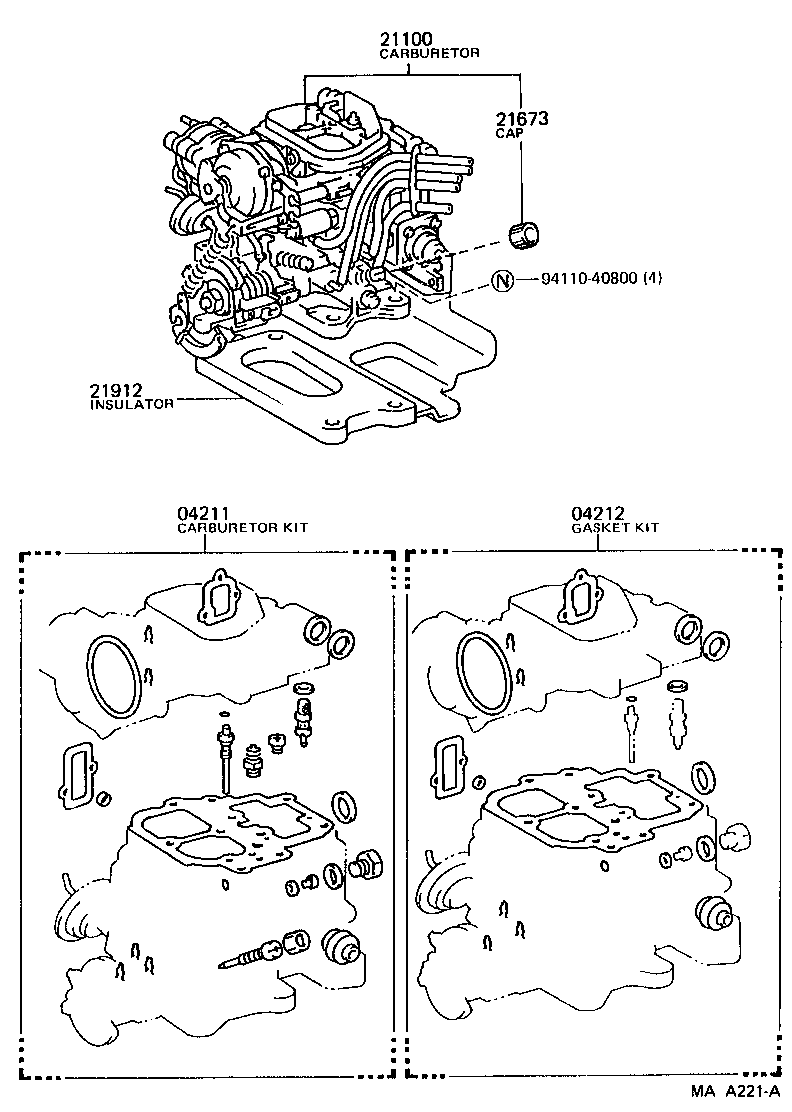

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-73241

3Y..YH51,61..LHD..4H

GULF SPEC

 1
21100-73242

3Y..YH51,61..LHD..4H

GULF SPEC

 1
21100-73231

3Y,4Y..YH5#,61,63,73..ARL,GEN

 1
21673 - CAP, IDLE LIMIT
21673-13280

3Y,4Y..YH5#,61,63,73..ARL,GEN

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-72010

2Y,3Y,4Y..YH5#,6#,73

 1
Common parts
94110-40800
