YH50RV-JRBN (1983)

Toyota Hiace Van,Commuter

Production Jun 1983 - Aug 1985
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8401)ARL ; (8308-8401)LH50,YH50

Click highlighted areas on diagram

diagram 46101 46103 46110A 46114 46115 46144 46207 46217 46217A 46217B 46217C 46225 46238 46266 46301 46301A 46311 46311 46311A 46311B 46356 46359 46410 46410B 46420 46420C 46441 46441 46458 46471 46471B 9020608016 9046808001 9046808001 9161640612 9161640818 9165640620 9165640818 9165640825 9324914006 9324914009 9461110401 9461110401 9538102018 9538102520
Part # Description Qty Price
46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46101-26061

LH50,60,YH5#,6#..RHD..(EUR,GEN,SA)

 1
46101-26060

LH50,60,YH5#,6#..RHD..(EUR,GEN,SA)

 1
46120-26010

LH51,61,71,YH5#,61,71..RHD

 1
46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46103-26080

LH51,61,71,YH5#,61,71..RHD

 1
46103-26080

LH50,60,YH5#,6#..RHD..(EUR,GEN,SA)

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-12048

LH5#,6#,7#,YH5#,6#,7#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LH5#,6#,7#,YH5#,6#,7#

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-20010

LH5#,6#,7#,YH5#,6#,7#

 1
46311 - PAWL, PARKING BRAKE
46311-30041

LH50,60,70,YH5#,6#,71

 2
46311 - PAWL, PARKING BRAKE
46311-30041

LH50,60,70,YH5#,6#,71

 2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08106

LH50,60,YH5#,6#..EUR,GEN,SA

 1
46311B - PIN, PARKING BRAKE PAWL PIVOT
46313-40010

LH5#,6#,7#,YH5#,6#,7#

 2
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-26170

LH5#,6#,7#,YH5#,6#,71..RHD

 1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-20004

LH5#,6#,7#,YH5#,6#,7#

 1
46458 - RETAINER, CABLE
46458-20020

LH5#,6#,7#,YH5#,6#,71

 2
46471 - PULLEY, WIRE
46471-20010

LH5#,6#,7#,YH5#,6#,7#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08017

LH5#,6#,7#,YH5#,6#,7#

 1
Common parts
90206-08016
90468-08001
91616-40612
91616-40818
91656-40620
91656-40818
91656-40825
93249-14006
93249-14009
94611-10401
95381-02018
95381-02520

(8306- )YH50,51,53..SA

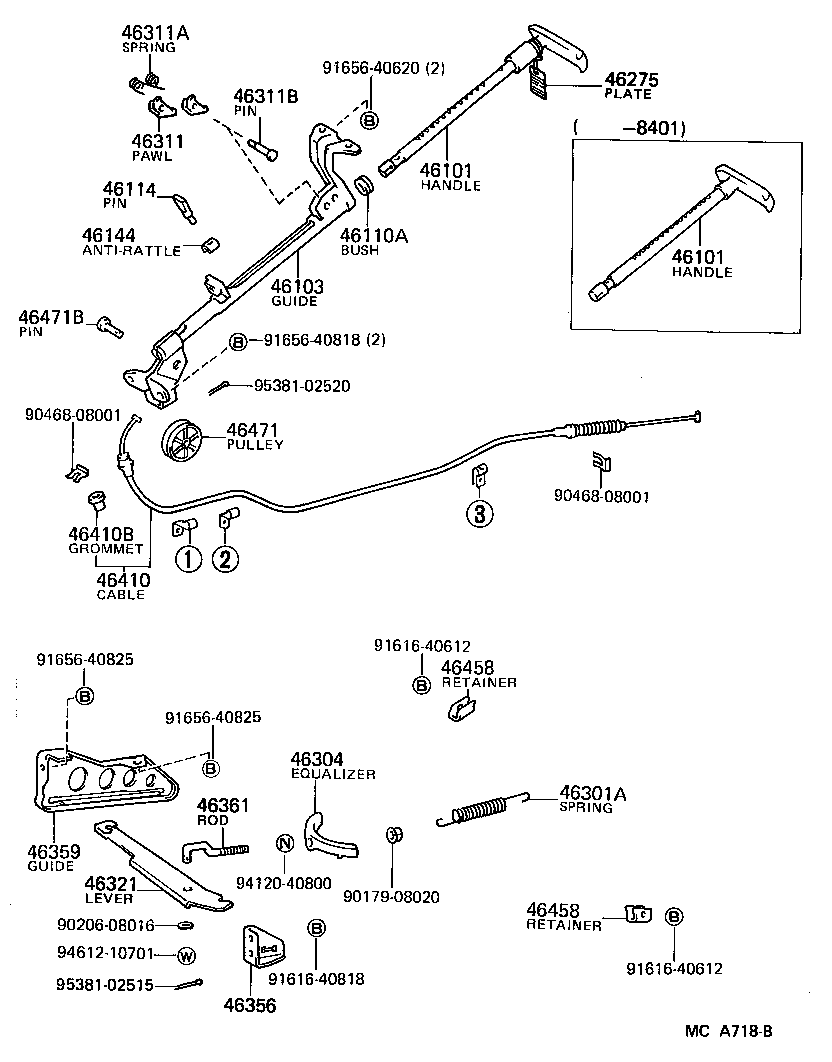

Click highlighted areas on diagram

diagram 46101 46101 46103 46110A 46114 46144 46275 46301A 46304 46311 46311A 46311B 46321 46356 46359 46361 46410 46410B 46458 46458 46471 46471B 9017908020 9020608016 9046808001 9046808001 9161640612 9161640612 9161640818 9165640620 9165640818 9165640825 9165640825 9412040800 9461210701 9538102515 9538102520
Part # Description Qty Price
46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46101-26061

LH50,60,YH5#,6#..RHD..(EUR,GEN,SA)

 1
46101-26060

LH50,60,YH5#,6#..RHD..(EUR,GEN,SA)

 1
46120-26010

LH51,61,71,YH5#,61,71..RHD

 1
46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46101-26061

LH50,60,YH5#,6#..RHD..(EUR,GEN,SA)

 1
46101-26060

LH50,60,YH5#,6#..RHD..(EUR,GEN,SA)

 1
46120-26010

LH51,61,71,YH5#,61,71..RHD

 1
46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46103-26080

LH51,61,71,YH5#,61,71..RHD

 1
46103-26080

LH50,60,YH5#,6#..RHD..(EUR,GEN,SA)

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-12048

LH5#,6#,7#,YH5#,6#,7#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LH5#,6#,7#,YH5#,6#,7#

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-20010

LH5#,6#,7#,YH5#,6#,7#

 1
46275 - PLATE, PARKING BRAKE RELEASE CAUTION
46275-26010

LH51,61,71,YH5#,61

 1
46311 - PAWL, PARKING BRAKE
46311-30041

LH50,60,70,YH5#,6#,71

 2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08106

LH50,60,YH5#,6#..EUR,GEN,SA

 1
46311B - PIN, PARKING BRAKE PAWL PIVOT
46313-40010

LH5#,6#,7#,YH5#,6#,7#

 2
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-26170

LH5#,6#,7#,YH5#,6#,71..RHD

 1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-20004

LH5#,6#,7#,YH5#,6#,7#

 1
46458 - RETAINER, CABLE
46458-20020

LH5#,6#,7#,YH5#,6#,71

 2
46458 - RETAINER, CABLE
46458-20020

LH5#,6#,7#,YH5#,6#,71

 2
46471 - PULLEY, WIRE
46471-20010

LH5#,6#,7#,YH5#,6#,7#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08017

LH5#,6#,7#,YH5#,6#,7#

 1
Common parts
90179-08020
90206-08016
90468-08001
91616-40612
91616-40818
91656-40620
91656-40818
91656-40825
94120-40800
94612-10701
95381-02515
95381-02520
