Toyota Hiace van,commuter YH50 ALTERNATOR

YH50RV-JR (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Aug 1986

Engine 2Y

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8212- )2Y,3Y,4Y

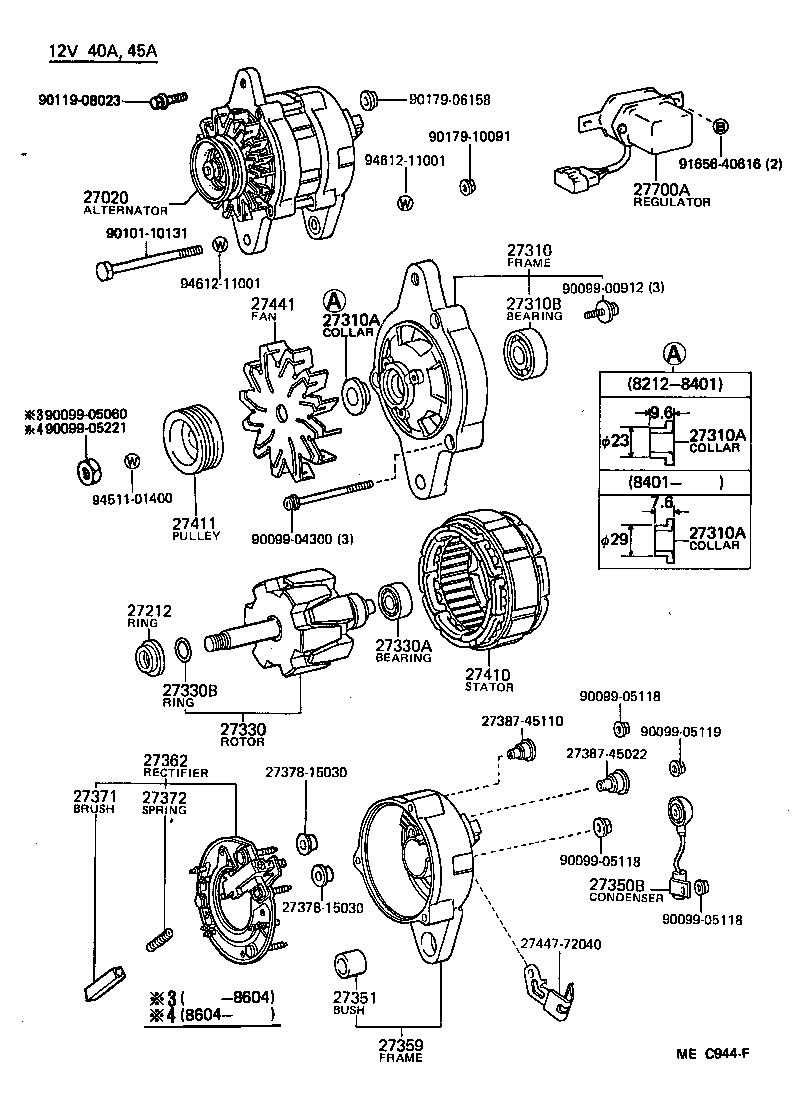

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-72030	2Y..YH50,60 12V 40A,12V 40A	12/1982 - 01/1984	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-15030	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A	11/1983 - 01/1984	1
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 11/1983	1
27412-16030	2Y,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	01/1984 - 04/1986	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A	11/1983 - 01/1984	1
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 11/1983	1
27412-16030	2Y,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	01/1984 - 04/1986	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A	11/1983 - 01/1984	1
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 11/1983	1
27412-16030	2Y,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	01/1984 - 04/1986	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A	11/1983 - 01/1984	1
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 11/1983	1
27412-16030	2Y,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	01/1984 - 04/1986	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125	2Y..YH50,60 12V 40A	12/1982 - 01/1984	1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050	2Y..YH50,60 12V 40A	12/1982 - 01/1984	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 08/1987	1
27350B - CONDENSER, ALTERNATOR
90099-52065	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 07/1988	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 07/1988	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72030	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27371 - BRUSH, ALTERNATOR
27371-31011	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 07/1988	2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 07/1988	2
27410 - STATOR ASSY, ALTERNATOR
27410-15030	2Y..YH50,60 12V 40A	12/1982 - 01/1984	1
27411 - PULLEY, ALTERNATOR
27411-72040	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 07/1988	1
27441 - FAN, ALTERNATOR
27441-34030	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27700A - REGULATOR ASSY, GENERATOR
27700-13040	L,2L,2Y#,3Y,4Y..LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD	12/1982 - 07/1988	1
Common parts
27378-45090
27387-45022
27387-45110
27447-72040
27447-72060
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90099-05221
90101-10131
90119-08023
90179-06158
90179-10091
91656-40616
94511-01400
94612-11001

(8212- )2Y#,3Y,4Y

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-72030	2Y..YH50,60 12V 40A,12V 40A	12/1982 - 01/1984	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-15030	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A	11/1983 - 01/1984	1
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 11/1983	1
27412-16030	2Y,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	01/1984 - 04/1986	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A	11/1983 - 01/1984	1
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 11/1983	1
27412-16030	2Y,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	01/1984 - 04/1986	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A	11/1983 - 01/1984	1
27412-31040	2Y#,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 11/1983	1
27412-16030	2Y,3Y..YH5#,6#,71 12V 40A,45A,50A,55A	01/1984 - 04/1986	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125	2Y..YH50,60 12V 40A	12/1982 - 01/1984	1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050	2Y..YH50,60 12V 40A	12/1982 - 01/1984	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 08/1987	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27350B - CONDENSER, ALTERNATOR
90099-52065	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 07/1988	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 07/1988	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72030	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27371 - BRUSH, ALTERNATOR
27371-31011	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 07/1988	2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 07/1988	2
27410 - STATOR ASSY, ALTERNATOR
27410-15030	2Y..YH50,60 12V 40A	12/1982 - 01/1984	1
27411 - PULLEY, ALTERNATOR
27411-72040	2Y#,3Y,4Y..YH5#,6#,71 12V 40A,45A,50A,55A	12/1982 - 07/1988	1
27441 - FAN, ALTERNATOR
27441-34030	2Y#,3Y..YH5#,6#,71 12V 40A,45A	12/1982 - 01/1984	1
27700A - REGULATOR ASSY, GENERATOR
27700-13040	L,2L,2Y#,3Y,4Y..LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD	12/1982 - 07/1988	1
Common parts
27378-15030
27387-45022
27387-45110
27447-72040
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90099-05221
90101-10131
90119-08023
90179-06158
90179-10091
91656-40616
94511-01400
94612-11001

YH50RV-JR (1982)

(8212- )2Y,3Y,4Y

(8212- )2Y#,3Y,4Y
