YH50LV-SRJHW (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine 2Y
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )ATM

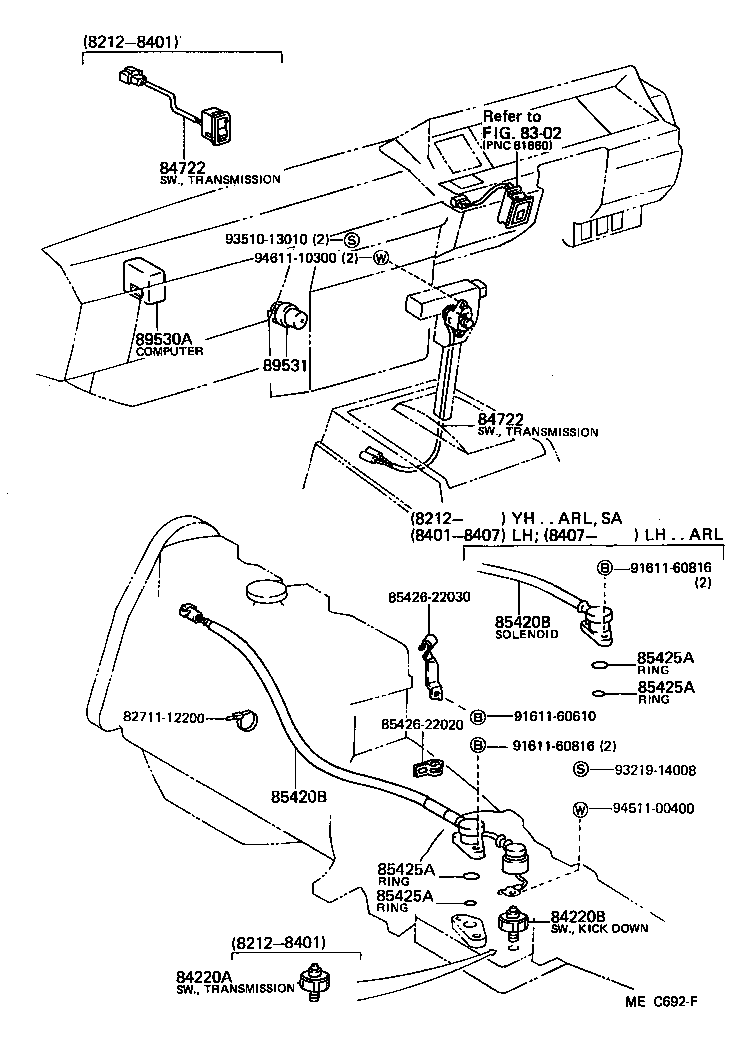

Click highlighted areas on diagram

diagram 8271112200 8302 84220A 84220B 84722 84722 85420B 85420B 85425A 85425A 85425A 85425A 8542622020 8542622030 89530A 89531 9161160610 9161160816 9161160816 9321914008 9351013010 9451100400 9461110300
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

YH50..4HC..EUR

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-26010

LH50,YH50..4HC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-26010

LH50,YH50..4HC

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-22040

YH5#,61..4HC..EUR

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-22040

YH5#,61..4HC..EUR

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

LH50,51,61,YH50,51,61..ATM

ID=11

 1
90301-23001

LH50,51,61,YH50,51,61..ATM

ID=23

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

LH50,51,61,YH50,51,61..ATM

ID=11

 1
90301-23001

LH50,51,61,YH50,51,61..ATM

ID=23

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

LH50,51,61,YH50,51,61..ATM

ID=11

 1
90301-23001

LH50,51,61,YH50,51,61..ATM

ID=23

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

LH50,51,61,YH50,51,61..ATM

ID=11

 1
90301-23001

LH50,51,61,YH50,51,61..ATM

ID=23

 1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-26020

YH50..4HC..EUR

 1
Common parts
82711-12200
85426-22020
85426-22030
91611-60610
91611-60816
93219-14008
93510-13010
94511-00400
94611-10300
Linked diagrams
8302
