YH50LV-JRBF (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Aug 1986
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )YH50,51,56,60,61,66..LHD..V

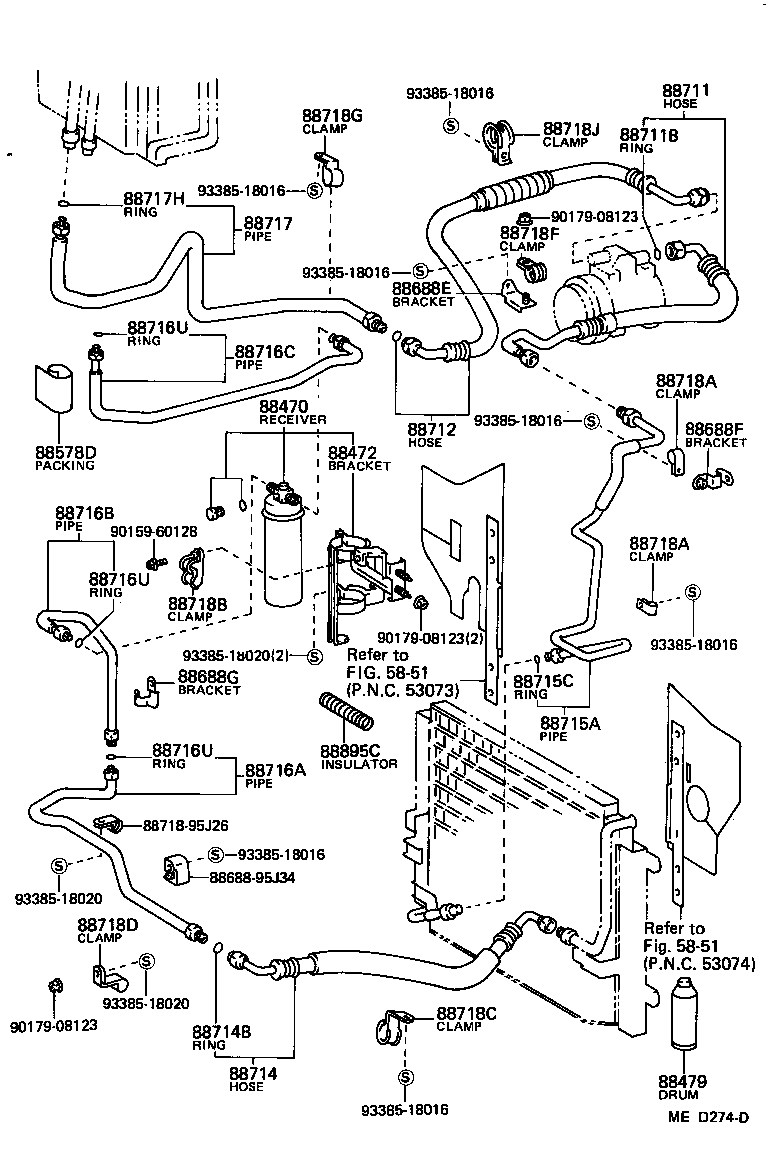

Click highlighted areas on diagram

diagram 5851 5851 88470 88472 88479 88578D 8868895J34 88688E 88688F 88688G 88711 88711B 88712 88714 88714B 88715A 88715C 88716A 88716B 88716C 88716U 88716U 88716U 88717 88717H 8871895J26 88718A 88718A 88718B 88718C 88718D 88718F 88718G 88718J 88895C 9015960128 9017908123 9017908123 9017908123 9338518016 9338518016 9338518016 9338518016 9338518016 9338518016 9338518016 9338518020 9338518020 9338518020
Part # Description Qty Price
88470 - RECEIVER & DRYER ASSY, COOLER
88470-95J01

LH50,51,60,61,YH50,51,60,61..LHD..GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95J01

LH50,51,60,61,YH50,51,60,61..LHD..GEN

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

400G

 4
88578D - PACKING, COOLER PIPE, NO.1
88578-30360

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-95J26

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-95J25

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-95J37

LH50,51,60,61,YH50,51,60,61..LHD..GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95J03

YH51..4H..ARL;YH50,6#..ARL,GEN

 1
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
90099-14046

YH51..V..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,60,61..V..(ARL,GEN)

 2
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88709-95J03

YH50,51,60,61..LHD..V..GEN

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88704-95J01

YH50,51,60,61..LHD..GEN

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95J08

YH5#,6#..V..MTM..(ARL,GEN)

 1
88715C - RING, O(FOR COOLER REFRIGERANT DISCHARGE PIPE)
90099-14046

YH51..V..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,60,61..V..(ARL,GEN)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95J16

LH50,51,60,61,YH50,51,60,61..LHD..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95J15

LH50,51,60,61,YH50,51,60,61..LHD..GEN

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-95J09

LH5#,6#,YH50,60..LHD..V..GEN

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-95J04

LH5#,6#,YH50,60..LHD..GEN

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-95J17

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

 2
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-95J17

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

 2
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-95J05

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

 4
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-95J01

YH51..4H..(ARL,GEN);YH50,53,60,61,63..STD..(ARL,GEN)

 1
88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88718-95J04

LH50,51,60,61,YH50,51,60,61..LHD..V..GEN

 1
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-95J18

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

 1
88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718-95J02

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

 1
88718J - CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)
88718-95J00

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

 1
88895C - INSULATOR, HOSE
88895-12030

YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN

 2
Common parts
88688-95J34
88718-95J26
90159-60128
90179-08123
93385-18016
93385-18020
