YH50LB-QRW (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Aug 1985
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )2Y#,3Y,4Y

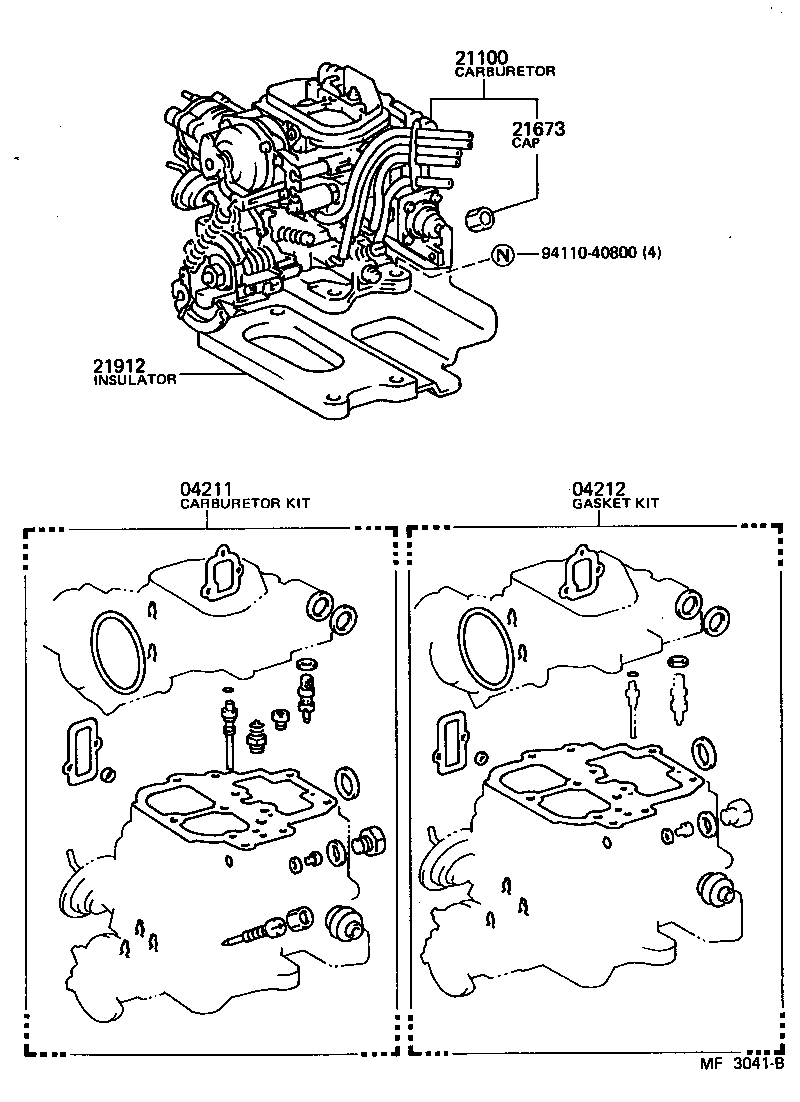

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-72020

2Y..YH50,60..EUR

 1
04212 - GASKET KIT, CARBURETOR
04212-71010

2Y#,3Y..YH50,6#,71

 1
21100 - CARBURETOR ASSY
21100-72080

2Y..YH50,60..EUR

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-71010

2Y#,3Y..YH5#,6#,71

 1
Common parts
94110-40800
