8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

YH50LB-JR (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Aug 1986

Engine 2Y

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8212- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95J00	LH5#,6#,YH5#,6#,7#	12/1982 - 07/1988	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95J00	LH5#,6#,YH5#,6#,7#	12/1982 - 07/1988	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95J00	LH5#,6#,7#,YH5#,6#,7#	12/1982 - 07/1988	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95J00	LH5#,6#,7#,YH5#,6#,7#	12/1982 - 07/1988	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J04	LH50,51,60,61,YH50,51,60,61..COM..(EUR,GEN) RR	12/1982 - 08/1987	1
55910-95J08	LH50,51,60,61,YH50,51,60,61..LHD..GEN FR,W/*BV & COOLER	12/1982 - 08/1987	1
55910-95J03	LH50,51,60,61,YH50,51,60,61..LHD..GEN FR,W/*BV	12/1982 - 08/1987	1
55910-95J01	LH5#,6#,YH50,51,56,60,61,66..LHD FR,W/HEATER	12/1982 - 08/1987	1
55937 - KNOB, HEATER CONTROL LEVER
55905-12070	LH50,60,70,YH5#,6#,71 FR HEATER	12/1982 - 01/1984	4
55905-95703	LH50,51,60,61,YH50,51,60,61..COM..(EUR,GEN) RR HEATER	12/1982 - 08/1987	1
55937 - KNOB, HEATER CONTROL LEVER
55905-12070	LH50,60,70,YH5#,6#,71 FR HEATER	12/1982 - 01/1984	4
55905-95703	LH50,51,60,61,YH50,51,60,61..COM..(EUR,GEN) RR HEATER	12/1982 - 08/1987	1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-95J00	LH50,51,60,61,YH50,51,60,61..GEN W/COOLER & *BV	12/1982 - 08/1987	1
Common parts
55933-24010
55939-95703
90183-05103
90480-13013
90950-01112
93567-55018
Linked diagrams
8302
8401

(8212- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL
55907-95J01	LH50,51,60,61,YH50,51,60,61..COM..(EUR,GEN) RR HEATER	12/1982 - 08/1987	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J04	LH50,51,60,61,YH50,51,60,61..COM..(EUR,GEN) RR	12/1982 - 08/1987	1
55910-95J08	LH50,51,60,61,YH50,51,60,61..LHD..GEN FR,W/*BV & COOLER	12/1982 - 08/1987	1
55910-95J03	LH50,51,60,61,YH50,51,60,61..LHD..GEN FR,W/*BV	12/1982 - 08/1987	1
55910-95J01	LH5#,6#,YH50,51,56,60,61,66..LHD FR,W/HEATER	12/1982 - 08/1987	1
55913A - PLATE, HEATER CONTROL LEVER GUIDE
55913-95J00	LH50,51,60,61,YH50,51,60,61..COM..(EUR,GEN) RR HEATER	12/1982 - 08/1987	1
55937 - KNOB, HEATER CONTROL LEVER
55905-12070	LH50,60,70,YH5#,6#,71 FR HEATER	12/1982 - 01/1984	4
55905-95703	LH50,51,60,61,YH50,51,60,61..COM..(EUR,GEN) RR HEATER	12/1982 - 08/1987	1
55939 - ORNAMENT, HEATER CONTROL
55939-95J0005	LH50,60,YH50,60..COM RR HEATER,BEIGE,BEIGE	12/1982 - 01/1984	1
55944 - PLATE, HEATER CONTROL SUPPORT
55944-95J00	LH50,51,60,61,YH50,51,60,61..COM..(EUR,GEN) RR HEATER	12/1982 - 08/1987	3
Common parts
63249-95700
90560-11014
93566-14512
Linked diagrams
8302
8401

(8212- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
87195 - COVER, HOLE
88899-95J06	LH50,51,60,61,YH50,51,60,61..LHD..GEN W/COOLER	12/1982 - 08/1987	1
87195-95J00	LH5#,6#,7#,YH5#,6#,7#	12/1982 - 07/1988	1
87195 - COVER, HOLE
88899-95J06	LH50,51,60,61,YH50,51,60,61..LHD..GEN W/COOLER	12/1982 - 08/1987	1
87195-95J00	LH5#,6#,7#,YH5#,6#,7#	12/1982 - 07/1988	1
87201 - DUCT SUB-ASSY, AIR, NO.1
55086-95J01	LH5#,6#,YH50,51,56,60,61,66..LHD	12/1982 - 08/1987	1
87211 - DUCT, AIR, NO.1
87211-95J01	LH5#,6#,YH50,60..LHD..GEN	12/1982 - 05/1986	1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-95J01	LH5#,6#,YH50,51,56,60,61,66..LHD	12/1982 - 08/1987	1
87215 - DUCT, AIR, SIDE NO.1 LH
55084-95J00	LH5#,6#,YH50,51,56,60,61,66..LHD	12/1982 - 08/1987	1
Common parts
58703-95J00
90093-00609
90099-00930
90159-50134
90159-50184
90159-50203
90159-60259
90183-05103
90189-06084
90480-26003
93381-16016
93382-16016
93567-55016
93567-55018

(8212- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90183-05020
93540-15016
93560-15010

(8212- )COM..SRF..GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty

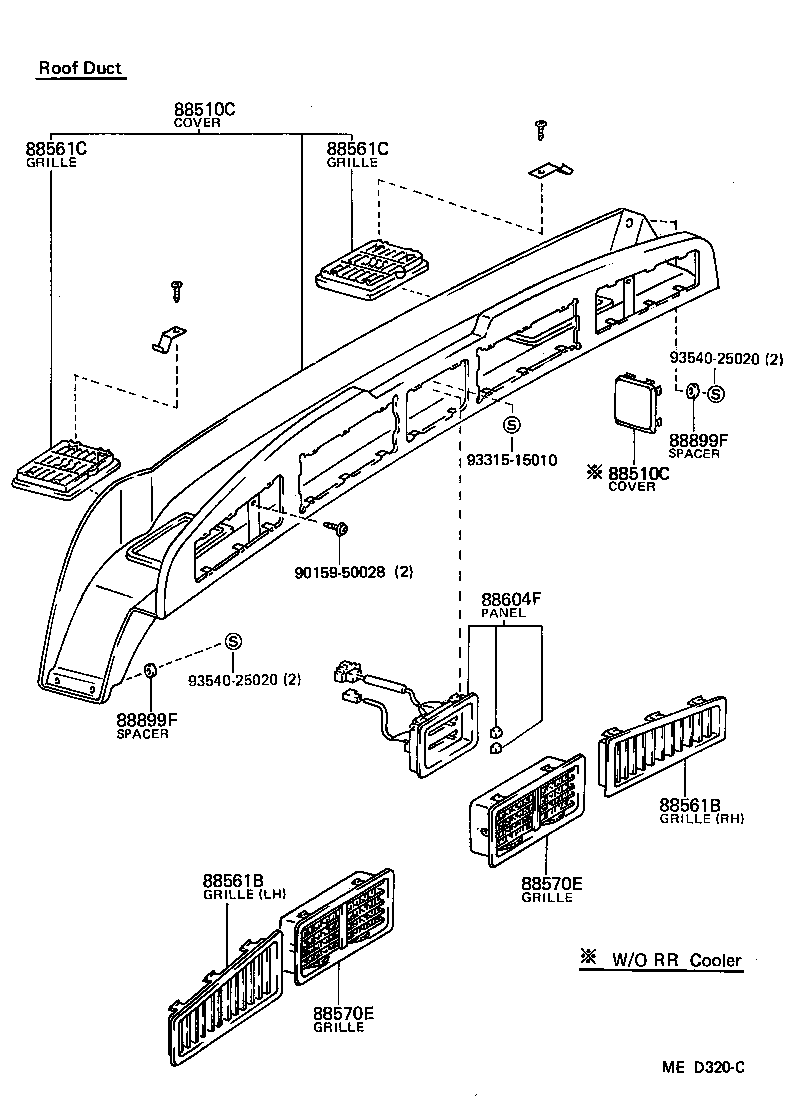

88510C - COVER ASSY, COOLER UNIT
88896-95J03	LH50,51,60,61,YH50,51,60,61..LHD..COM..SRF..GEN	12/1982 - 08/1987	1
61749-95J0008	LH50,51,60,61,YH50,51,60,61..COM..GEN IVORY,W/O RR COOLER,IVORY	12/1982 - 08/1987	1
88510C - COVER ASSY, COOLER UNIT
88896-95J03	LH50,51,60,61,YH50,51,60,61..LHD..COM..SRF..GEN	12/1982 - 08/1987	1
61749-95J0008	LH50,51,60,61,YH50,51,60,61..COM..GEN IVORY,W/O RR COOLER,IVORY	12/1982 - 08/1987	1
88561B - GRILLE, COOLER AIR INLET
88561-95J0108	LH5#,6#,YH50,60..COM..GEN RH,IVORY,IVORY	12/1982 - 08/1985	1
88561-95J0008	LH5#,6#,YH50,60..COM..GEN LH,IVORY,IVORY	12/1982 - 08/1985	1
88561B - GRILLE, COOLER AIR INLET
88561-95J0108	LH5#,6#,YH50,60..COM..GEN RH,IVORY,IVORY	12/1982 - 08/1985	1
88561-95J0008	LH5#,6#,YH50,60..COM..GEN LH,IVORY,IVORY	12/1982 - 08/1985	1
88561C - GRILLE, COOLER AIR INLET
88561-95J0208	LH5#,6#,YH50,60..COM..GEN IVORY,IVORY	12/1982 - 08/1985	2
88561C - GRILLE, COOLER AIR INLET
88561-95J0208	LH5#,6#,YH50,60..COM..GEN IVORY,IVORY	12/1982 - 08/1985	2
88570E - GRILLE ASSY, AIR OUTLET
88570-95J0008	LH5#,6#,YH50,60..COM..GEN IVORY,IVORY	12/1982 - 08/1985	2
88570E - GRILLE ASSY, AIR OUTLET
88570-95J0008	LH5#,6#,YH50,60..COM..GEN IVORY,IVORY	12/1982 - 08/1985	2
88604F - PANEL SUB-ASSY, COOLER CONTROL
88604-95J0008	LH5#,6#,YH50,60..COM..GEN IVORY,IVORY	12/1982 - 08/1985	1
88899F - SPACER
88899-95J0208	LH5#,6#,YH50,60..COM..GEN IVORY,IVORY	12/1982 - 08/1985	4
88899F - SPACER
88899-95J0208	LH5#,6#,YH50,60..COM..GEN IVORY,IVORY	12/1982 - 08/1985	4
Common parts
90159-50028
93315-15010
93540-25020

ILLUST NO. 3 OF 4(8708-8908)LHD

Click highlighted areas on diagram

FRONT DUCT

Part #	Description	Period	Qty	Price
Common parts
90093-00609
90099-00930
90159-50134
90159-50184
90159-50203
90159-60069
90183-05103
90189-06084
90480-26003
93381-16016
93382-16016
93567-55016
93567-55018
