RZH135R-JFMGE (1996)
Toyota Hiace Van,Commuter

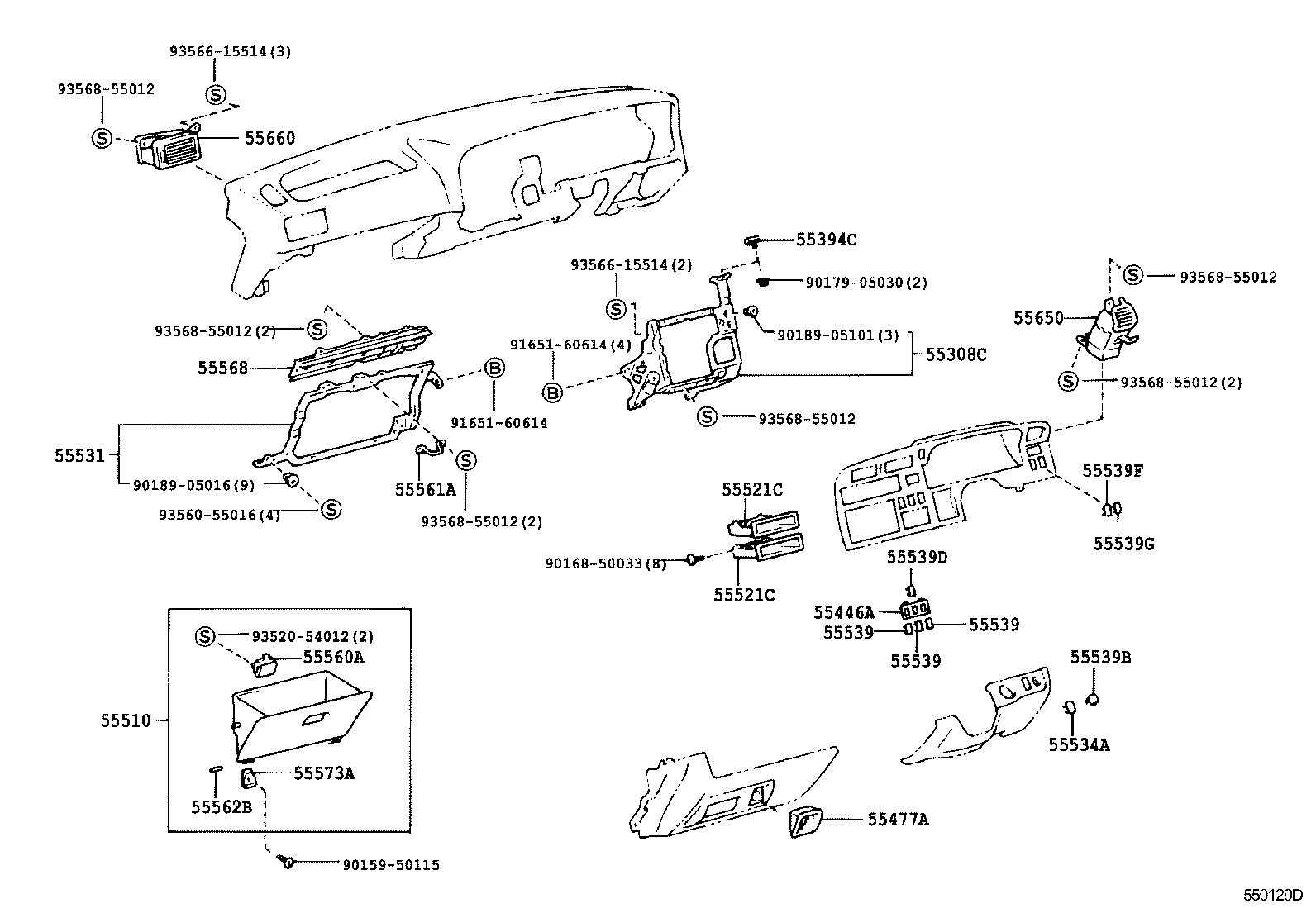

ILLUST NO. 2 OF 2(9611- )RZH135,153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-26020 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135..RHD |
1 | ||
| 55308-26061 |
RZH135 |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-26010 |
LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN;LH125,RZH103,125,135,153..RHD..(GL,STD) |
1 | ||
| 55446-26010 |
RZH115..GL;LH172..5D..06S;RZH113..RHD..06S;LH172,RZH113..5F..ARL;LH154,184,RZH125,135,15#..(03S,10S,11S,12S,14S)..(ARL,GEN) |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-95J01 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135..03S,06S,12S,14S,15S W(ILLUMINATION) |
1 | ||
| 55477-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155 W(ILLUMINATION) |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-26010B0 |
LH172..RHD;RZH115..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S BLUISH GRAY,TRIM1# |
1 | ||
| 55501-26010B0 |
RZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155 BLUISH GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
RZH112..5D;RZH112,114..03S,15S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,115,125,135,15# |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
RZH112..5D;RZH112,114..03S,15S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,115,125,135,15# |
2 | ||
| 55531 - PANEL, GLOVE COMPARTMENT | ||||
| 55305-26040 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 55534-95J00 |
RZH112..RHD..03S;LH103,11#,162,172,174,184,RZH103,104,105,113,114,135,153..RHD..5F..GEN |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
RZH103,115..(09S,12S)..CBR;LH114,115,172,184,RZH104,114..RHD;LH102,103,112,113,125,174,RZH102,103,112,113,114,125,135,153..03S,06S,10S,12S,14S BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
RZH112..5D;RZH112..03S;RZH115..GL,SGL;LH114,115,174,RZH104,105,114..RHD;LH174,RZH102,114..SRF..(03S,06S,10S,12S);LH102,103,112,113,125,154,162,172,184,RZH103,113,125,135,155..03S,06S,08S,09S,11S,12S,14S,15S BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
RZH103,115..(09S,12S)..CBR;LH114,115,172,184,RZH104,114..RHD;LH102,103,112,113,125,174,RZH102,103,112,113,114,125,135,153..03S,06S,10S,12S,14S BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
RZH112..5D;RZH112..03S;RZH115..GL,SGL;LH114,115,174,RZH104,105,114..RHD;LH174,RZH102,114..SRF..(03S,06S,10S,12S);LH102,103,112,113,125,154,162,172,184,RZH103,113,125,135,155..03S,06S,08S,09S,11S,12S,14S,15S BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
RZH103,115..(09S,12S)..CBR;LH114,115,172,184,RZH104,114..RHD;LH102,103,112,113,125,174,RZH102,103,112,113,114,125,135,153..03S,06S,10S,12S,14S BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
RZH112..5D;RZH112..03S;RZH115..GL,SGL;LH114,115,174,RZH104,105,114..RHD;LH174,RZH102,114..SRF..(03S,06S,10S,12S);LH102,103,112,113,125,154,162,172,184,RZH103,113,125,135,155..03S,06S,08S,09S,11S,12S,14S,15S BLACK,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-95J02C0 |
RZH112..5D;RZH112,115..03S,10S,12S,15S;LH154,RZH103,105,113,125,155..03S,06S,08S,09S,11S,12S,14S;LH102,103,104,11#,162,172,174,184,RZH102,104,114,135..GCC,GEN BLACK,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LH174..GL;LH172..RHD;LH102,103,104,112,113,114,125,184,RZH10#,112,114,115..CBR,DSL;LH115,RZH103,113,125,135,153..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
RZH112..5D;LH174..GCC,GEN;LH115,154,RZH105,112,115..(03S,11S,12S,15S)..(GCC,GEN);LH102,103,104,112,113,114,125,162,172,184,RZH102,103,104,113,114,125,135 BLACK,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LH102,103,112,113,RZH102,103,112,113,135,153 BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
LH103,112,113,172,RZH102,103,112,113,135,153..RHD..(03S,06S,12S) BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
RZH112..RHD..03S;LH103,112,113,162,172,RZH103,113,135..RHD BLACK,TRIM1# |
1 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,125,135 BLACK,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-26010B0 |
RZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155 BLUISH GRAY,TRIM1# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 55568 - PLATE, GLOVE COMPARTMENT DOOR PAD | ||||
| 55568-26010 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-95J08 |
LH172..GL..DEFI;RZH112..RHD..03S;LH103,11#,162,172,174,184,RZH103,104,105,113,114,135,153..RHD..(GL,STD)..GEN..(CBR,DSL,EFI) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-26050B0 |
RZH135,153 BLUISH GRAY,TRIM1# |
1 | ||
| 55660-26050B0 |
RZH135 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-50115 | ||||
| 90168-50033 | ||||
| 90179-05030 | ||||
| 90189-05016 | ||||
| 90189-05101 | ||||
| 91651-60614 | ||||
| 93520-54012 | ||||
| 93560-55016 | ||||
| 93566-15514 | ||||
| 93568-55012 | ||||

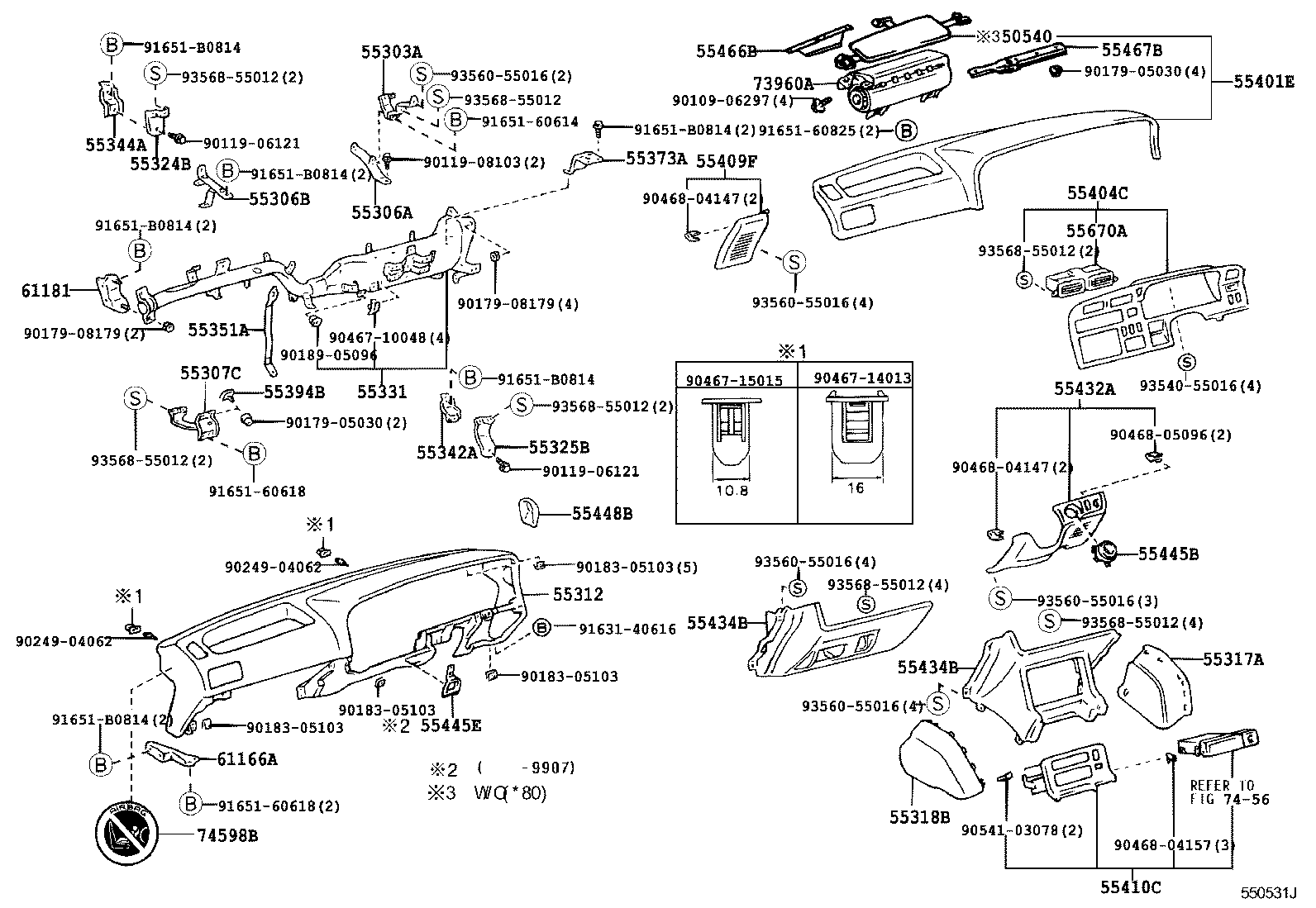

ILLUST NO. 1 OF 2(9611- )RZH135,153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-26010 |
RZH135,153 |
1 | ||
| 55303-26010 |
RZH135,153 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-95J01 |
LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH112,184,RZH125,135,153..RHD;LH172,174..RHD..4D..(06S,15S)..STD |
1 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-26060 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-95J04 |
RZH135,153 |
1 | ||
| 55307-95J04 |
RZH135,153 |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-26090B0 |
RZH135,153 BLUISH GRAY,TRIM1# |
1 | ||
| 55312-95J10B0 |
RZH135,153 BLUISH GRAY,TRIM1# |
1 | ||
| 55312-26091B0 |
RZH135,153 BLUISH GRAY,TRIM1# |
1 | ||
| 55312-26091B0 |
RZH135 BLUISH GRAY,TRIM1# |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-95J03 |
RZH135,153 |
1 | ||
| 55324-95J03 |
RZH135,153 |
1 | ||
| 55325B - BRACKET, INSTRUMENT PANEL, NO.5 | ||||
| 55325-95J03 |
RZH135,153 |
1 | ||
| 55325-95J03 |
RZH135,153 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-26041 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135..RHD |
1 | ||
| 55330-26042 |
LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135..RHD |
1 | ||
| 55330-26043 |
RZH112..RHD..03S;LH11#,162,172,174,184,RZH103,105,113,114,125,135..RHD |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-95J01 |
RZH135,153 |
1 | ||
| 55342-95J01 |
RZH135,153 |
1 | ||
| 55344A - BRACE, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55344-95J00 |
RZH135,153 |
1 | ||
| 55344-95J00 |
RZH135,153 |
1 | ||
| 55373A - BRACKET, OIL RESERVOIR TANK | ||||
| 55373-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-95J13B0 |
RZH135,153 BLUISH GRAY,TRIM1# |
1 | ||
| 55401-95J13B0 |
RZH135 BLUISH GRAY,TRIM1# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-26260 |
LH172,184,RZH135,153..GL |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-26010B0 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135,153..RHD..(03S,06S,12S,14S,15S) BLUISH GRAY,TRIM1# |
1 | ||
| 55473-26010B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-26021B0 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135,153..RHD..(03S,06S,12S,14S,15S) BLUISH GRAY,TRIM1# |
1 | ||
| 55432-26021B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-26031B0 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26030B0 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26032B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-26031B0 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26030B0 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26032B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 55445E - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-26090 |
RZH135 |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-95J00B0 |
RZH135 BLUISH GRAY,TRIM1# |
1 | ||
| 55448-95J00B0 |
RZH135,153 BLUISH GRAY,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-95J03 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 61166A - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-95J00 |
LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH112,184,RZH125,135,153..RHD;LH172,174..RHD..4D..(06S,15S)..STD |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-95J04 |
LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH112,184,RZH125,135,153..RHD;LH172,174..RHD..4D..(06S,15S)..STD |
1 | ||
| Common parts | ||||
| 90109-06297 | ||||
| 90119-06121 | ||||
| 90119-08103 | ||||
| 90179-05030 | ||||
| 90179-08179 | ||||
| 90183-05103 | ||||
| 90189-05096 | ||||
| 90249-04062 | ||||
| 90467-10048 | ||||
| 90467-14013 | ||||
| 90467-15015 | ||||
| 90468-04147 | ||||
| 90468-04157 | ||||
| 90468-05096 | ||||
| 90541-03078 | ||||
| 91631-40616 | ||||
| 91651-60614 | ||||
| 91651-60618 | ||||
| 91651-60825 | ||||
| 91651-B0814 | ||||
| 93540-55016 | ||||
| 93560-55016 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7456 | ||||
