RZH114L-BRMRSX (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1998
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

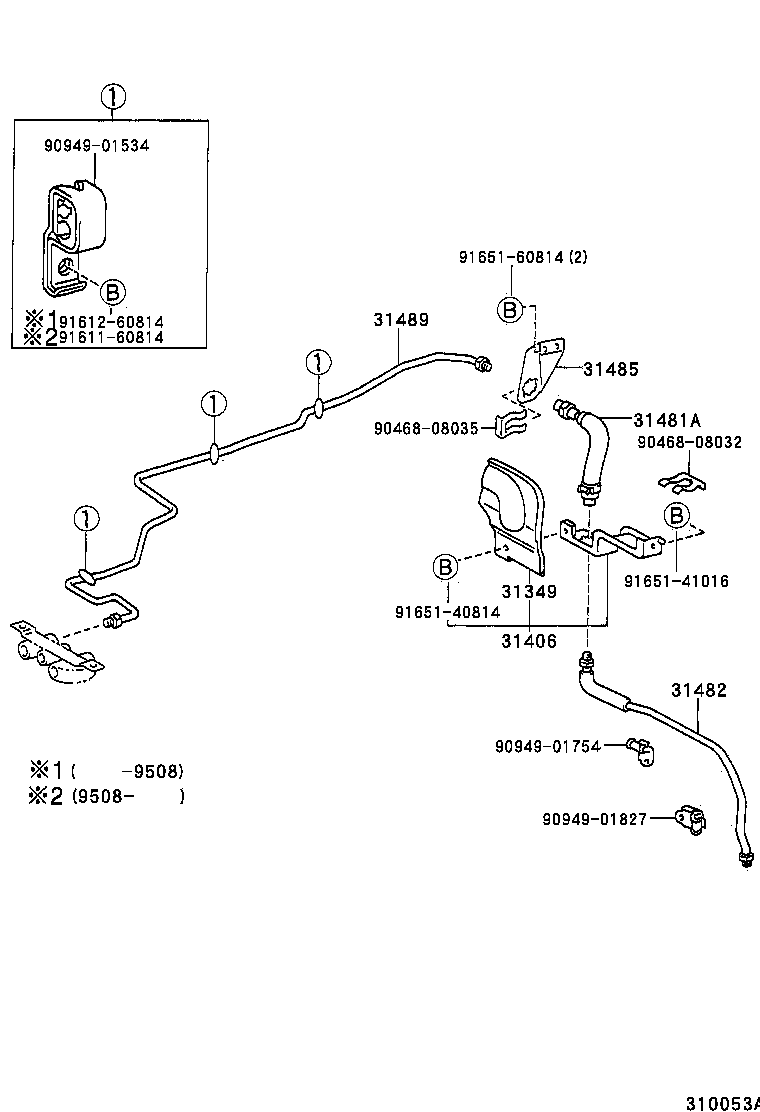

ILLUST NO. 2 OF 2(9308-9710)LH10#,11#,125..5F

Click highlighted areas on diagram

diagram 31349 31406 31481A 31482 31485 31489 9046808032 9046808035 9094901534 9094901754 9094901827 9161160814 9161260814 9165140814 9165141016 9165160814
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26030

RZH10#,11#,125..4F,5F

 1
31349-26040

LH10#,11#,125..5F

 1
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26050

LH10#,11#,125..5F

 1
31406-26042

RZH10#,11#,125..5F

 1
31481A - HOSE, CLUTCH, NO.1
90931-01036

RZH10#,11#,125..4F,5F

 1
90931-01075

LH10#,11#,125..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26170

LH10#,11#,125..5F

 1
31482-26160

RZH10#,11#,125..4F,5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
31485-26080

LH10#,11#,125..5F

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26190

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
31489-26200

LH10#,11#,125,RZH10#,11#,125..5F

 1
Common parts
90468-08032
90468-08035
90949-01534
90949-01754
90949-01827
91611-60814
91612-60814
91651-40814
91651-41016
91651-60814

ILLUST NO. 2 OF 2(9308-9508)RZH10#,11#,125..5F

Click highlighted areas on diagram

diagram 31406 31406 31481A 31482 31484A 31485 31489 9046808032 9046808035 9094901534 9094901543 9094901827 9161260814 9165140816 9165160814 9165160814 9165160820
Part # Description Qty Price
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26050

LH10#,11#,125..5F

 1
31406-26042

RZH10#,11#,125..5F

 1
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26050

LH10#,11#,125..5F

 1
31406-26042

RZH10#,11#,125..5F

 1
31481A - HOSE, CLUTCH, NO.1
90931-01036

RZH10#,11#,125..4F,5F

 1
90931-01075

LH10#,11#,125..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26170

LH10#,11#,125..5F

 1
31482-26160

RZH10#,11#,125..4F,5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-26120

RZH10#,11#,125..4F,5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
31485-26080

LH10#,11#,125..5F

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26190

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
31489-26200

LH10#,11#,125,RZH10#,11#,125..5F

 1
Common parts
90468-08032
90468-08035
90949-01534
90949-01543
90949-01827
91612-60814
91651-40816
91651-60814
91651-60820

ILLUST NO. 2 OF 2(9710- )LH10#,11#,125..5F

Click highlighted areas on diagram

diagram 31349 31406 31481A 31482 31484C 31485 31489 9046110753 9046808032 9046808035 9094901534 9094901827 9161160814 9161160816 9162640818 9165140820 9165160814 9165161020
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26030

RZH10#,11#,125..4F,5F

 1
31349-26040

LH10#,11#,125..5F

 1
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26050

LH10#,11#,125..5F

 1
31406-26042

RZH10#,11#,125..5F

 1
31481A - HOSE, CLUTCH, NO.1
90931-01036

RZH10#,11#,125..4F,5F

 1
90931-01075

LH10#,11#,125..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26170

LH10#,11#,125..5F

 1
31482-26160

RZH10#,11#,125..4F,5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
31485-26080

LH10#,11#,125..5F

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26190

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
31489-26200

LH10#,11#,125,RZH10#,11#,125..5F

 1
Common parts
90461-10753
90468-08032
90468-08035
90949-01534
90949-01827
91611-60814
91611-60816
91626-40818
91651-40820
91651-60814
91651-61020

ILLUST NO. 2 OF 2(9508- )RZH10#,11#,125,135,15#..5F

Click highlighted areas on diagram

diagram 31481A 31482 31484A 31485 31489 9046110655 9046808032 9046808035 9094901543 9094901827 9094901A47 91611B0816 9161260816 9161260816
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
90931-01036

RZH10#,11#,125..4F,5F

 1
90931-01075

LH10#,11#,125..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26170

LH10#,11#,125..5F

 1
31482-26160

RZH10#,11#,125..4F,5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-26120

RZH10#,11#,125..4F,5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
31485-26080

LH10#,11#,125..5F

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26190

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
31489-26200

LH10#,11#,125,RZH10#,11#,125..5F

 1
Common parts
90461-10655
90468-08032
90468-08035
90949-01543
90949-01827
90949-01A47
91611-B0816
91612-60816
