RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter
ILLUST NO. 1 OF 5(8908-9308)RHD..GEN

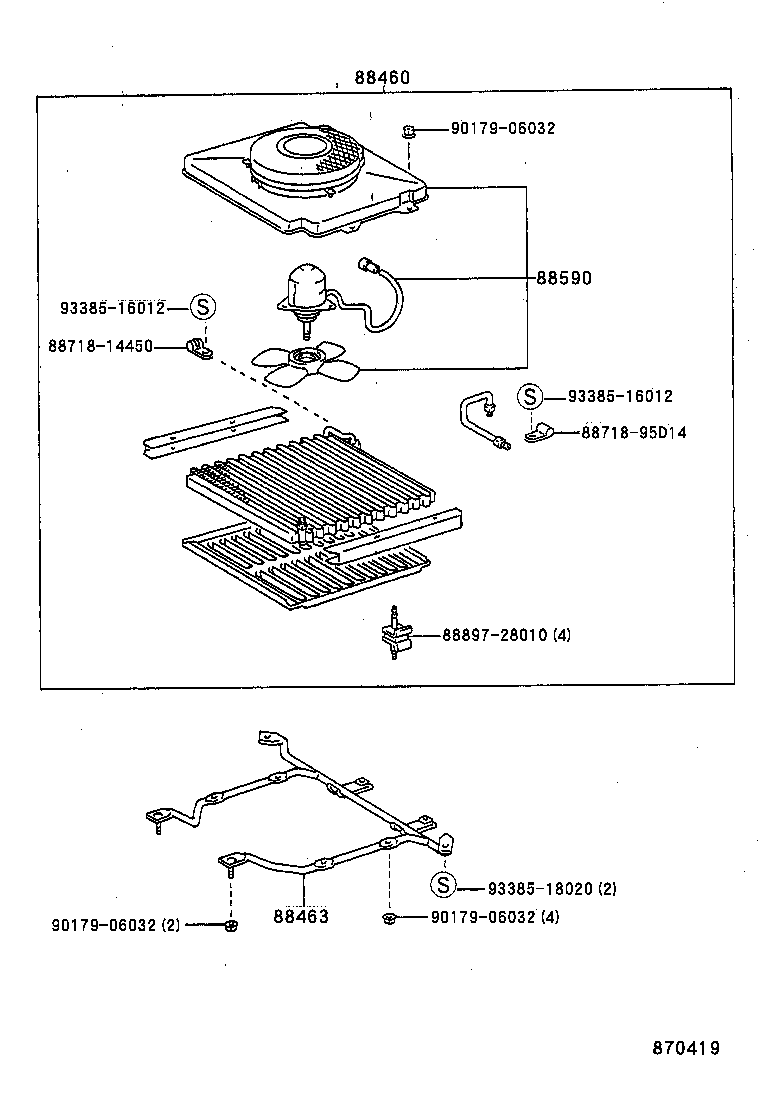

CONDENSER---SINGLE(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J15 |
LH102,103,112,113..06S;RZH102,103,112,113..RHD..STD DEALER OPTION |
1 | ||
| 88460-95J21 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN MAKER OPTION |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-95J25 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26010 |
LH102,103,112,113,RZH102,112,113..GEN MAKER OPTION |
1 | ||
| 88590-95J00 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| Common parts | ||||
| 88718-14450 | ||||
| 88718-95D14 | ||||
| 88897-28010 | ||||
| 90179-06032 | ||||
| 93385-16012 | ||||
| 93385-18020 | ||||
ILLUST NO. 4 OF 5(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
LH102,103,112,113,RZH102,103,112,113..GEN 250G |
5 | ||
ILLUST NO. 2 OF 5(8908-9308)RHD

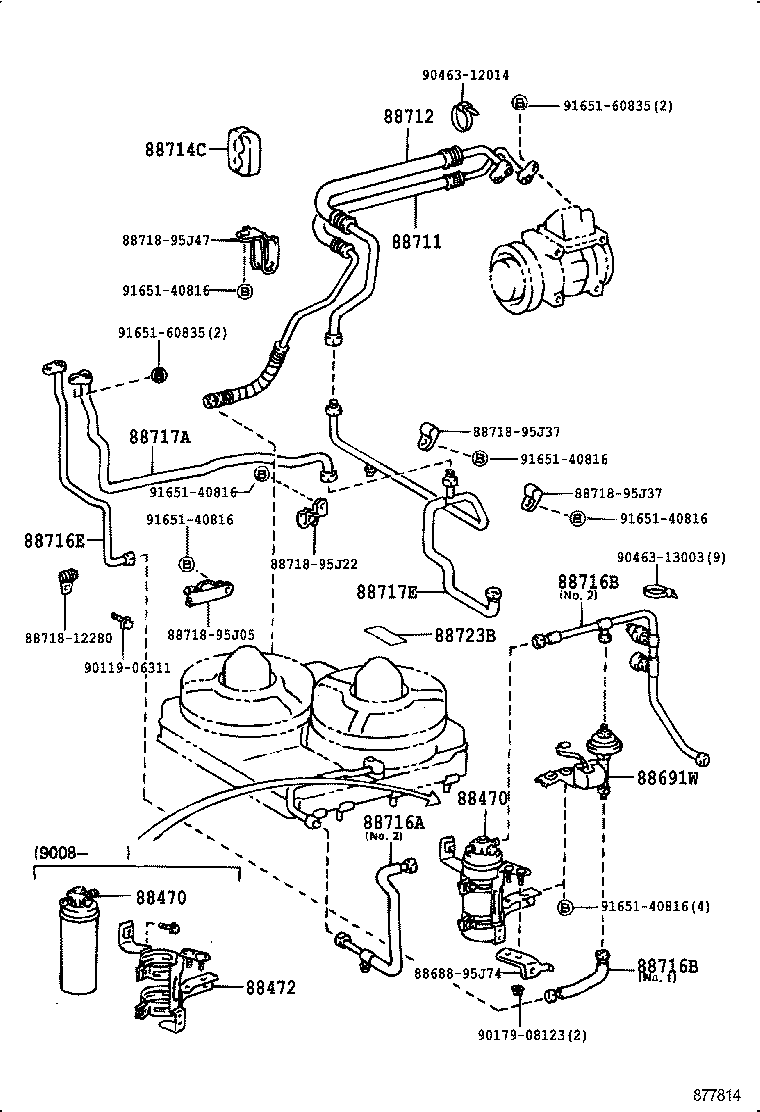

FRONT PIPING---DUAL(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470-20080 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470-20080 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-95J02 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| Common parts | ||||
| 88463-95J29 | ||||
| 88688-95J74 | ||||
| 88688-95J77 | ||||
| 88718-12280 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J37 | ||||
| 88718-95J47 | ||||
| 88718-95J70 | ||||
| 90119-06311 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60835 | ||||
ILLUST NO. 2 OF 5(8908-9308)RHD

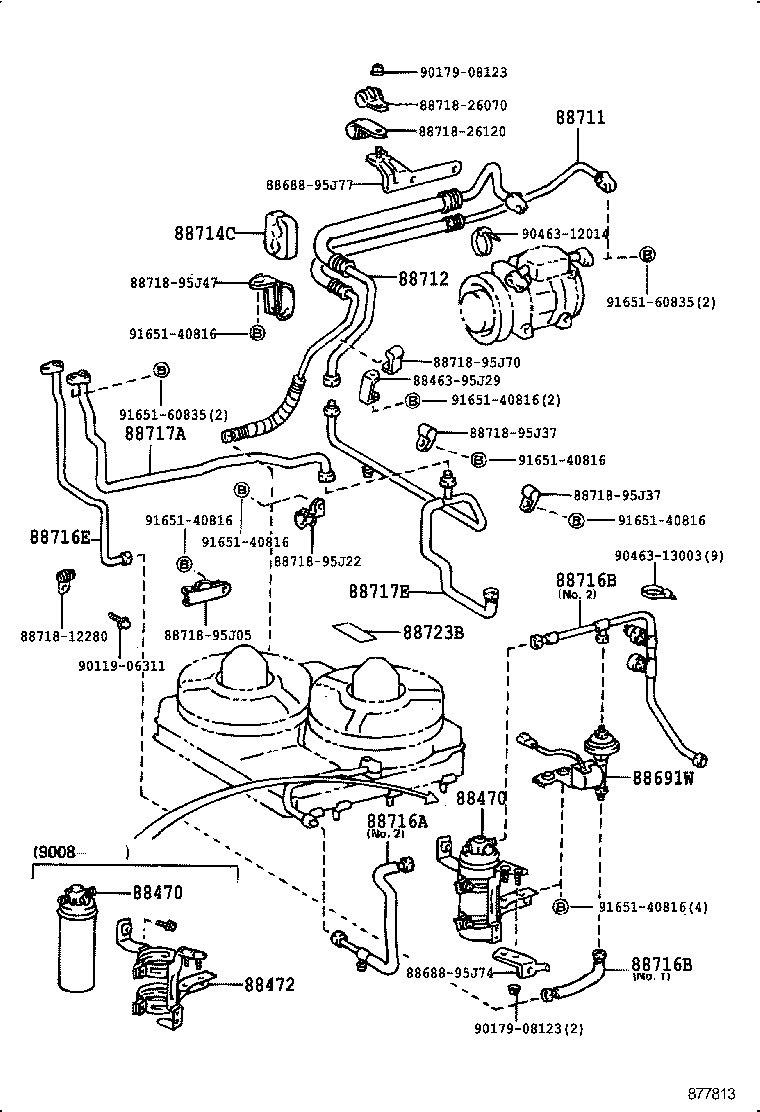

FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470-20080 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470-20080 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-95J02 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88718-12280 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J37 | ||||
| 88718-95J47 | ||||
| 90119-06311 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60835 | ||||
ILLUST NO. 2 OF 5(8908-9308)RHD

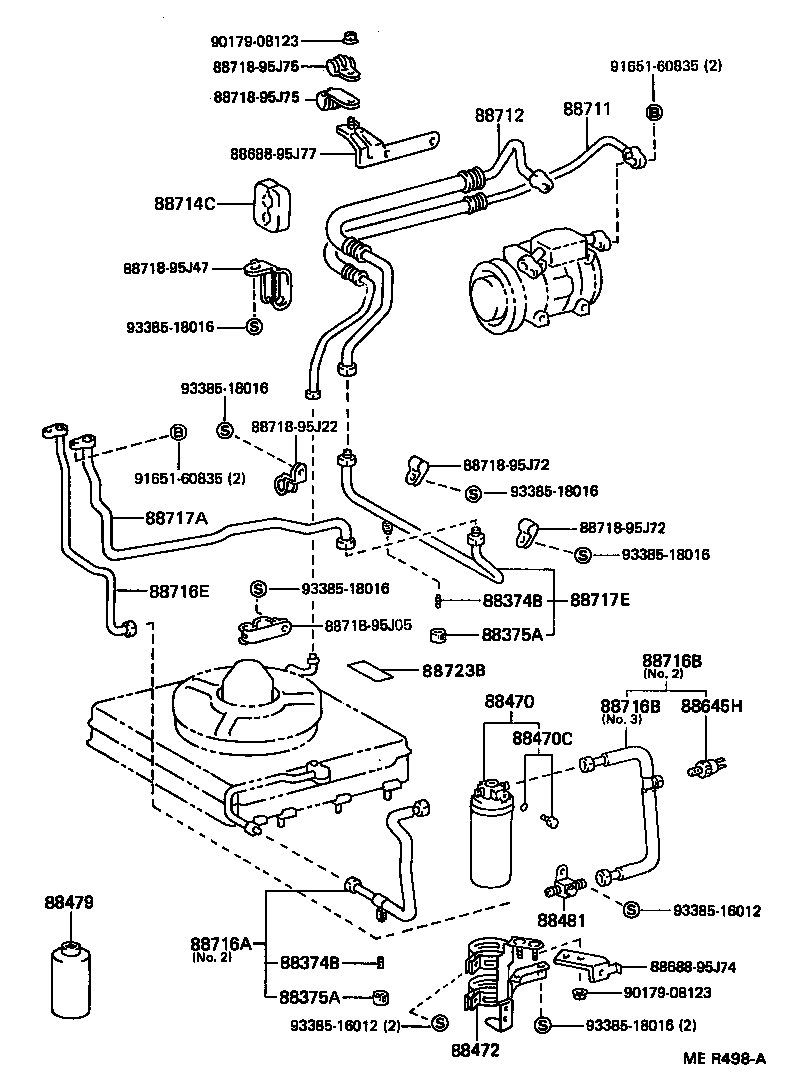

FRONT PIPING---SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470-20080 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-20040 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-95J02 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
LH102,103,112,113,RZH102,103,112,113..GEN 250G |
5 | ||
| 88481 - GLASS, SIGHT | ||||
| 88481-87002 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J47 | ||||
| 88718-95J72 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 91651-B0820 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||

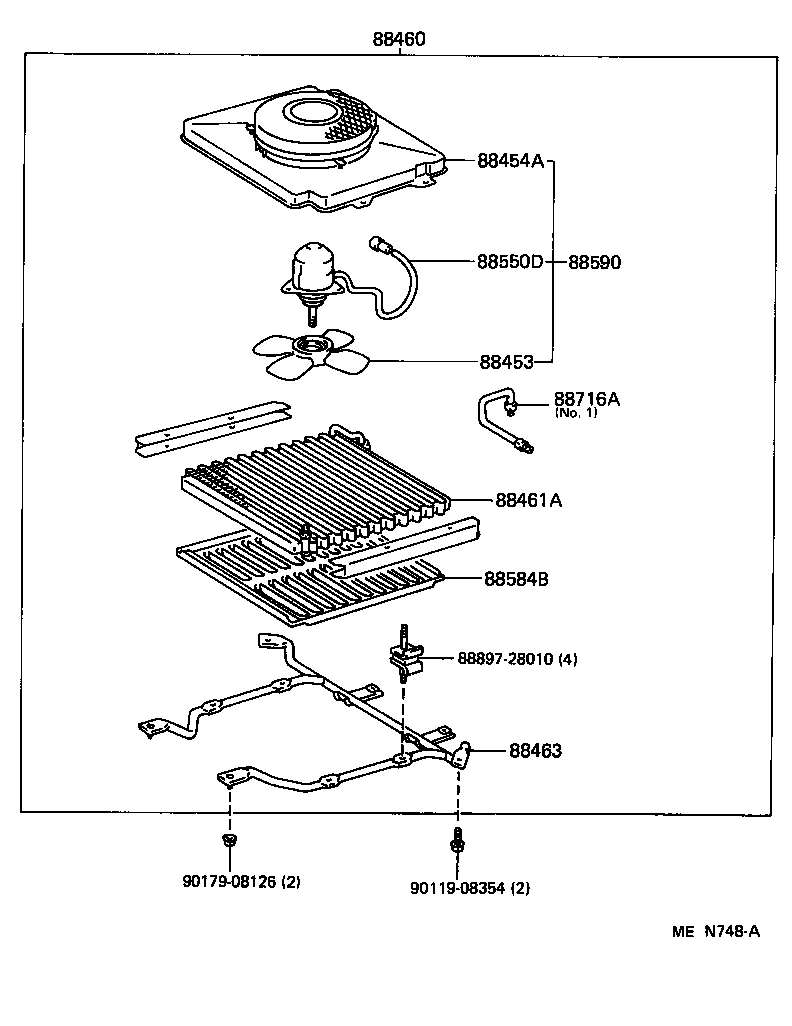

ILLUST NO. 1 OF 5(8908-9308)RHD..GEN
CONDENSER(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
LH102,103,112,113,RZH102,103,112,113..GEN |
1 | ||
| 88453-95J00 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J05 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454-26010 |
LH102,103,112,113,RZH102,103,112,113..GEN |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J15 |
LH102,103,112,113..06S;RZH102,103,112,113..RHD..STD DEALER OPTION |
1 | ||
| 88460-95J21 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN MAKER OPTION |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J09 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-95J25 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-95J07 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88550-26010 |
LH102,103,112,113,RZH102,103,112,113..GEN |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-95J00 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26010 |
LH102,103,112,113,RZH102,112,113..GEN MAKER OPTION |
1 | ||
| 88590-95J00 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| Common parts | ||||
| 88897-28010 | ||||
| 90119-08354 | ||||
| 90179-08126 | ||||

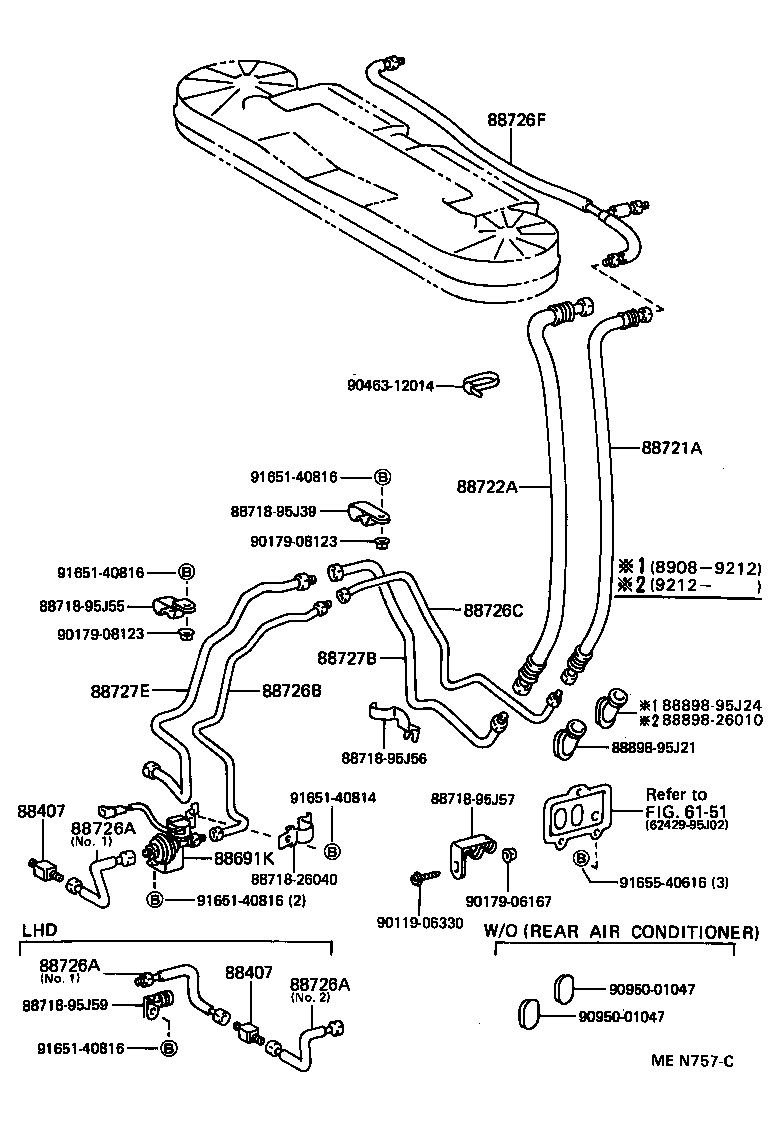

ILLUST NO. 3 OF 5(8908-9308)
REAR PIPING(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88718-26040 | ||||
| 88718-95J39 | ||||
| 88718-95J55 | ||||
| 88718-95J56 | ||||
| 88718-95J57 | ||||
| 88718-95J59 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90119-06330 | ||||
| 90179-06167 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90950-01047 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 6151 | ||||

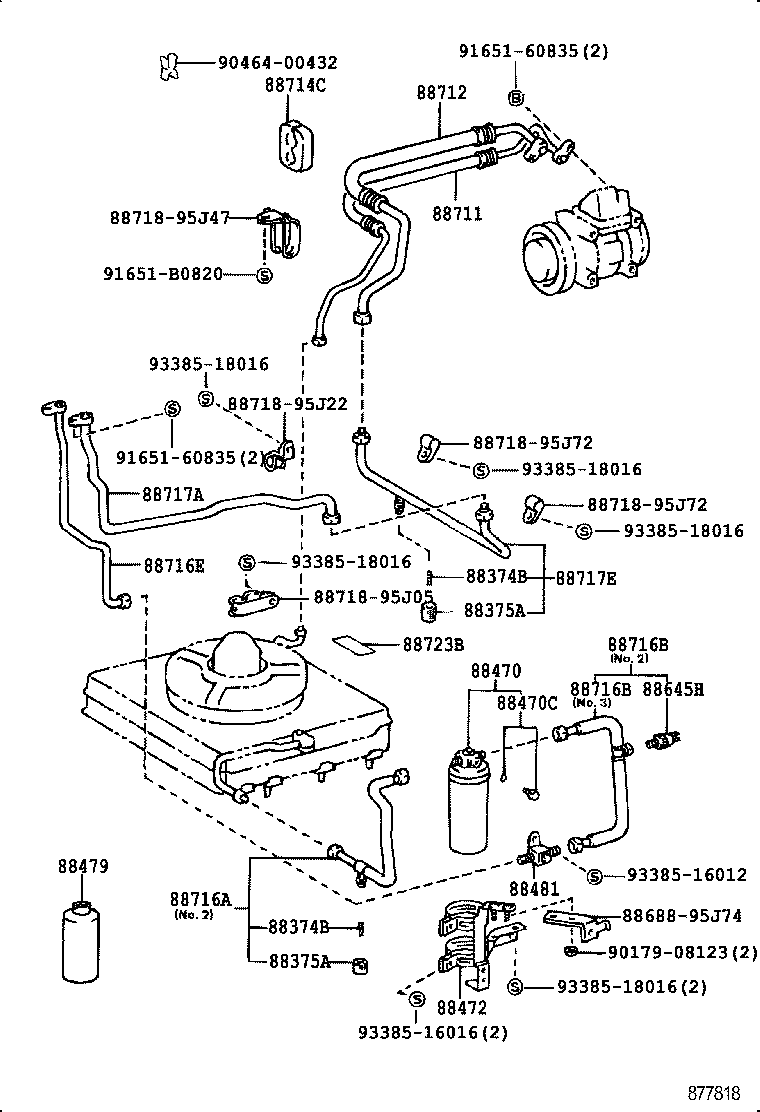

ILLUST NO. 2 OF 5(8908-9308)RHD
FRONT PIPING---SINGLE(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470-20080 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-20040 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-95J02 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
LH102,103,112,113,RZH102,103,112,113..GEN 250G |
5 | ||
| 88481 - GLASS, SIGHT | ||||
| 88481-87002 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88688-95J77 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J47 | ||||
| 88718-95J72 | ||||
| 88718-95J75 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 93385-16012 | ||||
| 93385-18016 | ||||

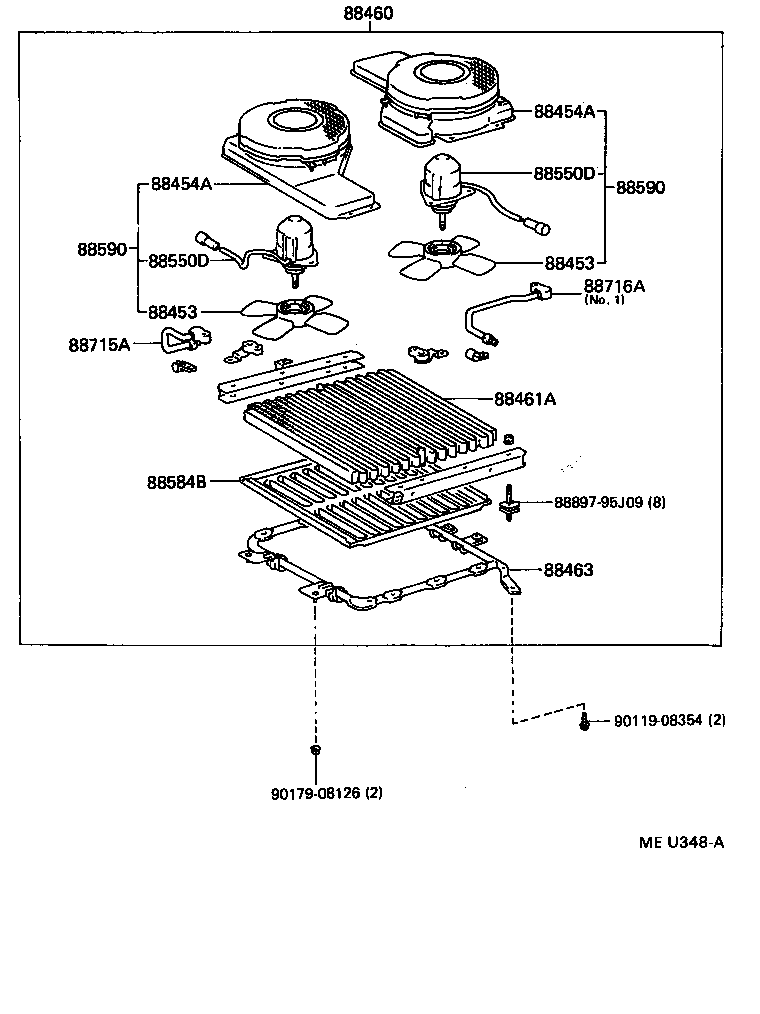

ILLUST NO. 1 OF 5(8908-9308)RHD..GEN
CONDENSER(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
LH102,103,112,113,RZH102,103,112,113..GEN |
1 | ||
| 88453-95J00 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
LH102,103,112,113,RZH102,103,112,113..GEN |
1 | ||
| 88453-95J00 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J05 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454-26010 |
LH102,103,112,113,RZH102,103,112,113..GEN |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J05 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454-26010 |
LH102,103,112,113,RZH102,103,112,113..GEN |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J15 |
LH102,103,112,113..06S;RZH102,103,112,113..RHD..STD DEALER OPTION |
1 | ||
| 88460-95J21 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN MAKER OPTION |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J09 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-95J25 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-95J07 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88550-26010 |
LH102,103,112,113,RZH102,103,112,113..GEN |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-95J07 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88550-26010 |
LH102,103,112,113,RZH102,103,112,113..GEN |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-95J00 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26010 |
LH102,103,112,113,RZH102,112,113..GEN MAKER OPTION |
1 | ||
| 88590-95J00 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26010 |
LH102,103,112,113,RZH102,112,113..GEN MAKER OPTION |
1 | ||
| 88590-95J00 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| Common parts | ||||
| 88897-95J09 | ||||
| 90119-08354 | ||||
| 90179-08126 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
