RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908-9808)LH10#,11#,125..RHD

Click highlighted areas on diagram

REAR

diagram 8712428040 8712428040 87208A 87208B 87208C 87240A 87255A 87255B 87255C 87255D 87255E 87256A 87256B 87256D 87256E 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220
Part # Description Qty Price
Common parts
87124-28040
91651-40816
96112-30220

ILLUST NO. 2 OF 2(8908-9808)RZH102,103,104,11#,125,135,153..RHD

Click highlighted areas on diagram

REAR

diagram 8712428040 8712428040 87208B 87208C 87240A 87248B 87255A 87255B 87255C 87255D 87255E 87256A 87256B 87256E 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220
Part # Description Qty Price
Common parts
87124-28040
91651-40816
96112-30220

ILLUST NO. 1 OF 2(8908-9907)RZH102,103,104,11#,125,135,153..RHD ;(8908- )RZH10#,11#,155..LHD

Click highlighted areas on diagram

FRONT

diagram 8712495J14 87240 87240 87245A 87245B 87245C 87245C 87245E 87245E 87246A 87246A 87246E 87248A 87248A 87249A 87249A 87249A 87256E 9046722011 9046722011 9046722011 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95J08

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J08

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J46

LH10#,11#;LH125..ARL

 1
87245-95J48

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH102,104,112,114,125;RZH103,105,113,115..CBR;RZH113..4D..(03S,06S,09S)..EFI

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30300

RZH10#,11#,125

*H,L=220

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-95J50

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-95J50

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J49

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J49

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J05

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J05

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

RZH10#,11#,125

L=300

 1
87245-95J47

LH10#,11#;LH125..ARL

 1
87248A - PIPE, HEATER WATER INLET, A
87208-95J52

RZH10#,11#,125

 1
87248A - PIPE, HEATER WATER INLET, A
87208-95J52

RZH10#,11#,125

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95J45

RZH112,113..GL,STD;RZH10#,114,115,125..ARL,GCC,GEN

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95J45

RZH112,113..GL,STD;RZH10#,114,115,125..ARL,GCC,GEN

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95J45

RZH112,113..GL,STD;RZH10#,114,115,125..ARL,GCC,GEN

 1
Common parts
87124-95J14
90467-22011
91651-40816
96112-30250
96134-42100

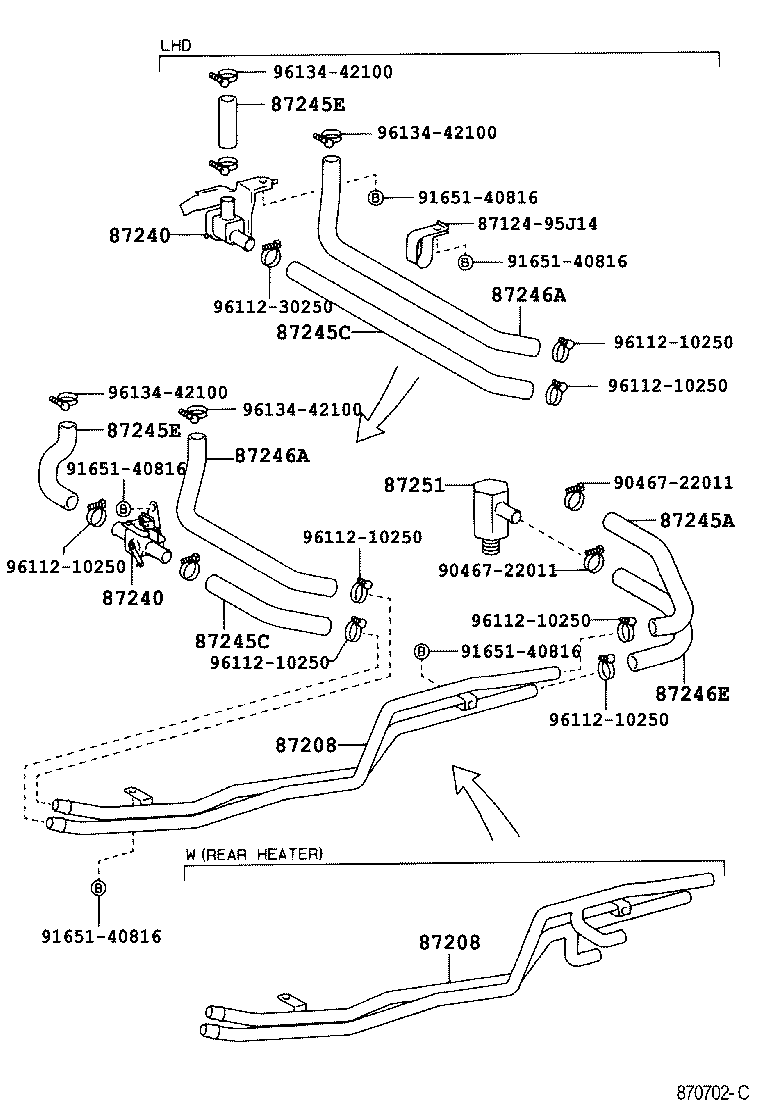

ILLUST NO. 1 OF 2(8908- )LH174..10S,15S ; (8908- )LH10#,11#,125,154,16#,172,176,184

Click highlighted areas on diagram

FRONT

diagram 8712495J14 87208 87208 87240 87240 87245A 87245C 87245C 87245E 87245E 87246A 87246A 87246E 87251 9046722011 9046722011 9165140816 9165140816 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611230250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J50

LH112,125..03S,06S,14S;LH10#,113,114,115..ARL,GCC,GEN

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J50

LH112,125..03S,06S,14S;LH10#,113,114,115..ARL,GCC,GEN

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J08

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J08

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J46

LH10#,11#;LH125..ARL

 1
87245-95J48

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH102,104,112,114,125;RZH103,105,113,115..CBR;RZH113..4D..(03S,06S,09S)..EFI

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-95J50

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-95J50

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J49

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J49

LH10#,11#,125,RZH10#,11#,125..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J05

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J05

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

RZH10#,11#,125

L=300

 1
87245-95J47

LH10#,11#;LH125..ARL

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-89113

LH10#,11#,125

 1
Common parts
87124-95J14
90467-22011
91651-40816
96112-10250
96112-30250
96134-42100
