RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(8908- )

Click highlighted areas on diagram

REAR UNIT(DEALER OPT)

diagram 8271195704 8271195704 88510T 88539C 88539C 88539J 88539J 88539K 88539K 88539K 88539K 8856995J00 8857895J01 8857895J01 8857895J09 8857895J09 88605C 88605S 88635R 8889787101 8889787101 88898D 8889995J19 88899G 9041315001 9041315001 9048020013 9048026022 9338516014 9354014012 9354014012 9354015020
Part # Description Qty Price
Common parts
82711-95704
88569-95J00
88578-95J01
88578-95J09
88897-87101
88899-95J19
90413-15001
90480-20013
90480-26022
93385-16014
93540-14012
93540-15020

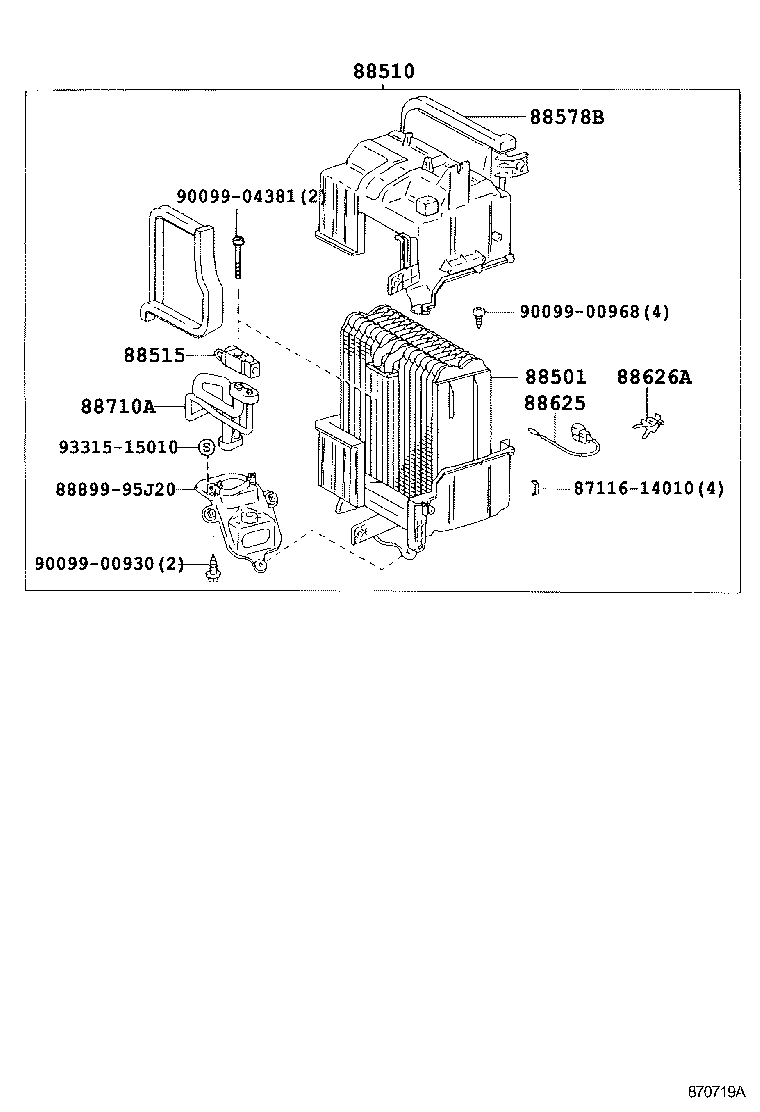

ILLUST NO. 1 OF 4(8908-9308)

Click highlighted areas on diagram

FRONT(DEALER OPT)

diagram 8711614010 88501 88510 88515 88578B 88625 88626A 88710A 8889995J20 9009900930 9009900968 9009904381 9331515010
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95J11

LH10#,11#,125,RZH10#,11#,125..RHD

 1
88510 - UNIT ASSY, COOLER
88510-95J58

LH10#,11#,125,RZH10#,11#,125..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-28020

LH10#,11#,125,RZH10#,11#,125

 1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00

LH10#,11#,125,RZH10#,11#,125

 1
88626A - HOLDER, THERMISTOR
88626-33010

RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,05S,06S,09S,10S,12S)..(CBR,DSL)

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-26010

LH10#,11#,125,RZH10#,11#,125..RHD

 1
Common parts
87116-14010
88899-95J20
90099-00930
90099-00968
90099-04381
93315-15010

ILLUST NO. 1 OF 4(8908-9508)

Click highlighted areas on diagram

FRONT(MAKER OPT)

diagram 8271595J27 8271595J28 88501 88510 88515 88539 88605 88630 88630A 88630A 88630B 88630B 88648 88650 8868895J75 8868895J85 88710A 88723A 8889926030 88899B 9011906361 9015960096 9015960096 9018906084 9046805047 9165140616 9356055016 9356055016
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95J11

LH10#,11#,125,RZH10#,11#,125..RHD

 1
88510 - UNIT ASSY, COOLER
88510-95J58

LH10#,11#,125,RZH10#,11#,125..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-28020

LH10#,11#,125,RZH10#,11#,125

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701

LH10#,11#,125,RZH10#,11#,125

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J47

RZH102,103,112,113..RHD..STD

W(HEATER)

 1
88605-95N00

LH102,103,112,113..RHD

W(HEATER)

 1
88605-95N10

LH102,103,112,113..RHD..GEN

 1
88630 - RELAY ASSY, COOLER
90987-02004

RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S

 2
90987-02004

LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)

 1
88630-14030

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88648 - WIRING, COOLER, NO.1
88648-95J24

RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH113..LHD..STD;LH10#,11#,RZH104,105,112,114,115..(GL,STD)..(GCC,GEN)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101

RZH102,103,112,113..STD

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-26010

LH10#,11#,125,RZH10#,11#,125..RHD

 1
88723A - LABEL, COOLER SERVICE CAUTION
88723-17030

RZH103,113..GEN;LH102,103,112,113,RZH102,112

 1
88899B - COVER, COOLER CONTROL
88891-26050

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
88891-95J27

LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,RZH102,103,104,112,114,115..RHD..GEN

 1
Common parts
82715-95J27
82715-95J28
88688-95J75
88688-95J85
88899-26030
90119-06361
90159-60096
90189-06084
90468-05047
91651-40616
93560-55016

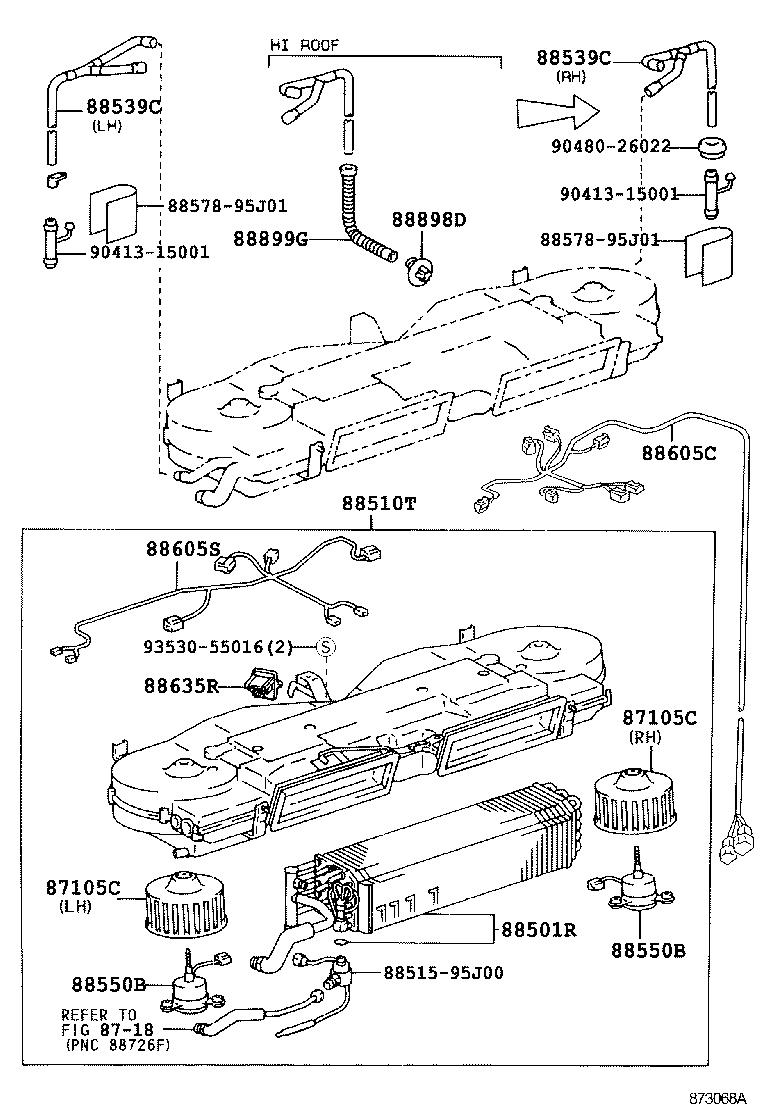

ILLUST NO. 2 OF 4(8908-9308)

Click highlighted areas on diagram

REAR UNIT(MAKER OPT)

diagram 87105C 87105C 8718 88501R 88510T 8851595J00 88539C 88539C 88550B 88550B 8857895J01 8857895J01 88605C 88605S 88635R 88898D 88899G 9041315001 9041315001 9048026022 9353055016
Part # Description Qty Price
Common parts
88515-95J00
88578-95J01
90413-15001
90480-26022
93530-55016
Linked diagrams
8718

ILLUST NO. 3 OF 4(8908- )

Click highlighted areas on diagram

REAR UNIT BRACKET(DEALER OPT)

diagram 88536 88536 88536 88536 88536A 88536A 88536A 88536A 88536B 88536B 8868826010 8868826010 8868826010 8868826010 9009120604 9009120604 9009120604 9009120604 9009120604 9009120604 9009120604 9009120604 9017906274 9017906274 9017906274 9017906274 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9354015012 9354015012 9354015012 9354015012 9354015012 9354015012 9354015012 9354015012
Part # Description Qty Price
Common parts
88688-26010
90091-20604
90179-06274
93385-16014
93540-15012

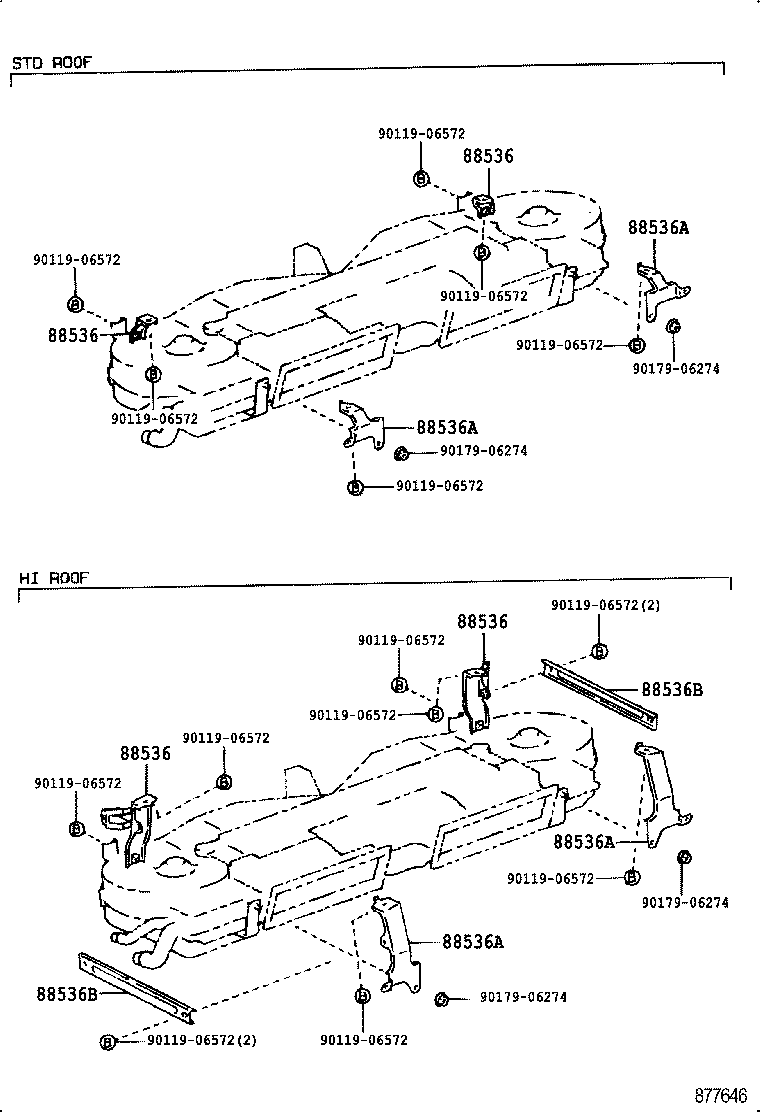

ILLUST NO. 3 OF 4(8908-9308)

Click highlighted areas on diagram

REAR UNIT BRACKET(MAKER OPT)

diagram 88536 88536 88536 88536 88536A 88536A 88536A 88536A 88536B 88536B 9011906572 9011906572 9011906572 9011906572 9011906572 9011906572 9011906572 9011906572 9011906572 9011906572 9011906572 9011906572 9011906572 9011906572 9017906274 9017906274 9017906274 9017906274
Part # Description Qty Price
Common parts
90119-06572
90179-06274

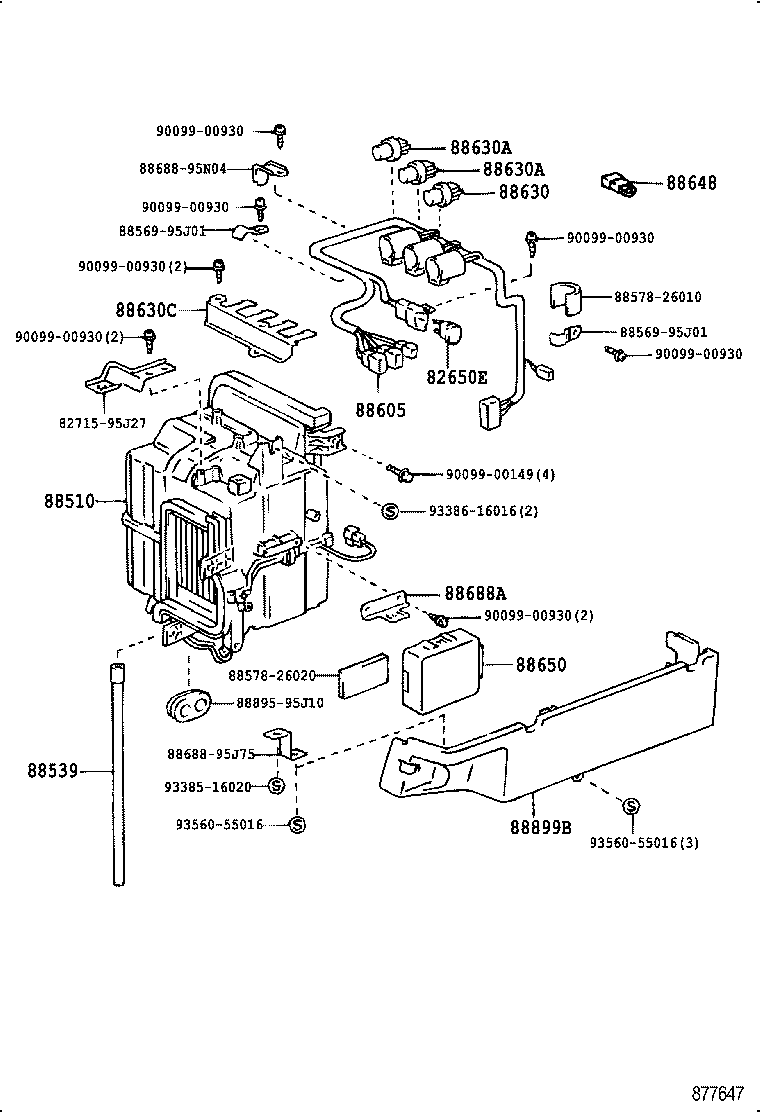

ILLUST NO. 1 OF 4(8908-9308)

Click highlighted areas on diagram

FRONT--SINGLE(DEALER OPT)

diagram 82650E 8271595J27 88510 88539 8856995J01 8856995J01 8857826010 8857826020 88605 88630 88630A 88630A 88630C 88648 88650 8868895J75 8868895N04 88688A 8889595J10 88899B 9009900149 9009900930 9009900930 9009900930 9009900930 9009900930 9009900930 9009900930 9338516020 9338616016 9356055016 9356055016
Part # Description Qty Price
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010

LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD

20A

 1
88510 - UNIT ASSY, COOLER
88510-95J58

LH10#,11#,125,RZH10#,11#,125..RHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701

LH10#,11#,125,RZH10#,11#,125

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J47

RZH102,103,112,113..RHD..STD

W(HEATER)

 1
88605-95N00

LH102,103,112,113..RHD

W(HEATER)

 1
88605-95N10

LH102,103,112,113..RHD..GEN

 1
88630 - RELAY ASSY, COOLER
90987-02004

RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S

 2
90987-02004

LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)

 1
88630-14030

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88630C - BRACKET, COOLER RELAY
88631-95J00

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

 1
88648 - WIRING, COOLER, NO.1
88648-95J24

RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH113..LHD..STD;LH10#,11#,RZH104,105,112,114,115..(GL,STD)..(GCC,GEN)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101

RZH102,103,112,113..STD

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-95J86

LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD

 1
88899B - COVER, COOLER CONTROL
88891-26050

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
88891-95J27

LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,RZH102,103,104,112,114,115..RHD..GEN

 1
Common parts
82715-95J27
88569-95J01
88578-26010
88578-26020
88688-95J75
88688-95N04
88895-95J10
90099-00149
90099-00930
93385-16020
93386-16016
93560-55016

ILLUST NO. 1 OF 4(8908-9308)

Click highlighted areas on diagram

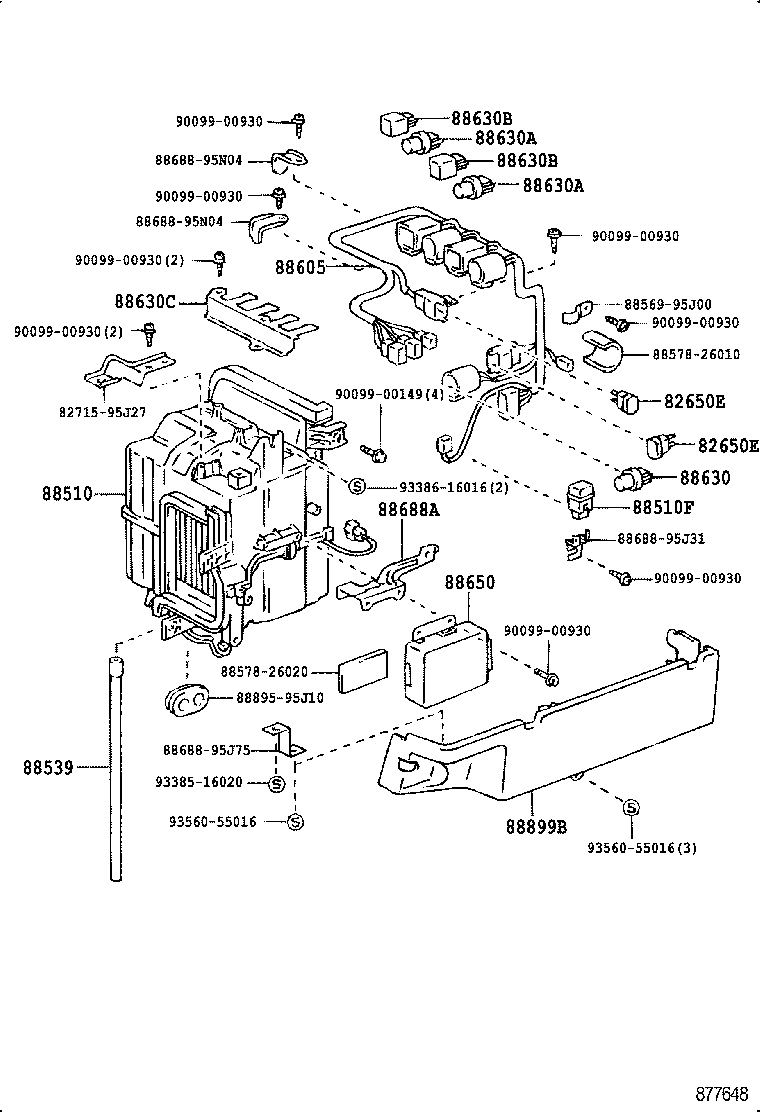

FRONT--DUAL(DEALER OPT)

diagram 82650E 82650E 8271595J27 88510 88510F 88539 8856995J00 8857826010 8857826020 88605 88630 88630A 88630A 88630B 88630B 88630C 88650 8868895J31 8868895J75 8868895N04 8868895N04 88688A 8889595J10 88899B 9009900149 9009900930 9009900930 9009900930 9009900930 9009900930 9009900930 9009900930 9009900930 9338516020 9338616016 9356055016 9356055016
Part # Description Qty Price
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010

LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD

20A

 1
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010

LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD

20A

 1
88510 - UNIT ASSY, COOLER
88510-95J58

LH10#,11#,125,RZH10#,11#,125..RHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701

LH10#,11#,125,RZH10#,11#,125

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J47

RZH102,103,112,113..RHD..STD

W(HEATER)

 1
88605-95N00

LH102,103,112,113..RHD

W(HEATER)

 1
88605-95N10

LH102,103,112,113..RHD..GEN

 1
88630 - RELAY ASSY, COOLER
90987-02004

RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S

 2
90987-02004

LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)

 1
88630-14030

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88630C - BRACKET, COOLER RELAY
88631-95J00

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101

RZH102,103,112,113..STD

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-95J86

LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD

 1
88899B - COVER, COOLER CONTROL
88891-26050

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
88891-95J27

LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,RZH102,103,104,112,114,115..RHD..GEN

 1
Common parts
82715-95J27
88569-95J00
88578-26010
88578-26020
88688-95J31
88688-95J75
88688-95N04
88895-95J10
90099-00149
90099-00930
93385-16020
93386-16016
93560-55016
