RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

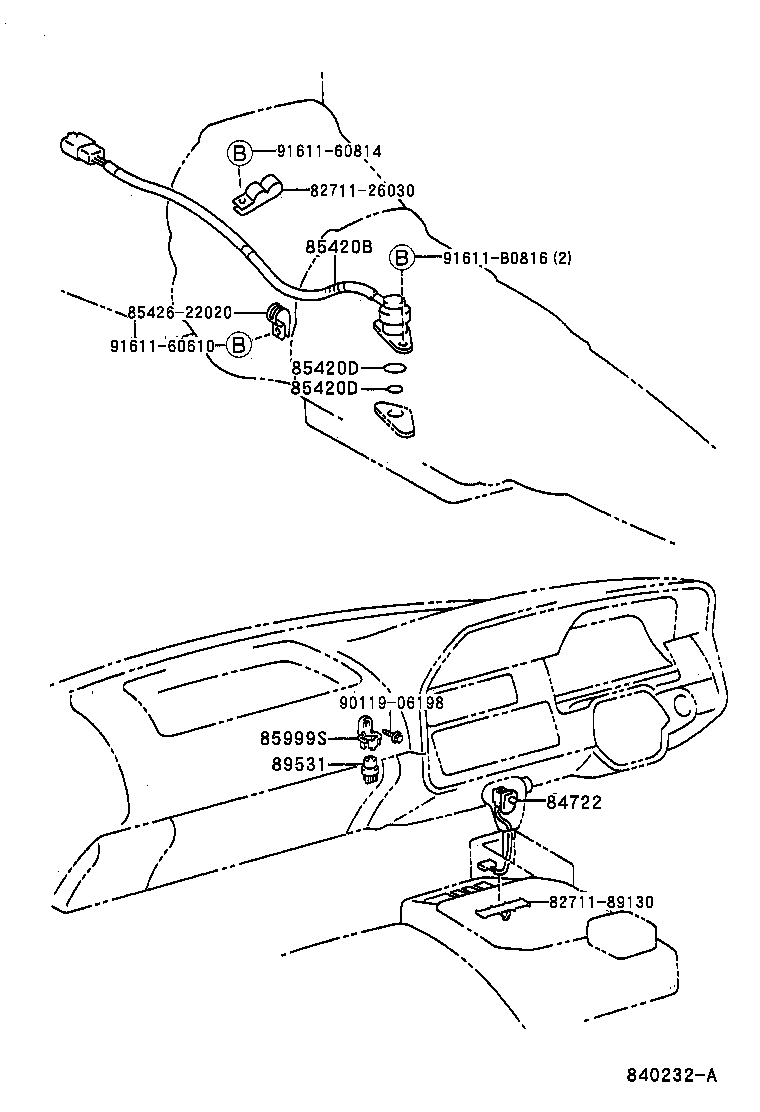

(8908- )RZH103,113,114,125..4FC

Click highlighted areas on diagram

diagram 8271126030 8271189130 84722 85420B 85420D 85420D 8542622020 85999S 89531 9011906198 9161160610 9161160814 91611B0816
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-2605003

LH103,113,RZH103,113,114..4FC

GRAY,TRIM1#

 1
84722-2006023

LH103,113,RZH103,113,114..4FC

GRAY,TRIM1#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-26020

LH103,113..4FC

 1
85420-26030

RZH103,113,114..4FC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)

OUTER

 1
90301-11001

LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)

INNER

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)

OUTER

 1
90301-11001

LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)

INNER

 1
85999S - BRACKET, RELAY
85999-12050

RZH103,113,114..4FC

 1
89531 - RELAY, TRANSMISSION CONTROL
90987-03001

RZH103,113,114..4FC

 1
Common parts
82711-26030
82711-89130
85426-22020
90119-06198
91611-60610
91611-60814
91611-B0816

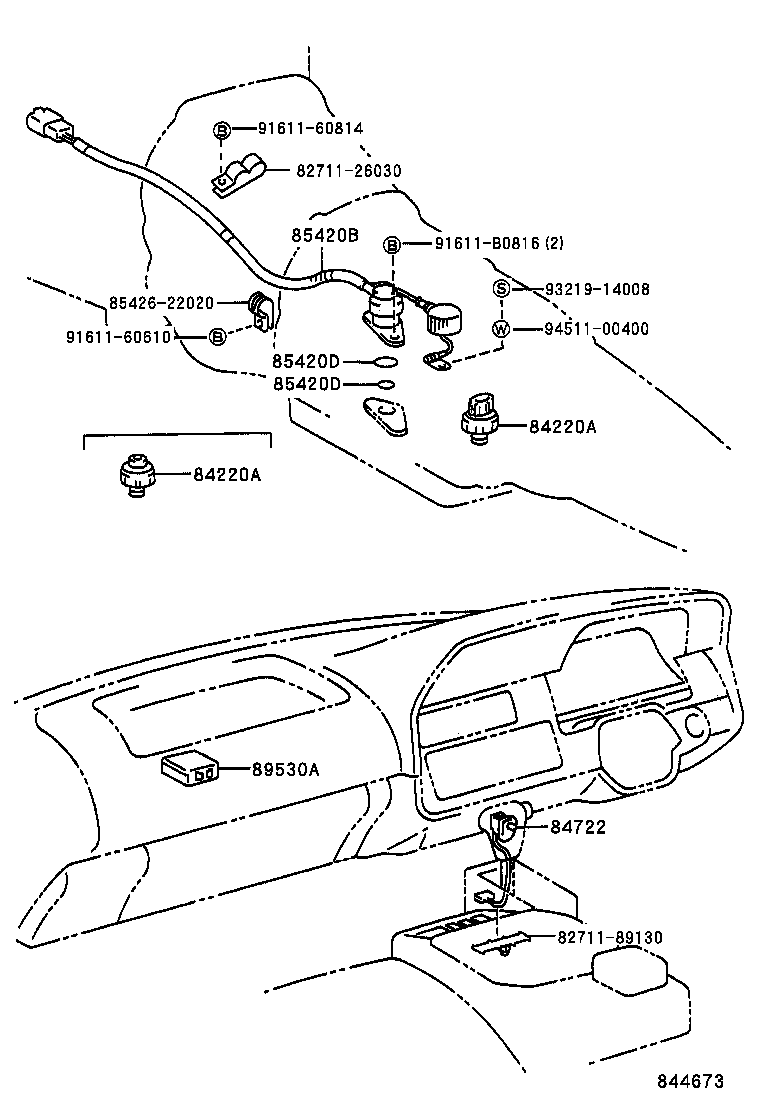

(8908- )LH103,113,125,162,172,184..4FC

Click highlighted areas on diagram

diagram 8271126030 8271189130 84220A 84220A 84722 85420B 85420D 85420D 8542622020 89530A 9161160610 9161160814 91611B0816 9321914008 9451100400
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

LH103,113..4FC

 1
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

LH103,113..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-2605003

LH103,113,RZH103,113,114..4FC

GRAY,TRIM1#

 1
84722-2006023

LH103,113,RZH103,113,114..4FC

GRAY,TRIM1#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-26020

LH103,113..4FC

 1
85420-26030

RZH103,113,114..4FC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-11001

LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)

INNER

 1
90301-23001

LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)

OUTER

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-11001

LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)

INNER

 1
90301-23001

LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)

OUTER

 1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-26090

LH103,113..4FC

 1
Common parts
82711-26030
82711-89130
85426-22020
91611-60610
91611-60814
91611-B0816
93219-14008
94511-00400
