Toyota Hiace van,commuter RZH113 SWITCH & RELAY & COMPUTER

RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993

Engine 2RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(8908- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCHES

Part #	Description	Period	Qty
84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX)
84242-20030	RZH103,113..SG	08/1989 - 08/1991	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-26060	LH10#,11#,125,RZH10#,11#,125	10/1990 - 08/1993	1
84332-95J02	LH10#,11#,125,RZH10#,11#,125	08/1989 - 10/1990	1
84480 - SWITCH ASSY, MAIN
84480-26030	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
84660C - SWITCH, COOLER
84660-95J01	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 08/1995	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-22130	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	LH125..ARL;LH10#,11#,RZH10#,11#,125 14V 1.4W	08/1989 - 11/1994	1
84730D - CAP, HEATER BLOWER SWITCH BULB
84998-10050	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 11/1994	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-95J01	LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S	08/1989 - 11/1994	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320	LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,09S,12S,14S,15S 14V 0.84W	08/1989 - 11/1994	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12250	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 08/1994	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-20080	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 08/1994	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-30040	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 05/1990	1

ILLUST NO. 7 OF 9(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

ROOF, FRONT FLOOR RELAY & SWITCHES

Part #	Description	Period	Qty
85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING
85335-54191	LH10#,11#,125	05/1990 - 07/1991	1
85335-75010	RZH10#,11#,125	08/1989 - 07/1991	1
85335-54190	LH10#,11#,125	08/1989 - 05/1990	1
85335-75010	LH10#,11#,125,RZH10#,11#,125	07/1991 - 05/1992	1
Common parts
82711-26120
90119-06171
93566-14512

ILLUST NO. 1 OF 9(8908- )RZH10#,11#,125,135,15#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83391 - SWITCH, VACUUM
83391-27060	RZH10#,11#,125..CBR	08/1989 - 08/2000	1
83399 - BRACKET, VACUUM SWITCH
83399-26050	RZH10#,11#,125..CBR	08/1989 - 08/2000	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
83420-20020	LH10#,11#,125	05/1992 - 08/1993	1
83420-16040	RZH10#,11#,125	05/1992 - 08/1993	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060	LH10#,11#,125 YAZAKI	08/1989 - 03/1998	1
83530-14040	RZH10#,11#,125	08/1989 - 05/1992	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)	08/1989 - 12/2999	1
84540 - SWITCH ASSY, NEUTRAL START
84540-22181	RZH103,113..4FC	02/1992 - 08/1993	1
84540-22180	RZH103,113,114..4FC	08/1989 - 02/1992	1
84540-26020	LH103,113..4FC	08/1989 - 08/1993	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040	RZH10#,11#,125	08/1989 - 01/1991	1
89491-26061	RZH113..5F;RZH10#,112,114;RZH113..4FC..GEN	05/1992 - 08/1993	1
89491-26010	LH10#,11#,125	08/1989 - 05/1992	1
89491-26041	RZH10#,11#,125	01/1991 - 05/1992	1
89491-26110	RZH113..4FC..ARL;LH10#,11#,125,RZH125	05/1992 - 08/1993	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040	RZH10#,11#,125	08/1989 - 01/1991	1
89491-26061	RZH113..5F;RZH10#,112,114;RZH113..4FC..GEN	05/1992 - 08/1993	1
89491-26010	LH10#,11#,125	08/1989 - 05/1992	1
89491-26041	RZH10#,11#,125	01/1991 - 05/1992	1
89491-26110	RZH113..4FC..ARL;LH10#,11#,125,RZH125	05/1992 - 08/1993	1
89620 - IGNITER ASSY
89620-10120	RZH103,113..ARL;RZH113..4FC..GEN;RZH102,104,112,114,125..RHD	08/1989 - 08/1993	1
89620 - IGNITER ASSY
89620-10120	RZH103,113..ARL;RZH113..4FC..GEN;RZH102,104,112,114,125..RHD	08/1989 - 08/1993	1
89620 - IGNITER ASSY
89620-10120	RZH103,113..ARL;RZH113..4FC..GEN;RZH102,104,112,114,125..RHD	08/1989 - 08/1993	1
Common parts
82711-22690
82711-26171
90119-08063
90179-08101
90430-18008
90430-27001
91651-40814
91651-40816
91651-60614
91651-B0814
93385-16025

ILLUST NO. 8 OF 9(8908- )

Click highlighted areas on diagram

DOOR CONTROL

Part #	Description	Period	Qty
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-95J02	LH125..ARL;LH10#,11#,RZH10#,11#,125..4D	08/1989 - 11/1994	1
84261B - JUNCTION, SLIDE DOOR CONTROL,MALE
84261-95J03	LH125..ARL;LH10#,11#,RZH10#,11#,125..4D	08/1989 - 11/1994	1
84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE
84262-95J03	LH125..ARL;LH10#,11#,RZH10#,11#,125..4D	08/1989 - 11/1994	1
Common parts
90109-06296
90119-06885
90119-06911
90159-60025
90159-60413
90179-06274
90189-05019
90189-05131
93530-55020

ILLUST NO. 9 OF 9(8908- )

Click highlighted areas on diagram

REAR FLOOR, BACK DOOR RELAY & SW.

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80153	LH10#,11#,125	08/1989 - 08/1995	1
83320-80150	RZH10#,11#,125	08/1989 - 08/1995	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
85940B - RELAY ASSY, REAR WIPER
85940-95J02	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
Common parts
90119-06390
90161-50004
90189-05063
90480-15194
91651-60614
93319-A4010

ILLUST NO. 3 OF 9(8908- )RHD

Click highlighted areas on diagram

COWL RELAY & SWITCHES

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-54090	2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125	05/1992 - 08/1993	1
28300 - RELAY ASSY, STARTER
28300-54090	2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125	05/1992 - 08/1993	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-22110	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153	08/1989 - 07/1999	1
83390 - SWITCH ASSY, VACUUM WARNING
83390-30020	LH10#,11#,125	08/1989 - 08/1993	1
84340 - SWITCH ASSY, STOP LAMP
84340-26010	LH10#,11#,125,RZH10#,11#,125	10/1990 - 08/1993	1
84340-22072	LH10#,11#,125,RZH10#,11#,125	08/1989 - 10/1990	1
84340 - SWITCH ASSY, STOP LAMP
84340-26010	LH10#,11#,125,RZH10#,11#,125	10/1990 - 08/1993	1
84340-22072	LH10#,11#,125,RZH10#,11#,125	08/1989 - 10/1990	1
84461A - SWITCH, BRAKE RESERVOIR LEVEL WARNING
84461-26040	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
85940B - RELAY ASSY, REAR WIPER
85940-95J02	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
85980 - RELAY ASSY, DOOR CONTROL
85980-95J04	LH10#,11#,125,RZH102,103,104,11#,125..RHD	08/1989 - 08/1996	1
86650C - BUZZER ASSY, SEDIMENTER WARNING
86650-95J06	LH10#,11#,125	08/1989 - 08/1993	1
Common parts
82715-95J00
90119-06198
91651-40612
91651-40816
91651-60614
91651-B0814
91656-40814
93385-16012
94120-41000

ILLUST NO. 1 OF 9(8908- )LH10#,11#,125,154,16#,17#,184

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
83420-20020	LH10#,11#,125	05/1992 - 08/1993	1
83420-16040	RZH10#,11#,125	05/1992 - 08/1993	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060	LH10#,11#,125 YAZAKI	08/1989 - 03/1998	1
83530-14040	RZH10#,11#,125	08/1989 - 05/1992	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)	08/1989 - 12/2999	1
84540 - SWITCH ASSY, NEUTRAL START
84540-22181	RZH103,113..4FC	02/1992 - 08/1993	1
84540-22180	RZH103,113,114..4FC	08/1989 - 02/1992	1
84540-26020	LH103,113..4FC	08/1989 - 08/1993	1
89437 - COVER, SENSOR
89437-26010	LH103,113..4FC	08/1989 - 08/1993	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040	RZH10#,11#,125	08/1989 - 01/1991	1
89491-26061	RZH113..5F;RZH10#,112,114;RZH113..4FC..GEN	05/1992 - 08/1993	1
89491-26010	LH10#,11#,125	08/1989 - 05/1992	1
89491-26041	RZH10#,11#,125	01/1991 - 05/1992	1
89491-26110	RZH113..4FC..ARL;LH10#,11#,125,RZH125	05/1992 - 08/1993	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040	RZH10#,11#,125	08/1989 - 01/1991	1
89491-26061	RZH113..5F;RZH10#,112,114;RZH113..4FC..GEN	05/1992 - 08/1993	1
89491-26010	LH10#,11#,125	08/1989 - 05/1992	1
89491-26041	RZH10#,11#,125	01/1991 - 05/1992	1
89491-26110	RZH113..4FC..ARL;LH10#,11#,125,RZH125	05/1992 - 08/1993	1
Common parts
19877-66010
28622-57010
28623-54010
90116-06095
90179-05032
90179-06158
90430-12221
90430-18008
90430-27001
91651-60614
93319-15008
93385-16025
94613-10601

ILLUST NO. 5 OF 9(8908-9808) ; (9808- )RZH105,155..GL..EFI ; (9808- )RZH114,115..15S..GEN

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCHES

Part #	Description	Period	Qty
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80029	RZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125..RHD W(TILT STEERING)	08/1991 - 08/1993	1
84112-80028	LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD..STD	08/1989 - 08/1995	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-26120	LH10#,11#,125,RZH10#,11#,125..RHD..STD	08/1989 - 10/1990	1
84140-26060	RZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125..RHD W(TILT STEERING)	08/1991 - 08/1993	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-26390	LH10#,11#,125,RZH10#,11#,125..RHD..STD W(INTERMITTENT WIPER & REAR WIPER)	08/1989 - 10/1990	1
84310-26370	RZH113..ARL;RZH102..RHD..4F;LH10#,11#,125,RZH103,104,112,114,125..RHD..STD W(INTERMITTENT WIPER)	08/1989 - 10/1990	1
84310-26420	RZH102..RHD..4F;LH10#,11#,RZH104,112,114..RHD..GEN	08/1989 - 10/1990	1
84310-26280	RZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125..RHD W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER)	08/1991 - 08/1993	1
84310-26410	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN W(REAR WIPER)	08/1989 - 08/1995	1
84312 - PLATE, HORN CONTACT
84312-12040	LH10#,11#,125,RZH10#,11#,125,135,153	08/1989 - 08/1998	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-26050	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-26050	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-26240	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD..STD W(INTERMITTENT WIPER & REAR WIPER)	08/1989 - 08/1995	1
84652-26210	RZH102..4D;RZH103,113..STD..ARL;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114,125..RHD..STD W(INTERMITTENT WIPER)	08/1989 - 08/1995	1
84652-26170	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN	08/1989 - 08/1995	1
84652-26200	RZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125..RHD W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER)	08/1991 - 08/1993	1
84652-26270	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN W(REAR WIPER)	08/1989 - 08/1995	1
89435 - BRACKET, CONNECTOR COVER
89435-26090	RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S	08/1989 - 08/2000	1
Common parts
90149-40013
90464-00551
91651-40816
93319-13008
93319-15012

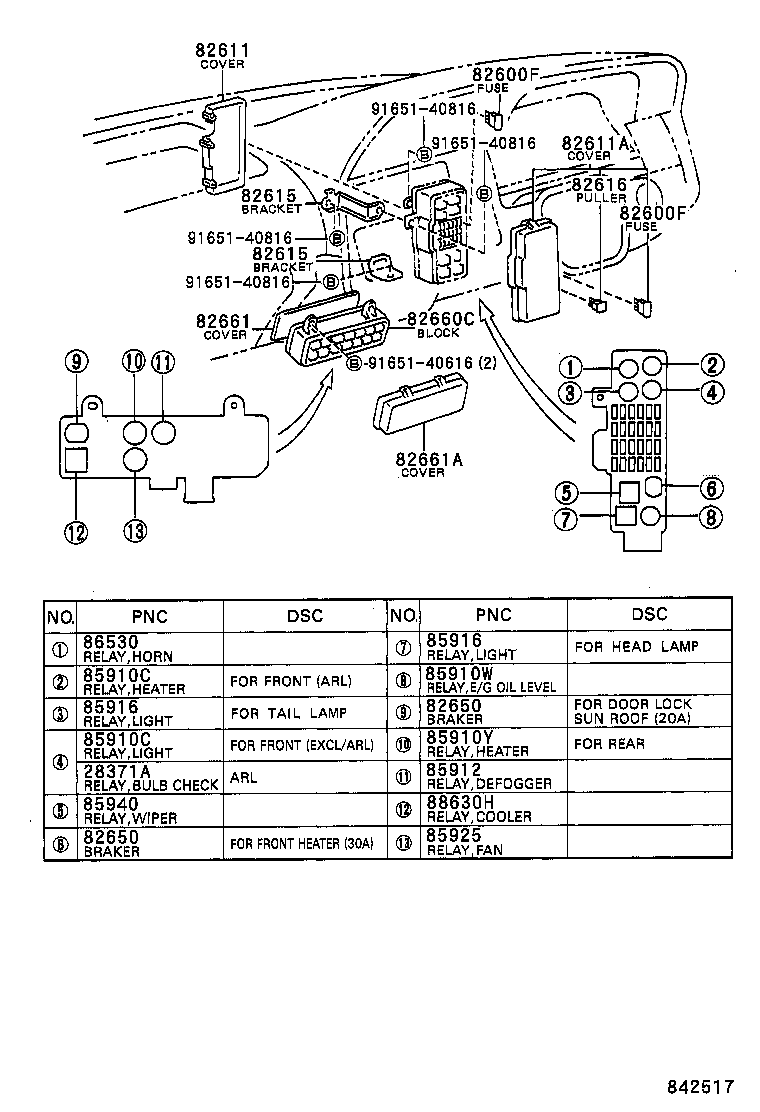

ILLUST NO. 4 OF 9(8908-9308)RHD

Click highlighted areas on diagram

INSTRUMENT PANEL RELAY

Part #	Description	Period	Qty
82600F - FUSE, FUSE BLOCK
90982-09005	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A	08/1989 - 07/1999	1
90982-09003	LH10#,11#,125,RZH10#,11#,125 15A	08/1989 - 08/1996	1
82600F - FUSE, FUSE BLOCK
90982-09005	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A	08/1989 - 07/1999	1
90982-09003	LH10#,11#,125,RZH10#,11#,125 15A	08/1989 - 08/1996	1
82611 - COVER, FUSE BLOCK
82611-95J00	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1990	1
82611-95J00	RZH113..ARL;RZH102..RHD..4F;LH10#,11#,125,RZH103,104,112,114,125..RHD	08/1990 - 08/1991	1
82611-95J00	RZH113..ARL;RZH113..5F..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD	08/1991 - 08/1993	1
82611A - COVER, FUSE BLOCK, NO.2
82611-95J02	LH10#,11#,RZH10#,11#..RHD..GEN	08/1989 - 05/1992	1
82611-26050	LH10#,11#,RZH10#,11#..RHD..GEN	05/1992 - 08/1993	1
82615 - BRACKET, FUSE
82615-95J01	LH10#,11#,125,RZH10#,11#,125..RHD UPPER	08/1989 - 08/1993	1
82605-95J00	LH10#,11#,125,RZH10#,11#,125..RHD LOWER	08/1989 - 08/1993	1
82615 - BRACKET, FUSE
82615-95J01	LH10#,11#,125,RZH10#,11#,125..RHD UPPER	08/1989 - 08/1993	1
82605-95J00	LH10#,11#,125,RZH10#,11#,125..RHD LOWER	08/1989 - 08/1993	1
82616 - PULLER, FUSE
82616-12010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1996	1
82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1
82650-20011	LH10#,11#,125,RZH10#,11#,125 30A	08/1989 - 08/1990	1
82650-20011	RZH102..4F;RZH113..ARL;RZH102..LHD..5F;LH10#,11#,125,RZH103,104,112,114,125 30A	08/1990 - 08/1991	1
82650-35010	LH10#,11#,125,RZH10#,11#,125 20A	08/1989 - 08/1990	1
82650-20011	RZH113..ARL;RZH113..5F..GEN;LH10#,11#,125,RZH10#,112,114,125 30A	08/1991 - 08/1993	1
82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1
82650-20011	LH10#,11#,125,RZH10#,11#,125 30A	08/1989 - 08/1990	1
82650-20011	RZH102..4F;RZH113..ARL;RZH102..LHD..5F;LH10#,11#,125,RZH103,104,112,114,125 30A	08/1990 - 08/1991	1
82650-35010	LH10#,11#,125,RZH10#,11#,125 20A	08/1989 - 08/1990	1
82650-20011	RZH113..ARL;RZH113..5F..GEN;LH10#,11#,125,RZH10#,112,114,125 30A	08/1991 - 08/1993	1
82660C - BLOCK ASSY, RELAY
82660-95J08	RZH113..ARL;RZH102..RHD..4F;LH10#,11#,125,RZH103,104,112,114,125..RHD	08/1990 - 08/1991	1
82660-95J08	RZH113..ARL;RZH113..5F..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD	08/1991 - 08/1993	1
82660-95J08	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1990	1
82661 - COVER, RELAY BLOCK, NO.1
82661-95J07	RZH113..ARL;RZH113..5F..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD	08/1991 - 08/1993	1
82661-95J07	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1990	1
82661-95J07	RZH113..ARL;RZH102..RHD..4F;LH10#,11#,125,RZH103,104,112,114,125..RHD	08/1990 - 08/1991	1
82661A - COVER, RELAY BLOCK, NO.2
82661-26010	LH10#,11#,125..RHD	08/1990 - 08/1993	1
82661-95J09	RZH10#,11#,125..RHD	08/1989 - 08/1993	1
82661-95J08	LH10#,11#,125..RHD	08/1989 - 08/1990	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02004	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02004	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
85910W - RELAY, OIL LEVEL
90987-03001	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
85912 - RELAY, DEFOGGER
90987-02004	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
85916 - RELAY, LIGHT CONTROL
90987-02006	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S HEAD LAMP	08/1989 - 12/2999	1
90987-01003	LH10#,11#,125,RZH10#,11#,125 TAIL LAMP	08/1989 - 08/1993	1
85916 - RELAY, LIGHT CONTROL
90987-02006	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S HEAD LAMP	08/1989 - 12/2999	1
90987-01003	LH10#,11#,125,RZH10#,11#,125 TAIL LAMP	08/1989 - 08/1993	1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-95J00	LH112..(DX,STD)..GEN;LH10#,113,114,115,125,RZH10#,11#,125..ARL,GCC,GEN	08/1989 - 11/1994	1
86530 - RELAY ASSY, HORN
90987-01003	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
Common parts
91651-40616
91651-40816

ILLUST NO. 6 OF 9(8908- )

Click highlighted areas on diagram

FRONT DOOR SWITCHES

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-54090	2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125	05/1992 - 08/1993	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-95J01	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 11/1994	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-95J01	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 11/1994	2
84550 - SWITCH ASSY, PARKING BRAKE
84550-12060	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
84931B - SWITCH, DOOR CONTROL
84931-95J04	LH10#,11#,125,RZH10#,11#,125..RHD RH	08/1989 - 05/1992	1
84931B - SWITCH, DOOR CONTROL
84931-95J04	LH10#,11#,125,RZH10#,11#,125..RHD RH	08/1989 - 05/1992	1
89550 - COMPUTER ASSY, EMISSION CONTROL
89550-26170	RZH102,103,104,112,113,114..(CIS,GEN)..CBR	08/1989 - 08/1995	1
Common parts
84819-26010
84819-26020
89667-26090
89668-26090
90109-06296
90164-30003
90164-40100
91651-40614
91651-60614
93315-14014
93319-15010
93510-16012
93540-16012
93540-54014
93590-16014

RZH113R-RRPRS (1989)

ILLUST NO. 2 OF 9(8908- )RHD

ILLUST NO. 7 OF 9(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

ILLUST NO. 1 OF 9(8908- )RZH10#,11#,125,135,15#

ILLUST NO. 8 OF 9(8908- )

ILLUST NO. 9 OF 9(8908- )

ILLUST NO. 3 OF 9(8908- )RHD

ILLUST NO. 1 OF 9(8908- )LH10#,11#,125,154,16#,17#,184

ILLUST NO. 5 OF 9(8908-9808) ; (9808- )RZH105,155..GL..EFI ; (9808- )RZH114,115..15S..GEN

ILLUST NO. 4 OF 9(8908-9308)RHD

ILLUST NO. 6 OF 9(8908- )

Part Price Details
