RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter
ILLUST NO. 1 OF 3(8908- )
BULB, SOCKET
| Part # | Description | Qty | Price |
|---|

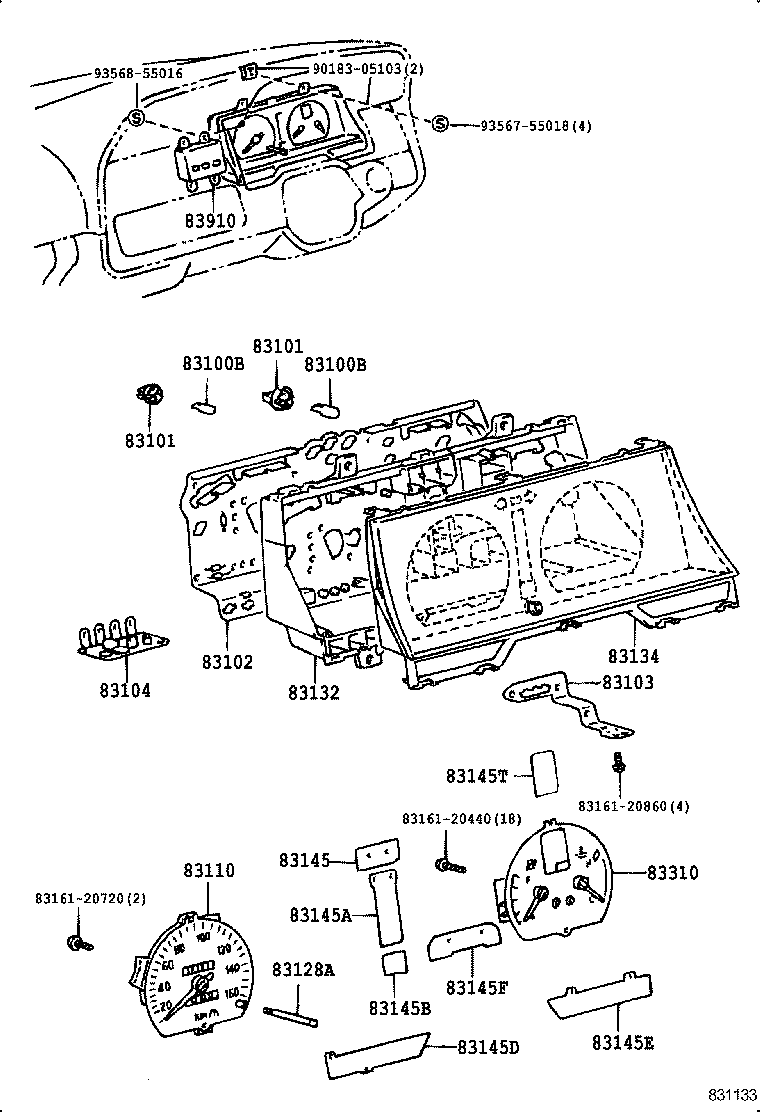

ILLUST NO. 1 OF 3(8908-9308)
SPEEDOMETER, W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-94350 |
LH10#,11#,125,RZH10#,11#,125 14V3.4W W(GREEN CAP) |
1 | ||
| 99132-12034 |
LH10#,11#,125,RZH10#,11#,125 12V 3.4W |
1 | ||
| 90981-11018 |
LH10#,11#,125,RZH10#,11#,125 12V 1.2W W/O SOCKET |
1 | ||
| 83109-95J00 |
LH10#,11#,125,RZH10#,11#,125 14V 3.78W |
1 | ||
| 83109-24030 |
LH10#,11#,125,RZH10#,11#,125 12V3.4W W(GREEN CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-94350 |
LH10#,11#,125,RZH10#,11#,125 14V3.4W W(GREEN CAP) |
1 | ||
| 99132-12034 |
LH10#,11#,125,RZH10#,11#,125 12V 3.4W |
1 | ||
| 90981-11018 |
LH10#,11#,125,RZH10#,11#,125 12V 1.2W W/O SOCKET |
1 | ||
| 83109-95J00 |
LH10#,11#,125,RZH10#,11#,125 14V 3.78W |
1 | ||
| 83109-24030 |
LH10#,11#,125,RZH10#,11#,125 12V3.4W W(GREEN CAP) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER ILLUST. |
4 | ||
| 83101-20040 |
LH10#,11#,125,RZH10#,11#,125,135,153 TYPE C:REFER ILLUST. |
3 | ||
| 83101-14040 |
LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER ILLUST. |
16 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER ILLUST. |
4 | ||
| 83101-20040 |
LH10#,11#,125,RZH10#,11#,125,135,153 TYPE C:REFER ILLUST. |
3 | ||
| 83101-14040 |
LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER ILLUST. |
16 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N46 |
RZH10#,11#,125..(4F,5F)..STD |
1 | ||
| 83247-95N47 |
RZH103,113,114..4FC..STD |
1 | ||
| 83247-95P03 |
LH10#,11#..GEN |
1 | ||
| 83247-95N28 |
LH103,113..4FC |
1 | ||
| 83247-26320 |
LH103,113..4FC |
1 | ||
| 83149-26080 |
RZH113..4FC..GEN |
1 | ||
| 83149-26120 |
LH103,113..4FC |
1 | ||
| 83247-95N26 |
RZH113..4FC..GEN |
1 | ||
| 83247-26600 |
LH10#,11#..GEN |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-95N14 |
LH10#,11#..GEN |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83247-95N29 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J78 |
RZH102,104,11#..GEN MPH & KM/H |
1 | ||
| 83110-95J79 |
RZH102,104,11#..GEN |
1 | ||
| 83110-95J83 |
LH10#,11#..GEN |
1 | ||
| 83110-95N14 |
LH103,113..4FC |
1 | ||
| 83110-26090 |
RZH113..4FC..GEN |
1 | ||
| 83110-26100 |
RZH113..4FC..GEN MPH & KM/H |
1 | ||
| 83110-95J82 |
LH10#,11#..GEN MPH & KM/H |
1 | ||
| 83110-26180 |
LH10#,11#..GEN |
1 | ||
| 83110-26240 |
LH103,113..4FC |
1 | ||
| 83110-26260 |
RZH113..4FC..GEN MPH & KM/H |
1 | ||
| 83110-26250 |
RZH113..4FC..GEN |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-89130 |
RZH102..03S;RZH102..LHD..06S;RZH103,113,125..STD..ARL;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 83128-89130 |
RZH103,113,125..STD;LH10#,11#,RZH102,104,112,114..GEN |
1 | ||
| 83128-95J00 |
RZH102,103,113..RHD..06S..GEN |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95N01 |
RZH103,113,125..STD;LH10#,11#,RZH102,104,112,114..GEN |
1 | ||
| 83132-95N02 |
RZH113..GEN;LH103,113,125..ARL;RZH102,103..RHD..SG |
1 | ||
| 83132-95N01 |
RZH102..03S;RZH102..LHD..06S;RZH103,113,125..STD..ARL;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N09 |
RZH103,113,125..5F..STD;LH10#,11#,RZH102,104,112,114..(4F,5F)..GEN |
1 | ||
| 83134-95N10 |
RZH103,113,114..4FC..STD |
1 | ||
| 83134-95N09 |
RZH113..5F..ARL;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN;RZH102,103,125..(03S,14S)..(4F,5F) |
1 | ||
| 83134-95N07 |
LH103,113..4FC;RZH103..4FC..GL |
1 | ||
| 83134-26080 |
RZH113..4FC..GEN |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N26 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95N28 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95N27 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 83145-95N15 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N22 |
RZH10#,11#,125 |
1 | ||
| 83145-95N19 |
LH10#,11#,125 |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-95N31 |
RZH113..GEN;LH103,113,125..ARL;RZH102,103..RHD..SG |
2 | ||
| 83145-95N23 |
RZH102..03S;RZH102..LHD..06S;RZH103,113,125..STD..ARL;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 83145-95N23 |
RZH103,113,125..STD;LH10#,11#,RZH102,104,112,114..GEN |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95N14 |
LH10#,11#,RZH102,104,11#..GEN |
1 | ||
| 83243-26060 |
RZH102,103,113..RHD..06S..GEN |
1 | ||
| 83243-95N14 |
RZH102..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J05 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 83161-20860 | ||||
| 90183-05103 | ||||
| 93567-55018 | ||||
| 93568-55016 | ||||

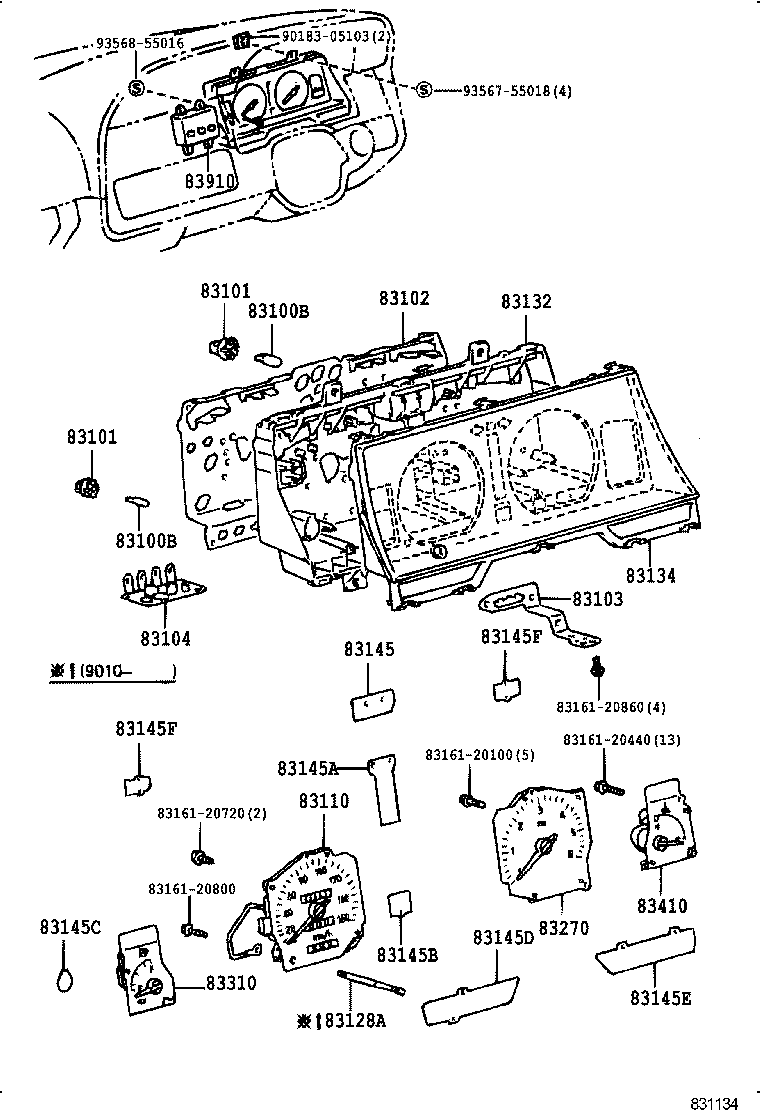

ILLUST NO. 1 OF 3(8908-9308)
SPEEDOMETER, W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-94350 |
LH10#,11#,125,RZH10#,11#,125 14V3.4W W(GREEN CAP) |
1 | ||
| 99132-12034 |
LH10#,11#,125,RZH10#,11#,125 12V 3.4W |
1 | ||
| 90981-11018 |
LH10#,11#,125,RZH10#,11#,125 12V 1.2W W/O SOCKET |
1 | ||
| 83109-95J00 |
LH10#,11#,125,RZH10#,11#,125 14V 3.78W |
1 | ||
| 83109-24030 |
LH10#,11#,125,RZH10#,11#,125 12V3.4W W(GREEN CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-94350 |
LH10#,11#,125,RZH10#,11#,125 14V3.4W W(GREEN CAP) |
1 | ||
| 99132-12034 |
LH10#,11#,125,RZH10#,11#,125 12V 3.4W |
1 | ||
| 90981-11018 |
LH10#,11#,125,RZH10#,11#,125 12V 1.2W W/O SOCKET |
1 | ||
| 83109-95J00 |
LH10#,11#,125,RZH10#,11#,125 14V 3.78W |
1 | ||
| 83109-24030 |
LH10#,11#,125,RZH10#,11#,125 12V3.4W W(GREEN CAP) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER ILLUST. |
4 | ||
| 83101-20040 |
LH10#,11#,125,RZH10#,11#,125,135,153 TYPE C:REFER ILLUST. |
3 | ||
| 83101-14040 |
LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER ILLUST. |
16 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER ILLUST. |
4 | ||
| 83101-20040 |
LH10#,11#,125,RZH10#,11#,125,135,153 TYPE C:REFER ILLUST. |
3 | ||
| 83101-14040 |
LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER ILLUST. |
16 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N46 |
RZH10#,11#,125..(4F,5F)..STD |
1 | ||
| 83247-95N47 |
RZH103,113,114..4FC..STD |
1 | ||
| 83247-95P03 |
LH10#,11#..GEN |
1 | ||
| 83247-95N28 |
LH103,113..4FC |
1 | ||
| 83247-26320 |
LH103,113..4FC |
1 | ||
| 83149-26080 |
RZH113..4FC..GEN |
1 | ||
| 83149-26120 |
LH103,113..4FC |
1 | ||
| 83247-95N26 |
RZH113..4FC..GEN |
1 | ||
| 83247-26600 |
LH10#,11#..GEN |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-95N14 |
LH10#,11#..GEN |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83247-95N29 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J78 |
RZH102,104,11#..GEN MPH & KM/H |
1 | ||
| 83110-95J79 |
RZH102,104,11#..GEN |
1 | ||
| 83110-95J83 |
LH10#,11#..GEN |
1 | ||
| 83110-95N14 |
LH103,113..4FC |
1 | ||
| 83110-26090 |
RZH113..4FC..GEN |
1 | ||
| 83110-26100 |
RZH113..4FC..GEN MPH & KM/H |
1 | ||
| 83110-95J82 |
LH10#,11#..GEN MPH & KM/H |
1 | ||
| 83110-26180 |
LH10#,11#..GEN |
1 | ||
| 83110-26240 |
LH103,113..4FC |
1 | ||
| 83110-26260 |
RZH113..4FC..GEN MPH & KM/H |
1 | ||
| 83110-26250 |
RZH113..4FC..GEN |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-89130 |
RZH102..03S;RZH102..LHD..06S;RZH103,113,125..STD..ARL;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 83128-89130 |
RZH103,113,125..STD;LH10#,11#,RZH102,104,112,114..GEN |
1 | ||
| 83128-95J00 |
RZH102,103,113..RHD..06S..GEN |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95N01 |
RZH103,113,125..STD;LH10#,11#,RZH102,104,112,114..GEN |
1 | ||
| 83132-95N02 |
RZH113..GEN;LH103,113,125..ARL;RZH102,103..RHD..SG |
1 | ||
| 83132-95N01 |
RZH102..03S;RZH102..LHD..06S;RZH103,113,125..STD..ARL;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N07 |
LH103,113..4FC;RZH103..4FC..GL |
1 | ||
| 83134-95N09 |
RZH103,113,125..5F..STD;LH10#,11#,RZH102,104,112,114..(4F,5F)..GEN |
1 | ||
| 83134-95N10 |
RZH103,113,114..4FC..STD |
1 | ||
| 83134-95N09 |
RZH113..5F..ARL;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN;RZH102,103,125..(03S,14S)..(4F,5F) |
1 | ||
| 83134-26080 |
RZH113..4FC..GEN |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N26 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95N28 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95N27 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95N32 |
RZH113..GEN;LH103,113,125..ARL;RZH102,103..RHD..SG |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 83145-95N15 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N22 |
RZH10#,11#,125 |
1 | ||
| 83145-95N19 |
LH10#,11#,125 |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-95N31 |
RZH113..GEN;LH103,113,125..ARL;RZH102,103..RHD..SG |
2 | ||
| 83145-95N23 |
RZH102..03S;RZH102..LHD..06S;RZH103,113,125..STD..ARL;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 83145-95N23 |
RZH103,113,125..STD;LH10#,11#,RZH102,104,112,114..GEN |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-95N31 |
RZH113..GEN;LH103,113,125..ARL;RZH102,103..RHD..SG |
2 | ||
| 83145-95N23 |
RZH102..03S;RZH102..LHD..06S;RZH103,113,125..STD..ARL;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 83145-95N23 |
RZH103,113,125..STD;LH10#,11#,RZH102,104,112,114..GEN |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-95P00 |
RZH103,113..GEN |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95N14 |
LH10#,11#,RZH102,104,11#..GEN |
1 | ||
| 83243-26060 |
RZH102,103,113..RHD..06S..GEN |
1 | ||
| 83243-95N14 |
RZH102..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95N00 |
RZH113..GEN;LH103,113,125..ARL;RZH102,103..RHD..SG |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J05 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 83161-20100 | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 83161-20800 | ||||
| 83161-20860 | ||||
| 90183-05103 | ||||
| 93567-55018 | ||||
| 93568-55016 | ||||

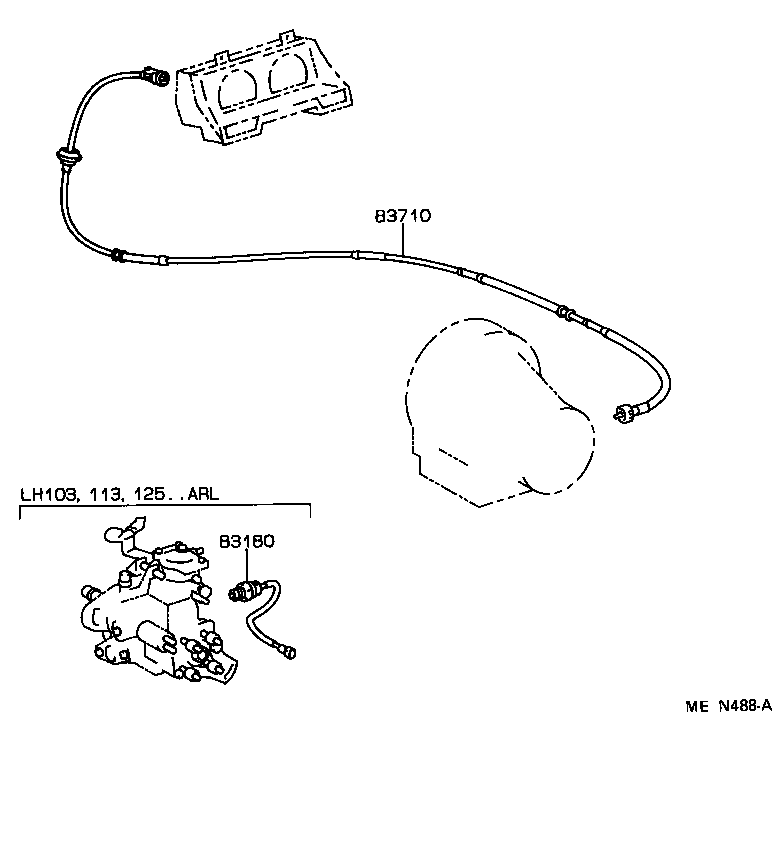

ILLUST NO. 2 OF 3(8908-9308)
SPEEDOMETER DRIVE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95J32 |
LH10#,11#,125,RZH10#,11#,125..RHD..(4F,5F) |
1 | ||
| 83710-95J36 |
LH103,113,RZH103,113,114..4FC |
1 | ||

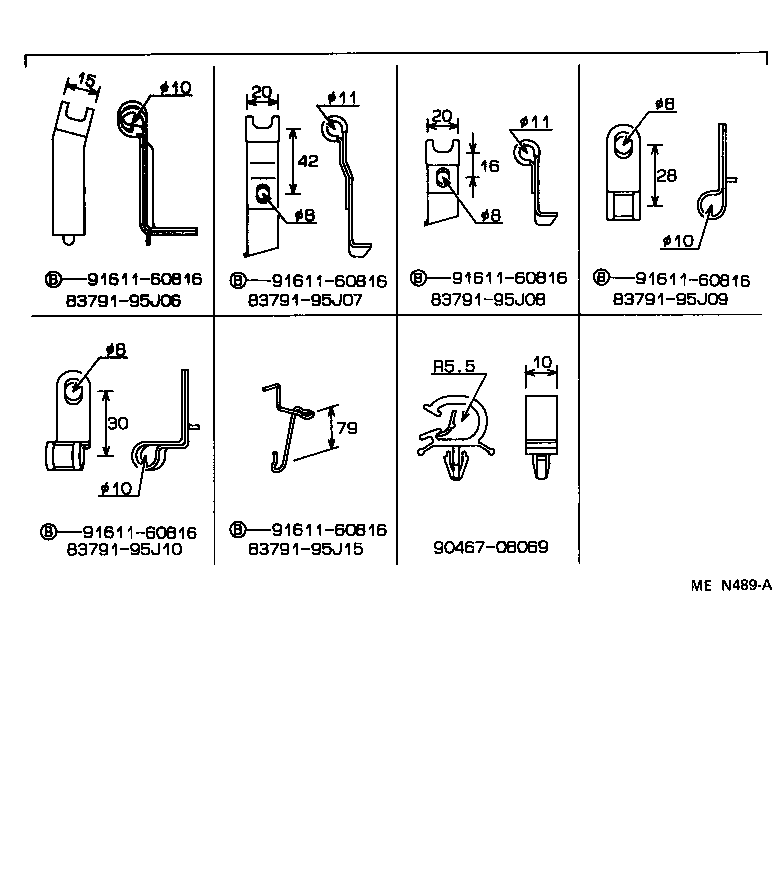

ILLUST NO. 3 OF 3(8908-9308)
SPEEDOMETER DRIVE CABLE CLAMPS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-95J06 | ||||
| 83791-95J07 | ||||
| 83791-95J08 | ||||
| 83791-95J09 | ||||
| 83791-95J10 | ||||
| 83791-95J15 | ||||
| 90467-08069 | ||||
| 91611-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
