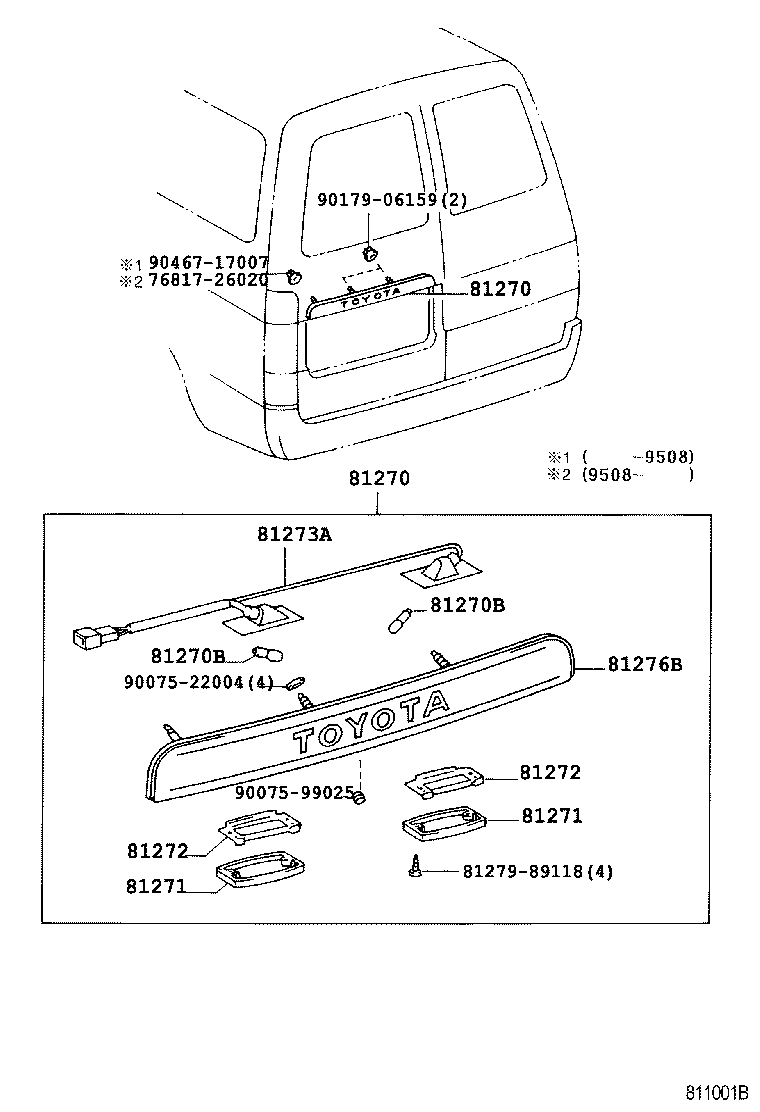

RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter
(9001-9308)LH113,RZH113..03S ; (9508-9608)LH103,RZH113..4D..GEN..DSL,EFI ; (9608-
W(SWING TYPE BACK DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-95J07 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-95J07 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 81273A - BODY, LICENSE PLATE LAMP | ||||
| 81273-95J07 |
LH10#,11#,125,166,172,176,184,RZH10#,11#,125 |
1 | ||
| 81276B - COVER, LICENSE PLATE LAMP | ||||
| 81276-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 76817-26020 | ||||
| 81279-89118 | ||||
| 90075-22004 | ||||
| 90075-99025 | ||||
| 90179-06159 | ||||
| 90467-17007 | ||||
(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-95J07 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-95J07 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 81273A - BODY, LICENSE PLATE LAMP | ||||
| 81273-95J07 |
LH10#,11#,125,166,172,176,184,RZH10#,11#,125 |
1 | ||
| 81276B - COVER, LICENSE PLATE LAMP | ||||
| 81276-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 81277E - HANDLE, LICENSE PLATE LAMP | ||||
| 81278-95J07 |
RZH103..RHD..EFI;RZH115..STD..CBR;RZH105,115..STD..CIS;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,11#,125,166,176,RZH102,104,112,114,125;RZH103,105,113,115..(03S,05S,06S,09S,12S)..CBR |
1 | ||
| Common parts | ||||
| 81279-89118 | ||||
| 81619-20070 | ||||
| 90075-22004 | ||||
| 90179-06159 | ||||
