RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9010)

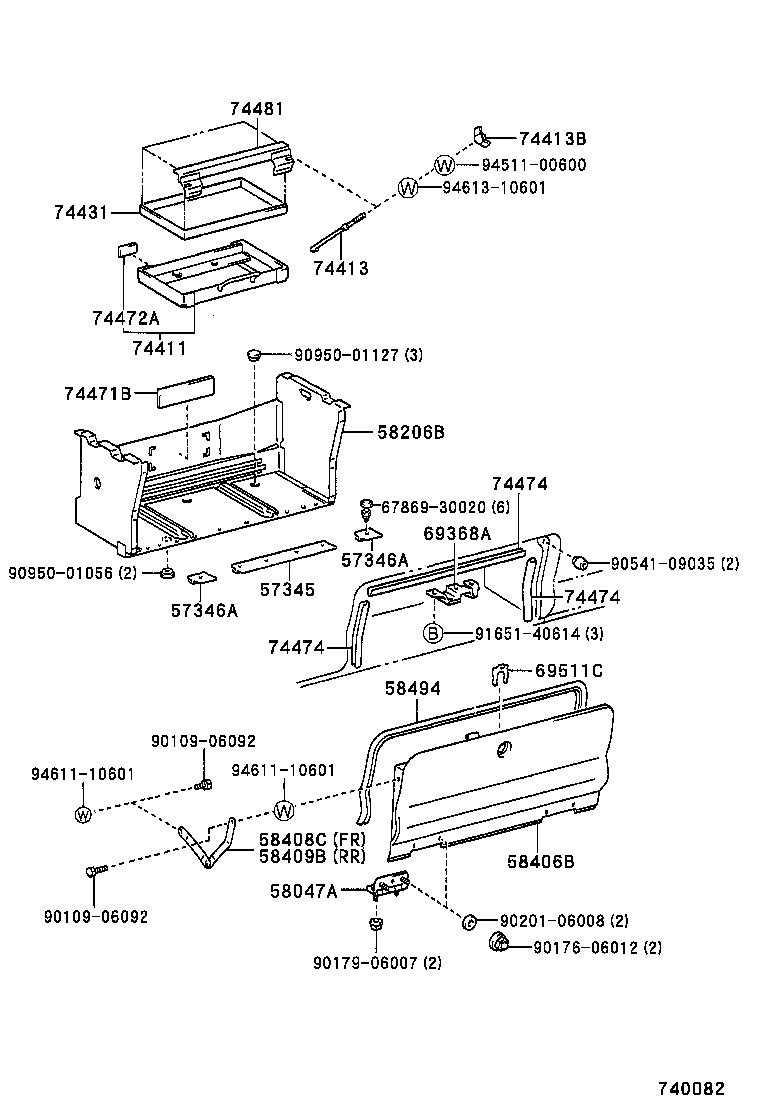

Click highlighted areas on diagram

TELECOM SPEC

diagram 57345 57346A 57346A 58047A 58206B 58406B 58408C 58409B 58494 6786930020 69368A 69511C 74411 74413 74413B 74431 74471B 74472A 74474 74474 74474 74481 9010906092 9010906092 9017606012 9017906007 9020106008 9054109035 9095001056 9095001127 9165140614 9451100600 9461110601 9461110601 9461310601
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-95J03

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

 1
74411-95J02

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 1
74413 - BOLT, BATTERY CLAMP
74451-95J03

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 1
74451-95J02

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95J09

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

W(BATTERY=50D20R OR 55D23R)

 1
74404-95J07

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 1
Common parts
67869-30020
90109-06092
90176-06012
90179-06007
90201-06008
90541-09035
90950-01056
90950-01127
91651-40614
94511-00600
94611-10601
94613-10601

(8908- )

Click highlighted areas on diagram

diagram 74411 74411 74413 74413 74446 74446 74481 74481 9017906206 9017906206 9166160825 9166160825
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-95J03

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

 1
74411-95J02

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 1
74411 - CARRIER, BATTERY
74411-95J03

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

 1
74411-95J02

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 1
74413 - BOLT, BATTERY CLAMP
74451-95J03

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 1
74451-95J02

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

 1
74413 - BOLT, BATTERY CLAMP
74451-95J03

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 1
74451-95J02

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

 1
74446 - BAND, BATTERY
74446-95702

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 2
74446-95702

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

 1
74446 - BAND, BATTERY
74446-95702

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 2
74446-95702

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95J09

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

W(BATTERY=50D20R OR 55D23R)

 1
74404-95J07

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95J09

RZH114;LH125,RZH104,112..03S,06S,12S,14S;LH10#,11#,RZH102,103,105,113,115,125..ARL,GCC,GEN

W(BATTERY=50D20R OR 55D23R)

 1
74404-95J07

LH10#,11#..(GL,STD)..(CIS,GCC,GEN)

W(2 BATTERY)

 1
Common parts
90179-06206
91661-60825
