RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8908- )RHD

Click highlighted areas on diagram

diagram 73013A 73146 73160A 73170 73178A 73178A 73180 73200A 73210 73220 73223B 73224 73230 73240 73252A 9010511036 9010511036 9011910492 9015960389 9033340001 9046110595 9095001126 9165140612 9354054012
Part # Description Qty Price
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-95J0003

LH10#,11#,125,RZH10#,11#,125..RHD..STD

W(CENTER SEAT BELT),GRAY,TRIM1#

 1
73013-95J0103

RZH103..GL;RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

GRAY,TRIM1#

 1
73146 - COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, RH
73146-95J0003

LH10#,11#,125,RZH10#,11#,125..RHD

GRAY,TRIM1#

 1
73160A - SEAT BELT ASSY, FRONT CENTER, RH
73160-95J1303

LH10#,11#,125,RZH10#,11#,125..RHD..STD

GRAY,TRIM1#

 1
73170 - BELT ASSY, FRONT CENTER, LH
73170-95J1603

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

GRAY,TRIM1#

 1
73170-95J1503

RZH103,113..STD;RZH102..RHD..06S..5F;LH103,113,125,RZH125..ARL

GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-12040

LH10#,11#,125,RZH10#,11#,125..RHD

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95J3103

RZH102..RHD..5D..03S;LH10#,113,114,115..GEN;LH112,RZH102,104,112,114..RHD..4D

W(CENTER SEAT BELT),GRAY,TRIM1#

 1
73210-95J3303

RZH103,113..STD;RZH102..RHD..06S..5F;LH103,113,125,RZH125..ARL

GRAY,TRIM1#

 1
73210-95J2903

RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN

W(*ELR),GRAY,TRIM1#

 1
73210-95J3103

LH10#,11#..GEN;RZH102,104,112,114..RHD

W(CENTER SEAT BELT),GRAY,TRIM1#

 1
73210-26010B0

LH10#,11#,RZH102,104,112,114..GEN

W(*ELR),GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95J3303

RZH103,113..STD;RZH102..RHD..06S..5F;LH103,113,125,RZH125..ARL

GRAY,TRIM1#

 1
73210-95J3103

LH10#,11#..GEN;RZH102,104,112,114..RHD

W(CENTER SEAT BELT),GRAY,TRIM1#

 1
73210-95J3103

RZH102..RHD..5D..03S;LH10#,113,114,115..GEN;LH112,RZH102,104,112,114..RHD..4D

GRAY,TRIM1#

 1
73210-26010B0

LH10#,11#,RZH102,104,112,114..GEN

W(*ELR),GRAY,TRIM1#

 1
73210-95J2903

RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN

W(*ELR),GRAY,TRIM1#

 1
73223B - COVER, FRONT SEAT BELT RETRACTOR, RH
73223-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
73224 - COVER, FRONT SEAT BELT RETRACTOR, LH
73224-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95J1603

LH10#,11#,125,RZH10#,11#,125..RHD

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95J3103

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#

 1
73240-95J2803

LH10#,11#,125,RZH10#,11#,125..RHD..STD

TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#

 1
Common parts
90105-11036
90119-10492
90159-60389
90333-40001
90461-10595
90950-01126
91651-40612
93540-54012

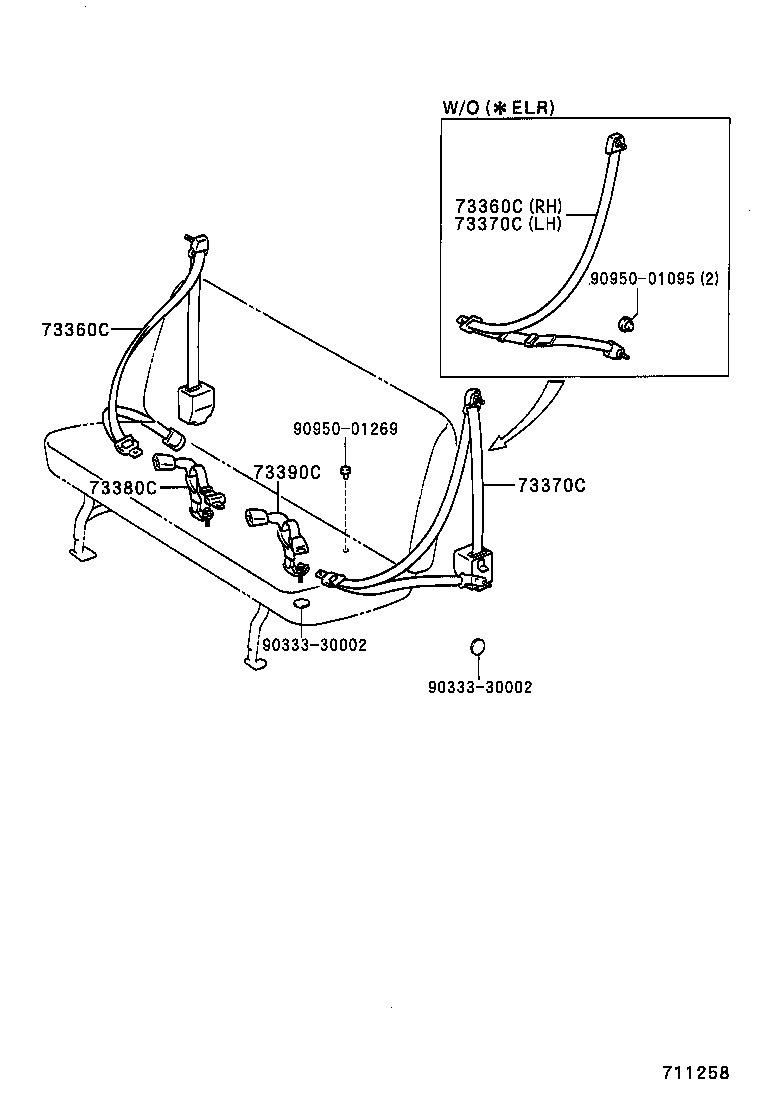

ILLUST NO. 2 OF 2(8908-9108)RZH102,103,113..RHD..SG ; (9808-0008)LH103,113,RZH103,113..06S..GEN

Click highlighted areas on diagram

diagram 73360C 73360C 73370C 73370C 73380C 73390C 9033330002 9033330002 9095001095 9095001269
Part # Description Qty Price
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-95J1303

RZH102,113..RHD..06S..(4FC,5F)

GRAY,TRIM1#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-95J1303

RZH102,113..RHD..06S..(4FC,5F)

GRAY,TRIM1#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73360-95J1303

RZH102,113..RHD..06S..(4FC,5F)

GRAY,TRIM1#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73360-95J1303

RZH102,113..RHD..06S..(4FC,5F)

GRAY,TRIM1#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-95J1203

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-95J0703

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#

 1
Common parts
90333-30002
90950-01095
90950-01269
