RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter
(8908-9808)LH103,113,RZH102,112..4D..06S ; (9611-9808)RZH113..06S..EFI

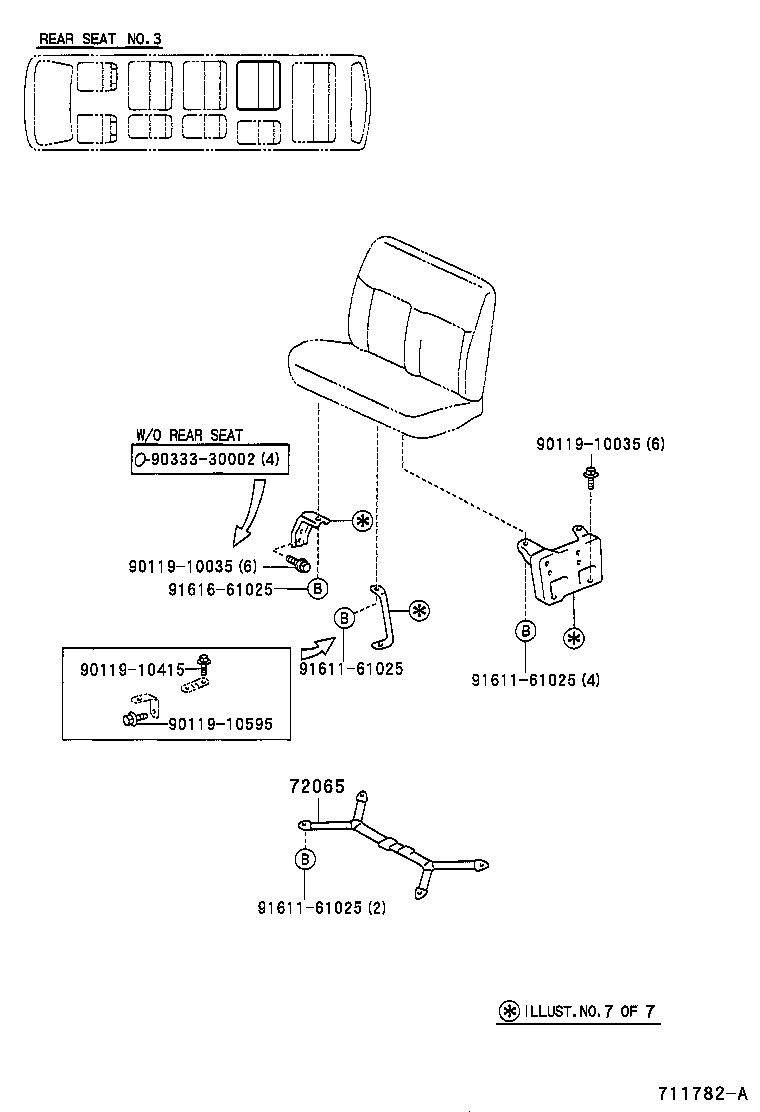

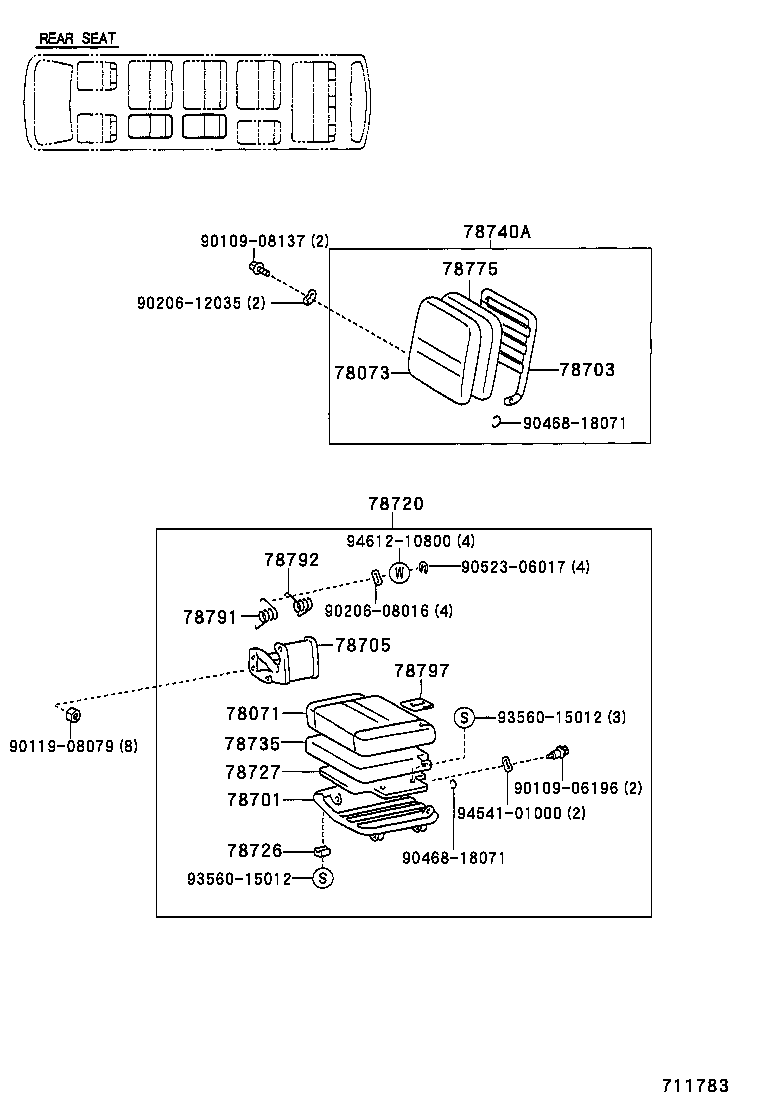

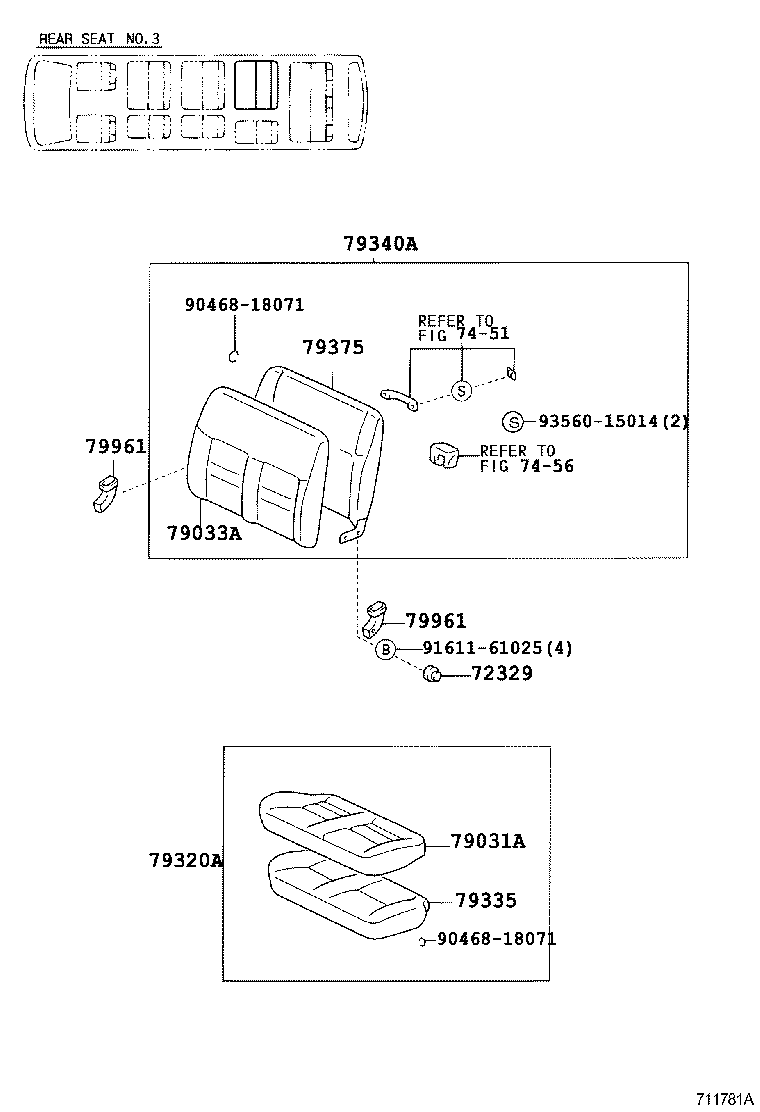

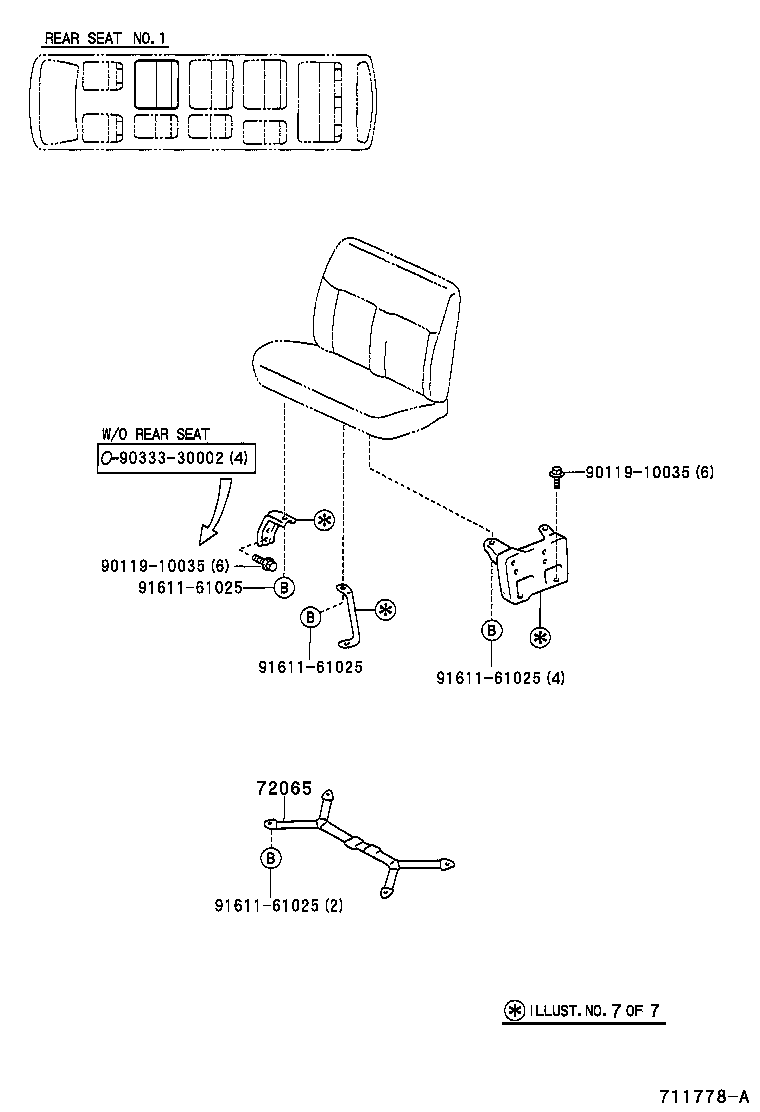

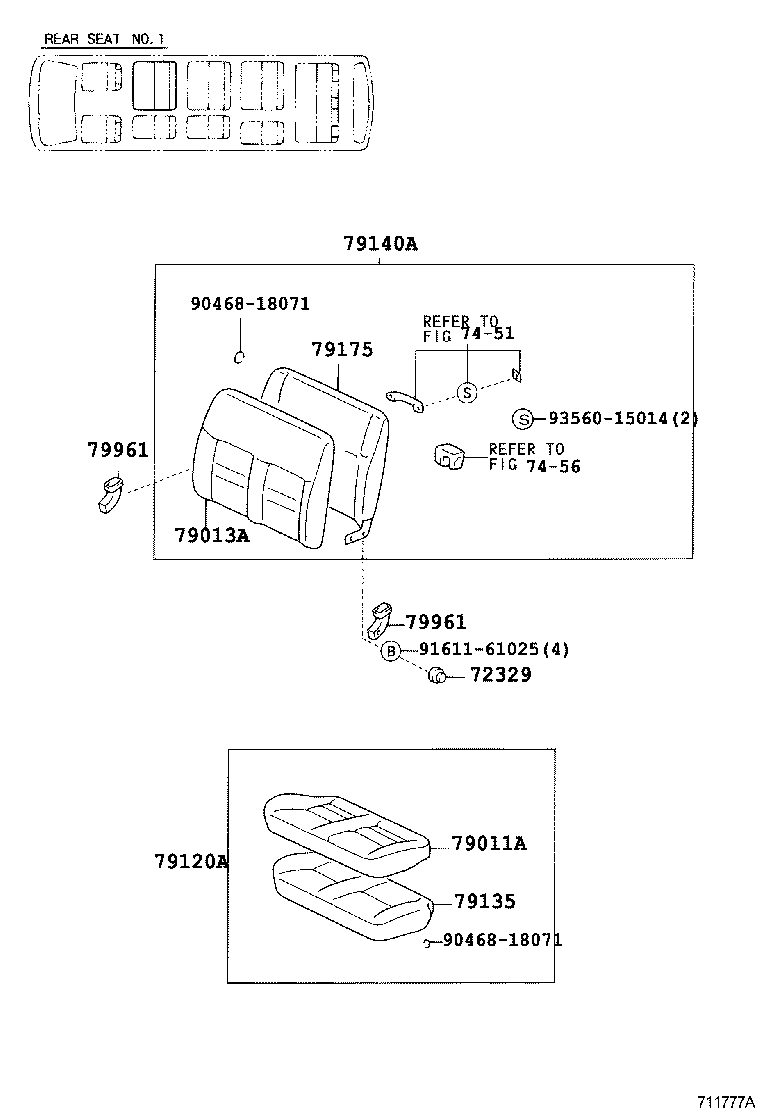

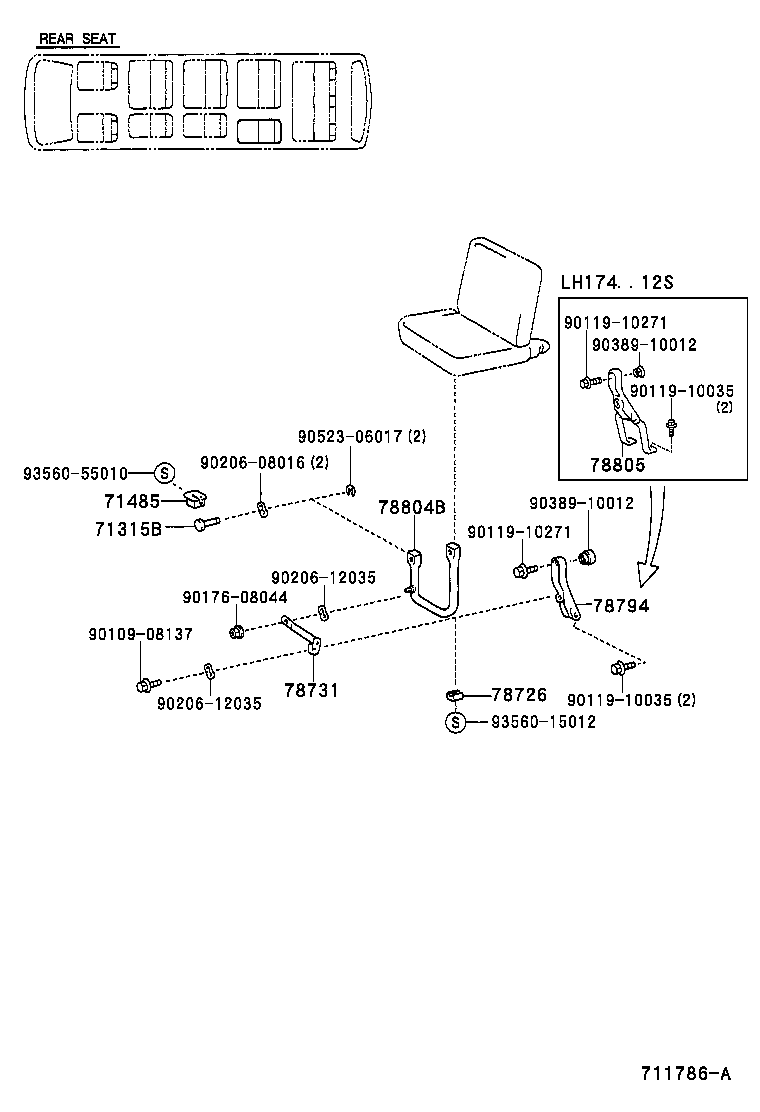

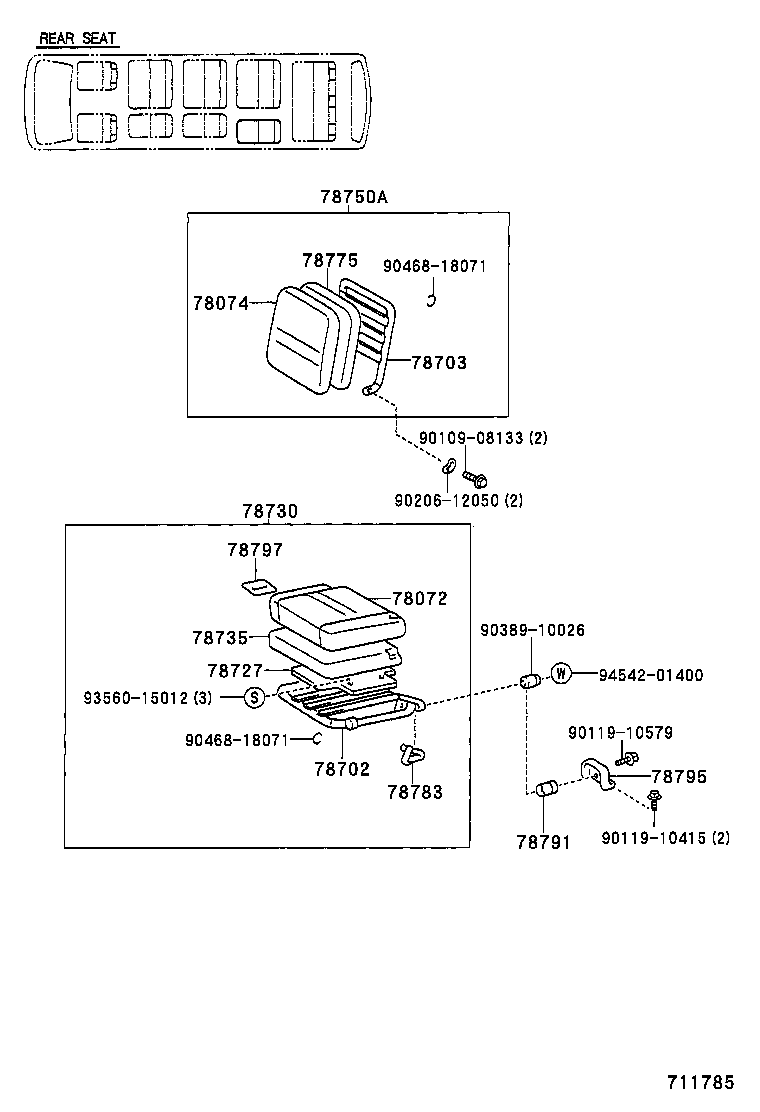

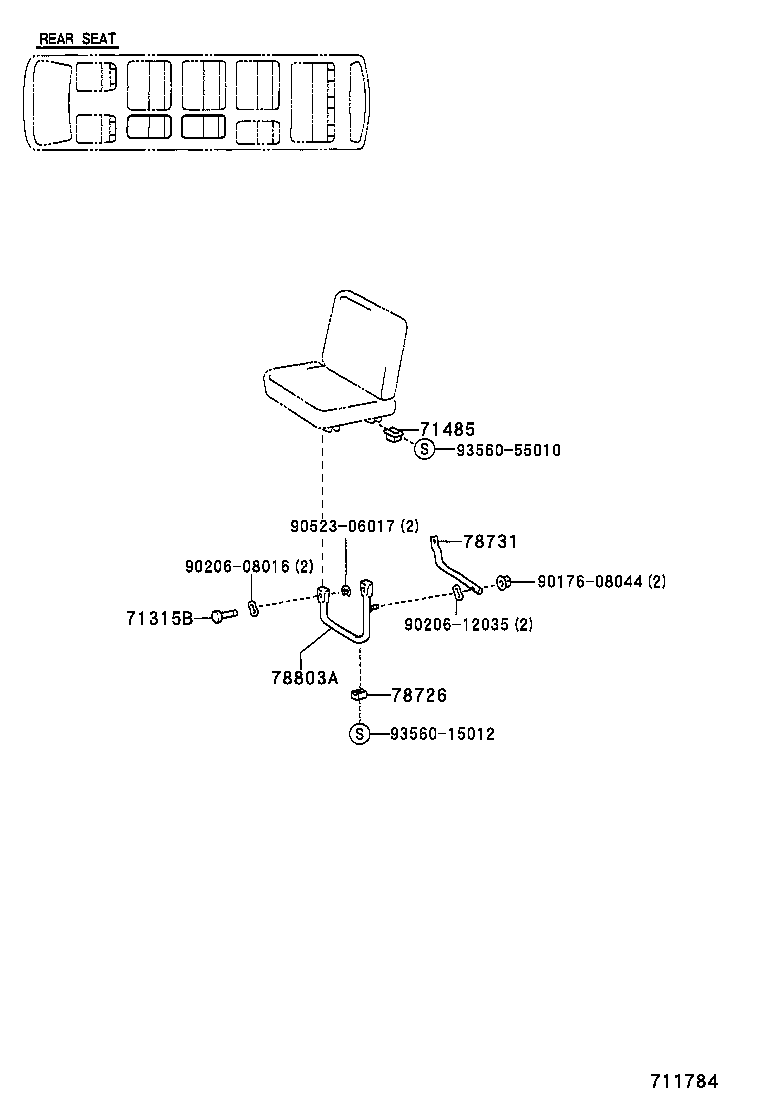

REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71344A - PLATE, REAR SEAT CUSHION HINGE | ||||
| 71344-95J00 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 71350B - HINGE ASSY, REAR SEAT, RH | ||||
| 71350-95J48 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 71351 - KNOB, SEAT HINGE LEVER | ||||
| 71351-95J0303 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 71360A - HINGE ASSY, REAR SEAT, LH | ||||
| 71360-95J21 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-95J0203 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH103,113,RZH112..06S GRAY,TRIM1# |
1 | ||
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-95J0203 |
LH102,103,112,113,RZH102,103,112,113..SG GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95701 |
RZH102..06S..4F;RZH102,113..LHD..06S..5F;LH102,103,112,113,RZH112..06S 20 X 30 |
6 | ||
| 71621-95J02 |
LH104,113,114,115,RZH104,112,114..4D..SG 30 X 45 |
1 | ||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95701 |
RZH102..06S..4F;RZH102,113..LHD..06S..5F;LH102,103,112,113,RZH112..06S 20 X 30 |
6 | ||
| 71621-95J02 |
LH104,113,114,115,RZH104,112,114..4D..SG 30 X 45 |
1 | ||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N3703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-2602003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-95N4003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N2003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-2605003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-95N1103 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N5003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120-95N4703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79135-95J03 |
RZH102..06S..4F;RZH102..LHD..5F;LH102,103,112,113,RZH112..06S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N4303 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J53 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 79160-95J44 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79160-95J55B1 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79019-95J03 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 79169-95J05 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J24 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 79175-95J26 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79175-95J02 |
LH102,103,112,113,RZH102,112..4D..06S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79380-95J21 |
RZH102,103,113..RHD..06S..(4FC,5F) |
1 | ||
| 79180-95J21 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79180-95J20 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=40 |
2 | ||
| 79189-95J00 |
LH103,113,RZH102,103,112,113..SG |
2 | ||
| 71334-95J01 |
LH10#,11#,125,RZH102,104,112,114,125..4D..SG L=40 |
2 | ||
| 79189-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG |
2 | ||
| 71334-95703 |
LH104,113,114,115,125,RZH10#,11#,125..SG L=25 |
2 | ||
| 71334-95703 |
LH113,RZH102,103,112,113..06S L=25 |
2 | ||
| 71334-95703 |
LH104,113,114,115,RZH10#,11#..SG L=25 |
2 | ||
| 71334-95703 |
LH113,RZH102,103,112,113..SG L=25 |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=23 |
2 | ||
| 79199-95J00 |
LH103,113,RZH102,103,112,113..SG L=38 |
2 | ||
| 79199-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| 79199-95J01 |
LH10#,11#,125,RZH102,104,112,114,125..4D..SG L=23 |
2 | ||
| 79199-95J00 |
LH104,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90119-10185 | ||||
| 90167-40044 | ||||
| 90168-40078 | ||||
| 90202-08056 | ||||
| 90249-08204 | ||||
| 90386-13016 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 90950-01913 | ||||
| 91616-61025 | ||||
| 93315-16016 | ||||
| 93530-44016 | ||||
| 94511-00800 | ||||
| 96160-00600 | ||||
(8908- )RHD
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J13 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN |
1 | ||
| 71011-95J06 |
LH10#,11#,125,RZH10#,11#,125..RHD W(*ELR) |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J04 |
RZH103..GL;RZH102..RHD..4F;LH10#,11#,RZH104,112,114..RHD..GEN W(HEADREST) |
1 | ||
| 71013-95J16 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD W(*ELR & HEADREST) |
1 | ||
| 71013-95J07 |
LH10#,11#,RZH10#,11#..RHD..GEN |
1 | ||
| 71013-95J04 |
LH102,103,11#,RZH102,104,112,114..RHD..GEN W(HEADREST) |
1 | ||
| 71013-95J16 |
LH102,103,11#,125,RZH10#,11#,125..RHD W(*ELR & HEADREST) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J11 |
LH10#,11#,RZH10#,11#..RHD..GEN W(*ELR) |
1 | ||
| 71014-95J13 |
LH102,103,11#,125,RZH10#,11#,125..RHD W(HEADREST) |
1 | ||
| 71014-95J13 |
RZH113..03S;RZH113..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD..STD W(HEADREST) |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-95J1103 |
LH10#,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J8603 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..RHD..GEN W(*ELR & VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71071-95J8603 |
LH125,RZH125;LH102,103,11#,RZH10#,11#..RHD..GEN W(*ELR & VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71071-95N1303 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95N0203 |
LH125,RZH125;LH10#,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N4203 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..RHD..GEN W(HEADREST & VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71073-95N4103 |
LH10#,11#,RZH102,104,11#..RHD..GEN W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71073-2604003 |
LH125,RZH125;LH102,103,11#,RZH10#,11#..RHD..GEN W(HEADREST & VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71073-2604003 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..RHD..GEN W(HEADREST & VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71073-2603003 |
LH10#,11#,RZH10#,11#..RHD..GEN W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2606003 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71074-95N5703 |
LH10#,11#,RZH102,104,11#..RHD..GEN W(*ELR),GRAY,TRIM1# |
1 | ||
| 71074-95N5803 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..RHD..GEN W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71074-2606003 |
LH125,RZH125;LH102,103,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0803 |
LH102,103,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1# |
1 | ||
| 71128-95J0803 |
LH10#,11#,RZH10#,11#..RHD..SRF GRAY,TRIM1# |
1 | ||
| 71128-95J0803 |
LH102,103,11#,RZH10#,11#..RHD GRAY,TRIM1# |
1 | ||
| 71128-95J0803 |
LH10#,11#,RZH10#,11#..RHD GRAY,TRIM1# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0003 |
RZH113..03S;RZH113..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD..STD GRAY,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J3403 |
LH10#,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-95J00 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD..(03S,06S,12S,14S,15S) |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J04 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD..(03S,06S,12S,14S,15S) |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J0303 |
RZH113..03S;RZH113..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD..STD GRAY,TRIM1# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95J0203 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1# |
1 | ||
| 71395-95J0203 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J8703 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..RHD..GEN W(*ELR),GRAY,TRIM1# |
1 | ||
| 71410-95J8703 |
LH125,RZH125;LH102,103,11#,RZH10#,11#..RHD..GEN W(*ELR),GRAY,TRIM1# |
1 | ||
| 71410-95N1303 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95N0403 |
LH125,RZH125;LH10#,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N3903 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..RHD..GEN W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71401-95N3803 |
LH10#,11#,RZH10#,11#..RHD..GEN W(*ELR),GRAY,TRIM1# |
1 | ||
| 71401-95N3903 |
LH125,RZH125;LH102,103,11#,RZH10#,11#..RHD..GEN W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N4203 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..RHD..GEN W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71402-95N4103 |
LH10#,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71402-95N4203 |
LH125,RZH125;LH102,103,11#,RZH10#,11#..RHD..GEN W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J11 |
LH10#,11#,125,RZH10#,11#,125..RHD W(*ELR) |
1 | ||
| 71511-95J13 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J01 |
RZH113..GEN..CBR;LH125,RZH113..(03S,14S)..ARL;LH10#,11#,RZH102,103,104,112,114,125..RHD..(03S,06S,12S,14S,15S) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J18 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J19 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..RHD..GEN |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1#,FRONT SEAT |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0003 |
LH10#,11#,RZH10#,11# GRAY,TRIM1# |
1 | ||
| 71831-95J0003 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J0203 |
RZH113..03S;RZH113..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD..STD GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J3503 |
LH10#,11#,RZH102,104,11#..RHD..GEN GRAY,TRIM1#,RH & LH |
2 | ||
| 71910-95J3503 |
LH102,103,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1#,RH & LH |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J3503 |
LH10#,11#,RZH102,104,11#..RHD..GEN GRAY,TRIM1#,RH & LH |
2 | ||
| 71910-95J3503 |
LH102,103,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1#,RH & LH |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH104..LHD;LH102,103,11#,RZH10#,11# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
LH104..LHD;LH102,103,11#,125,RZH10#,11#,125 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
LH104..LHD;LH102,103,11#,RZH10#,11# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH104..LHD;LH102,103,11#,125,RZH10#,11#,125 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH104..LHD;LH102,103,11#,RZH10#,11# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
LH104..LHD;LH102,103,11#,125,RZH10#,11#,125 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
LH104..LHD;LH102,103,11#,RZH10#,11# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH104..LHD;LH102,103,11#,125,RZH10#,11#,125 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH104..LHD;LH102,103,11#,RZH10#,11# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
LH104..LHD;LH102,103,11#,125,RZH10#,11#,125 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
LH104..LHD;LH102,103,11#,RZH10#,11# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH104..LHD;LH102,103,11#,125,RZH10#,11#,125 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH104..LHD;LH102,103,11#,RZH10#,11# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
LH104..LHD;LH102,103,11#,125,RZH10#,11#,125 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
LH104..LHD;LH102,103,11#,RZH10#,11# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH104..LHD;LH102,103,11#,125,RZH10#,11#,125 W(LOCK),GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J07 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,11#,RZH10#,11#..RHD GRAY,TRIM1# |
1 | ||
| 72525-95J0103 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1# |
1 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-9570113 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08026 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90119-10229 | ||||
| 90119-10855 | ||||
| 90161-40023 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 5855 | ||||
(8908-9808)LH102,103,112,113,RZH102,103,112,113..SG
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-95J00 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
2 | ||
| 71409 - STOPPER SUB-ASSY, REAR SEAT BACK | ||||
| 71409-95J04 |
LH102,103,112,113,RZH102,112..4D..06S |
1 | ||
| 71434 - PIN, REAR SEAT CUSHION LEG, REAR | ||||
| 71434-95701 |
LH102,103,112,113,RZH102,112..4D..06S |
2 | ||
| 71434-95701 |
LH10#,11#,125,RZH102,104,112,114,125..4D..SG |
2 | ||
| 71448 - STOPPER, REAR SEAT BACK | ||||
| 71448-9570313 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-95J0203 |
LH102,103,112,113,RZH102,103,112,113..SG GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95701 |
RZH102..06S..4F;RZH102,113..LHD..06S..5F;LH102,103,112,113,RZH112..06S 20 X 30 |
6 | ||
| 71621-95J02 |
LH104,113,114,115,RZH104,112,114..4D..SG 30 X 45 |
1 | ||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-26010 |
LH102,112,113,RZH112..4D..06S |
2 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-26010 |
LH102,112,113,RZH112..4D..06S |
2 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72066-95J03 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 72213A - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N3703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-2602003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-95N4003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N2003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-2605003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-95N1103 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N5003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120-95N4703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79120B - LEG ASSY, NO.1 SEAT, LH | ||||
| 79120-95N28 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79135-95J03 |
RZH102..06S..4F;RZH102..LHD..5F;LH102,103,112,113,RZH112..06S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N4303 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J53 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 79160-95J44 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79160-95J55B1 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J24 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 79175-95J26 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79175-95J02 |
LH102,103,112,113,RZH102,112..4D..06S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79380-95J21 |
RZH102,103,113..RHD..06S..(4FC,5F) |
1 | ||
| 79180-95J21 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79180-95J20 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=40 |
2 | ||
| 79189-95J00 |
LH103,113,RZH102,103,112,113..SG |
2 | ||
| 71334-95J01 |
LH10#,11#,125,RZH102,104,112,114,125..4D..SG L=40 |
2 | ||
| 79189-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG |
2 | ||
| 71334-95703 |
LH104,113,114,115,125,RZH10#,11#,125..SG L=25 |
2 | ||
| 71334-95703 |
LH113,RZH102,103,112,113..06S L=25 |
2 | ||
| 71334-95703 |
LH104,113,114,115,RZH10#,11#..SG L=25 |
2 | ||
| 71334-95703 |
LH113,RZH102,103,112,113..SG L=25 |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=23 |
2 | ||
| 79199-95J00 |
LH103,113,RZH102,103,112,113..SG L=38 |
2 | ||
| 79199-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| 79199-95J01 |
LH10#,11#,125,RZH102,104,112,114,125..4D..SG L=23 |
2 | ||
| 79199-95J00 |
LH104,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| Common parts | ||||
| 90109-08150 | ||||
| 90119-10607 | ||||
| 90149-10008 | ||||
| 90159-60126 | ||||
| 90202-13066 | ||||
| 90206-16025 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 93315-16016 | ||||
| 93530-44016 | ||||
| 93560-14012 | ||||
| 94511-00800 | ||||
ILLUST NO. 7 OF 7(8908-9907)LH104,105,114,115,125,166,174,176,184,RZH104,105,114,115,125 ; (9907-
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N3703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-2602003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-95N4003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N2003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-2605003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-95N1103 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N5003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120-95N4703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79135-95J03 |
RZH102..06S..4F;RZH102..LHD..5F;LH102,103,112,113,RZH112..06S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N4303 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J24 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 79175-95J26 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79175-95J02 |
LH102,103,112,113,RZH102,112..4D..06S |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 1 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10035 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 2 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 2 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10035 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 3 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 3 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10035 | ||||
| 90119-10415 | ||||
| 90119-10595 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
| 91616-61025 | ||||
ILLUST NO. 4 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06196 | ||||
| 90109-08137 | ||||
| 90119-08079 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 94541-01000 | ||||
| 94612-10800 | ||||
ILLUST NO. 4 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
ILLUST NO. 5 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08133 | ||||
| 90119-10415 | ||||
| 90119-10579 | ||||
| 90206-12050 | ||||
| 90389-10026 | ||||
| 90468-18071 | ||||
| 93560-15012 | ||||
| 94542-01400 | ||||
ILLUST NO. 5 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-08137 | ||||
| 90119-10035 | ||||
| 90119-10271 | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90389-10012 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
(8908-9907)LH102,103,112,113,172,RZH102,103,112,113..RHD..SG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71434 - PIN, REAR SEAT CUSHION LEG, REAR | ||||
| 71434-95701 |
LH102,103,112,113,RZH102,112..4D..06S |
2 | ||
| 71434-95701 |
LH10#,11#,125,RZH102,104,112,114,125..4D..SG |
2 | ||
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-95J0203 |
LH102,103,112,113,RZH102,103,112,113..SG GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95701 |
RZH102..06S..4F;RZH102,113..LHD..06S..5F;LH102,103,112,113,RZH112..06S 20 X 30 |
6 | ||
| 71621-95J02 |
LH104,113,114,115,RZH104,112,114..4D..SG 30 X 45 |
1 | ||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71691-9570313 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71692-95J0003 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1#,INNER |
1 | ||
| 71691-9570313 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71691-9570313 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71692-95J0003 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1#,INNER |
1 | ||
| 71691-9570313 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-9570213 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71692-9570213 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95J0003 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1#,INNER |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-9570213 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71692-9570213 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95J0003 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1#,INNER |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-95J0103 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-95J0203 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 72708-95J0013 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 71838B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 72709-95J0013 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-9570013 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-9570013 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
RZH102,103,113..RHD..SG..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J0103 |
RZH102..RHD..06S..5F;LH104,105,114,115,RZH103,104,113,114..SG GRAY,TRIM1# |
1 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95J00 |
LH103..5D..06S;RZH102,103,113..RHD..SG..(4FC,5F) |
2 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95J00 |
LH103..5D..06S;RZH102,103,113..RHD..SG..(4FC,5F) |
2 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95J00 |
LH103..5D..06S;RZH102,103,113..RHD..SG..(4FC,5F) |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-95J03 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 72651 - ROD, REAR SEAT BACK LOCK | ||||
| 72651-95J06 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570113 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1# |
2 | ||
| 72658-9570113 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1# |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570113 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1# |
2 | ||
| 72658-9570113 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1# |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570113 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1# |
2 | ||
| 72658-9570113 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1# |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95J02 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72730-95J0803 |
RZH102,103,113..RHD..06S..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72740-95J1203 |
RZH102,103,113..RHD..06S..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 74790 - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-95J02 |
RZH102,103,113..RHD..SG..(4FC,5F) |
2 | ||
| 74790 - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-95J02 |
RZH102,103,113..RHD..SG..(4FC,5F) |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N3703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-2602003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-95N4003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N2003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-2605003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-95N1103 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N5003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120-95N4703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79135-95J03 |
RZH102..06S..4F;RZH102..LHD..5F;LH102,103,112,113,RZH112..06S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N4303 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J53 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 79160-95J44 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79160-95J55B1 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79019-95J03 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 79169-95J05 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J24 |
RZH102,103,113..RHD..SG..(4FC,5F) |
1 | ||
| 79175-95J26 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79175-95J02 |
LH102,103,112,113,RZH102,112..4D..06S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79380-95J21 |
RZH102,103,113..RHD..06S..(4FC,5F) |
1 | ||
| 79180-95J21 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79180-95J20 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=40 |
2 | ||
| 79189-95J00 |
LH103,113,RZH102,103,112,113..SG |
2 | ||
| 71334-95J01 |
LH10#,11#,125,RZH102,104,112,114,125..4D..SG L=40 |
2 | ||
| 79189-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG |
2 | ||
| 71334-95703 |
LH104,113,114,115,125,RZH10#,11#,125..SG L=25 |
2 | ||
| 71334-95703 |
LH113,RZH102,103,112,113..06S L=25 |
2 | ||
| 71334-95703 |
LH104,113,114,115,RZH10#,11#..SG L=25 |
2 | ||
| 71334-95703 |
LH113,RZH102,103,112,113..SG L=25 |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=23 |
2 | ||
| 79199-95J00 |
LH103,113,RZH102,103,112,113..SG L=38 |
2 | ||
| 79199-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| 79199-95J01 |
LH10#,11#,125,RZH102,104,112,114,125..4D..SG L=23 |
2 | ||
| 79199-95J00 |
LH104,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90119-10315 | ||||
| 90119-10409 | ||||
| 90119-10412 | ||||
| 90119-11029 | ||||
| 90164-50020 | ||||
| 90167-40044 | ||||
| 90168-40078 | ||||
| 90202-08056 | ||||
| 90249-08204 | ||||
| 90387-08122 | ||||
| 90468-03018 | ||||
| 90468-18071 | ||||
| 90507-26009 | ||||
| 90523-06017 | ||||
| 91611-61020 | ||||
| 93315-16016 | ||||
| 93530-44016 | ||||
| 94541-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
