RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

Click highlighted areas on diagram

diagram 67206A 67207A 67961A 68810D 68820C 68825 68825 68907 68908 69035 69036 69150 69211C 69290F 69290F 69291 69291 69298 69350 69358 69359 69403A 69404A 69430C 69449A 69461A 69690 69690 69706A 69741D 69749E 69751 69783B 8113 9010906125 9011906549 9011906681 9011906681 9011906767 9011906883 9011908464 9011908829 9011908830 9011908830 9015760012 9015960066 9015960066 9017608032 9017608032 9018906018 9095001027 9095006096 9165140614 9165140614 9321954012 9354054014 9354054014 9359016014 9359016014
Part # Description Qty Price
67206A - BRACKET SUB-ASSY, BACK DOOR STOPPER
67206-26010

LH102,104,11#,RZH102,104,112,114..GEN

 1
67206-26010

LH102,104,11#..GEN;RZH102,104,112,114..LHD..SRF..SG

 1
67207A - STOPPER SUB-ASSY, BACK DOOR, RH
67207-95J01

LH102,104,11#..GEN;RZH102,104,112,114..LHD..SRF..SG

 1
67207-95J01

LH102,104,11#,RZH102,104,112,114..GEN

 1
67961A - STRAP, BACK DOOR PULL
67961-95J0001

LH102,103,112,113,RZH102,103,112,113..SRF

BLACK,TRIM1#

 1
68810D - HINGE ASSY, BACK DOOR, RH
68810-95J02

RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-95J02

RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S

 1
68825 - PLATE, BACK DOOR HINGE
68825-95700

LH10#,11#,125,RZH10#,11#,125,135,153

 2
68825 - PLATE, BACK DOOR HINGE
68825-95700

LH10#,11#,125,RZH10#,11#,125,135,153

 2
68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH
68907-95J16

RZH113..EFI;RZH113..ARL,GCC;RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH102,103,112,113,RZH112..SRF..(DX,STD)..(ARL,GCC,GEN)

W(2 STEP BACK DOOR DAMPER)

 1
68907-95J14

LH10#,11#,RZH10#,11#..SRF

COLD SPEC OR W(REAR WINDOW WIPER)

 1
68907-95J13

RZH113..EFI;RZH113..ARL,GCC;RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH10#,11#,RZH104,105,112,114,115..SRF..(DX,STD)..(ARL,GCC,GEN)

 1
68907-95J17

LH102,103,112,113,RZH102,103,112,113..SRF..(ARL,GCC,GEN)

COLD SPEC & W(2 STEP BSCK DOOR DAMPER) OR W(REAR WIPER & 2 STEP BACK DOOR DAMPER)

 1
68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH
68908-95J14

LH10#,11#,RZH10#,11#..SRF

COLD SPEC OR W(REAR WINDOW WIPER)

 1
68908-95J13

RZH113..EFI;RZH113..ARL,GCC;RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH10#,11#,RZH104,105,112,114,115..SRF..(DX,STD)..(ARL,GCC,GEN)

 1
68908-95J16

RZH113..EFI;RZH113..ARL,GCC;RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH102,103,112,113,RZH112..SRF..(DX,STD)..(ARL,GCC,GEN)

W(2 STEP BACK DOOR DAMPER)

 1
68908-95J17

LH102,103,112,113,RZH102,103,112,113..SRF..(ARL,GCC,GEN)

COLD SPEC & W(2 STEP BSCK DOOR DAMPER) OR W(REAR WIPER & 2 STEP BACK DOOR DAMPER)

 1
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-95J00

RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S

 1
69290F - HANDLE ASSY, BACK DOOR INSIDE
69290-95J01

LH125,RZH125;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;LH172,174..(03S,10S)..GL;LH172..RHD..SRF..4D..STD..GEN;RZH103,105,113,115..(GCC,GEN)..CBR;RZH113..4D..(03S,06S,09S)..GEN..EFI;LH10#,11#,166,176,184,RZH102,104,112,114,135,153..CIS,GCC,GEN

 1
69290F - HANDLE ASSY, BACK DOOR INSIDE
69290-95J01

LH125,RZH125;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;LH172,174..(03S,10S)..GL;LH172..RHD..SRF..4D..STD..GEN;RZH103,105,113,115..(GCC,GEN)..CBR;RZH113..4D..(03S,06S,09S)..GEN..EFI;LH10#,11#,166,176,184,RZH102,104,112,114,135,153..CIS,GCC,GEN

 1
69291 - HANDLE ASSY, BACK DOOR INSIDE
69291-95J0023

LH125,RZH125;LH10#,11#,RZH10#,11#..GEN

GRAY,TRIM1#

 1
69291 - HANDLE ASSY, BACK DOOR INSIDE
69291-95J0023

LH125,RZH125;LH10#,11#,RZH10#,11#..GEN

GRAY,TRIM1#

 1
69298 - COVER, BACK DOOR INSIDE HANDLE
69298-95J00

LH125,RZH125;RZH103..RHD..GEN;LH10#,11#,RZH102,104,105,11#..CIS,GCC,GEN

 1
69350 - LOCK ASSY, BACK DOOR
69350-95J01

LH10#,11#,125,RZH10#,11#,125

 1
69350-95J02

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 1
69358 - PROTECTOR, BACK DOOR LOCK
69358-95J00

LH102,103,112,113,RZH102,103,112,113

 1
69359 - CUSHION, BACK DOOR LOCK
90541-09029

LH10#,11#,125,RZH10#,11#,125

 2
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-26010

LH102,104,11#,RZH102,104,112,114..GEN

SEVERE USAGE PACKAGE

 1
69403-95J05

LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69403-26010

LH102,104,11#,RZH102,104,112,114..GEN

SEVERE USAGE PACKAGE

 1
69403-95J05

LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-95J01

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 1
69430-95J00

LH10#,11#,125,RZH10#,11#,125

 1
69449A - SHIM, BACK DOOR LOCK STRIKER
69449-95J00

LH102,103,112,113,RZH102,103,112,113

 1
69461A - STOPPER, BACK DOOR SIDE MALE
69461-95J03

LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN

 2
69461-26010

LH102,104,11#,RZH102,104,112,114..GEN

SEVERE USAGE PACKAGE

 2
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95J03

LH10#,11#,RZH10#,11#

 1
69690-95J04

LH125,RZH125;LH10#,11#,RZH10#,11#..GEN

W(INSIDE HANDLE)

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95J03

LH10#,11#,RZH10#,11#

 1
69690-95J04

LH125,RZH125;LH10#,11#,RZH10#,11#..GEN

W(INSIDE HANDLE)

 1
69706A - ROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL
69706-95J01

LH125,RZH125;LH10#,11#,RZH10#,11#,135,153..CIS,GCC,GEN

 1
69741D - KNOB, DOOR LOCK CONTROL(FOR BACK DOOR)
69741-28010C1

LH125,RZH125;LH10#,11#,RZH102,104,11#..GEN

BLACK,TRIM1#

 1
69741-28010C1

RZH113..03S;LH113,125,RZH125;LH10#,112,114,115,RZH10#,11#..GEN

BLACK,TRIM1#

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-30020

LH102,103,112,113,RZH102,103,112,113

 1
69751 - HOLDER, DOOR LOCK CONTROL KNOB
69751-95J00B0

LH125,RZH125;LH10#,11#,RZH102,104,11#..GEN

GRAY,TRIM1#

 1
69751-95J00B0

RZH113..03S;LH113,125,RZH125;LH10#,112,114,115,RZH10#,11#..GEN

GRAY,TRIM1#

 1
Common parts
90109-06125
90119-06549
90119-06681
90119-06767
90119-06883
90119-08464
90119-08829
90119-08830
90157-60012
90159-60066
90176-08032
90189-06018
90950-01027
90950-06096
91651-40614
93219-54012
93540-54014
93590-16014
Linked diagrams
8113

(9001- )

Click highlighted areas on diagram

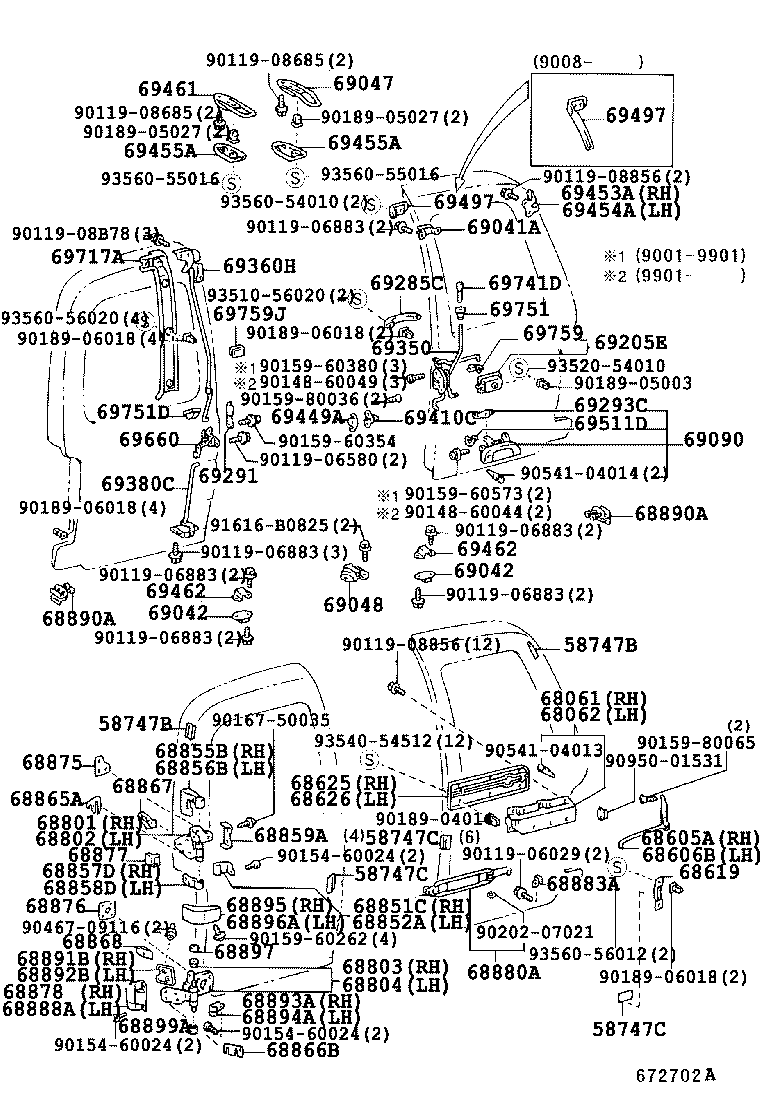

W(DOUBLE SWING BACK DOOR)

diagram 58747B 58747B 58747C 58747C 58747C 68061 68062 68605A 68606B 68619 68625 68626 68801 68802 68803 68804 68851C 68852A 68855B 68856B 68857D 68858D 68859A 68865A 68866B 68867 68868 68875 68876 68877 68880A 68883A 68888A 68890A 68890A 68891B 68892B 68893A 68894A 68895 68896A 68897 68899A 69041A 69042 69042 69047 69048 69090 69205E 69285C 69291 69293C 69350 69360H 69380C 69410C 69449A 69453A 69454A 69455A 69455A 69461 69462 69462 69497 69497 69511D 69660 69717A 69741D 69751 69751D 69759 69759J 9011906029 9011906580 9011906883 9011906883 9011906883 9011906883 9011906883 9011906883 9011908685 9011908685 9011908856 9011908856 9011908B78 9014860044 9014860049 9015460024 9015460024 9015460024 9015960262 9015960354 9015960380 9015960573 9015980036 9015980065 9016750035 9018904014 9018905003 9018905027 9018905027 9018906018 9018906018 9018906018 9018906018 9020207021 9046709116 9054104013 9054104014 9095001531 91616B0825 9351056020 9352054010 9354054512 9356054010 9356055016 9356055016 9356056012 9356056020
Part # Description Qty Price
69291 - HANDLE ASSY, BACK DOOR INSIDE
69291-95J0023

LH125,RZH125;LH10#,11#,RZH10#,11#..GEN

GRAY,TRIM1#

 1
69350 - LOCK ASSY, BACK DOOR
69350-95J01

LH10#,11#,125,RZH10#,11#,125

 1
69350-95J02

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 1
69449A - SHIM, BACK DOOR LOCK STRIKER
69449-95J00

LH102,103,112,113,RZH102,103,112,113

 1
69741D - KNOB, DOOR LOCK CONTROL(FOR BACK DOOR)
69741-28010C1

LH125,RZH125;LH10#,11#,RZH102,104,11#..GEN

BLACK,TRIM1#

 1
69741-28010C1

RZH113..03S;LH113,125,RZH125;LH10#,112,114,115,RZH10#,11#..GEN

BLACK,TRIM1#

 1
69751 - HOLDER, DOOR LOCK CONTROL KNOB
69751-95J00B0

LH125,RZH125;LH10#,11#,RZH102,104,11#..GEN

GRAY,TRIM1#

 1
69751-95J00B0

RZH113..03S;LH113,125,RZH125;LH10#,112,114,115,RZH10#,11#..GEN

GRAY,TRIM1#

 1
Common parts
90119-06029
90119-06580
90119-06883
90119-08685
90119-08856
90119-08B78
90148-60044
90148-60049
90154-60024
90159-60262
90159-60354
90159-60380
90159-60573
90159-80036
90159-80065
90167-50035
90189-04014
90189-05003
90189-05027
90189-06018
90202-07021
90467-09116
90541-04013
90541-04014
90950-01531
91616-B0825
93510-56020
93520-54010
93540-54512
93560-54010
93560-55016
93560-56012
93560-56020
