RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)SRF..STD ; (9308-9608)SRF..DX,GL,STD; (9608- )SRF

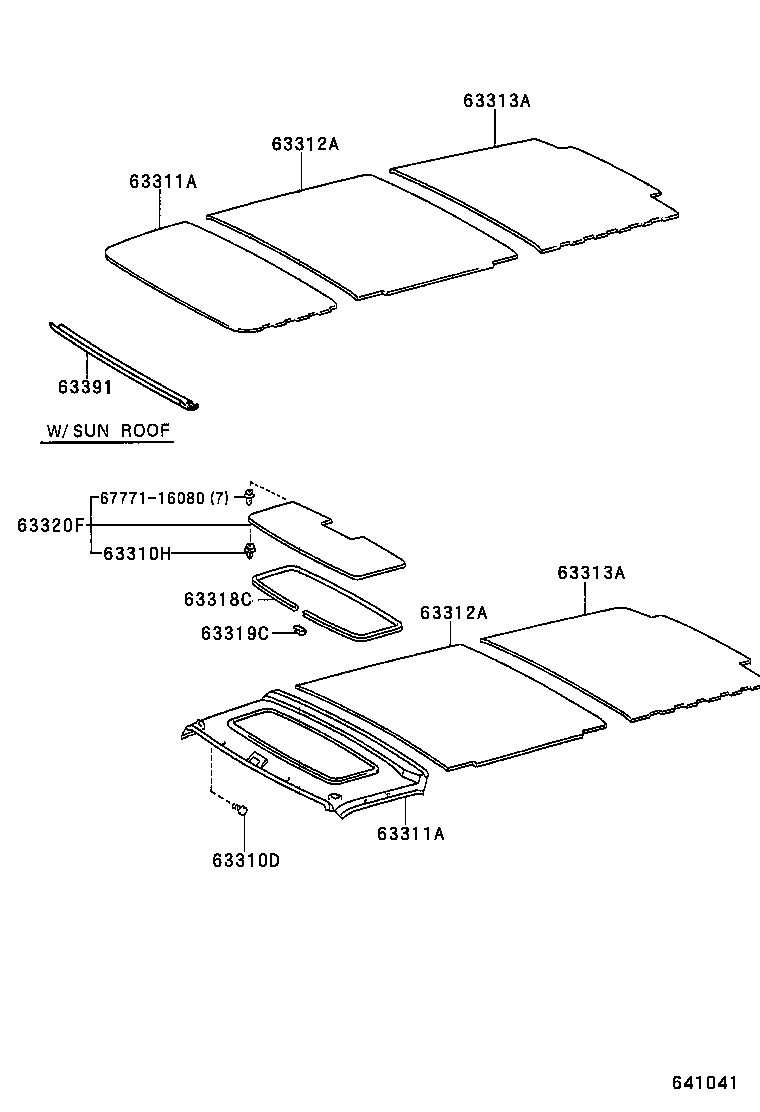

Click highlighted areas on diagram

diagram 63310D 63310H 63311A 63311A 63312A 63312A 63313A 63313A 63318C 63319C 63320F 63391 6777116080
Part # Description Qty Price
63310D - CLIP, ROOF HEADLINING
90467-0502118

LH10#,11#,RZH10#,11#..SRF..STD

IVORY,TRIM1#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90467-08047

LH10#,11#,RZH10#,11#..SRF..STD

 5
63311A - HEADLINING, ROOF NO.1
63311-95J2408

LH10#,11#,RZH10#,11#..SRF..STD

W(MOON ROOF),IVORY,TRIM1#

 1
63311-95J2508

LH10#,11#,RZH10#,11#..SRF..STD

IVORY,TRIM1#

 1
63311A - HEADLINING, ROOF NO.1
63311-95J2408

LH10#,11#,RZH10#,11#..SRF..STD

W(MOON ROOF),IVORY,TRIM1#

 1
63311-95J2508

LH10#,11#,RZH10#,11#..SRF..STD

IVORY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63312-95J0808

LH10#,11#,RZH10#,11#..SRF..STD

IVORY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63312-95J0808

LH10#,11#,RZH10#,11#..SRF..STD

IVORY,TRIM1#

 1
63313A - HEADLINING, ROOF, NO.3
63313-95J2508

LH11#,RZH11#..SRF

IVORY,TRIM1#

 1
63313A - HEADLINING, ROOF, NO.3
63313-95J2508

LH11#,RZH11#..SRF

IVORY,TRIM1#

 1
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-95J1008

LH10#,11#,RZH10#,11#..SRF..STD

IVORY,TRIM1#

 1
63319C - JOINT, SUN ROOF OPENING TRIM
63319-8700408

LH10#,11#,RZH10#,11#..SRF..STD

IVORY,TRIM1#

 1
63320F - HEADLINING ASSY, SUN ROOF
63320-95J0308

LH10#,11#,RZH10#,11#..SRF..STD

IVORY,TRIM1#

 1
Common parts
67771-16080
