RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter
(8908-9808)LH113,125,RZH112 ; (8908-9808)LH10#,112,114,115,RZH10#,113,114,115,125..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0703 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0703 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-95J0103 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-95J0103 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J3603 |
LH10#,11#,RZH102,104,11#..RHD..4D..SG GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J3603 |
LH10#,11#,RZH102,104,11#..RHD..4D..SG GRAY,TRIM1# |
1 | ||
| 62520C - CLIP, QUARTER TRIM BOARD, NO.1 | ||||
| 90467-1003416 |
RZH112..5D..03S;RZH113..06S..ARL;LH112,113,RZH112..06S BROWN,TRIM1# |
16 | ||
| 62520D - CLIP, QUARTER TRIM BOARD, NO.2 | ||||
| 90467-1003416 |
RZH112..5D..03S;RZH113..06S..ARL;LH112,113,RZH112..06S BROWN,TRIM1# |
14 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J3503 |
RZH113..GEN;LH114,115,125,RZH114,125 GRAY,TRIM1# |
1 | ||
| 62631-95J34 |
RZH113..ARL,GCC;RZH113..STD..EFI;LH112,113,RZH112..GL,STD |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J3503 |
RZH113..GEN;LH114,115,125,RZH114,125 GRAY,TRIM1# |
1 | ||
| 62631-95J34 |
RZH113..ARL,GCC;RZH113..STD..EFI;LH112,113,RZH112..GL,STD |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62632-95J40 |
LH112,113,RZH112..4D..06S |
1 | ||
| 62640-95J4903 |
LH114,115,RZH113,114..GEN GRAY,TRIM1# |
1 | ||
| 62632-95J33 |
LH112,113,RZH112..GL,STD SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62632-95J40 |
LH112,113,RZH112..4D..06S |
1 | ||
| 62640-95J4903 |
LH114,115,RZH113,114..GEN GRAY,TRIM1# |
1 | ||
| 62632-95J33 |
LH112,113,RZH112..GL,STD SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-1301043 |
LH104,114,RZH104,114..LHD;LH102,103,112,113,RZH102,103,112,113..4D..STD GRAY,TRIM1# |
1 | ||
| 75024 - LID SUB-ASSY, TOOL BOX, LH | ||||
| 75024-95J0003 |
RZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH102,103,112,113,RZH103,113..RHD..STD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-16080 | ||||
| 67771-26010 | ||||
| 67771-95705 | ||||
| 67921-95500 | ||||
| 90468-05096 | ||||
| 90468-05125 | ||||
| 91631-40612 | ||||
| 93568-55012 | ||||

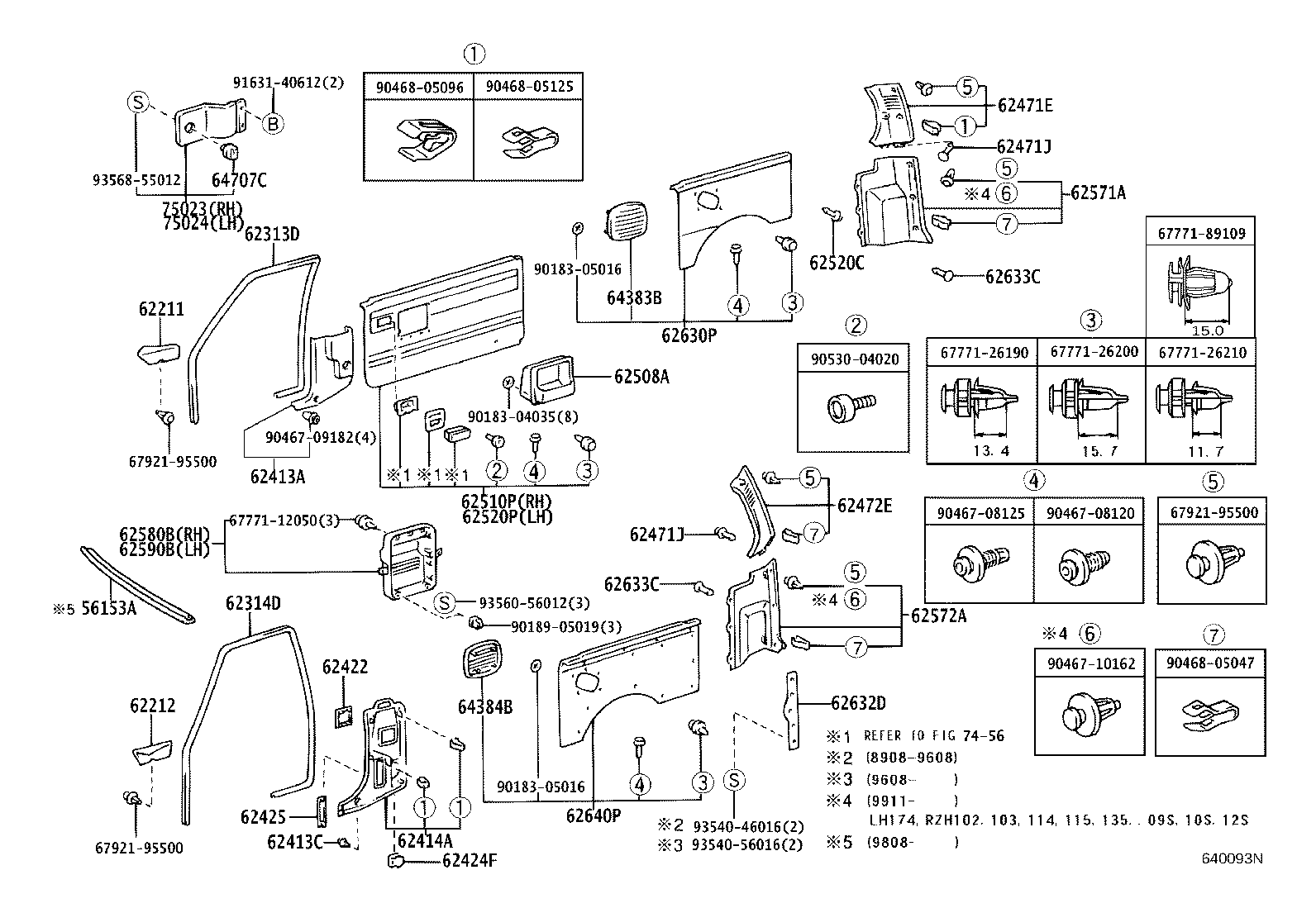

| Linked diagrams | ||||
| 7456 | ||||
(8908- )STD..DEFI ; (8908- )LH174,RZH112..SG..03S,10S,12S ; (8908- )LH102,
LH104..GEN(PHILIPPINE SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0703 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62211-95J0703 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0703 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62212-95J0703 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-95J0103 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62313-95J0103 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-95J0103 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62313-95J0103 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J3603 |
LH10#,11#,RZH102,104,11#..RHD..4D..SG GRAY,TRIM1# |
1 | ||
| 62510-95J3603 |
LH10#,11#,RZH102,104,11#..RHD..4D..SG GRAY,TRIM1# |
1 | ||
| 62520C - CLIP, QUARTER TRIM BOARD, NO.1 | ||||
| 90467-1003416 |
RZH112..5D..03S;RZH113..06S..ARL;LH112,113,RZH112..06S BROWN,TRIM1# |
16 | ||
| 90467-1003416 |
RZH112..5D..03S;RZH113..06S..ARL;LH112,113,RZH112..06S BROWN,TRIM1# |
16 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J3503 |
RZH113..GEN;LH114,115,125,RZH114,125 GRAY,TRIM1# |
1 | ||
| 62630-95J3503 |
RZH113..GEN;LH114,115,125,RZH114,125 GRAY,TRIM1# |
1 | ||
| 62631-95J34 |
RZH113..ARL,GCC;RZH113..STD..EFI;LH112,113,RZH112..GL,STD |
1 | ||
| 62631-95J34 |
RZH113..ARL,GCC;RZH113..STD..EFI;LH112,113,RZH112..GL,STD |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62632-95J40 |
LH112,113,RZH112..4D..06S |
1 | ||
| 62632-95J40 |
LH112,113,RZH112..4D..06S |
1 | ||
| 62640-95J4903 |
LH114,115,RZH113,114..GEN GRAY,TRIM1# |
1 | ||
| 62640-95J4903 |
LH114,115,RZH113,114..GEN GRAY,TRIM1# |
1 | ||
| 62632-95J33 |
LH112,113,RZH112..GL,STD SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 62632-95J33 |
LH112,113,RZH112..GL,STD SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-1301043 |
LH104,114,RZH104,114..LHD;LH102,103,112,113,RZH102,103,112,113..4D..STD GRAY,TRIM1# |
1 | ||
| 64769-1301043 |
LH104,114,RZH104,114..LHD;LH102,103,112,113,RZH102,103,112,113..4D..STD GRAY,TRIM1# |
1 | ||
| 75024 - LID SUB-ASSY, TOOL BOX, LH | ||||
| 75024-95J0003 |
RZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH102,103,112,113,RZH103,113..RHD..STD GRAY,TRIM1# |
1 | ||
| 75024-95J0003 |
RZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH102,103,112,113,RZH103,113..RHD..STD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-26190 | ||||
| 67771-26200 | ||||
| 67771-26210 | ||||
| 67771-89109 | ||||
| 67921-95500 | ||||
| 90183-04035 | ||||
| 90183-05016 | ||||
| 90189-05019 | ||||
| 90467-08120 | ||||
| 90467-08125 | ||||
| 90467-09182 | ||||
| 90467-10162 | ||||
| 90468-05047 | ||||
| 90468-05096 | ||||
| 90468-05125 | ||||
| 90530-04020 | ||||
| 91631-40612 | ||||
| 93540-46016 | ||||
| 93540-56016 | ||||
| 93560-56012 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7456 | ||||
