RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter

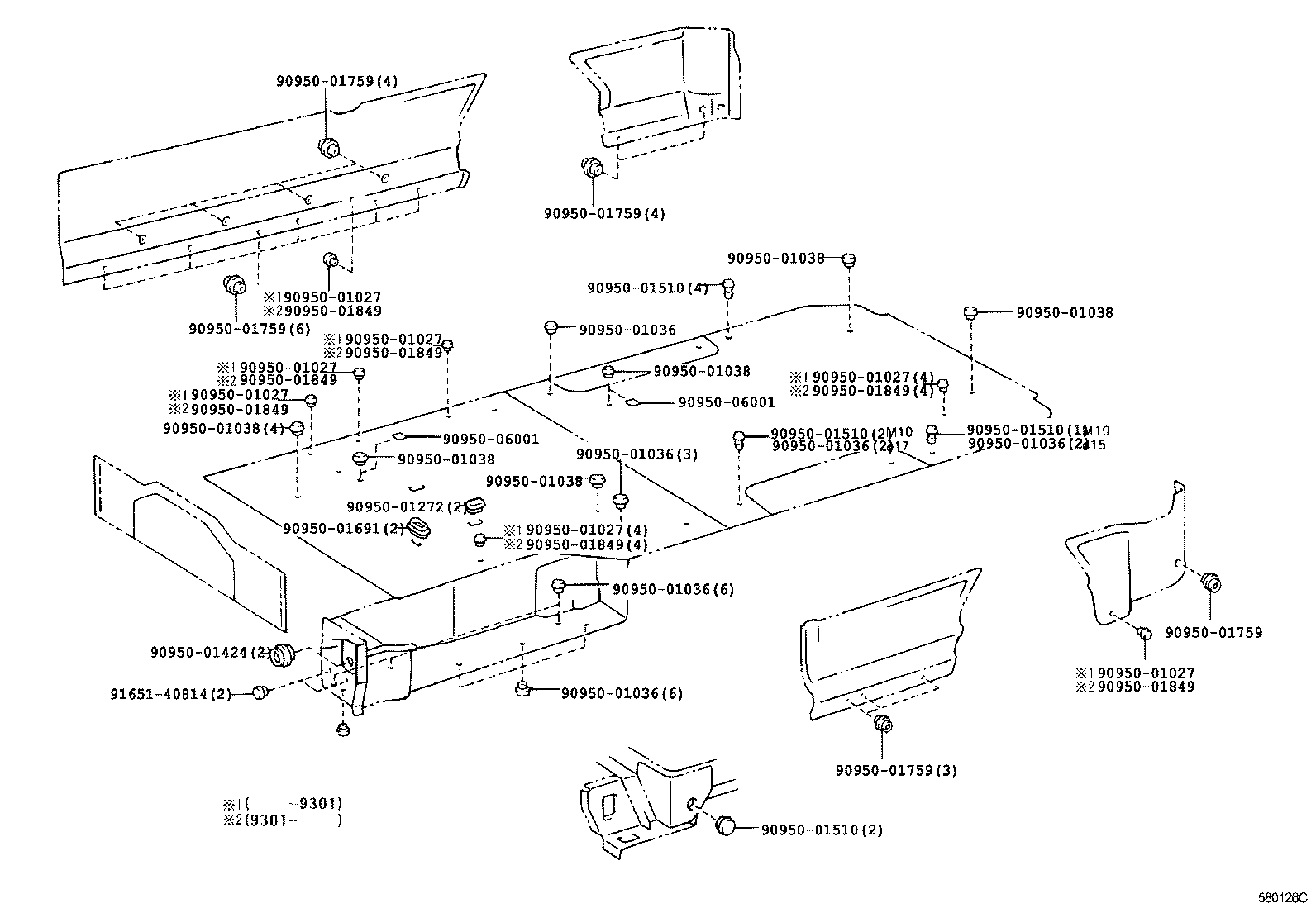

ILLUST NO. 1 OF 3(8908-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01027 | ||||
| 90950-01036 | ||||
| 90950-01038 | ||||
| 90950-01272 | ||||
| 90950-01424 | ||||
| 90950-01510 | ||||
| 90950-01691 | ||||
| 90950-01759 | ||||
| 90950-01849 | ||||
| 90950-06001 | ||||
| 91651-40814 | ||||
ILLUST NO. 2 OF 3(8908- )LH102,103,112,113,125,172,174,RZH102,103,105,112,113,125,135,153..RHD..4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51701A - COVER SUB-ASSY, SIDE DOOR STEP PANEL, RH | ||||
| 51701-95J0303 |
LH102,103,112,113,RZH102,103,112,113..GEN GRAY,TRIM1# |
1 | ||
| 51702A - COVER SUB-ASSY, SIDE DOOR STEP PANEL, LH | ||||
| 51701-95J0303 |
RZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH102,103,112,113,RZH103,113..RHD..GEN GRAY,TRIM1# |
1 | ||
| 51710B - CLAMP, SIDE DOOR STEP OPENING | ||||
| 90462-16027 |
LH102,103,112,113,RZH102,112,113..4D..(GL,STD)..(CIS,GCC,GEN) |
4 | ||
| 51719A - PROTECTOR, STEP COVER, LH | ||||
| 51718-95J0103 |
RZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH102,103,112,113,RZH103,113..RHD..GEN GRAY,TRIM1# |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95N23 |
RZH11#..STD..(ARL,GCC,GEN) |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95N09 |
LH112,114,RZH11#..(GL,STD)..(ARL,GCC,GEN) |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-95J56 |
LH112,113,RZH112..RHD..STD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57071-95J61 |
LH112,113,125,RZH112,113,125..RHD..(03S,06S,14S) |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-95J69 |
RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH11#,RZH113,114..RHD |
1 | ||
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95J11 |
RZH102..4F;RZH102..LHD..5F;LH10#,112,113,114,RZH104,112,114..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57069-95J05 |
LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER) |
1 | ||
| 57069-95J07 |
LH10#,11#,125,RZH10#,11#,125..STD |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95J08 |
LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER) |
1 | ||
| 57068-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 REAR |
1 | ||
| 57317-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D FRONT |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 REAR |
1 | ||
| 57317-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D FRONT |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J11 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-95J08 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD..4D |
1 | ||
| 57342A - GUSSET, OUTRIGGER, NO.2 LH | ||||
| 57342-95J09 |
RZH102..4D;RZH112..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH112,RZH102..LHD..06S;LH10#,11#,RZH104,114..RHD..STD..GEN |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57094-95J00 |
LH10#,11#,RZH10#,11#..RHD..4D |
2 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J01 |
RZH102..LHD;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,RZH10#,113,114..RHD..4D |
2 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-95N13 |
RZH113..03S..ARL;LH112,113,RZH112..RHD |
1 | ||
| 57413-95N15 |
RZH113..4D..06S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J72 |
RZH113..4D..06S |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-95J33 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J24 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD |
1 | ||
| 57419A - PLATE, REAR SEAT LOCK | ||||
| 57419-95J01 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-95J00 |
LH172..03S..GL;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH10#,11#,RZH102,103,104,112,114,115,153..RHD |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57506-95J01 |
RZH102..4D;RZH103,113..03S,05S;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114,125..RHD |
1 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
3 | ||
| 58194 - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J10 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58221A - PANEL, HEADER | ||||
| 58221-95P38 |
RZH112..4D..06S..4F;LH103,RZH102,112..5D;LH102,103,112,113,RZH103..06S SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 58221-95P44 |
RZH112..RHD..CBR;LH102,103,112,113,RZH102,103,113..RHD..4D..(03S,06S)..(GL,STD) |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D |
1 | ||
| 58223-95J01 |
RZH112..4D..06S..4F;LH103,RZH102,112..5D;LH102,103,112,113,RZH103..06S SERVICE CAR SPEC(AMBULANCE) |
2 | ||
| 58224F - REINFORCEMENT, HEADER PANEL, NO.3 | ||||
| 58224-95J01 |
RZH102..4D;RZH112..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH112,RZH102..LHD..06S;LH10#,11#,RZH104,114..RHD..STD..GEN |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J66 |
RZH103..STD;RZH113..03S..5F;LH102,103,112,113,RZH102,112,113..RHD..GEN W(FUEL LID OPENER & TOOL COVER) |
1 | ||
| 58304-95N01 |
RZH102..RHD..4F;LH102,103,112,113,RZH112..RHD W(FUEL LID OPENER) |
1 | ||
| 58304-95J76 |
RZH113..03S;RZH103..5F..STD;LH102,103,112,113,RZH102,112,113..RHD..GEN W(TOOL COVER) |
1 | ||
| 58304-95N27 |
RZH103,113..03S;LH102,103,112,113,RZH102,112,113..RHD..GEN |
1 | ||
| 58304-95N29 |
RZH113..03S;RZH113..GEN;RZH102,103..RHD..(4FC,5F)..STD W(FUEL LID OPENER) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95P35 |
RZH113..4D..06S |
1 | ||
| 58311-95P67 |
RZH113..03S;LH112,113,RZH112..RHD |
1 | ||
| 58445D - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58446C - PROTECTOR, BATTERY | ||||
| 58446-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,125,RZH10#,11#,125..SG |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..05S,06S,09S,12S,14S,15S |
1 | ||
| 58405-95J03 |
RZH102..5D..03S;RZH112..03S..CIS;RZH102,113..LHD..06S;LH112,RZH102,103..4D..(03S,06S);LH10#,113,114,115,RZH104,105,112,114,115..ARL,GCC,GEN SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 58458C - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 65557 - RETAINER, ROPE HOOK | ||||
| 65557-95J03 |
RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH102,103,112,113,RZH112,113 |
2 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-95J00 |
LH102,103,112,113,RZH102,103,112,113..SG BLACK |
4 | ||
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06598 | ||||
| 90119-08623 | ||||
| 90119-10099 | ||||
| 90159-60430 | ||||
| 90467-0501822 | ||||
| 90904-67033 | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01181 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01691 | ||||
| 90950-01849 | ||||
| 90950-01889 | ||||
| 91631-B0614 | ||||
| 91651-60614 | ||||
| 93311-16010 | ||||
| 93381-16012 | ||||
ILLUST NO. 3 OF 3(8908- )LH102,103,112,113,RZH102,103,112,113,135,153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-95J00 |
LH172..03S..GL;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH10#,11#,RZH102,103,104,112,114,115,153..RHD |
1 | ||
| 57617A - RETAINER, EXHAUST PIPE BRACKET | ||||
| 57617-95J10 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57617-95J09 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-95J04 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J06 |
LH172..03S..GL;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,166,176,RZH104,112,114..03S,06S,09S,12S,15S |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J06 |
LH172..03S..GL;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,166,176,RZH104,112,114..03S,06S,09S,12S,15S |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-95J04 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57657B - MEMBER, REAR FLOOR CROSS, NO.6 | ||||
| 57657-95J04 |
LH125..ARL;LH11#,RZH11#,125 |
1 | ||
| 57657C - CROSSMEMBER, REAR FLOOR, NO.6 | ||||
| 57657-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57668B - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57668-95J02 |
RZH112..4D;RZH102,112..5D..03S;RZH102,104..RHD..4D;LH10#,11#,RZH114..GEN;RZH102,104,112..LHD..SG..4F |
2 | ||
| 57668B - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57668-95J02 |
RZH112..4D;RZH102,112..5D..03S;RZH102,104..RHD..4D;LH10#,11#,RZH114..GEN;RZH102,104,112..LHD..SG..4F |
2 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH | ||||
| 57691-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH | ||||
| 57692-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 57695A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH | ||||
| 57695-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57696A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH | ||||
| 57696-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57699A - RETAINER, FUEL TANK SET BAND | ||||
| 57699-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 57767-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 59363 - RETAINER, REAR SEAT, NO.1 C | ||||
| 59363-95J05 |
LH112..DX;LH103..5D..06S;RZH113..4D..SG;RZH102,103..RHD..SG..(4FC,5F) |
2 | ||
ILLUST NO. 2 OF 3(8908- )LH104,105,114,115,125,162,172,174,184,RZH104,105,11#,125,135,153..RHD..4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95N23 |
RZH11#..STD..(ARL,GCC,GEN) |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95N09 |
LH112,114,RZH11#..(GL,STD)..(ARL,GCC,GEN) |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-95J56 |
LH112,113,RZH112..RHD..STD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57071-95J61 |
LH112,113,125,RZH112,113,125..RHD..(03S,06S,14S) |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-95J69 |
RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH11#,RZH113,114..RHD |
1 | ||
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95J11 |
RZH102..4F;RZH102..LHD..5F;LH10#,112,113,114,RZH104,112,114..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57069-95J05 |
LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER) |
1 | ||
| 57069-95J07 |
LH10#,11#,125,RZH10#,11#,125..STD |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95J08 |
LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER) |
1 | ||
| 57068-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 REAR |
1 | ||
| 57317-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D FRONT |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 REAR |
1 | ||
| 57317-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D FRONT |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J11 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-95J08 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD..4D |
1 | ||
| 57342A - GUSSET, OUTRIGGER, NO.2 LH | ||||
| 57342-95J09 |
RZH102..4D;RZH112..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH112,RZH102..LHD..06S;LH10#,11#,RZH104,114..RHD..STD..GEN |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57094-95J00 |
LH10#,11#,RZH10#,11#..RHD..4D |
2 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J01 |
RZH102..LHD;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,RZH10#,113,114..RHD..4D |
2 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-95N13 |
RZH113..03S..ARL;LH112,113,RZH112..RHD |
1 | ||
| 57413-95N15 |
RZH113..4D..06S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J72 |
RZH113..4D..06S |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-95J33 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J24 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD |
1 | ||
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-95J00 |
LH172..03S..GL;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH10#,11#,RZH102,103,104,112,114,115,153..RHD |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57506-95J01 |
RZH102..4D;RZH103,113..03S,05S;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114,125..RHD |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57506-95J01 |
RZH102..4D;RZH103,113..03S,05S;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114,125..RHD |
1 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
3 | ||
| 58194 - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J10 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58221A - PANEL, HEADER | ||||
| 58221-95P38 |
RZH112..4D..06S..4F;LH103,RZH102,112..5D;LH102,103,112,113,RZH103..06S SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 58221-95P44 |
RZH112..RHD..CBR;LH102,103,112,113,RZH102,103,113..RHD..4D..(03S,06S)..(GL,STD) |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D |
1 | ||
| 58223-95J01 |
RZH112..4D..06S..4F;LH103,RZH102,112..5D;LH102,103,112,113,RZH103..06S SERVICE CAR SPEC(AMBULANCE) |
2 | ||
| 58224F - REINFORCEMENT, HEADER PANEL, NO.3 | ||||
| 58224-95J01 |
RZH102..4D;RZH112..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH112,RZH102..LHD..06S;LH10#,11#,RZH104,114..RHD..STD..GEN |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J66 |
RZH103..STD;RZH113..03S..5F;LH102,103,112,113,RZH102,112,113..RHD..GEN W(FUEL LID OPENER & TOOL COVER) |
1 | ||
| 58304-95N01 |
RZH102..RHD..4F;LH102,103,112,113,RZH112..RHD W(FUEL LID OPENER) |
1 | ||
| 58304-95J76 |
RZH113..03S;RZH103..5F..STD;LH102,103,112,113,RZH102,112,113..RHD..GEN W(TOOL COVER) |
1 | ||
| 58304-95N27 |
RZH103,113..03S;LH102,103,112,113,RZH102,112,113..RHD..GEN |
1 | ||
| 58304-95N29 |
RZH113..03S;RZH113..GEN;RZH102,103..RHD..(4FC,5F)..STD W(FUEL LID OPENER) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95P35 |
RZH113..4D..06S |
1 | ||
| 58311-95P67 |
RZH113..03S;LH112,113,RZH112..RHD |
1 | ||
| 58445D - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58446C - PROTECTOR, BATTERY | ||||
| 58446-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,125,RZH10#,11#,125..SG |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..05S,06S,09S,12S,14S,15S |
1 | ||
| 58405-95J03 |
RZH102..5D..03S;RZH112..03S..CIS;RZH102,113..LHD..06S;LH112,RZH102,103..4D..(03S,06S);LH10#,113,114,115,RZH104,105,112,114,115..ARL,GCC,GEN SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 58458C - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 65557 - RETAINER, ROPE HOOK | ||||
| 65557-95J03 |
RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH102,103,112,113,RZH112,113 |
2 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-95J00 |
LH102,103,112,113,RZH102,103,112,113..SG BLACK |
4 | ||
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06311 | ||||
| 90119-06598 | ||||
| 90119-08623 | ||||
| 90119-10099 | ||||
| 90119-10281 | ||||
| 90167-50038 | ||||
| 90189-04070 | ||||
| 90189-05037 | ||||
| 90467-0501822 | ||||
| 90904-67033 | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01181 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01691 | ||||
| 90950-01889 | ||||
| 91631-B0614 | ||||
| 91651-60614 | ||||
| 91661-40820 | ||||
| 93311-16010 | ||||
| 93381-16012 | ||||
| 93540-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
