RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)

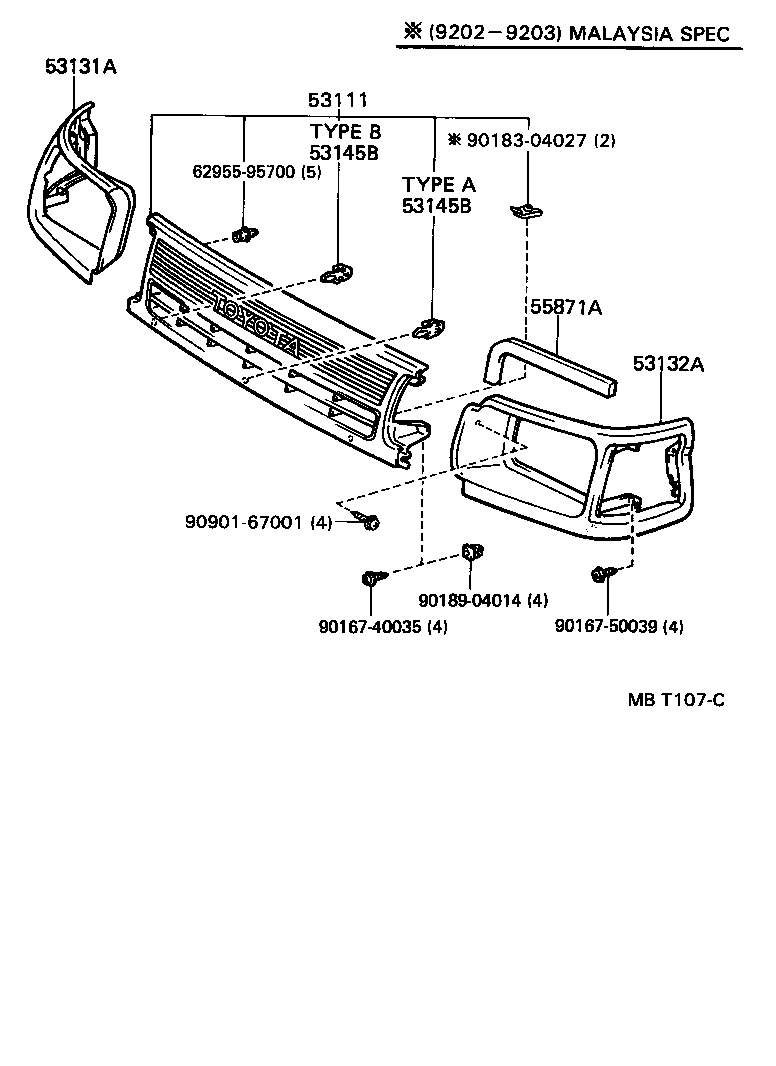

Click highlighted areas on diagram

diagram 53111 53131A 53132A 53145B 53145B 55871A 6295595700 9016740035 9016750039 9018304027 9018904014 9090167001
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-95J22

LH10#,11#,125,RZH10#,11#,125..STD

 1
53131A - DOOR, HEADLAMP, RH
53131-95J10

LH10#,11#,125,RZH10#,11#,125..STD

 1
53132A - DOOR, HEADLAMP, LH
53132-95J10

LH10#,11#,125,RZH10#,11#,125..STD

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-95J01

LH10#,11#,125,RZH10#,11#,125

EXCELLENT PACKAGE

 3
53145-95J02

LH10#,11#,125,RZH10#,11#,125

TYPE B:REFER TO ILLUSTRATION

 2
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-95J01

LH10#,11#,125,RZH10#,11#,125

EXCELLENT PACKAGE

 3
53145-95J02

LH10#,11#,125,RZH10#,11#,125

TYPE B:REFER TO ILLUSTRATION

 2
55871A - SEAL, AIR DUCT, NO.1
55871-95J04

LH10#,11#,125,RZH10#,11#,125

 1
Common parts
62955-95700
90167-40035
90167-50039
90183-04027
90189-04014
90901-67001
