RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

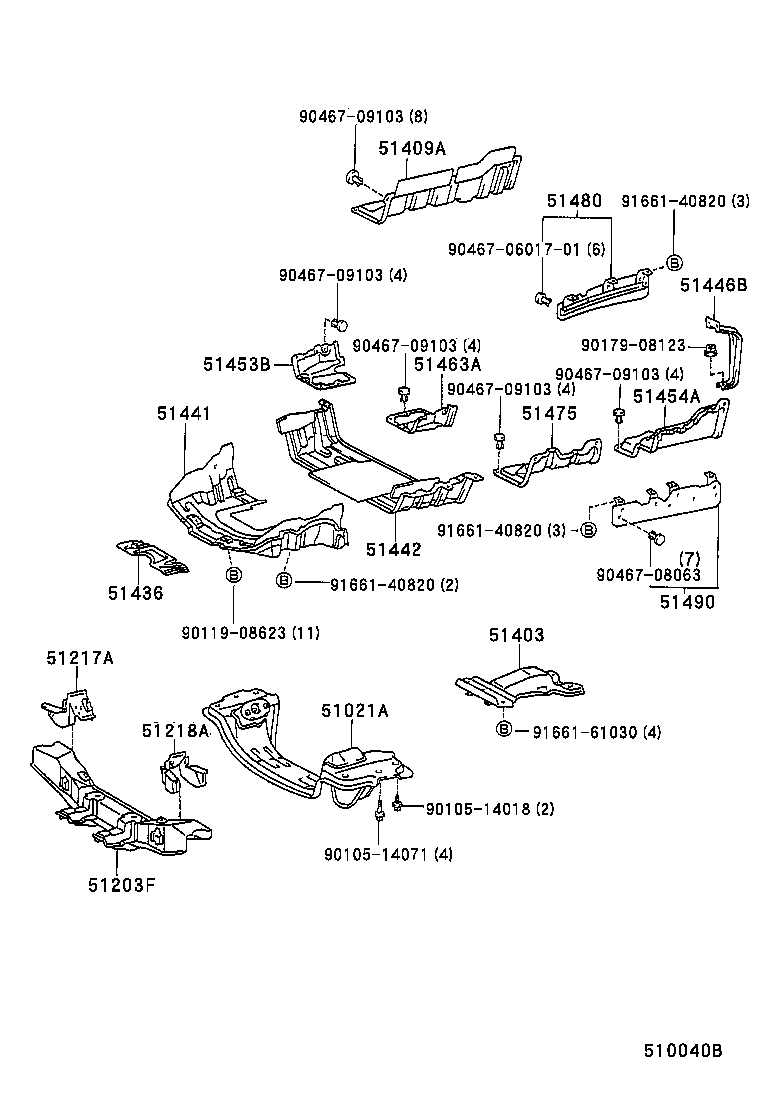

(9205-9308)LH103,113

Click highlighted areas on diagram

diagram 51021A 51203F 51217A 51218A 51403 51409A 51436 51441 51442 51446B 51453B 51454A 51463A 51475 51480 51490 9010514018 9010514071 9011908623 9017908123 904670601701 9046708063 9046709103 9046709103 9046709103 9046709103 9046709103 9166140820 9166140820 9166140820 9166161030
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95J09

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,114,125,135,153;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI

 1
51021-95J08

LH10#,11#;LH125..ARL

 1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95J08

LH10#,11#,125,RZH10#,11#,125..RHD

 1
51203-95J09

LH10#,11#,125,RZH10#,11#,125..RHD

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51217-95J02

LH10#,11#,125,RZH10#,11#,125

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51218-95J03

LH10#,11#,125,RZH10#,11#,125..RHD

 1
51218-95J03

LH10#,11#,125,RZH10#,11#,125

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J00

RZH114..4F,5F;LH10#,11#,RZH102,104,105,112,115,125;LH125,RZH103,113..(03S,05S,06S,09S,14S)..5F

 1
51403-95J01

RZH103,113,114,125..4FC

 1
Common parts
90105-14018
90105-14071
90119-08623
90179-08123
90467-0601701
90467-08063
90467-09103
91661-40820
91661-61030

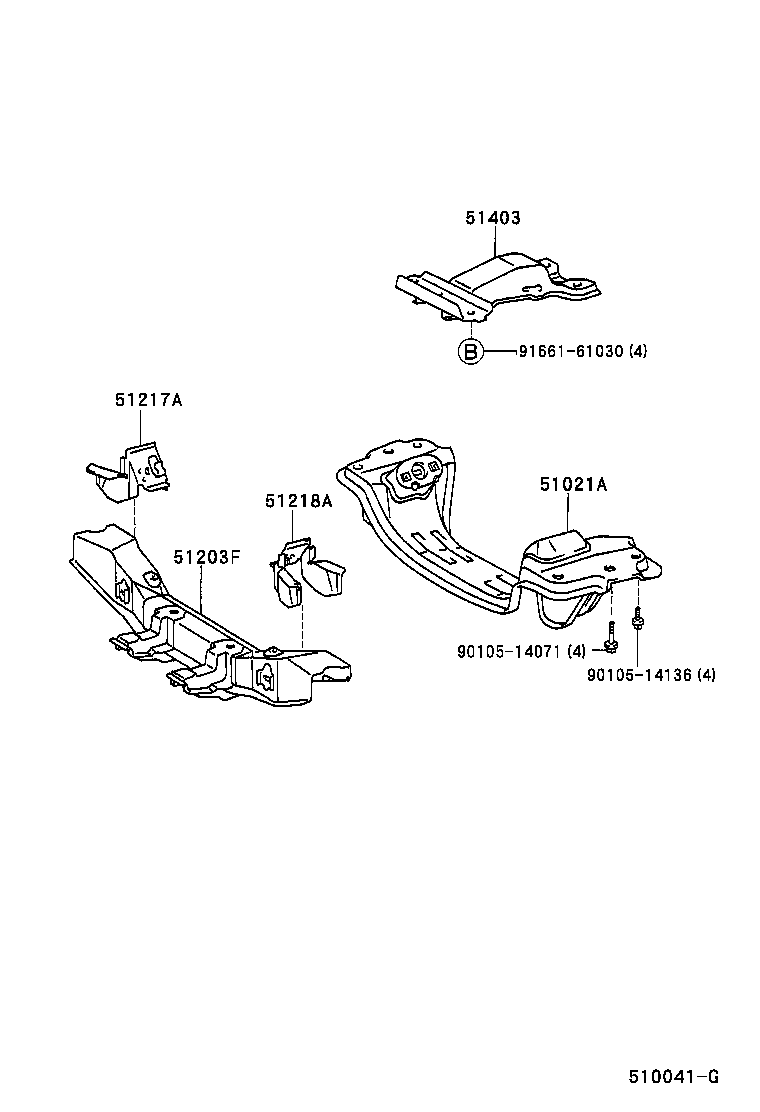

(9205-9308)LH102,104,112,114,115,125,RZH10#,11#,125

Click highlighted areas on diagram

diagram 51021A 51203F 51217A 51218A 51403 9010514071 9010514136 9166161030
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95J09

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,114,125,135,153;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI

 1
51021-95J08

LH10#,11#;LH125..ARL

 1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95J08

LH10#,11#,125,RZH10#,11#,125..RHD

 1
51203-95J09

LH10#,11#,125,RZH10#,11#,125..RHD

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51217-95J02

LH10#,11#,125,RZH10#,11#,125

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51218-95J03

LH10#,11#,125,RZH10#,11#,125..RHD

 1
51218-95J03

LH10#,11#,125,RZH10#,11#,125

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J00

RZH114..4F,5F;LH10#,11#,RZH102,104,105,112,115,125;LH125,RZH103,113..(03S,05S,06S,09S,14S)..5F

 1
51403-95J01

RZH103,113,114,125..4FC

 1
Common parts
90105-14071
90105-14136
91661-61030

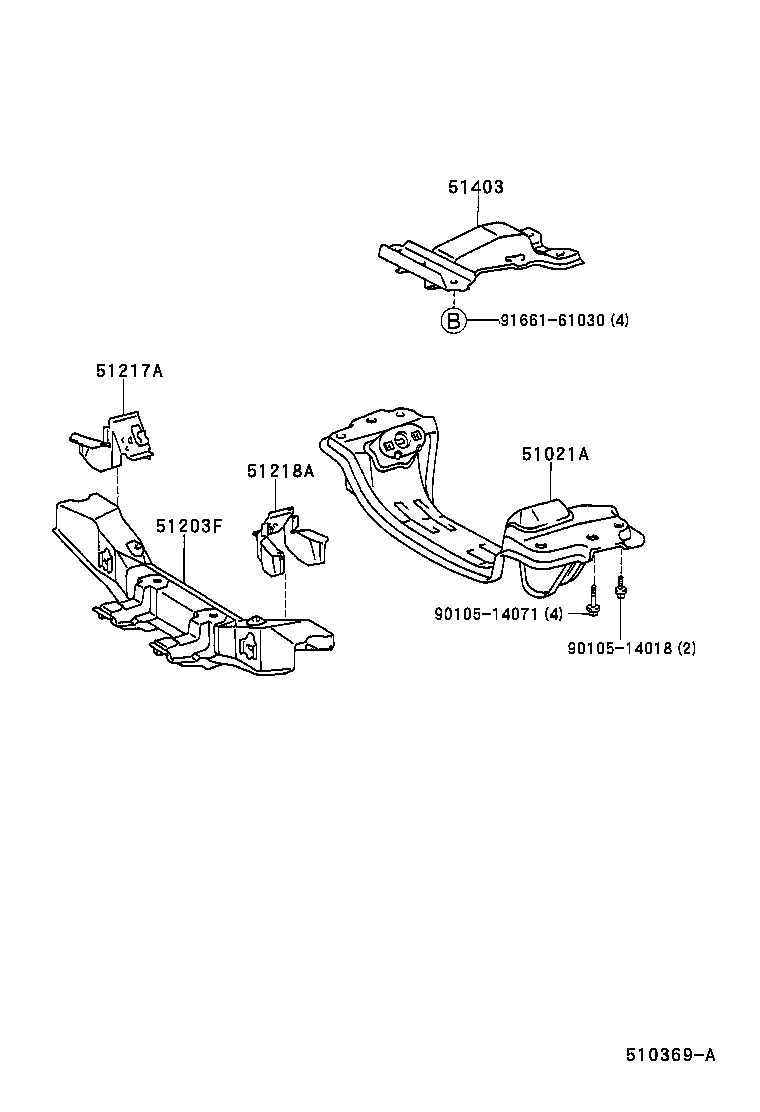

(8908-9205)

Click highlighted areas on diagram

diagram 51021A 51203F 51217A 51218A 51403 9010514018 9010514071 9166161030
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95J09

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,114,125,135,153;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI

 1
51021-95J08

LH10#,11#;LH125..ARL

 1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95J08

LH10#,11#,125,RZH10#,11#,125..RHD

 1
51203-95J09

LH10#,11#,125,RZH10#,11#,125..RHD

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51217-95J02

LH10#,11#,125,RZH10#,11#,125

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51218-95J03

LH10#,11#,125,RZH10#,11#,125..RHD

 1
51218-95J03

LH10#,11#,125,RZH10#,11#,125

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J00

RZH114..4F,5F;LH10#,11#,RZH102,104,105,112,115,125;LH125,RZH103,113..(03S,05S,06S,09S,14S)..5F

 1
51403-95J01

RZH103,113,114,125..4FC

 1
Common parts
90105-14018
90105-14071
91661-61030
