HIACE VAN,COMMUTER
RZH113R-RRPRS (1989)
4804 - REAR SPRING & SHOCK ABSORBER

RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993

Engine 2RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

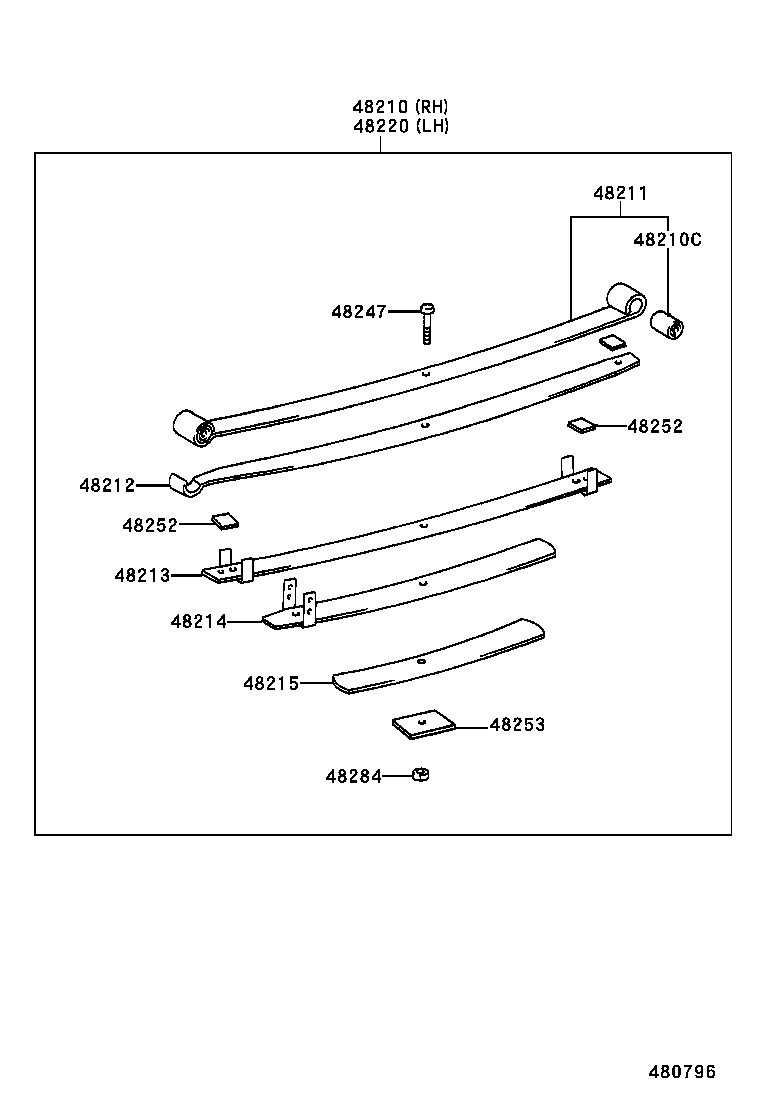

ILLUST NO. 2 OF 2(8908-9508)LH125,RZH125 ; (8908-9508)LH10#,11#,RZH102,103,104,112,113,114..GEN ; (9

Click highlighted areas on diagram

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-26660	LH10#,11#,RZH102,104,11#..GEN 5-LEAF	08/1989 - 10/1990	1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14007	LH10#,11#,RZH102,104,11#..GEN	08/1989 - 10/1990	4
48211 - LEAF, REAR SPRING, NO.1
48201-26660	LH10#,11#,RZH102,104,11#..GEN	08/1989 - 10/1990	2
48212 - LEAF, REAR SPRING, NO.2
48212-26660	LH10#,11#,RZH102,104,11#..GEN	08/1989 - 10/1990	2
48213 - LEAF, REAR SPRING, NO.3
48202-26660	LH10#,11#,RZH102,104,11#..GEN	08/1989 - 10/1990	2
48214 - LEAF, REAR SPRING, NO.4
48203-26660	LH10#,11#,RZH102,104,11#..GEN	08/1989 - 10/1990	2
48215 - LEAF, REAR SPRING, NO.5
48215-26660	LH10#,11#,RZH102,104,11#..GEN	08/1989 - 10/1990	2
48220 - SPRING ASSY, REAR LH
48210-26660	LH10#,11#,RZH102,104,11#..GEN 5-LEAF	08/1989 - 10/1990	1
48247 - BOLT, REAR SPRING, CENTER
48247-26280	LH10#,11#,125,RZH10#,11#,125	08/1989 - 10/1990	2
48252 - SILENCER, REAR SPRING
48252-26070	LH10#,11#,125,RZH10#,11#,125	08/1989 - 10/1990	6
48252 - SILENCER, REAR SPRING
48252-26070	LH10#,11#,125,RZH10#,11#,125	08/1989 - 10/1990	6
48253 - SPACER, REAR SPRING, NO.1
48253-26650	LH125,RZH125;LH10#,11#,RZH102,104,11#..GEN	08/1989 - 10/1990	2
48253-26650	RZH102..LHD..06S;LH125,RZH102,125..03S,14S;LH10#,112,113,RZH104,112..GEN	10/1990 - 08/1993	2
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 10/1990	2

ILLUST NO. 1 OF 2(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125

Click highlighted areas on diagram

Part #	Description	Period	Qty
04483 - SHACKLE KIT, REAR SPRING
04483-26100	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	2
04483 - SHACKLE KIT, REAR SPRING
04483-26100	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	2
48037 - SPACER SUB-ASSY, REAR SPRING
48037-26030	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1994	2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-26100	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1994	1
48046A - BOLT, U(FOR REAR SPRING)
90117-14059	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S L=180	08/1989 - 12/2999	4
48046A - BOLT, U(FOR REAR SPRING)
90117-14059	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S L=180	08/1989 - 12/2999	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-26100	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1994	1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	4
48341 - BUMPER, REAR SPRING
48341-26150	LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,115..(GCC,GEN)..CBR;RZH113..4D..(03S,06S,09S)..GEN..EFI;LH10#,11#,125,184,RZH104,112,114..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)	08/1989 - 08/2002	2
48371 - RETAINER, REAR SPRING PAD
48371-26110	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1994	2
48372 - PAD, REAR SPRING
48372-26030	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1994	2
48372 - PAD, REAR SPRING
48372-26030	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1994	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80399	LH10#,11#,RZH10#,11#..GEN	08/1989 - 08/1993	1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03012	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03015	LH10#,11#,125,RZH10#,11#,125	08/1989 - 02/1991	2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03011	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	2
48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
90385-16009	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	2
48530H - BUSH, REAR SHOCK ABSORBER
90385-19006	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80399	LH10#,11#,RZH10#,11#..GEN	08/1989 - 08/1993	1
Common parts
90101-14021
90105-10380
90105-14020
90119-08A89
90170-14012
90179-14023
90387-14011
91611-B0816
91611-G0820
91612-B1020
91619-61220
91619-61230
94130-01002
94531-01400
94612-11001
94612-11400
94621-11400
