RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter
ILLUST NO. 3 OF 3(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-26010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26220 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47910-26180 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-26080 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-26110 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-26090 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35020 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35040 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-26020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 47938 - INSULATOR, LOAD SENSING SPRING SHACKLE HAET | ||||
| 47938-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| Common parts | ||||
| 90179-08230 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 95381-02020 | ||||

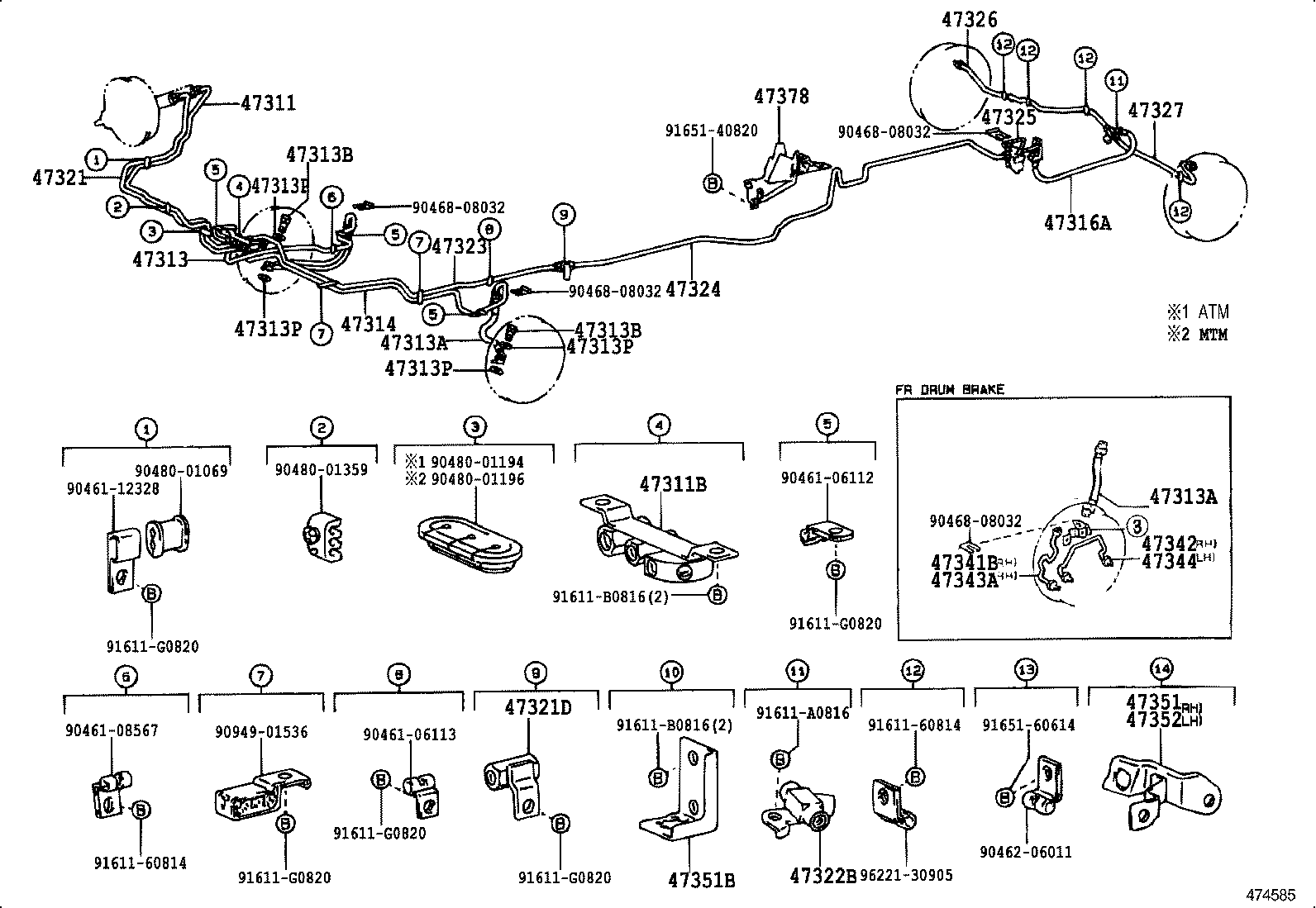

ILLUST NO. 1 OF 3(8908-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26340 |
LH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47311-26360 |
RZH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47311-26320 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90414-10019 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 90414-10022 |
LH166,17#,184;LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26140 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02590 |
LH10#,11#,125,RZH10#,11#,125 RH |
1 | ||
| 90947-02591 |
LH10#,11#,125,RZH10#,11#,125 LH |
1 | ||
| 90947-02592 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02590 |
LH10#,11#,125,RZH10#,11#,125 RH |
1 | ||
| 90947-02591 |
LH10#,11#,125,RZH10#,11#,125 LH |
1 | ||
| 90947-02592 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26140 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33556 |
LH10#,11#,RZH10#,11#..GEN |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26250 |
LH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47321-26230 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN |
1 | ||
| 47321-26270 |
RZH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10243 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26310 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26180 |
LH11#,17#,RZH11# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26250 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26270 |
LH10#,11#,125,RZH102,103,104,11#,125..RHD |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26120 |
LH10#,11#,125,RZH102,103,104,11#,125..RHD |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-26080 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-26030 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-26080 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-26030 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26100 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..RHD..GEN |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26120 |
LH10#,11#,125,172,174,184,RZH10#,11#,125 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26100 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..RHD..GEN |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-26010 |
LH11#,RZH11#..RHD;RZH102,103..RHD..SG..(4FC,5F) |
1 | ||
| 47378-26030 |
LH11#,RZH11#..RHD;RZH102,103..RHD..SG |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 90461-08567 | ||||
| 90461-12328 | ||||
| 90462-06011 | ||||
| 90468-08032 | ||||
| 90480-01069 | ||||
| 90480-01194 | ||||
| 90480-01196 | ||||
| 90480-01359 | ||||
| 90949-01536 | ||||
| 91611-60814 | ||||
| 91611-A0816 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 96221-30905 | ||||

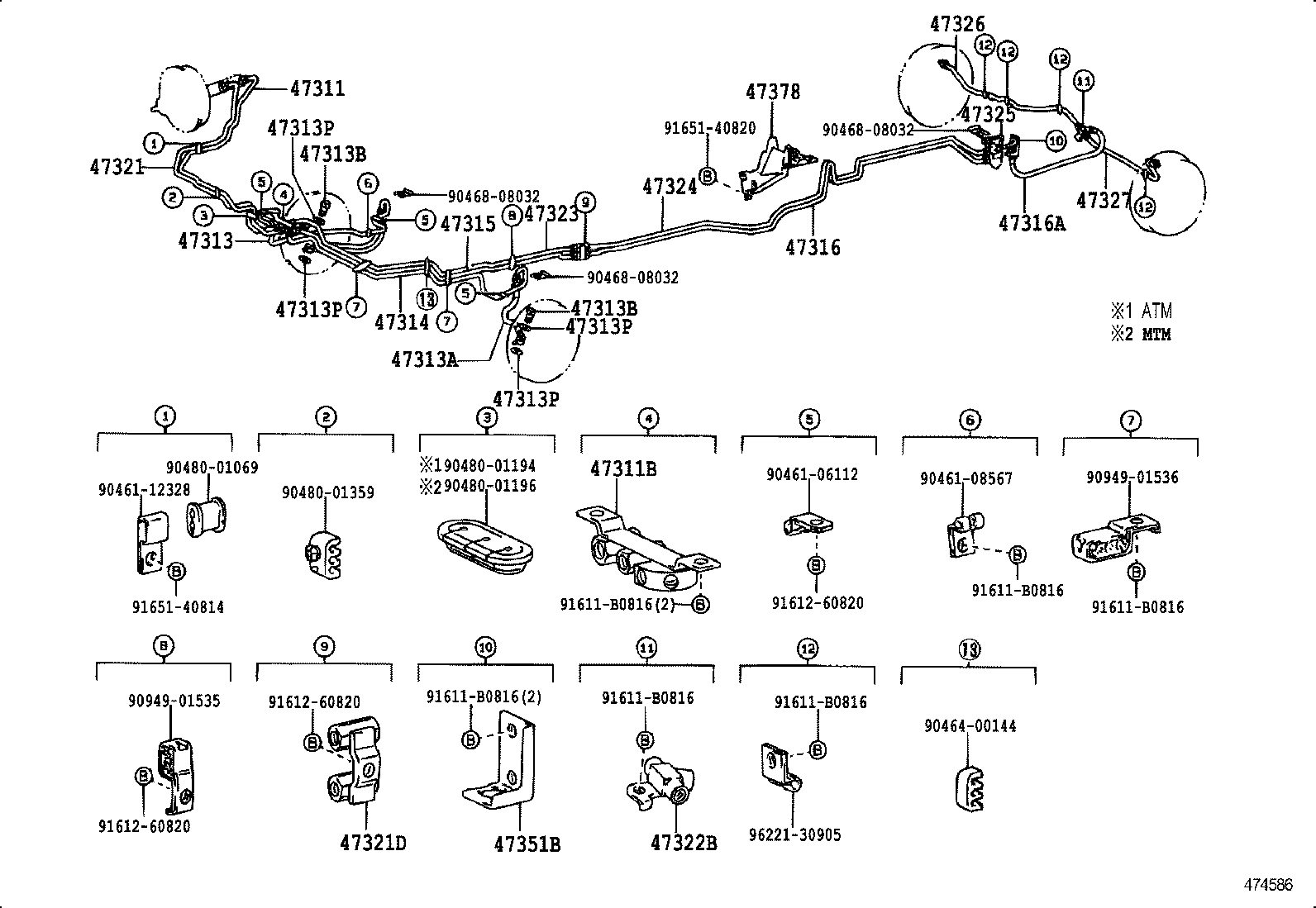

ILLUST NO. 1 OF 3(8908-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26340 |
LH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47311-26360 |
RZH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47311-26320 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90414-10019 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 90414-10022 |
LH166,17#,184;LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26140 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02590 |
LH10#,11#,125,RZH10#,11#,125 RH |
1 | ||
| 90947-02591 |
LH10#,11#,125,RZH10#,11#,125 LH |
1 | ||
| 90947-02592 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26140 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26120 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26150 |
LH11#,17#,RZH11# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33556 |
LH10#,11#,RZH10#,11#..GEN |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26250 |
LH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47321-26230 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN |
1 | ||
| 47321-26270 |
RZH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10243 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26310 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26180 |
LH11#,17#,RZH11# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26250 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26270 |
LH10#,11#,125,RZH102,103,104,11#,125..RHD |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26120 |
LH10#,11#,125,RZH102,103,104,11#,125..RHD |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26120 |
LH10#,11#,125,172,174,184,RZH10#,11#,125 |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-26010 |
LH11#,RZH11#..RHD;RZH102,103..RHD..SG..(4FC,5F) |
1 | ||
| 47378-26030 |
LH11#,RZH11#..RHD;RZH102,103..RHD..SG |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-08567 | ||||
| 90461-12328 | ||||
| 90464-00144 | ||||
| 90468-08032 | ||||
| 90480-01069 | ||||
| 90480-01194 | ||||
| 90480-01196 | ||||
| 90480-01359 | ||||
| 90949-01535 | ||||
| 90949-01536 | ||||
| 91611-B0816 | ||||
| 91612-60820 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 96221-30905 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
