RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter
(8908- )

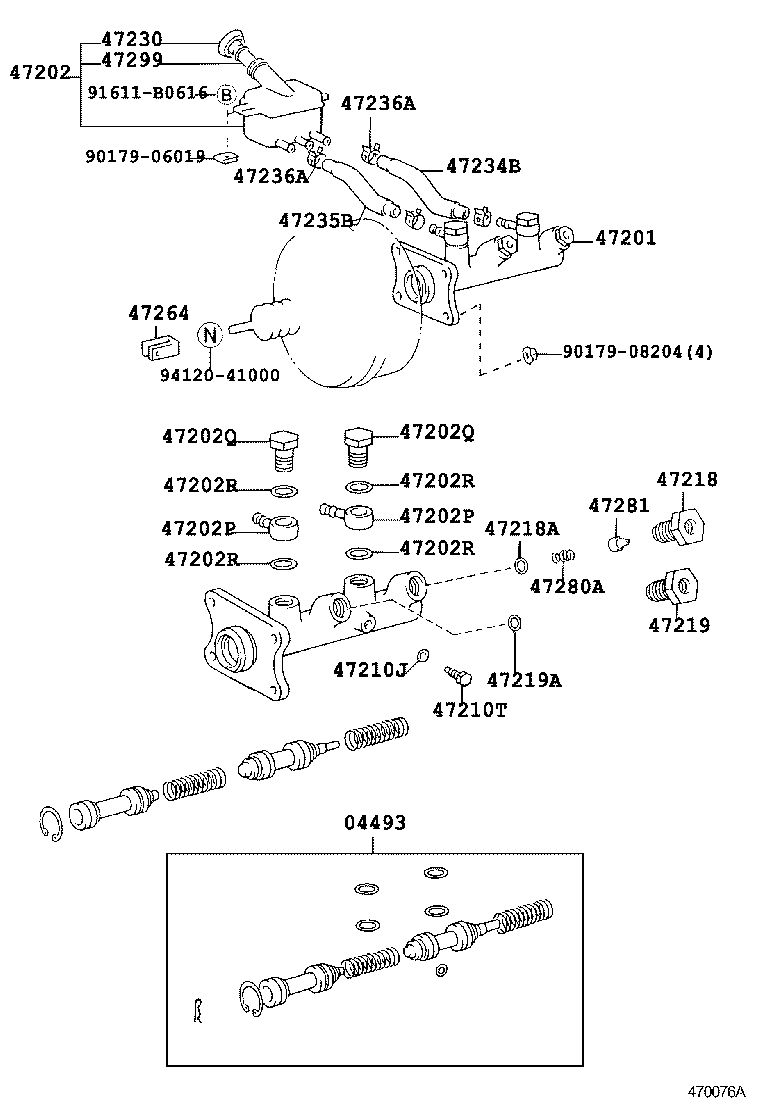

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-26170 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 04493-26140 |
LH10#,11#,125,RZH10#,11#,125 W(FRONT DISC BRAKE) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-26490 |
LH10#,11#,125,RZH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47201-26501 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-26200 |
LH172,184..(03S,15S)..GL;RZH113..RHD..4D..5F..STD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD..(4F,5F) |
1 | ||
| 47220-26210 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-26210 |
RZH103,113,125..RHD..CBR;RZH102,104,112,114,115..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47234-26230 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114..RHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-26210 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114..RHD |
1 | ||
| 47235-26190 |
RZH103,113,125..RHD..CBR;RZH102,104,112,114,115..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91611-B0616 | ||||
| 94120-41000 | ||||
(8908-9308)
W(FRONT DISC BRAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-26170 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 04493-26140 |
LH10#,11#,125,RZH10#,11#,125 W(FRONT DISC BRAKE) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-26490 |
LH10#,11#,125,RZH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47201-26501 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-26200 |
LH172,184..(03S,15S)..GL;RZH113..RHD..4D..5F..STD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD..(4F,5F) |
1 | ||
| 47220-26210 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-13137 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
2 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-13137 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
2 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16002 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
2 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16002 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
4 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
4 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
4 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
4 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-26020 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-25020 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-26210 |
RZH103,113,125..RHD..CBR;RZH102,104,112,114,115..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47234-26230 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114..RHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-26210 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114..RHD |
1 | ||
| 47235-26190 |
RZH103,113,125..RHD..CBR;RZH102,104,112,114,115..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90504-05001 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 90179-08204 | ||||
| 91611-B0616 | ||||
| 94120-41000 | ||||
