RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

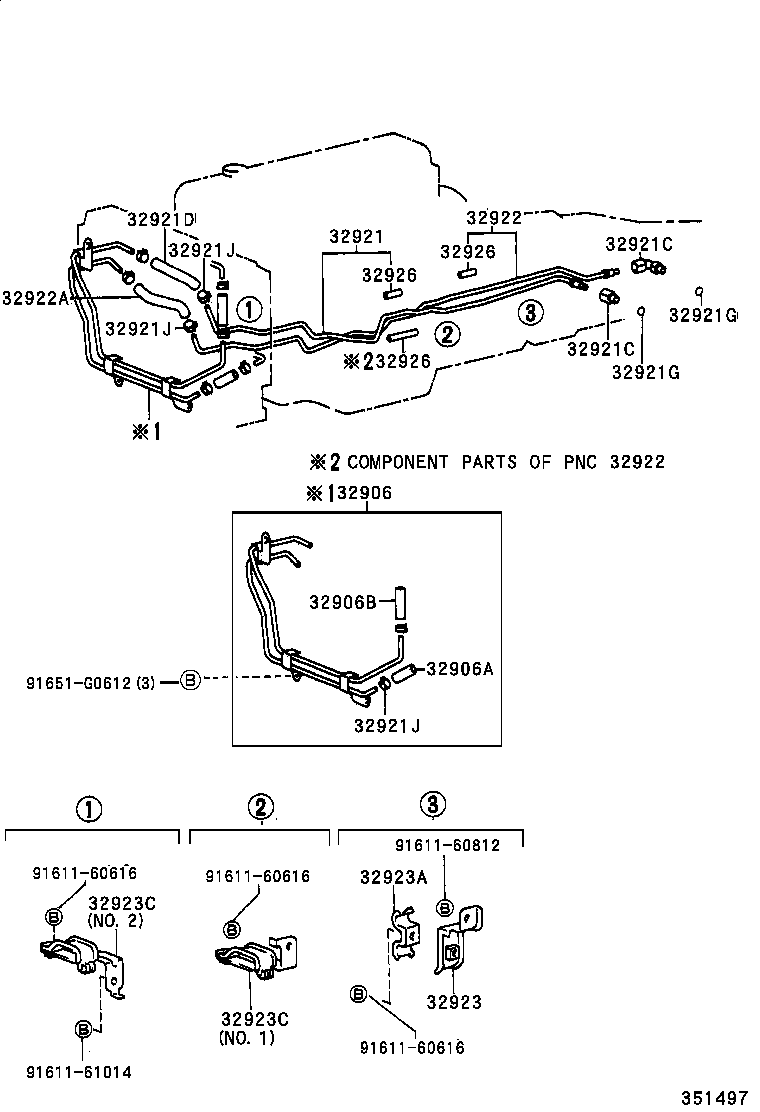

(8908- )RZH103,113,114,125..4FC

Click highlighted areas on diagram

A45DE,A45DL

diagram 32906 32906A 32906B 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32922 32922A 32923 32923A 32923C 32923C 32926 32926 32926 9161160616 9161160616 9161160616 9161160812 9161161014 91651G0612
Part # Description Qty Price
32906 - TUBE SUB-ASSY, OIL COOLER
32906-26090

RZH103,113,114..4FC

 1
32906-26110

LH103,113,RZH103,113,114..4FC

 1
32906-26110

LH103,113..4FC

 1
32906A - HOSE, OIL COOLER TUBE(FOR INLET)
90445-17093

LH103,113,RZH103,113,114..4FC

 1
32906B - HOSE, OIL COOLER TUBE(FOR OUTLET)
90445-17100

LH103,113,RZH103,113,114..4FC

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26081

RZH103,113,114,125..4FC

 1
32921-26091

LH103,113..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

LH103,113,125,RZH103,113,114,125..4FC

REAR

 1
90404-16021

LH103,113,125,RZH103,113,114,125..4FC

FRONT

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

LH103,113,125,RZH103,113,114,125..4FC

REAR

 1
90404-16021

LH103,113,125,RZH103,113,114,125..4FC

FRONT

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-28190

RZH103,113,114,125..4FC

 1
90445-17102

LH103,113..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LH103,113,125,RZH103,113,114,125..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LH103,113,125,RZH103,113,114,125..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

LH103,113,125,RZH103,113,114,125..4FC

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

LH103,113,125,RZH103,113,114,125..4FC

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

LH103,113,125,RZH103,113,114,125..4FC

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-26081

RZH103,113,114,125..4FC

 1
32922-26091

LH103,113..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17107

RZH103,113,114..4FC

 1
90445-17110

LH103,113..4FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-26050

RZH103,113,114,125..4FC

 1
32923-26070

LH103,113..4FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12079

RZH103,113,114..4FC

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32909-26040

RZH103,113,114..4FC

NO.2

 1
32909-26030

RZH103,113,114..4FC

NO.1

 1
90462-12079

LH103,113..4FC

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32909-26040

RZH103,113,114..4FC

NO.2

 1
32909-26030

RZH103,113,114..4FC

NO.1

 1
90462-12079

LH103,113..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-26010

RZH103,113,114,125..4FC

L=60,ID=10

 2
32926-30020

LH103,113,125..4FC

L=35,ID=10

 6
32926-30020

RZH103,113,114,125..4FC

L=35,ID=10

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-26010

RZH103,113,114,125..4FC

L=60,ID=10

 2
32926-30020

LH103,113,125..4FC

L=35,ID=10

 6
32926-30020

RZH103,113,114,125..4FC

L=35,ID=10

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-26010

RZH103,113,114,125..4FC

L=60,ID=10

 2
32926-30020

LH103,113,125..4FC

L=35,ID=10

 6
32926-30020

RZH103,113,114,125..4FC

L=35,ID=10

 4
Common parts
91611-60616
91611-60812
91611-61014
91651-G0612

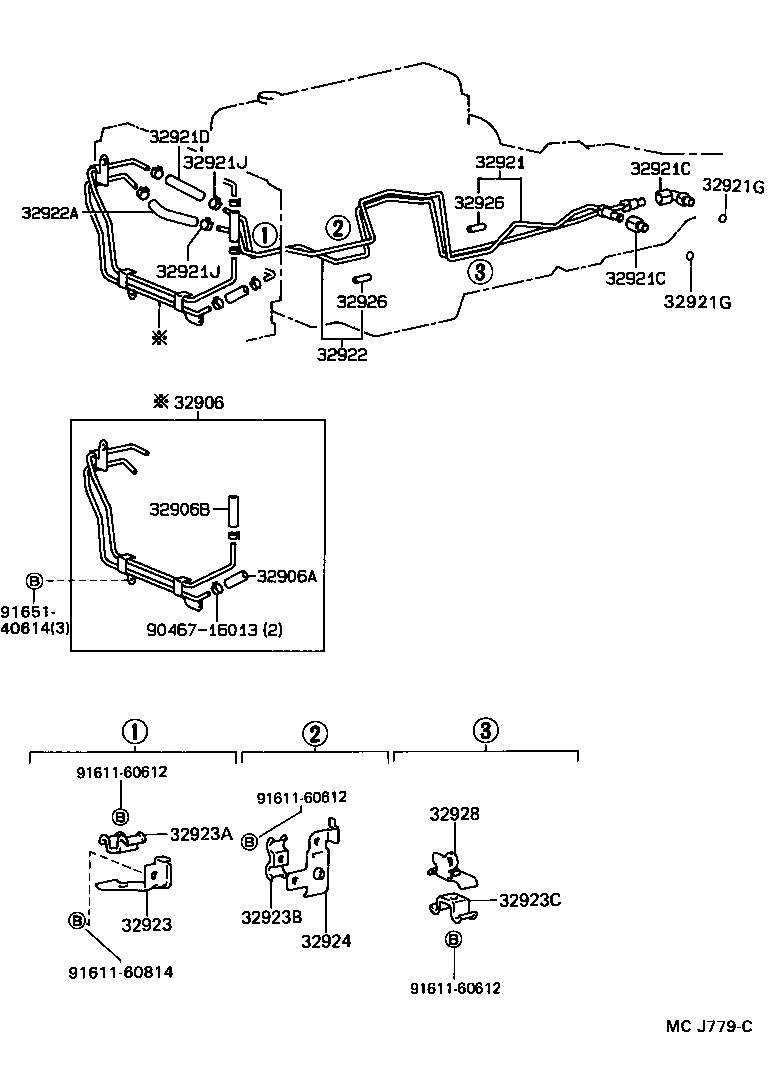

(8908-9808)LH103,113..4FC

Click highlighted areas on diagram

A45DL

diagram 32906 32906A 32906B 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32922 32922A 32923 32923A 32923B 32923C 32924 32926 32926 32928 9046716013 9161160612 9161160612 9161160612 9161160814 9165140614
Part # Description Qty Price
32906 - TUBE SUB-ASSY, OIL COOLER
32906-26090

RZH103,113,114..4FC

 1
32906-26110

LH103,113,RZH103,113,114..4FC

 1
32906-26110

LH103,113..4FC

 1
32906A - HOSE, OIL COOLER TUBE(FOR INLET)
90445-17093

LH103,113,RZH103,113,114..4FC

 1
32906B - HOSE, OIL COOLER TUBE(FOR OUTLET)
90445-17100

LH103,113,RZH103,113,114..4FC

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26081

RZH103,113,114,125..4FC

 1
32921-26091

LH103,113..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

LH103,113,125,RZH103,113,114,125..4FC

REAR

 1
90404-16021

LH103,113,125,RZH103,113,114,125..4FC

FRONT

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

LH103,113,125,RZH103,113,114,125..4FC

REAR

 1
90404-16021

LH103,113,125,RZH103,113,114,125..4FC

FRONT

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-28190

RZH103,113,114,125..4FC

 1
90445-17102

LH103,113..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LH103,113,125,RZH103,113,114,125..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LH103,113,125,RZH103,113,114,125..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

LH103,113,125,RZH103,113,114,125..4FC

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

LH103,113,125,RZH103,113,114,125..4FC

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-26081

RZH103,113,114,125..4FC

 1
32922-26091

LH103,113..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17107

RZH103,113,114..4FC

 1
90445-17110

LH103,113..4FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-26050

RZH103,113,114,125..4FC

 1
32923-26070

LH103,113..4FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12079

RZH103,113,114..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
90462-12079

LH103,113,125..4FC

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32909-26040

RZH103,113,114..4FC

NO.2

 1
32909-26030

RZH103,113,114..4FC

NO.1

 1
90462-12079

LH103,113..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-26050

LH103,113..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-26010

RZH103,113,114,125..4FC

L=60,ID=10

 2
32926-30020

LH103,113,125..4FC

L=35,ID=10

 6
32926-30020

RZH103,113,114,125..4FC

L=35,ID=10

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-26010

RZH103,113,114,125..4FC

L=60,ID=10

 2
32926-30020

LH103,113,125..4FC

L=35,ID=10

 6
32926-30020

RZH103,113,114,125..4FC

L=35,ID=10

 4
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-26010

LH103,113..4FC

 1
Common parts
90467-16013
91611-60612
91611-60814
91651-40614
