RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908- )LH103,113,125,162,172,184..4FC

Click highlighted areas on diagram

A45DL

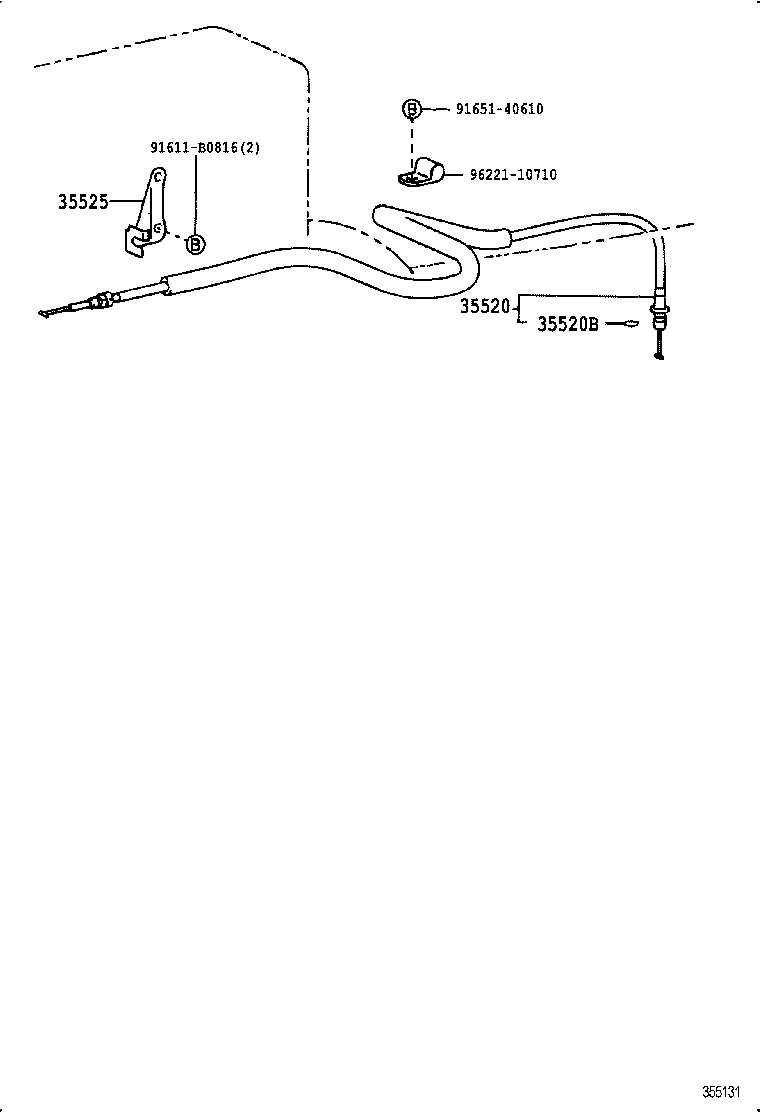

diagram 35520 35520B 35525 91611B0816 9165140610 9622110710
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-26020

RZH103,113,114..4FC

 1
35520-26040

LH103,113,125..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)

 1
35525 - BRACKET, THROTTLE CABLE
35525-35031

LH103,113..4FC

 1
Common parts
91611-B0816
91651-40610
96221-10710

ILLUST NO. 1 OF 2(8908- )4FC

Click highlighted areas on diagram

A45DE,A45DL

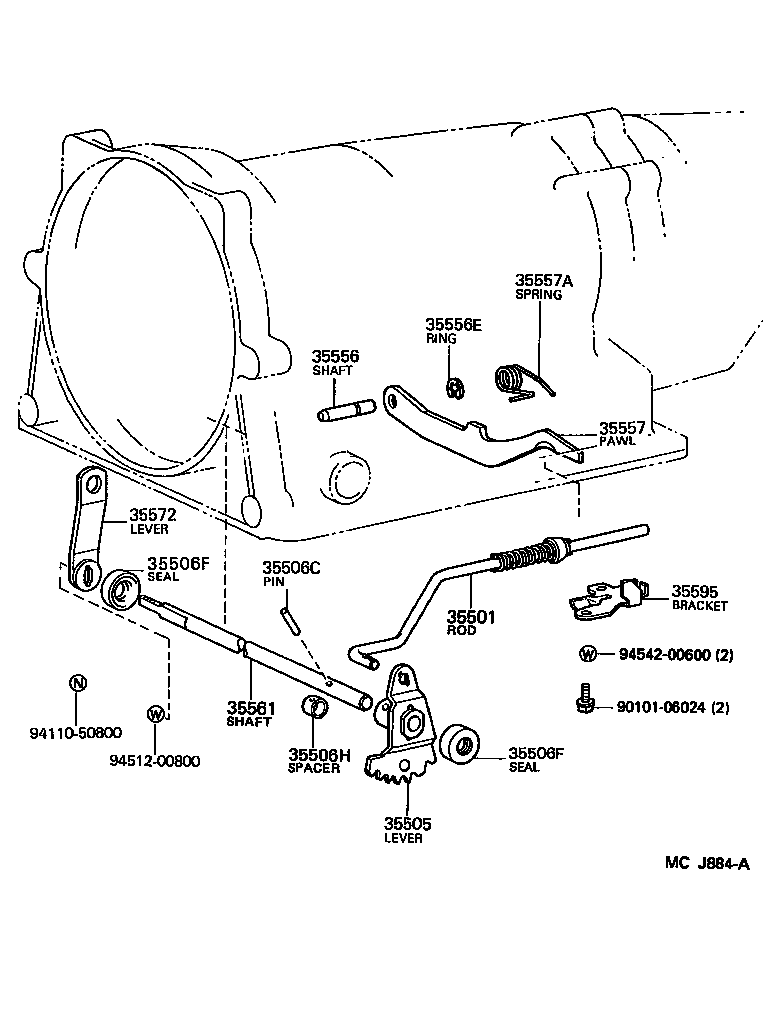

diagram 35501 35505 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35561 35572 35595 9010106024 9411050800 9451200800 9454200600
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-26020

LH103,113,125,RZH103,113,114,125..4FC

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22040

LH103,113,125,RZH103,113,114,125..4FC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

LH103,113,125,RZH103,113,114,125..4FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11003

LH103,113,125,RZH103,113,114,125..4FC

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11003

LH103,113,125,RZH103,113,114,125..4FC

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

LH103,113,125,RZH103,113,114,125..4FC

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-26010

LH103,113,125,RZH103,113,114,125..4FC

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

LH103,113,125,RZH103,113,114,125..4FC

 1
35557 - PAWL, PARKING LOCK
35557-26010

LH103,113,RZH103,113,114..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21001

LH103,113,125,RZH103,113,114,125..4FC

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-40010

LH103,113,125,RZH103,113,114,125..4FC

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-26010

LH103,113,125,RZH103,113,114,125..4FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-40010

LH103,113,125,RZH103,113,114,125..4FC

 1
Common parts
90101-06024
94110-50800
94512-00800
94542-00600

ILLUST NO. 2 OF 2(8908- )RZH103,113,114,125..4FC

Click highlighted areas on diagram

A45DE,A45DL

diagram 35520 35520B 35523 9046400430 9165140610 9622110710
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-26020

RZH103,113,114..4FC

 1
35520-26040

LH103,113,125..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)

 1
35523 - CLAMP, THROTTLE CABLE
35523-26030

RZH103,113,114,125..4FC

 1
Common parts
90464-00430
91651-40610
96221-10710
