RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter
ILLUST NO. 2 OF 3(8908-9808)4FC ; (9808-9907)LH103,113,125..4FC
A45DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT | ||||
| 35408-30010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-26020 |
LH103,113,125..4FC |
1 | ||
| 35430-26090 |
RZH103,113,114..4FC |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06023 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) 0D=5.56 |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06023 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) 0D=5.56 |
1 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35438-22020 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-28031 |
RZH103,113,114..4FC |
1 | ||
| 35440-26011 |
LH103,113,125..4FC |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-09686 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35446B - PLUG, GOVERNOR MODULATOR VALVE | ||||
| 35446-20010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35447A - VALVE, REVERSE CLUTCH SEQUENCE | ||||
| 35447-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08724 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35457A - VALVE, DETENT REGULATOR | ||||
| 35457-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09025 |
LH103,113,125..4FC |
1 | ||
| 90501-09022 |
RZH103,113,114..4FC |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
LH103,113,125,RZH103,113,114,125..4FC L=19.24,NO.1 |
1 | ||
| 90501-12077 |
RZH103,113,114..4FC L=39.76,NO.2 |
1 | ||
| 90501-12045 |
LH103,113,125..4FC L=40.46,NO.2 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
LH103,113,125,RZH103,113,114,125..4FC L=19.24,NO.1 |
1 | ||
| 90501-12077 |
RZH103,113,114..4FC L=39.76,NO.2 |
1 | ||
| 90501-12045 |
LH103,113,125..4FC L=40.46,NO.2 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35204-30010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35479 - SEAT, INTERMEDIATE SHIFT VALVE | ||||
| 35479-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35493F - SEAT, SHIFT VALVE PLUG | ||||
| 35493-22010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
4 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-30010 |
RZH103,113,114..4FC |
1 | ||
| 35521-20010 |
LH103,113,125..4FC |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| Common parts | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05012 | ||||
| 90105-05033 | ||||
| 90105-06018 | ||||
| 90119-05023 | ||||
ILLUST NO. 3 OF 3(8908-9808)4FC ; (9808-9907)LH103,113,125..4FC ;(0008- )LH162,172,184..4FC
A45DL,A45DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-14010 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-02007 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-11016 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35202-30020 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-07017 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-30030 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35218 - PLUG, LOCK UP RELAY VALVE | ||||
| 35218-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35219 - PLUG, LOCK UP SIGNAL VALVE | ||||
| 35219-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35222 - PLATE, LOCK UP RELAY VALVE BODY | ||||
| 35222-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35223 - GASKET, LOCK UP RELAY VALVE BODY | ||||
| 35223-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35203-30011 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-17020 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-30020 |
RZH103,113,114..4FC |
1 | ||
| 35416-30030 |
LH103,113,125..4FC |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-30050 |
LH103,113,125..4FC |
1 | ||
| 35417-30030 |
RZH103,113,114..4FC |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-26080 |
LH103,113,125..4FC |
1 | ||
| 35420-26090 |
RZH103,113,114..4FC |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35420C - SEAT (FOR PRESSURE RELIEF) | ||||
| 35427-22011 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22020 |
RZH103,113,114..4FC OD=5.535,RUBBER |
3 | ||
| 35495-22020 |
LH103,113,125..4FC OD=5.535,RUBBER |
2 | ||
| 35496-22030 |
LH103,113,RZH103,113,114..4FC OD=6.35,RUBBER |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-14010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35437 - PLATE, 3-4 SHIFT VALVE SEPARATOR | ||||
| 35437-24010 |
RZH103,113,114..4FC |
1 | ||
| 35437-22020 |
LH103,113,125..4FC |
1 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-30010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35463A - VALVE, 1-2 SHIFT, LOWER | ||||
| 35463-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06684 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35464C - VALVE, 1-2 SHIFT, UPPER | ||||
| 35464-22020 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35471 - COVER, VALVE BODY, NO.1 | ||||
| 35471-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35475 - COVER, VALVE BODY, NO.5 | ||||
| 35475-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35476A - PLUG, STRAIGHT (FOR 3RD COAST SHIFT) | ||||
| 90334-12001 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35476C - VALVE, 3RD COAST | ||||
| 35476-30010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35491 - PLUG, REVERSE BRAKE | ||||
| 35491-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35492A - VALVE, MANUAL DOWN TIMING | ||||
| 35492-30010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35492B - PLUG (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35494-30010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-22010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35493H - SEAT, SHIFT VALVE PLUG (FOR LOCK UP RELAY VALVE) | ||||
| 35493-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35493J - SEAT, SHIFT VALVE PLUG (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35493-30040 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30020 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-11005 |
RZH103,113,114..4FC |
1 | ||
| 90501-11006 |
LH103,113,125..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90334-13001 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35497E - ROLLER, NEEDLE (FOR 3-4 SHIFT VALVE) | ||||
| 90361-02051 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35498 - VALVE, 3-4 COAST SHIFT | ||||
| 35498-30010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35499 - PLUG, 3-4 SHIFT VALVE | ||||
| 35499-30030 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35499A - PIN, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90250-02012 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35499G - PIN, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90250-02012 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-05033 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 90105-06025 | ||||
| 90105-06026 | ||||
| 90105-06042 | ||||
| 90105-06044 | ||||
| 90105-06055 | ||||

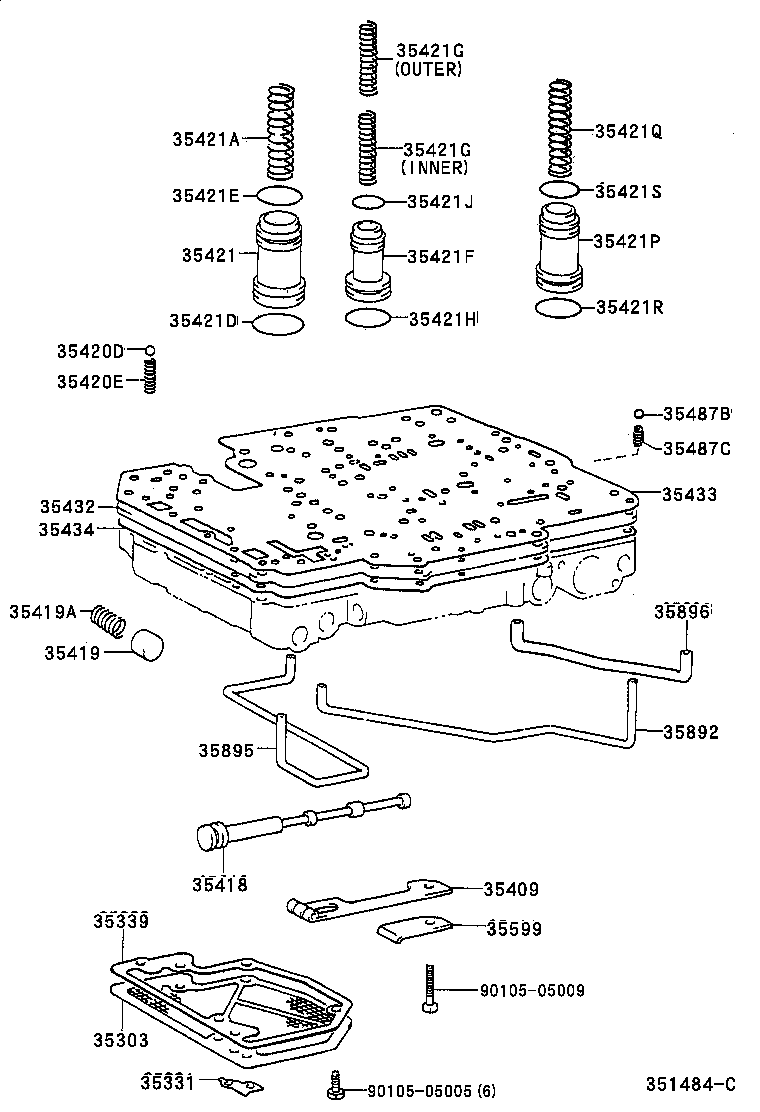

ILLUST NO. 1 OF 3(8908-9808)4FC ; (9808-9907)LH103,113,125..4FC
A45DL,A45DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35331 - COVER, OIL STRAINER | ||||
| 35331-14010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-14010 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30050 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-13003 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22020 |
RZH103,113,114..4FC OD=5.535,RUBBER |
3 | ||
| 35495-22020 |
LH103,113,125..4FC OD=5.535,RUBBER |
2 | ||
| 35496-22030 |
LH103,113,RZH103,113,114..4FC OD=6.35,RUBBER |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-04727 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-30020 |
LH103,113,125..4FC |
1 | ||
| 35421-24010 |
RZH103,113,114..4FC |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-26776 |
LH103,113,125..4FC |
1 | ||
| 90501-13012 |
RZH103,113,114..4FC |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-26050 |
RZH103,113,114..4FC LOWER |
1 | ||
| 90501-25002 |
RZH103,113,114..4FC UPPER |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-26050 |
RZH103,113,114..4FC LOWER |
1 | ||
| 90501-25002 |
RZH103,113,114..4FC UPPER |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20063 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-30122 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-14012 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-14012 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35487B - BALL, CHECK, NO.4 | ||||
| 35487-30010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35487C - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90504-05006 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-14010 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-14011 |
LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) |
1 | ||
| 35896 - TUBE, OVERDRIVE SWITCH APPLY | ||||
| 35896-30020 |
LH103,113,125..4FC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
