RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)4FC

Click highlighted areas on diagram

A45DL

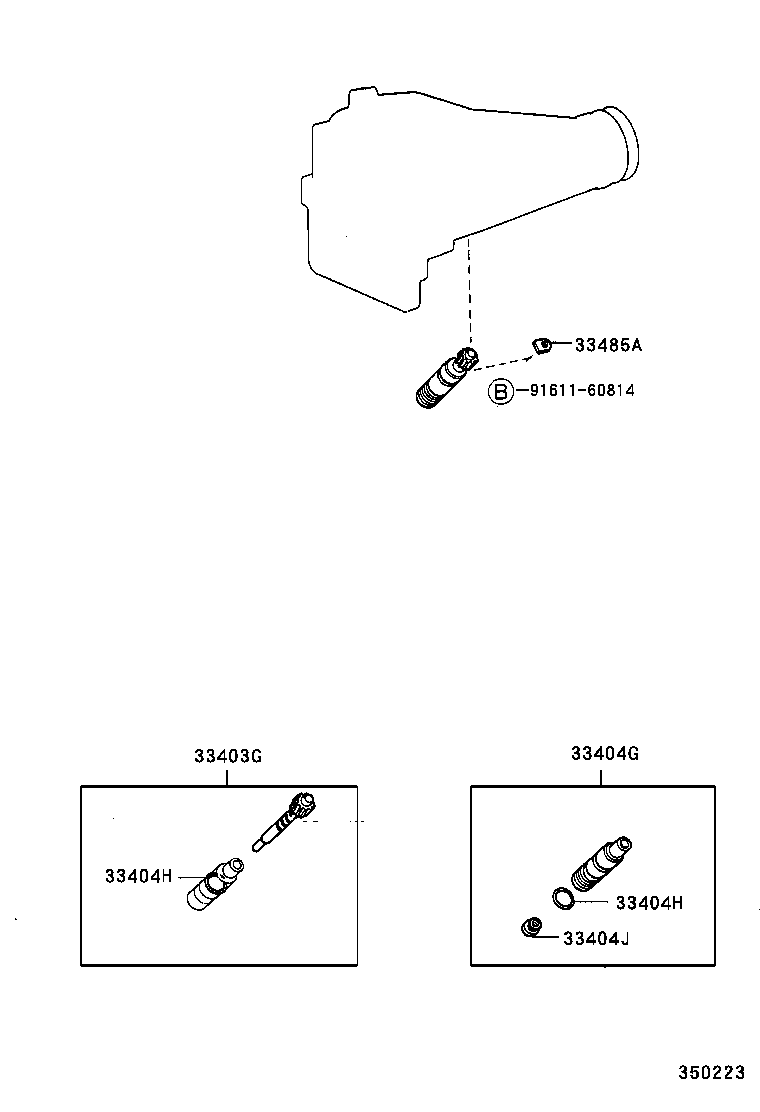

diagram 33403G 33404G 33404H 33404H 33404J 33485A 9161160814
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-29245

LH103,113,RZH114..4FC

N=19,MARK 19:5

 1
33482-39315

RZH113..4FC..GEN

N=21,MARK 21:6

 1
33403-39205

RZH103,113..4FC

N=18,MARK 18:5

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-30040

LH103,113,RZH103,113,114..4FC

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18004

LH103,113,RZH103,113,114..4FC

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18004

LH103,113,RZH103,113,114..4FC

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

LH103,113,RZH103,113,114..4FC

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

LH103,113,RZH103,113,114..4FC

 1
Common parts
91611-60814
