RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter
Production
Aug 1989
-
Aug 1993
Engine
2RZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8908- )4FC

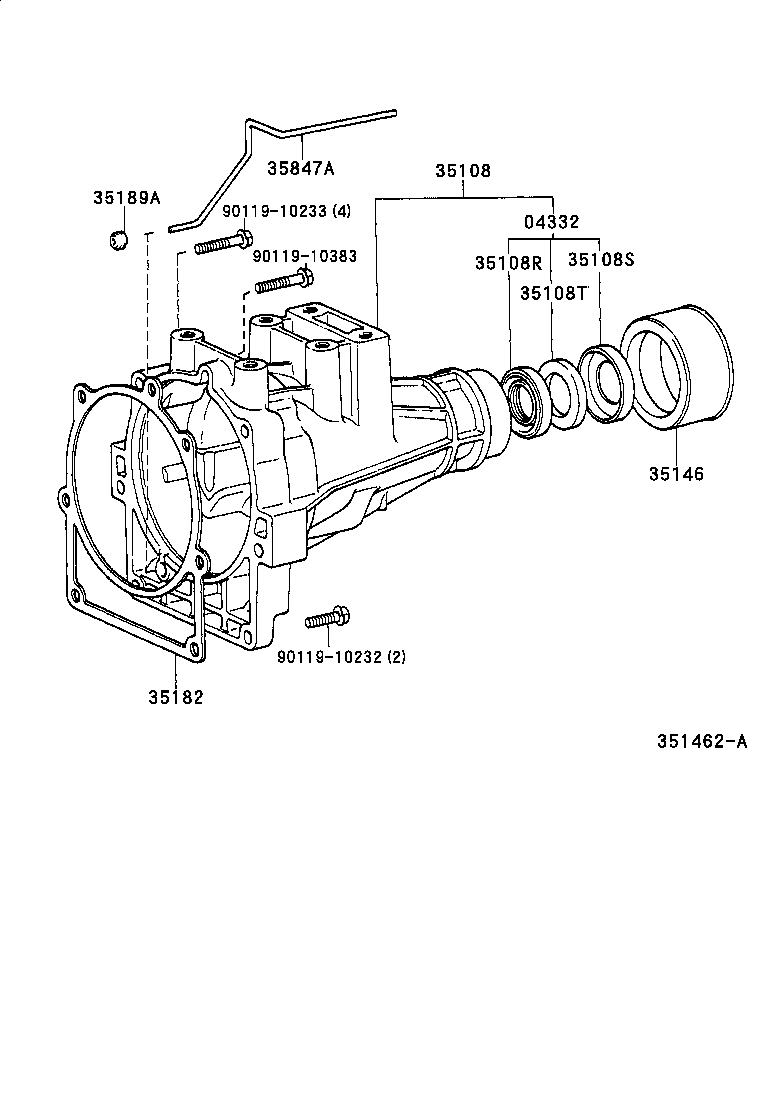

Click highlighted areas on diagram
A45DE,A45DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING) | ||||
| 04332-30030 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35108-26014 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING | ||||
| 90311-38030 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM) | ||||
| 33145-30010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN | ||||
| 90303-38010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM) | ||||
| 33146-30010 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35182 - GASKET, EXTENSION HOUSING (ATM) | ||||
| 35182-22010 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE | ||||
| 35189-30010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35847A - TUBE, EXTENSION HOUSING BUSH APPLY | ||||
| 35847-30020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
| 90119-10383 | ||||
