Toyota Hiace van,commuter RZH113 TRANSMISSION CASE & OIL PAN (ATM)

Manufacturers Home
Toyota
GR
HIACE VAN,COMMUTER
RZH113R-RRPRS (1989)
3503 - TRANSMISSION CASE & OIL PAN (ATM)

RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993

Engine 2RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

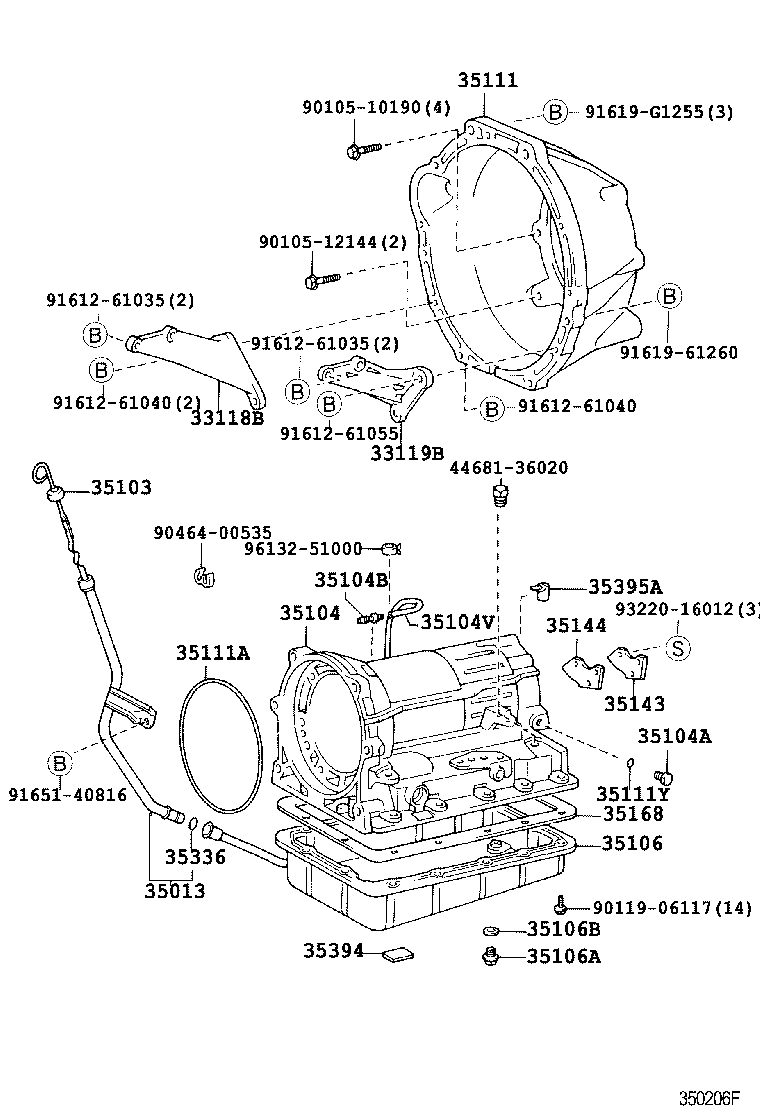

(8908- )RZH103,113,114,125..4FC

Click highlighted areas on diagram

A45DE,A45DL

Part #	Description	Period	Qty
33118B - PLATE, STIFFENER, RH(ATM)
33118-26010	RZH103,113,114..4FC	08/1989 - 01/1997	1
33118-25020	LH103,113,125..4FC	08/1989 - 07/1999	1
33119B - PLATE, STIFFENER, LH(ATM)
33119-26020	RZH103,113,114..4FC	08/1989 - 05/1995	1
33119-25020	LH103,113,125..4FC	08/1989 - 07/1999	1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-26060	LH103,113..4FC	08/1989 - 09/1991	1
35013-26110	LH103,113..4FC	09/1991 - 05/1992	1
35013-26070	RZH103,113,114..4FC	08/1989 - 04/1993	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-26090	LH103,113..4FC	08/1989 - 08/1998	1
35103-26050	RZH103,113,114..4FC	08/1989 - 08/1998	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-26021	LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)	08/1989 - 07/1999	1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03099	LH103,113,125,RZH103,113,114,125..4FC BODY SIDE	08/1989 - 07/1999	1
90930-03098	LH103,113,RZH103,113,114..4FC MISSION CASE SIDE	08/1989 - 12/1990	1
35104V - HOSE (FOR BREATHER PLUG)
90445-11084	LH103,113,RZH103,113,114..4FC	08/1989 - 04/1992	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30050	LH103,113,RZH103,113,114..4FC	08/1989 - 01/1990	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-26010	RZH103,113,114..4FC	08/1989 - 07/1994	1
35111-22060	LH103,113..4FC	08/1989 - 08/1995	1
35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99054	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	2
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010	LH103,113,RZH103,113,114..4FC	08/1989 - 12/1990	1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	LH103,113,125,RZH103,113,125..4FC	08/1989 - 07/1999	2
35395A - STRAINER, GOVERNOR OIL
35395-40010	LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)	08/1989 - 07/1999	1
Common parts
44681-36020
90105-10190
90105-12144
90119-06117
90464-00535
91612-61035
91612-61040
91612-61055
91619-61260
91619-G1255
91651-40816
93220-16012
96132-51000

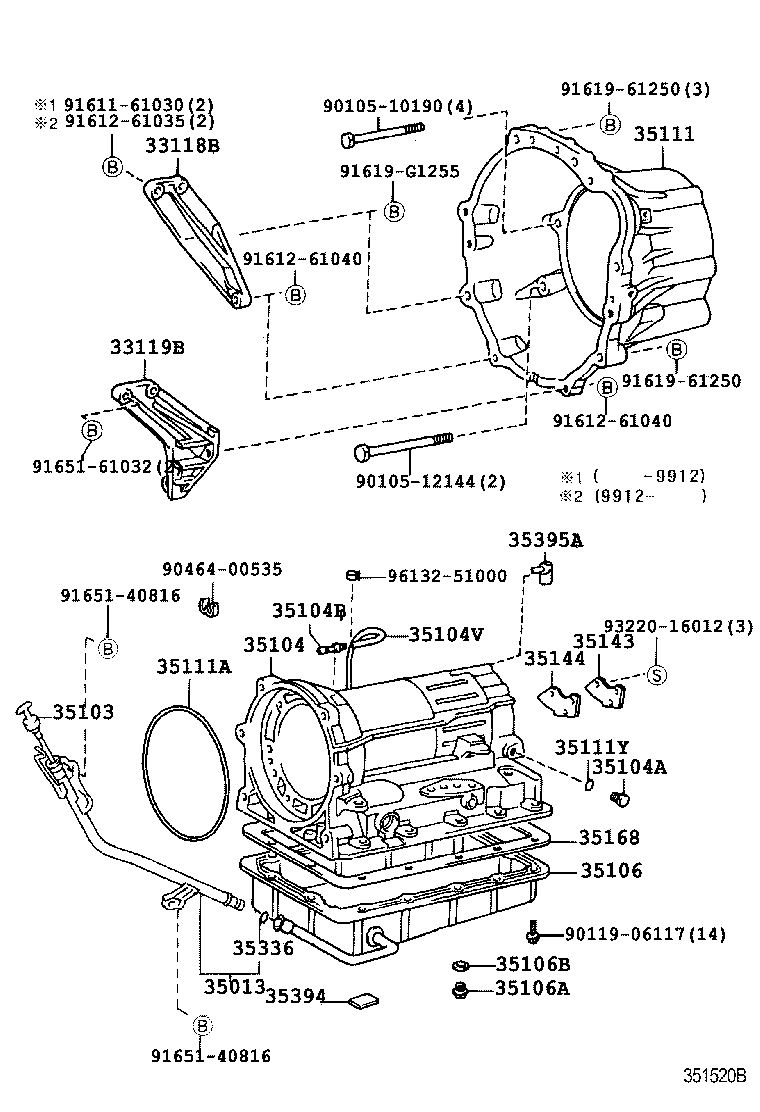

(8908- )LH103,113,125,162,172,184..4FC

Click highlighted areas on diagram

A45DL

Part #	Description	Period	Qty
33118B - PLATE, STIFFENER, RH(ATM)
33118-26010	RZH103,113,114..4FC	08/1989 - 01/1997	1
33118-25020	LH103,113,125..4FC	08/1989 - 07/1999	1
33119B - PLATE, STIFFENER, LH(ATM)
33119-26020	RZH103,113,114..4FC	08/1989 - 05/1995	1
33119-25020	LH103,113,125..4FC	08/1989 - 07/1999	1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-26060	LH103,113..4FC	08/1989 - 09/1991	1
35013-26110	LH103,113..4FC	09/1991 - 05/1992	1
35013-26070	RZH103,113,114..4FC	08/1989 - 04/1993	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-26090	LH103,113..4FC	08/1989 - 08/1998	1
35103-26050	RZH103,113,114..4FC	08/1989 - 08/1998	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-26021	LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)	08/1989 - 07/1999	1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03099	LH103,113,125,RZH103,113,114,125..4FC BODY SIDE	08/1989 - 07/1999	1
90930-03098	LH103,113,RZH103,113,114..4FC MISSION CASE SIDE	08/1989 - 12/1990	1
35104V - HOSE (FOR BREATHER PLUG)
90445-11084	LH103,113,RZH103,113,114..4FC	08/1989 - 04/1992	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30050	LH103,113,RZH103,113,114..4FC	08/1989 - 01/1990	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-26010	RZH103,113,114..4FC	08/1989 - 07/1994	1
35111-22060	LH103,113..4FC	08/1989 - 08/1995	1
35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99054	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	2
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010	LH103,113,RZH103,113,114..4FC	08/1989 - 12/1990	1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	LH103,113,125,RZH103,113,125..4FC	08/1989 - 07/1999	2
35395A - STRAINER, GOVERNOR OIL
35395-40010	LH103,113,125,RZH103,113,114..4FC..(CBR,DSL)	08/1989 - 07/1999	1
Common parts
90105-10190
90105-12144
90119-06117
90464-00535
91611-61030
91612-61035
91612-61040
91619-61250
91619-G1255
91651-40816
91651-61032
93220-16012
96132-51000
