RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )4FC

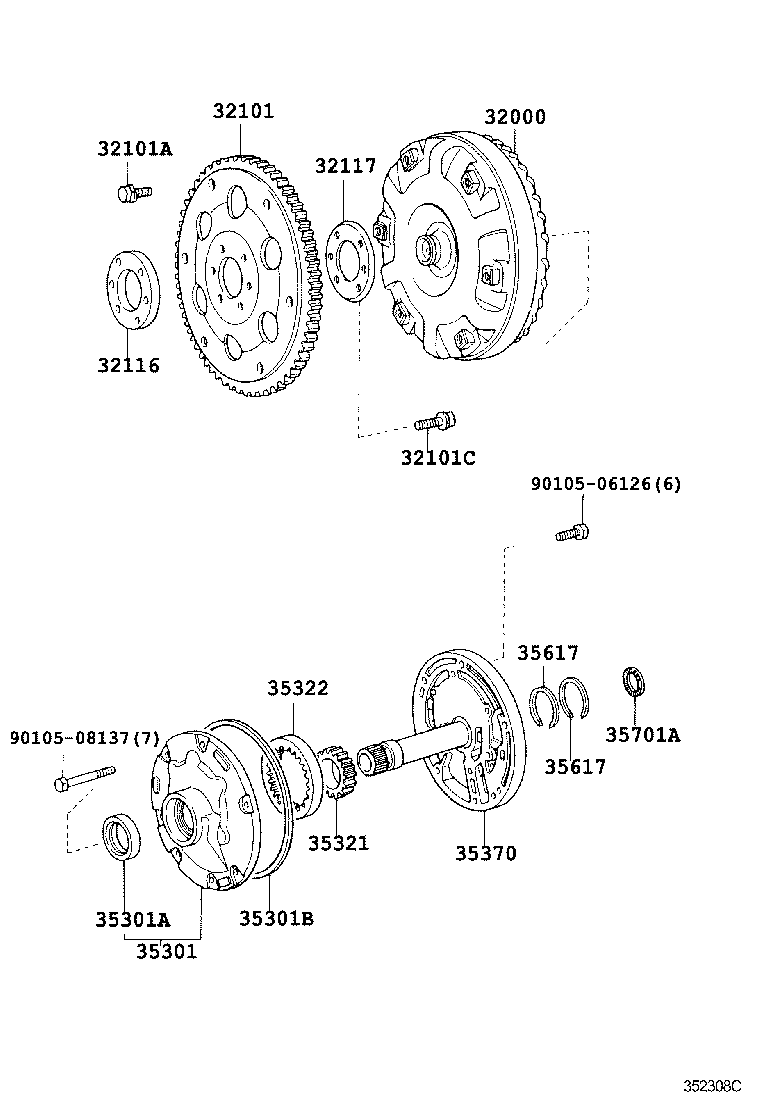

Click highlighted areas on diagram

A45DE,A45DL

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35321 35322 35370 35617 35617 35701A 9010506126 9010508137
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-26060

LH103,113,125,RZH103,113,125..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-26010

RZH103,113,114,125..4FC

 1
32101-35020

LH103,113,125..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09009

LH103,113,125,RZH103,113,114,125..4FC

*9-1.25PX12.8-8.8,YELLOW

 5
90119-09010

LH103,113,125,RZH103,113,114,125..4FC

*9-1.25PX12.8-9,GREEN

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10276

RZH103,113,114,125..4FC

*10-1.25PX30-17.5

 10
90105-12014

LH103,113,125..4FC

 8
32116 - SPACER, DRIVE PLATE, FRONT
32116-26010

RZH103,113,114,125..4FC

 1
32116-35010

LH103,113,125..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-35010

LH103,113,125..4FC

 1
32117-26010

RZH103,113,114,125..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-14010

LH103,113,125,RZH103,113,114,125..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

LH103,113,125,RZH103,113,114,125..4FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

LH103,113,125,RZH103,113,114,125..4FC

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-14010

LH103,113,RZH103,113,114..4FC

T=17.286-17.235

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-14010

LH103,113,RZH103,113,114..4FC

T=17.286-17.235

 1
35370 - SHAFT ASSY, STATOR
35370-14012

LH103,113,125,RZH103,113,114,125..4FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

LH103,113,RZH103,113,114..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

LH103,113,RZH103,113,114..4FC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

LH103,113,125,RZH103,113,114,125..4FC

 1
Common parts
90105-06126
90105-08137
