RZH113R-RRPRS (1989)
Toyota Hiace Van,Commuter
ILLUST NO. 1 OF 2(8908- )4F,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13007 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13007 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE) | ||||
| 90101-08140 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-08102 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 90387-08064 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08063 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33503C - COLLAR(FOR SHIFT LEVER SUB-ASSY) | ||||
| 90387-09039 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-26010 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33055-26020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2008023 |
LH103,113,RZH103,113,114..4FC GRAY,TRIM1# |
1 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90480-13014 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
4 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33523-26050 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-26020 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33531-26030 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33532 - PLATE, DUST BOOT | ||||
| 33532-26030 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-26090 |
LH10#,11#,125,RZH10#,11#,125,135,153..4F,5F |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90508-32033 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-26090 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-26190 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33710-26200 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26020 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33740-26020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 90189-08001 | ||||
| 91121-40855 | ||||
| 91611-B0816 | ||||
| 91661-40820 | ||||
| 94130-00802 | ||||
| 94130-60800 | ||||
| 94511-00800 | ||||
| 94531-00800 | ||||

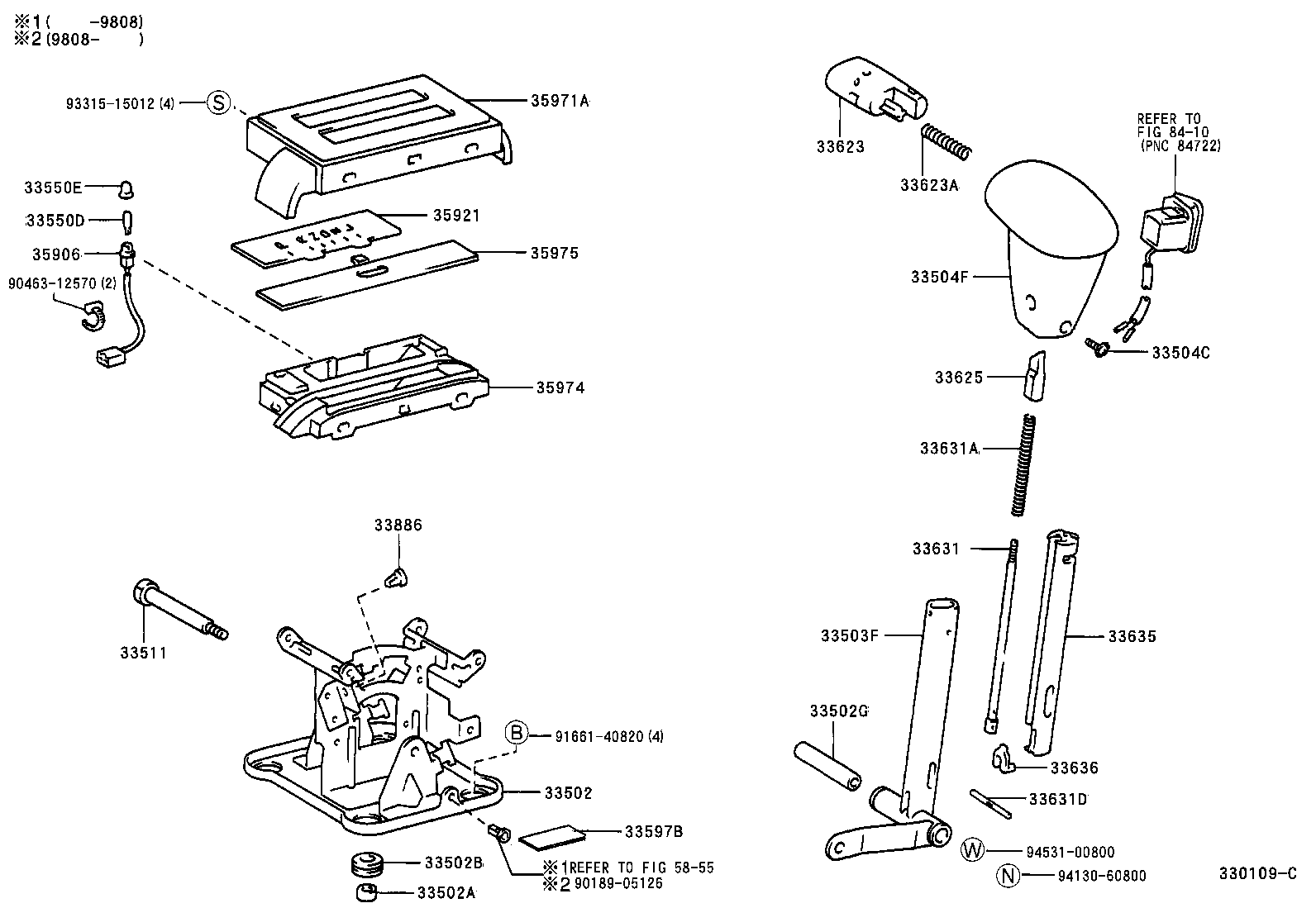

ILLUST NO. 1 OF 2(8908- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-26070 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-09041 |
LH103,113,125,RZH103,113,114,125..4FC |
4 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-13012 |
LH103,113,125,RZH103,113,114,125..4FC |
4 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-08102 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 90387-08064 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-26010 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33055-26020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
LH103,113,125,RZH103,113,114,125..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2008023 |
LH103,113,RZH103,113,114..4FC GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-14010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
LH103,113,125,RZH103,113,114,125..4FC 12V 3.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09001 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33597B - SEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT) | ||||
| 33597-26010 |
LH103,113,RZH103,113,114..4FC |
4 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-2002023 |
LH103,113,RZH103,113,114..4FC GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-24010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-27020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04006 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-26030 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-16010 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-26030 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-26070 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-26070 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-26020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-26020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| Common parts | ||||
| 90189-05126 | ||||
| 90463-12570 | ||||
| 91661-40820 | ||||
| 93315-15012 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 5855 | ||||
| 8410 | ||||

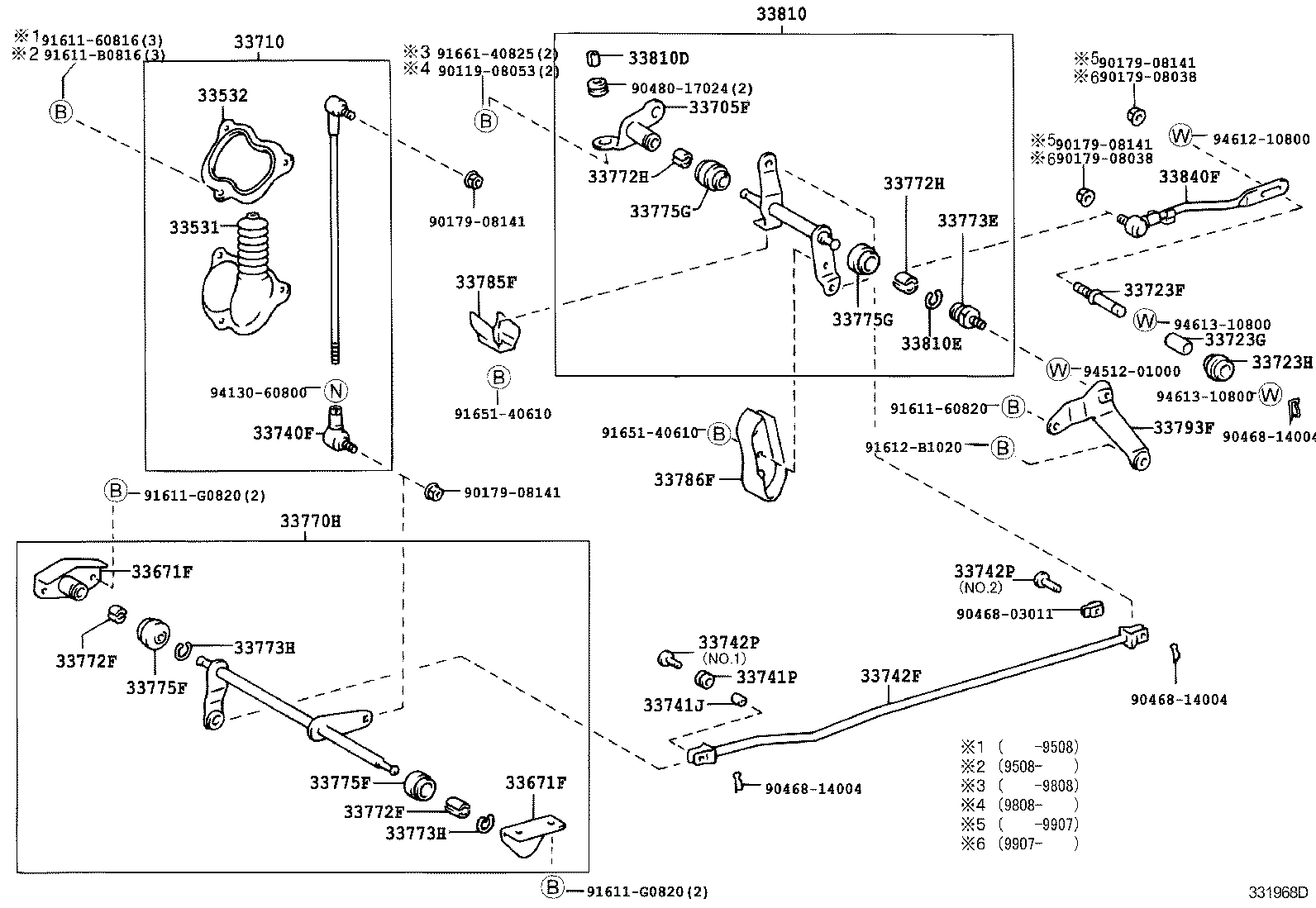

ILLUST NO. 2 OF 2(8908- )4F,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33673-26110 |
LH103,113,125,RZH103,113,114,125..4FC RH |
1 | ||
| 33673-26100 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) RH |
1 | ||
| 33671-26160 |
LH172,184..(03S,15S)..GL;RZH113..RHD..4D..5F..STD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD..(4F,5F) LH |
1 | ||
| 33671-26180 |
LH103,113,125,RZH103,113,114,125..4FC LH |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33673-26110 |
LH103,113,125,RZH103,113,114,125..4FC RH |
1 | ||
| 33673-26100 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) RH |
1 | ||
| 33671-26160 |
LH172,184..(03S,15S)..GL;RZH113..RHD..4D..5F..STD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD..(4F,5F) LH |
1 | ||
| 33671-26180 |
LH103,113,125,RZH103,113,114,125..4FC LH |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-26100 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-15110 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-15110 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 33723-26020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33736-26200 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) | ||||
| 90240-08042 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) | ||||
| 90240-08042 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-26200 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08042 |
LH10#,11#,125,RZH10#,11#,125 NO.2 |
1 | ||
| 90240-08042 |
LH103,113,RZH103,113..4FC NO.2 |
1 | ||
| 90240-08034 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S NO.1 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08042 |
LH10#,11#,125,RZH10#,11#,125 NO.2 |
1 | ||
| 90240-08042 |
LH103,113,RZH103,113..4FC NO.2 |
1 | ||
| 90240-08034 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S NO.1 |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33740-26010 |
LH10#,11#,125,RZH10#,11#,125..4F,5F FRONT |
1 | ||
| 33750-26010 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) REAR |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33740-26010 |
LH10#,11#,125,RZH10#,11#,125..4F,5F FRONT |
1 | ||
| 33750-26010 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) REAR |
1 | ||
| 33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) | ||||
| 33767-25010 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 33770H - CROSS SHAFT ASSY (FOR FLOOR SHIFT) | ||||
| 33770-26140 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33770-26120 |
LH10#,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD..(4F,5F) |
1 | ||
| 33770U - PIN, GROOVED(FOR CROSS SHAFT NO.1) | ||||
| 90256-08001 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33770U - PIN, GROOVED(FOR CROSS SHAFT NO.1) | ||||
| 90256-08001 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S LH |
1 | ||
| 33775-26050 |
LH103,113,125,RZH103,113,114,125..4FC RH |
1 | ||
| 33775-35030 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) RH |
1 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S LH |
1 | ||
| 33775-26050 |
LH103,113,125,RZH103,113,114,125..4FC RH |
1 | ||
| 33775-35030 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) RH |
1 | ||
| 33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF | ||||
| 33785-26050 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF | ||||
| 33785-26050 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33786-26030 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 33785-26020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36030 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36030 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33789G - COVER, CROSS SHAFT DUST, NO.2(FOR FLOOR SHIFT) | ||||
| 33789-36030 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33789G - COVER, CROSS SHAFT DUST, NO.2(FOR FLOOR SHIFT) | ||||
| 33789-36030 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33793-26020 |
LH103,113,125..4FC |
1 | ||
| 33793-26070 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33810 - SHAFT ASSY, CROSS, NO.2 | ||||
| 33810-26080 |
RZH103,113,114..4FC |
1 | ||
| 33810-26070 |
LH103,113..4FC |
1 | ||
| 33810-26030 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 33810B - PIN, GROOVED (FOR CROSS SHAFT) | ||||
| 90256-08001 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33810C - BUSH (FOR CROSS SHAFT) | ||||
| 90386-15110 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33810C - BUSH (FOR CROSS SHAFT) | ||||
| 90386-15110 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33810D - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-09034 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33810E - RING, SNAP (FOR CROSS SHAFT) | ||||
| 96151-01600 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-26170 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 33840-26160 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 33850F - ROD ASSY, GEAR SELECTING, NO.3 | ||||
| 33850-26100 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| Common parts | ||||
| 90119-08053 | ||||
| 90170-08052 | ||||
| 90179-08038 | ||||
| 90179-08141 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 90480-17024 | ||||
| 91611-60816 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91651-40610 | ||||
| 91661-40825 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
ILLUST NO. 2 OF 2(8908- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-26020 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33531-26030 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33532 - PLATE, DUST BOOT | ||||
| 33532-26030 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33673-26110 |
LH103,113,125,RZH103,113,114,125..4FC RH |
1 | ||
| 33673-26100 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) RH |
1 | ||
| 33671-26160 |
LH172,184..(03S,15S)..GL;RZH113..RHD..4D..5F..STD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD..(4F,5F) LH |
1 | ||
| 33671-26180 |
LH103,113,125,RZH103,113,114,125..4FC LH |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33673-26110 |
LH103,113,125,RZH103,113,114,125..4FC RH |
1 | ||
| 33673-26100 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) RH |
1 | ||
| 33671-26160 |
LH172,184..(03S,15S)..GL;RZH113..RHD..4D..5F..STD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD..(4F,5F) LH |
1 | ||
| 33671-26180 |
LH103,113,125,RZH103,113,114,125..4FC LH |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-26100 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-26190 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33710-26200 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 33723-26020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26020 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 33740-26020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-26200 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08042 |
LH10#,11#,125,RZH10#,11#,125 NO.2 |
1 | ||
| 90240-08042 |
LH103,113,RZH103,113..4FC NO.2 |
1 | ||
| 90240-08034 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S NO.1 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08042 |
LH10#,11#,125,RZH10#,11#,125 NO.2 |
1 | ||
| 90240-08042 |
LH103,113,RZH103,113..4FC NO.2 |
1 | ||
| 90240-08034 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S NO.1 |
1 | ||
| 33770H - CROSS SHAFT ASSY (FOR FLOOR SHIFT) | ||||
| 33770-26140 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33770-26120 |
LH10#,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD..(4F,5F) |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33773E - SUPPORT, CROSS SHAFT, NO.1 | ||||
| 33773-20020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S LH |
1 | ||
| 33775-26050 |
LH103,113,125,RZH103,113,114,125..4FC RH |
1 | ||
| 33775-35030 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) RH |
1 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S LH |
1 | ||
| 33775-26050 |
LH103,113,125,RZH103,113,114,125..4FC RH |
1 | ||
| 33775-35030 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) RH |
1 | ||
| 33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF | ||||
| 33785-26050 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33786-26030 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 33785-26020 |
LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33793-26020 |
LH103,113,125..4FC |
1 | ||
| 33793-26070 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 33810 - SHAFT ASSY, CROSS, NO.2 | ||||
| 33810-26080 |
RZH103,113,114..4FC |
1 | ||
| 33810-26070 |
LH103,113..4FC |
1 | ||
| 33810-26030 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 33810D - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-09034 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 33810E - RING, SNAP (FOR CROSS SHAFT) | ||||
| 96151-01600 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-26170 |
LH103,113,RZH103,113,114..4FC |
1 | ||
| 33840-26160 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| Common parts | ||||
| 90119-08053 | ||||
| 90179-08038 | ||||
| 90179-08141 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 90480-17024 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91651-40610 | ||||
| 91661-40825 | ||||
| 94130-60800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
