RZH113R-RRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1993
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)4F,5F

Click highlighted areas on diagram

G55

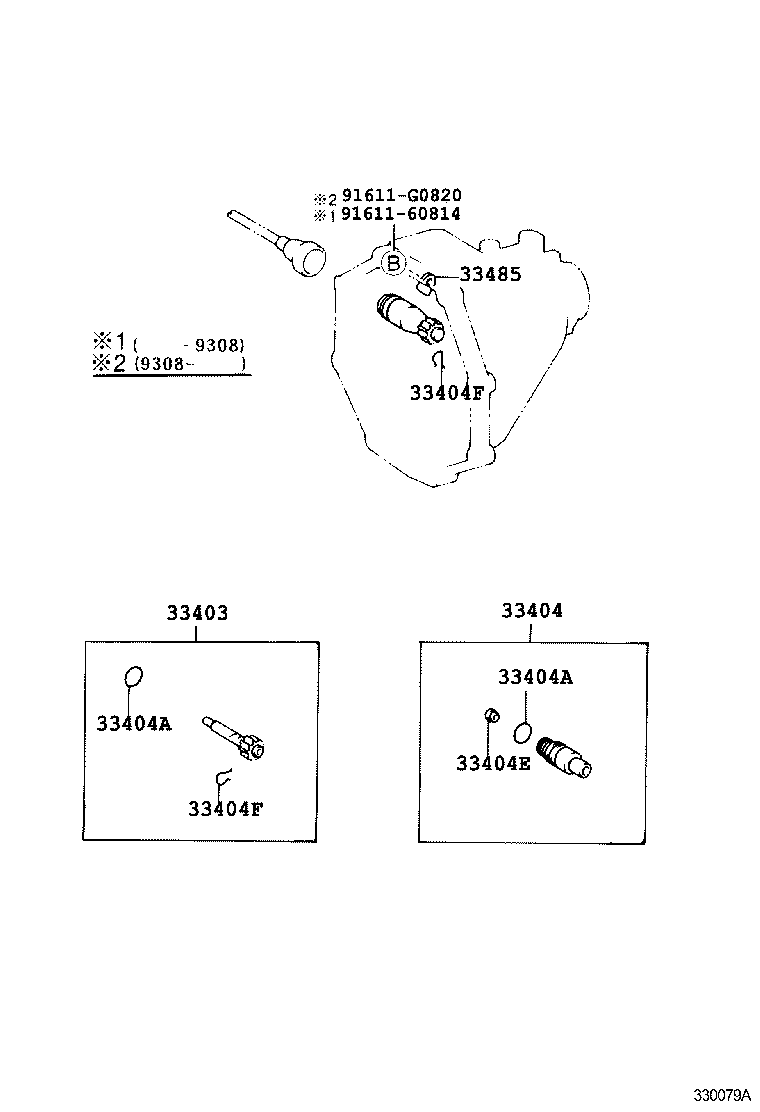

diagram 33403 33404 33404A 33404A 33404E 33404F 33404F 33485 9161160814 91611G0820
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39045

RZH103,113,125..5F;LH10#,11#,RZH102,104,112,114..(4F,5F)..GEN

N=20,MARK 20:6

 1
33482-39025

RZH104,112..4F;LH103..5F..ARL;RZH102..LHD..4F;RZH102,113..RHD..(4F,5F)..GEN;LH113,125,RZH114..(03S,14S,15S)..(4F,5F)

N=19,MARK 19:6

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-35010

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
Common parts
91611-60814
91611-G0820
