Toyota Hiace van,commuter RZH113 FRONT STEERING GEAR & LINK

Manufacturers Home
Toyota
GR
HIACE VAN,COMMUTER
RZH113R-RBMRE (1996)
4505 - FRONT STEERING GEAR & LINK

RZH113R-RBMRE (1996)

Toyota Hiace Van,Commuter

Production Nov 1996 - Jan 2005

Engine 2RZE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-29215	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1995	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1996	2
90171-14002	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90171-14002	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29215	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1995	1
45611 - ARM, STEERING KNUCKLE, RH
45611-26070	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN	08/1989 - 08/1993	1
45611-26110	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45611-26060	LH10#,11#,125,RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
45611-26110	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
45611 - ARM, STEERING KNUCKLE, RH
45611-26070	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN	08/1989 - 08/1993	1
45611-26110	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45611-26060	LH10#,11#,125,RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
45611-26110	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
45611A - BOLT, KNUCKLE STOPPER
90106-12022	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1995	2
45612 - ARM, STEERING KNUCKLE, LH
45612-26070	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN	08/1989 - 08/1993	1
45612-26110	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45612-26060	LH10#,11#,125,RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
45612-26110	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
45612 - ARM, STEERING KNUCKLE, LH
45612-26070	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN	08/1989 - 08/1993	1
45612-26110	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45612-26060	LH10#,11#,125,RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
45612-26110	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
45619 - COVER, KNUCKLE STOPPER
45619-36010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
Common parts
90105-14043
90170-15001
90170-17001
94115-41200
94130-61200
94531-01200
95381-03022

ILLUST NO. 2 OF 4(8908- )LH10#,11#,125,154,162,164,172,174,184,RZH10#,11#,125,15#

Click highlighted areas on diagram

POWER STEERING

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-27012	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
04445-26060	RZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,155	07/1999 - 01/2004	1
04445-26160	LH10#,11#,154,162,164,172,174,184,RZH10#,11#,125,155	01/2004 - 12/2999	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-26040	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 01/2004	1
04455-27012	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1995	1
04455-26030	LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15#	01/2004 - 12/2999	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-26040	RZH113,114..RHD..5F..GEN;LH112,113,RZH103,112..RHD..SRF..(4FC,5F)..STD;LH102,103,114,115,125,RZH102,104,113,125..RHD..(03S,12S,14S,15S)..(4FC,5F)	08/1989 - 08/1993	1
44250-26341	LH11#,162,172,174,184,RZH103,104,105,112,113,114,125..RHD	08/2000 - 08/2001	1
44250-26341	LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125..RHD	07/1999 - 08/2000	1
44250-26341	LH11#,162,172,174,184,RZH103,105,112,113,114,125..RHD	08/2001 - 09/2002	1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-26020	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45514-26020	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
45514-26020	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN)	07/1999 - 01/2005	1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-26020	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
45515-26020	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
45515-26020	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-26010	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45516-26010	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN)	07/1999 - 01/2005	1
45516-26010	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-26020	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(POWER STEERING)	07/1999 - 08/2000	1
45517-26030	LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING)	08/1989 - 11/1994	1
45517-26030	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD W(MANUAL STEERING)	07/1999 - 08/2000	1
45517-26020	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S W(POWER STEERING)	08/1989 - 12/2999	1
45517-26030	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) W(MANUAL STEERING)	07/1999 - 01/2005	1
45517-26020	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN) W(POWER STEERING)	07/1999 - 01/2005	1
45543A - PROTECTOR, STEERING RACK BOOT, RH
45543-26010	LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD	08/1989 - 08/1994	1
45544A - PROTECTOR, STEERING RACK BOOT, LH
45544-26010	LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD	08/1989 - 08/1994	1
Common parts
90119-12107
Linked diagrams
5352

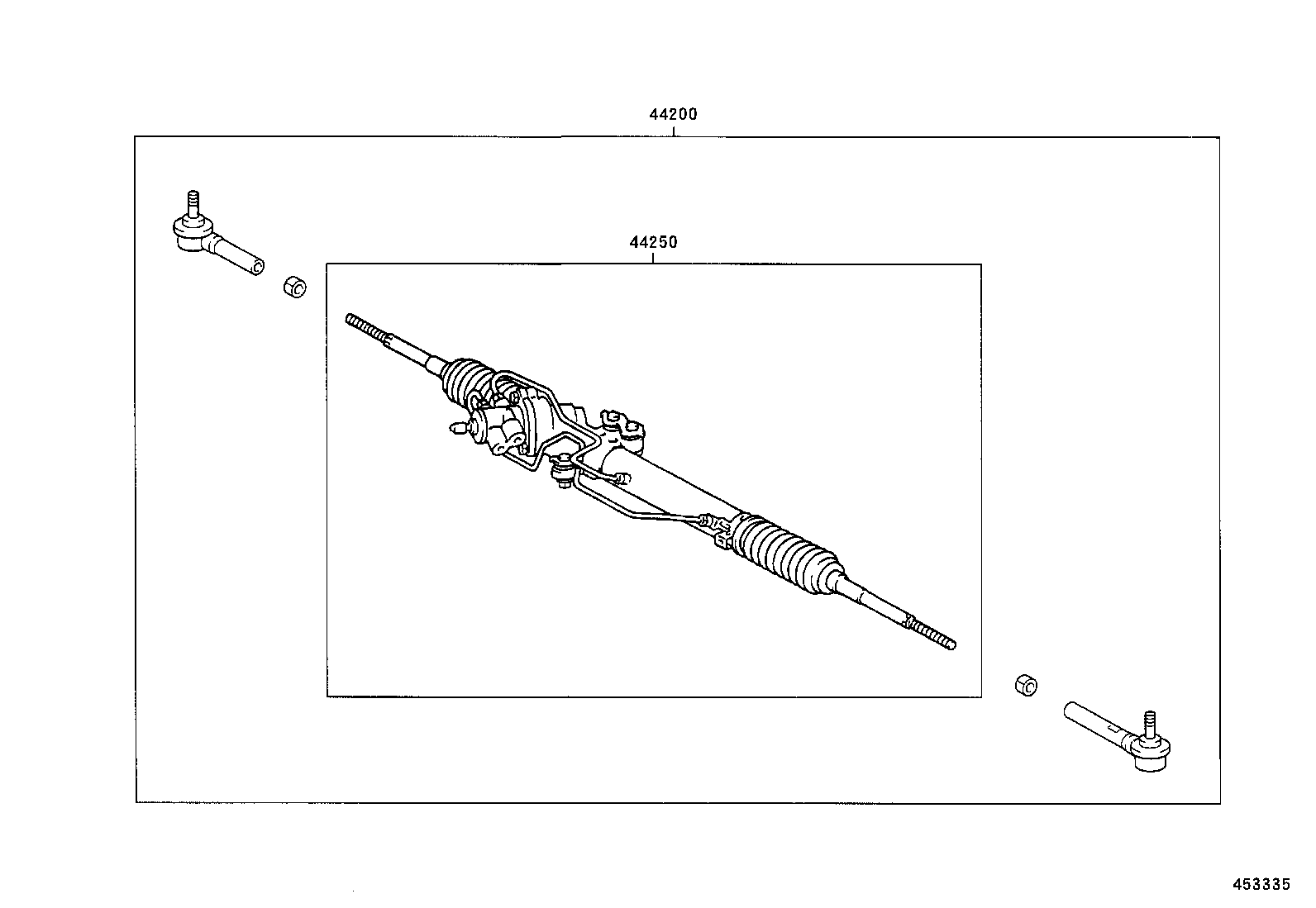

ILLUST NO. 1 OF 4(9907- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
44200 - LINK ASSY, POWER STEERING
44200-26341	LH103,113,115,125..RHD	07/1999 - 08/2000	1
44200-26341	LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172..4D..06S..STD;LH112,174,184,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-26040	RZH113,114..RHD..5F..GEN;LH112,113,RZH103,112..RHD..SRF..(4FC,5F)..STD;LH102,103,114,115,125,RZH102,104,113,125..RHD..(03S,12S,14S,15S)..(4FC,5F)	08/1989 - 08/1993	1
44250-26341	LH11#,162,172,174,184,RZH103,104,105,112,113,114,125..RHD	08/2000 - 08/2001	1
44250-26341	LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125..RHD	07/1999 - 08/2000	1
44250-26341	LH11#,162,172,174,184,RZH103,105,112,113,114,125..RHD	08/2001 - 09/2002	1

ILLUST NO. 3 OF 4(8908- )LH10#,11#,125,154,162,164,172,174,184,RZH10#,11#,125,15#

Click highlighted areas on diagram

POWER STEERING

Part #	Description	Period	Qty
44015A - NUT SUB-ASSY, BEARING GUIDE
44015-22020	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
44015-22020	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
44015-22020	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
44015B - RING, O(FOR BEARING GUIDE NUT)
90301-43002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
90301-43002	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
90301-43002	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
44015C - SEAL, OIL(FOR BEARING GUIDE NUT)
90310-25020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 04/1992	1
90310-25004	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
90310-25004	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
44201 - VALVE SUB-ASSY, POWER STEERING CONTROL
44201-26011	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
44201-26012	LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125..RHD	07/1999 - 08/1999	1
44201-26013	LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172..4D..06S..STD;LH112,174,184,RZH125..RHD..(03S,06S,14S,15S)	08/1999 - 01/2005	1
44201-26013	LH103,113,115,125..RHD	08/1999 - 08/2000	1
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33007	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	4
90562-33007	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	08/1999 - 08/2000	4
90562-33007	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	08/1999 - 01/2005	4
44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER)
90364-13003	LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15#	10/2003 - 12/2999	1
44203 - HOUSING SUB-ASSY, POWER STEERING RACK
44203-26040	LH10#,11#,125,RZH102,103,104,11#,125..RHD	08/1989 - 09/1996	1
44203-26041	LH103,113,115,125..RHD	07/1999 - 08/2000	1
44203-26041	LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172..4D..06S..STD;LH112,174,184,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
44204 - RACK SUB-ASSY, POWER STEERING
44204-26030	RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH10#,11#,125,RZH102,103,104,114,115,125..RHD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI)	08/1989 - 12/2999	1
44204-26030	LH103,113,115,125..RHD	07/1999 - 08/2000	1
44204-26030	LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172..4D..06S..STD;LH112,174,184,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
44204A - RING(FOR RACK STEERING PISTON)
90301-39003	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S INNER	08/1989 - 12/2999	1
90301-39003	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) INNER	07/1999 - 08/2000	1
90562-43001	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) OUTER	07/1999 - 08/2000	1
90562-43001	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S OUTER	08/1989 - 12/2999	1
90562-43001	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN) OUTER	07/1999 - 01/2005	1
90301-39003	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN) INNER	07/1999 - 01/2005	1
44204A - RING(FOR RACK STEERING PISTON)
90301-39003	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S INNER	08/1989 - 12/2999	1
90301-39003	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) INNER	07/1999 - 08/2000	1
90562-43001	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) OUTER	07/1999 - 08/2000	1
90562-43001	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S OUTER	08/1989 - 12/2999	1
90562-43001	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN) OUTER	07/1999 - 01/2005	1
90301-39003	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN) INNER	07/1999 - 01/2005	1
44206J - BUSH(FOR POWER STEERING CYLINDER TUBE)
90386-30001	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
90386-30001	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
90386-30001	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
44210 - VALVE ASSY, POWER STEERING CONTROL
44210-26011	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
44210-26012	LH103,113,115,125..RHD	07/1999 - 08/2000	1
44210-26012	LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172..4D..06S..STD;LH112,174,184,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
90410-04004	RZH103,113,125;LH10#,11#,RZH102,104,112,114..GEN PUMP SIDE	08/1989 - 08/1993	2
90410-06005	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
90410-06005	RZH115..CBR;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;RZH102,103,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	07/1998 - 12/2999	2
90410-06005	RZH103,113,125;LH10#,11#,RZH102,104,112,114..GEN GEAR SIDE	08/1989 - 08/1993	2
90410-06005	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
90410-04004	RZH103,113,125;LH10#,11#,RZH102,104,112,114..GEN PUMP SIDE	08/1989 - 08/1993	2
90410-06005	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
90410-06005	RZH115..CBR;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;RZH102,103,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	07/1998 - 12/2999	2
90410-06005	RZH103,113,125;LH10#,11#,RZH102,104,112,114..GEN GEAR SIDE	08/1989 - 08/1993	2
90410-06005	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
44210C - RING, O(FOR POWER STEERING CONTROL VALVE)
90301-51001	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
90301-51001	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
90301-51001	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
90311-19002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
90311-19002	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
90311-19002	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
44210F - BEARING(FOR POWER STEERING CONTROL VALVE)
90363-19003	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
90363-19003	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
90363-19003	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
44211 - HOUSING, CONTROL VALVE
44211-26100	LH103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD..(03S,06S,12S,14S,15S)	07/1998 - 08/1999	1
44211-12090	LH10#,11#,125,RZH102,103,104,11#,125,135,153..RHD	08/1989 - 07/1998	1
44211-26100	LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD	07/1999 - 08/1999	1
44211-26101	LH103,113,115,125..RHD	08/1999 - 08/2000	1
44211-26101	LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH112,184,RZH125,135,153..RHD;LH172,174..RHD..4D..(06S,15S)..STD	08/1999 - 01/2005	1
44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING)
90310-30011	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
90310-30011	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
90310-30011	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN)	07/1999 - 01/2005	1
44253R - SPACER(FOR POWER STEERING RACK HOUSING)
90560-30007	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
90560-30007	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN)	07/1999 - 01/2005	1
90560-30007	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
44275 - STOPPER, CYLINDER END
44275-26020	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
44275-26020	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
44275-26020	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN)	07/1999 - 01/2005	1
44275B - SEAL, OIL(FOR CYLINDER END STOPPER)
90310-30011	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
90310-30011	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN)	07/1999 - 01/2005	1
90310-30011	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
44275F - RING, O(FOR CYLINDER END STOPPER)
90301-41004	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
90301-41004	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
90301-41004	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN)	07/1999 - 01/2005	1
44277 - SEAT, RACK GUIDE
44277-28010	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
44277-28010	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
44277-28010	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-26040	RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH10#,11#,125,RZH102,103,104,114,115,125..RHD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI)	08/1989 - 12/2999	1
44418-26040	LH103,113,115,125..RHD	07/1999 - 08/2000	1
44418-26040	LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172..4D..06S..STD;LH112,174,184,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-26040	RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH10#,11#,125,RZH102,103,104,114,115,125..RHD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI)	08/1989 - 12/2999	1
44418-26040	LH103,113,115,125..RHD	07/1999 - 08/2000	1
44418-26040	LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172..4D..06S..STD;LH112,174,184,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
90410-04002	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
90410-04002	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90410-04002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	2
44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
90410-04002	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
90410-04002	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90410-04002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	2
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-26040	RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH10#,11#,125,RZH102,103,104,114,115,125..RHD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI)	08/1989 - 12/2999	1
44419-26040	LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172..4D..06S..STD;LH112,174,184,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
44419-26040	LH103,113,115,125..RHD	07/1999 - 08/2000	1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-26040	RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH10#,11#,125,RZH102,103,104,114,115,125..RHD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI)	08/1989 - 12/2999	1
44419-26040	LH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172..4D..06S..STD;LH112,174,184,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
44419-26040	LH103,113,115,125..RHD	07/1999 - 08/2000	1
45222 - COVER, STEERING GEAR DUST
45222-27020	LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING)	08/1989 - 11/1994	1
45222-32010	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(POWER STEERING)	07/1999 - 08/2000	1
45222-32010	RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S W(POWER STEERING)	08/1989 - 04/2002	1
45222-32010	LH172..03S..GL;LH172..GL..DEFI;RZH104..LHD..STD;RZH115..GEN..EFI;RZH115..STD..(CIS,GCC);LH172,RZH103,112,113..DX,STD;LH162,RZH114..(03S,06S,12S)..GEN;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,166,176,184,RZH102,105,125,135,15#..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) W(POWER STEERING)	07/1999 - 04/2002	1
45222-27020	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD W(MANUAL STEERING)	07/1999 - 08/2000	1
45222-27020	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) W(MANUAL STEERING)	07/1999 - 01/2005	1
45222-51010	LH172..HRF;RZH112..SRF;LH172..5D..GEN;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..GEN;LH172,174..4D..(06S,15S)..(GCC,GEN);LH112,154,184,RZH125,135,15#..ARL,GEN	10/2003 - 01/2005	1
45503 - END SUB-ASSY, STEERING RACK
45503-29255	LH10#,11#,125,RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1995	2
45503-29265	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN	08/1989 - 08/1993	2
45503 - END SUB-ASSY, STEERING RACK
45503-29255	LH10#,11#,125,RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1995	2
45503-29265	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN	08/1989 - 08/1993	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14005	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) OD=41	07/1999 - 08/2000	2
90214-14005	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S OD=41	08/1989 - 12/2999	2
90214-14005	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN) OD=41	07/1999 - 01/2005	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14005	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) OD=41	07/1999 - 08/2000	2
90214-14005	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S OD=41	08/1989 - 12/2999	2
90214-14005	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN) OD=41	07/1999 - 01/2005	2
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-28010	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45523-28010	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
45523-28010	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-23024	LH172..03S..GL;LH172..GL..DEFI;RZH104..LHD..STD;RZH115..GEN..EFI;RZH115..STD..(CIS,GCC);LH172,RZH103,112,113..DX,STD;LH162,RZH114..(03S,06S,12S)..GEN;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,166,176,184,RZH102,105,125,135,15#..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) W(POWER STEERING)	07/1999 - 10/2001	1
90501-40021	LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING)	08/1989 - 11/1994	1
90501-23024	RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S W(POWER STEERING)	08/1989 - 10/2001	1
90501-23024	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(POWER STEERING)	07/1999 - 08/2000	1
90501-40021	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) W(MANUAL STEERING)	07/1999 - 01/2005	1
90501-29044	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH172,174..4D..(06S,15S)..(GCC,GEN);LH112,154,184,RZH125,135,15#..ARL,GEN;LH114,172,RZH113,114..LHD..4D..STD..GEN W(POWER STEERING)	10/2001 - 01/2005	1
90501-40021	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD W(MANUAL STEERING)	07/1999 - 08/2000	1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-26010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 06/1993	1
45524-16010	RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,112,114,125..03S,06S,09S,12S,14S,15S W(POWER STEERING)	08/1989 - 10/2001	1
45524-16010	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(POWER STEERING)	07/1999 - 08/2000	1
45524-20040	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45524-20040	LH172..5F..STD;LH172..03S..GL;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH115..GEN..EFI;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,184,RZH102,105,112,125,155..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN)	07/1999 - 10/2003	1
45524-16010	LH172..03S..GL;LH172..GL..DEFI;RZH104..LHD..STD;RZH115..GEN..EFI;RZH115..STD..(CIS,GCC);LH172,RZH103,112,113..DX,STD;LH162,RZH114..(03S,06S,12S)..GEN;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,184,RZH102,105,125,155..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) W(POWER STEERING)	07/1999 - 10/2001	1
45524-34010	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD W(MANUAL STEERING)	07/1999 - 08/2000	1
45524-34010	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) W(MANUAL STEERING)	07/1999 - 01/2005	1
45524-20040	LH172..HRF;RZH112..SRF;LH172..5D..GEN;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..ARL,GEN;LH114,172,RZH113,114..LHD..4D..GEN;LH172,174..4D..(06S,15S)..(GCC,GEN)	10/2003 - 01/2005	1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-48002	LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING)	08/1989 - 11/1994	1
90179-36002	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(POWER STEERING)	07/1999 - 08/2000	1
90179-36002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S W(POWER STEERING)	08/1989 - 12/2999	1
90179-48002	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD W(MANUAL STEERING)	07/1999 - 08/2000	1
90179-36002	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN) W(POWER STEERING)	07/1999 - 01/2005	1
90179-48002	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) W(MANUAL STEERING)	07/1999 - 01/2005	1
45535 - BOOT, STEERING RACK, NO.1
45535-26020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1995	1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55011	LH10#,11#,125,RZH10#,11#,125 NO.1:REFER ILLUST.	08/1989 - 11/1994	1
90460-55011	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD NO.1:REFER ILLUST.	07/1999 - 08/2000	1
90460-44003	LH10#,11#,125,RZH10#,11#,125 NO.2:REFER ILLUST.	08/1989 - 11/1994	1
90460-55016	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
90460-44003	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD NO.2:REFER ILLUST.	07/1999 - 08/2000	1
90460-55011	LH10#,11#,125,RZH10#,11#,125	08/1989 - 01/1996	2
90460-55016	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90460-55011	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) NO.1:REFER ILLUST.	07/1999 - 01/2005	1
90460-44003	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) NO.2:REFER ILLUST.	07/1999 - 01/2005	1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55011	LH10#,11#,125,RZH10#,11#,125 NO.1:REFER ILLUST.	08/1989 - 11/1994	1
90460-55011	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD NO.1:REFER ILLUST.	07/1999 - 08/2000	1
90460-44003	LH10#,11#,125,RZH10#,11#,125 NO.2:REFER ILLUST.	08/1989 - 11/1994	1
90460-55016	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
90460-44003	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD NO.2:REFER ILLUST.	07/1999 - 08/2000	1
90460-55011	LH10#,11#,125,RZH10#,11#,125	08/1989 - 01/1996	2
90460-55016	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90460-55011	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) NO.1:REFER ILLUST.	07/1999 - 01/2005	1
90460-44003	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) NO.2:REFER ILLUST.	07/1999 - 01/2005	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-21006	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1995	2
90467-19021	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90467-19021	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-21006	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1995	2
90467-19021	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90467-19021	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
45536 - BOOT, STEERING RACK, NO.2
45536-26010	LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING)	08/1989 - 11/1994	1
45535-26020	RZH113..4FC..GEN;RZH113..LHD..(03S,09S);RZH103,113..SG..(ARL,GCC);LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN W(POWER STEERING)	08/1989 - 08/1995	1
Common parts
90149-30004
91511-B0825

ILLUST NO. 2 OF 4(8908- )

Click highlighted areas on diagram

MANUAL STEERING

Part #	Description	Period	Qty
45222 - COVER, STEERING GEAR DUST
45222-27020	LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING)	08/1989 - 11/1994	1
45222-32010	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(POWER STEERING)	07/1999 - 08/2000	1
45222-32010	RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S W(POWER STEERING)	08/1989 - 04/2002	1
45222-32010	LH172..03S..GL;LH172..GL..DEFI;RZH104..LHD..STD;RZH115..GEN..EFI;RZH115..STD..(CIS,GCC);LH172,RZH103,112,113..DX,STD;LH162,RZH114..(03S,06S,12S)..GEN;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,166,176,184,RZH102,105,125,135,15#..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) W(POWER STEERING)	07/1999 - 04/2002	1
45222-27020	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD W(MANUAL STEERING)	07/1999 - 08/2000	1
45222-27020	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) W(MANUAL STEERING)	07/1999 - 01/2005	1
45222-51010	LH172..HRF;RZH112..SRF;LH172..5D..GEN;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..GEN;LH172,174..4D..(06S,15S)..(GCC,GEN);LH112,154,184,RZH125,135,15#..ARL,GEN	10/2003 - 01/2005	1
45501 - HOUSING SUB-ASSY, STEERING RACK
45501-26010	LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
45501-26010	LH103,113,115,125..RHD	07/1999 - 08/2000	1
45501-26010	LH172..HRF;LH172..RHD..5D;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172,184..5F..ARL;LH172..4D..06S..STD;LH112,174,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
90311-15002	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD	07/1999 - 08/2000	1
90311-15002	LH10#,11#,125,RZH10#,11#,125	08/1989 - 11/1994	1
90311-15002	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN)	07/1999 - 01/2005	1
45503 - END SUB-ASSY, STEERING RACK
45503-29255	LH10#,11#,125,RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1995	2
45503-29265	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN	08/1989 - 08/1993	2
45503 - END SUB-ASSY, STEERING RACK
45503-29255	LH10#,11#,125,RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1995	2
45503-29265	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN	08/1989 - 08/1993	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14005	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) OD=41	07/1999 - 08/2000	2
90214-14005	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S OD=41	08/1989 - 12/2999	2
90214-14005	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN) OD=41	07/1999 - 01/2005	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14005	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) OD=41	07/1999 - 08/2000	2
90214-14005	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S OD=41	08/1989 - 12/2999	2
90214-14005	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN) OD=41	07/1999 - 01/2005	2
45504A - GUIDE SUB-ASSY, RACK
45504-26010	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD	07/1999 - 08/2000	1
45504-26010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 11/1994	1
45504-26010	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN)	07/1999 - 01/2005	1
45509 - PINION SUB-ASSY, STEERING
45509-26010	LH103,113,115,125..RHD	07/1999 - 08/2000	1
45509-26010	LH172..HRF;LH172..RHD..5D;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172,184..5F..ARL;LH172..4D..06S..STD;LH112,174,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
45509-26010	LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
45510 - GEAR ASSY, STEERING
45510-26010	LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD W(FRONT DISC BRAKE)	08/1989 - 11/1994	1
45510-26030	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN	08/1989 - 08/1993	1
45510-26050	LH103,113,115,125..RHD	07/1999 - 08/2000	1
45510-26050	LH172..HRF;LH172..RHD..5D;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172,184..5F..ARL;LH172..4D..06S..STD;LH112,174,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-26020	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45514-26020	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
45514-26020	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN)	07/1999 - 01/2005	1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-26020	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
45515-26020	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	1
45515-26020	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-26010	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45516-26010	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN)	07/1999 - 01/2005	1
45516-26010	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-26020	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(POWER STEERING)	07/1999 - 08/2000	1
45517-26030	LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING)	08/1989 - 11/1994	1
45517-26030	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD W(MANUAL STEERING)	07/1999 - 08/2000	1
45517-26020	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S W(POWER STEERING)	08/1989 - 12/2999	1
45517-26030	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) W(MANUAL STEERING)	07/1999 - 01/2005	1
45517-26020	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..4D..(ARL,GEN);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN) W(POWER STEERING)	07/1999 - 01/2005	1
45521 - RACK, STEERING
45521-26010	LH103,113,115,125..RHD	07/1999 - 08/2000	1
45521-26010	LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
45521-26010	LH172..HRF;LH172..RHD..5D;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH172,184..5F..ARL;LH172..4D..06S..STD;LH112,174,RZH125..RHD..(03S,06S,14S,15S)	07/1999 - 01/2005	1
45522 - BUSH, STEERING RACK
45522-26010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 11/1994	1
45522-26010	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN)	07/1999 - 01/2005	1
45522-26010	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD	07/1999 - 08/2000	1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-23024	LH172..03S..GL;LH172..GL..DEFI;RZH104..LHD..STD;RZH115..GEN..EFI;RZH115..STD..(CIS,GCC);LH172,RZH103,112,113..DX,STD;LH162,RZH114..(03S,06S,12S)..GEN;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,166,176,184,RZH102,105,125,135,15#..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) W(POWER STEERING)	07/1999 - 10/2001	1
90501-40021	LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING)	08/1989 - 11/1994	1
90501-23024	RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S W(POWER STEERING)	08/1989 - 10/2001	1
90501-23024	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(POWER STEERING)	07/1999 - 08/2000	1
90501-40021	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) W(MANUAL STEERING)	07/1999 - 01/2005	1
90501-29044	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH172,174..4D..(06S,15S)..(GCC,GEN);LH112,154,184,RZH125,135,15#..ARL,GEN;LH114,172,RZH113,114..LHD..4D..STD..GEN W(POWER STEERING)	10/2001 - 01/2005	1
90501-40021	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD W(MANUAL STEERING)	07/1999 - 08/2000	1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-26010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 06/1993	1
45524-16010	RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,112,114,125..03S,06S,09S,12S,14S,15S W(POWER STEERING)	08/1989 - 10/2001	1
45524-16010	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(POWER STEERING)	07/1999 - 08/2000	1
45524-20040	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	1
45524-20040	LH172..5F..STD;LH172..03S..GL;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH115..GEN..EFI;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,184,RZH102,105,112,125,155..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN)	07/1999 - 10/2003	1
45524-16010	LH172..03S..GL;LH172..GL..DEFI;RZH104..LHD..STD;RZH115..GEN..EFI;RZH115..STD..(CIS,GCC);LH172,RZH103,112,113..DX,STD;LH162,RZH114..(03S,06S,12S)..GEN;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,184,RZH102,105,125,155..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) W(POWER STEERING)	07/1999 - 10/2001	1
45524-34010	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD W(MANUAL STEERING)	07/1999 - 08/2000	1
45524-34010	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) W(MANUAL STEERING)	07/1999 - 01/2005	1
45524-20040	LH172..HRF;RZH112..SRF;LH172..5D..GEN;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH112,154,184,RZH125,155..ARL,GEN;LH114,172,RZH113,114..LHD..4D..GEN;LH172,174..4D..(06S,15S)..(GCC,GEN)	10/2003 - 01/2005	1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-48002	LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING)	08/1989 - 11/1994	1
90179-36002	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(POWER STEERING)	07/1999 - 08/2000	1
90179-36002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S W(POWER STEERING)	08/1989 - 12/2999	1
90179-48002	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD W(MANUAL STEERING)	07/1999 - 08/2000	1
90179-36002	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN) W(POWER STEERING)	07/1999 - 01/2005	1
90179-48002	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) W(MANUAL STEERING)	07/1999 - 01/2005	1
45535 - BOOT, STEERING RACK, NO.1
45535-26020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1995	1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55011	LH10#,11#,125,RZH10#,11#,125 NO.1:REFER ILLUST.	08/1989 - 11/1994	1
90460-55011	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD NO.1:REFER ILLUST.	07/1999 - 08/2000	1
90460-44003	LH10#,11#,125,RZH10#,11#,125 NO.2:REFER ILLUST.	08/1989 - 11/1994	1
90460-55016	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
90460-44003	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD NO.2:REFER ILLUST.	07/1999 - 08/2000	1
90460-55011	LH10#,11#,125,RZH10#,11#,125	08/1989 - 01/1996	2
90460-55016	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90460-55011	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) NO.1:REFER ILLUST.	07/1999 - 01/2005	1
90460-44003	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) NO.2:REFER ILLUST.	07/1999 - 01/2005	1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55011	LH10#,11#,125,RZH10#,11#,125 NO.1:REFER ILLUST.	08/1989 - 11/1994	1
90460-55011	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD NO.1:REFER ILLUST.	07/1999 - 08/2000	1
90460-44003	LH10#,11#,125,RZH10#,11#,125 NO.2:REFER ILLUST.	08/1989 - 11/1994	1
90460-55016	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
90460-44003	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD NO.2:REFER ILLUST.	07/1999 - 08/2000	1
90460-55011	LH10#,11#,125,RZH10#,11#,125	08/1989 - 01/1996	2
90460-55016	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90460-55011	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) NO.1:REFER ILLUST.	07/1999 - 01/2005	1
90460-44003	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN) NO.2:REFER ILLUST.	07/1999 - 01/2005	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-21006	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1995	2
90467-19021	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90467-19021	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-21006	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1995	2
90467-19021	LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN)	07/1999 - 01/2005	2
90467-19021	RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)	07/1999 - 08/2000	2
45536 - BOOT, STEERING RACK, NO.2
45536-26010	LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING)	08/1989 - 11/1994	1
45535-26020	RZH113..4FC..GEN;RZH113..LHD..(03S,09S);RZH103,113..SG..(ARL,GCC);LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN W(POWER STEERING)	08/1989 - 08/1995	1
45543A - PROTECTOR, STEERING RACK BOOT, RH
45543-26010	LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD	08/1989 - 08/1994	1
45544A - PROTECTOR, STEERING RACK BOOT, LH
45544-26010	LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD	08/1989 - 08/1994	1
45545 - SCREW, PINION BEARING ADJUSTING
45545-26010	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD	07/1999 - 08/2000	1
45545-27010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 01/1994	1
45545-26010	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN)	07/1999 - 01/2005	1
45545A - NUT(FOR PINION BEARING ADJUSTING SCREW)
90179-38001	LH10#,11#,125,RZH10#,11#,125	08/1989 - 11/1994	1
90179-38001	LH172..HRF;RZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;RZH113..RHD..GEN;LH172..4D..06S..STD;LH172,184,RZH113,115..5F..(ARL,GCC);LH172,RZH115..(06S,15S)..GL..(DEFI,EFI);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH112,174,RZH125..4D..(03S,06S,14S,15S)..(ARL,GCC,GEN)	07/1999 - 01/2005	1
90179-38001	LH102,105,112,RZH103..LHD..SG;LH103,113,115,125,RZH102..STD	07/1999 - 08/2000	1
Common parts
90119-12107
90149-30004
90301-39007
91651-40820
91661-40822

RZH113R-RBMRE (1996)

ILLUST NO. 4 OF 4(8908- )

ILLUST NO. 2 OF 4(8908- )LH10#,11#,125,154,162,164,172,174,184,RZH10#,11#,125,15#

ILLUST NO. 1 OF 4(9907- )

ILLUST NO. 3 OF 4(8908- )LH10#,11#,125,154,162,164,172,174,184,RZH10#,11#,125,15#

ILLUST NO. 2 OF 4(8908- )

Part Price Details
