RZH113R-RBMRE (1996)
Toyota Hiace Van,Commuter

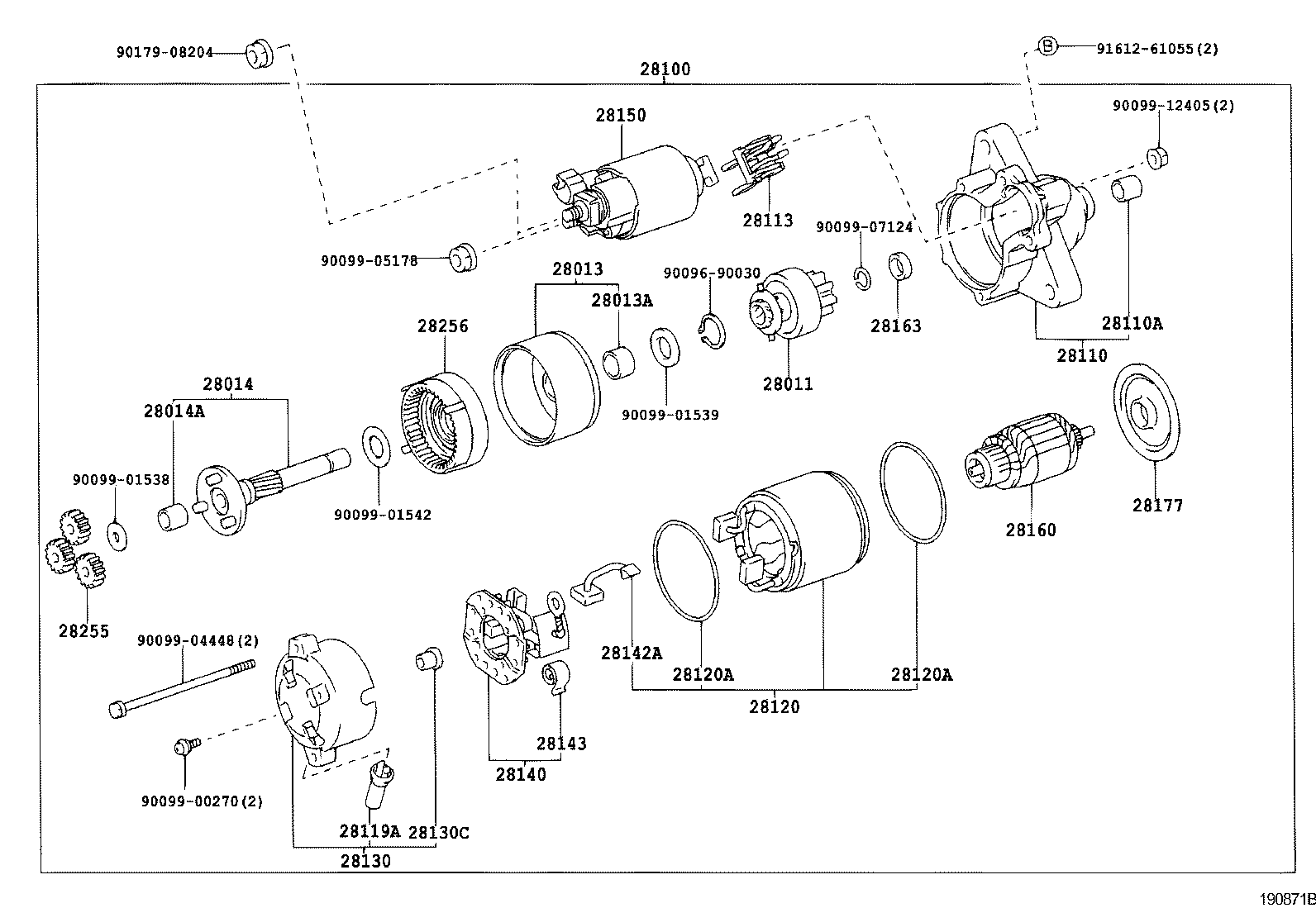

(9808- )1RZ,2RZ#
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN 12V 1.0KW |
1 | ||
| 28011-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28013-70020 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125,135,153..03S,06S,12S,14S |
1 | ||
| 28013-70020 |
1RZ,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN |
1 | ||
| 28013-70030 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 90099-10181 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28014-70020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
1 | ||
| 28014-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 90099-10180 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75010 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28100-75150 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-75010 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28110-75150 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10171 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 90099-10171 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 28113-70020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-46080 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN 12V 1.0KW |
1 | ||
| 28120-70050 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
2 | ||
| 90099-14092 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
2 | ||
| 90099-14092 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15020 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28130-15020 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28130-13080 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
1 | ||
| 90099-10183 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN 12V 1.0KW |
1 | ||
| 28140-26070 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28140-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-70020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
2 | ||
| 28142-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
4 | ||
| 90099-17112 |
1RZ,2RZ..RZH10#,11#,125 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-41060 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28150-75070 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28150-75150 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28160-70050 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28160-26071 |
2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-70020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
1 | ||
| 28163-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 28177-70020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-70020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
3 | ||
| 28255-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
3 | ||
| 28256 - GEAR, STARTER INTERNAL | ||||
| 28256-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 28256-70020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90096-90030 | ||||
| 90099-00270 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04448 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90179-08204 | ||||
| 91612-61055 | ||||

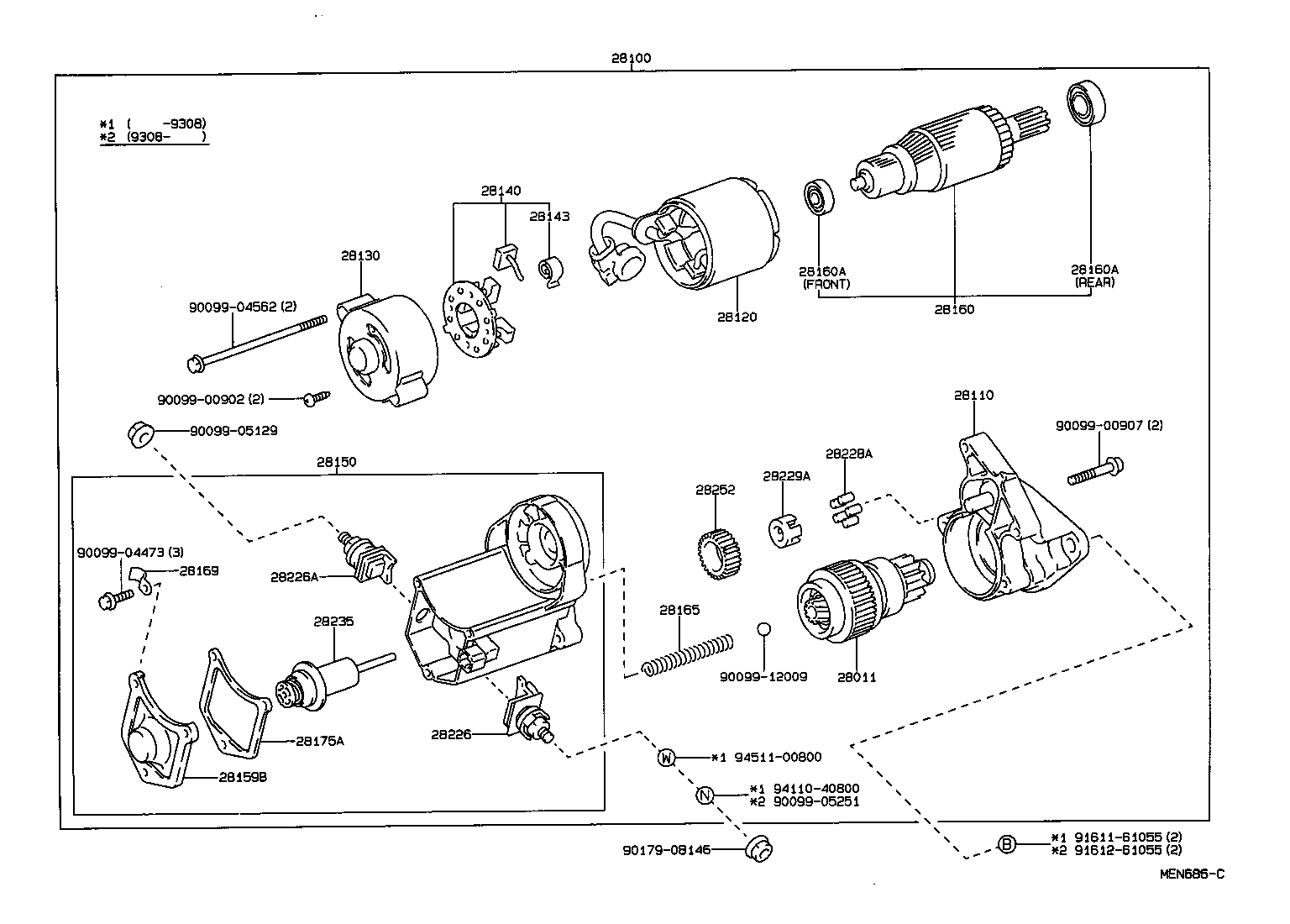

(8908-9808)1RZ#,2RZ#
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN 12V 1.0KW |
1 | ||
| 28011-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75010 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28100-75150 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-75010 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28110-75150 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN 12V 1.0KW |
1 | ||
| 28120-70050 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15020 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28130-15020 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28130-13080 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN 12V 1.0KW |
1 | ||
| 28140-26070 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28140-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-70020 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
4 | ||
| 90099-17112 |
1RZ,2RZ..RZH10#,11#,125 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-41060 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28150-75070 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28150-75150 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28160-70050 |
2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S 12V 1.0KW |
1 | ||
| 28160-26071 |
2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
2RZE..RZH103,113,135,153..RHD REAR |
1 | ||
| 28253-45020 |
2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN 12V 1.0KW,FRONT |
1 | ||
| 28253-45020 |
2RZE..RZH103,113,135,153..RHD FRONT |
1 | ||
| 90099-10113 |
2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN 12V 1.0KW,REAR |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
2RZE..RZH103,113,135,153..RHD REAR |
1 | ||
| 28253-45020 |
2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN 12V 1.0KW,FRONT |
1 | ||
| 28253-45020 |
2RZE..RZH103,113,135,153..RHD FRONT |
1 | ||
| 90099-10113 |
2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN 12V 1.0KW,REAR |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1RZ,2RZ..RZH103,113,114;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,112,125..4F,5F |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
1RZ..RZH112..4D..4F;1RZ..RZH112..5D..06S;1RZ..RZH102..06S..5F;2RZ..RZH103,113,125..4D;1RZ..RZH112..5D..03S..4F;1RZ..RZH102,104,114..4F,4FC;1RZ..RZH104,114..LHD..SRF..5F |
1 | ||
| 28226-70040 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
1RZ,2RZ..RZH103,113,114;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,112,125..4F,5F |
5 | ||
| 28228-26040 |
3L..LH125..HRF..GEN;2RZE..RZH103,113,135,153..RHD |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1RZ,2RZ..RZH103,113,114;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,112,125..4F,5F |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 28254-45020 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 91612-61055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
