RZH113R-RBMRE (1996)
Toyota Hiace Van,Commuter
(9808- )1RZ,2RZ ; (9808- )2RZE..RZH103,113,125..ARL ; (0108- )2L..LH112..R
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

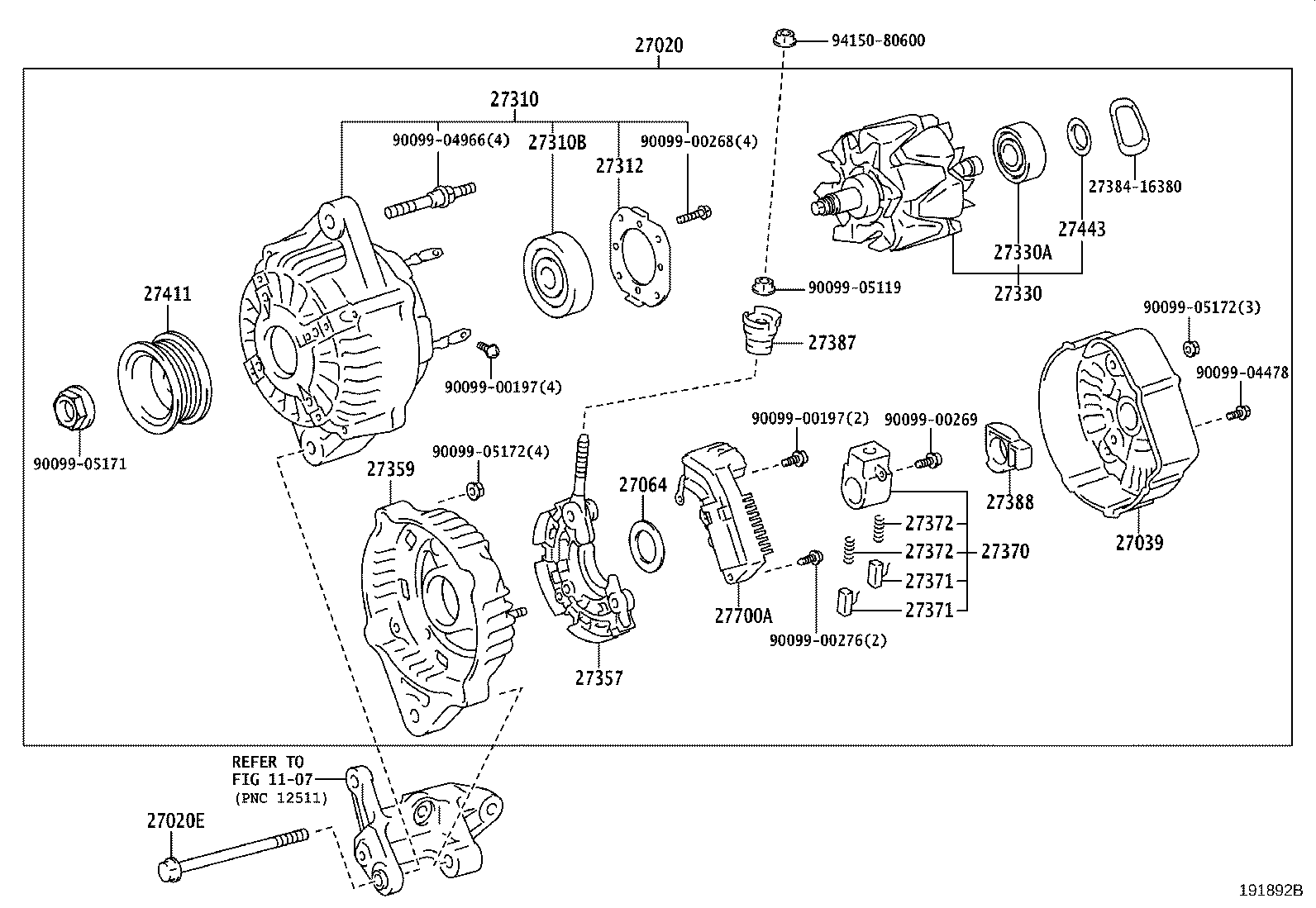

| 27020 - ALTERNATOR ASSY | ||||
| 27060-72140 |
2RZ..RZH103..5F..GL;2RZ..RZH103,113..STD 12V 50A |
1 | ||
| 27060-72140 |
2RZ..RZH103..5F..GL;2RZ..RZH103,113..STD 12V 50A |
1 | ||
| 27060-75150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27060-75150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27060-75150 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115..03S,06S,12S,15S 12V 70A |
1 | ||
| 27060-75150 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115..03S,06S,12S,15S 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
1RZ,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN) |
1 | ||
| 90105-10221 |
1RZ,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN) |
1 | ||
| 90105-10282 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 |
1 | ||
| 90105-10282 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 |
1 | ||
| 90105-10221 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 90105-10221 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27039-72010 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27039-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27039-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27039-55080 |
3L..LH125..HRF..GEN;2RZE..RZH103,113,135,153..RHD |
1 | ||
| 27039-55080 |
3L..LH125..HRF..GEN;2RZE..RZH103,113,135,153..RHD |
1 | ||
| 27039-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27039-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27039-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27039-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27039-55080 |
3L..LH115..RHD;3L..LH113,115..CIS;3L..LH103..5D..03S;3L..LH103,113,125..4FC;5L,2RZE..LH172,184,RZH103,113,135,153..GEN;2L,3L,5L,2RZE..LH105,112,114,166,174,176,RZH105,115..LHD 12V 80A |
1 | ||
| 27039-55080 |
3L..LH115..RHD;3L..LH113,115..CIS;3L..LH103..5D..03S;3L..LH103,113,125..4FC;5L,2RZE..LH172,184,RZH103,113,135,153..GEN;2L,3L,5L,2RZE..LH105,112,114,166,174,176,RZH105,115..LHD 12V 80A |
1 | ||
| 27039-55080 |
2RZE..RZH103,135..RHD..SG;2RZE..RZH105,115..STD..CIS;2RZE..RZH113,153..4D..(GL,STD)..GEN 12V 80A |
1 | ||
| 27039-55080 |
2RZE..RZH103,135..RHD..SG;2RZE..RZH105,115..STD..CIS;2RZE..RZH113,153..4D..(GL,STD)..GEN 12V 80A |
1 | ||
| 27039-67100 |
1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S) |
1 | ||
| 27039-67100 |
1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S) |
1 | ||
| 27039-70470 |
2RZE..RZH115;5L..LH174..12S;5L..LH172..5D..06S;5L..LH162..4FC..GEN;2L,5LE,2RZE..LH114,172,RZH103,105,113,135,15#..(03S,06S,08S,10S,11S,12S)..(CIS,GCC,GEN) |
1 | ||
| 27039-70470 |
2RZE..RZH115;5L..LH174..12S;5L..LH172..5D..06S;5L..LH162..4FC..GEN;2L,5LE,2RZE..LH114,172,RZH103,105,113,135,15#..(03S,06S,08S,10S,11S,12S)..(CIS,GCC,GEN) |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 27064-42010 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 27064-42010 |
3L..LH115..RHD;3L..LH113,115..CIS;3L..LH103..5D..03S;3L..LH103,113,125..4FC;5L,2RZE..LH172,184,RZH103,113,135,153..GEN;2L,3L,5L,2RZE..LH105,112,114,166,174,176,RZH105,115..LHD |
1 | ||
| 27064-42010 |
3L..LH115..RHD;3L..LH113,115..CIS;3L..LH103..5D..03S;3L..LH103,113,125..4FC;5L,2RZE..LH172,184,RZH103,113,135,153..GEN;2L,3L,5L,2RZE..LH105,112,114,166,174,176,RZH105,115..LHD |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72170 |
2RZ..RZH103..5F..GL;2RZ..RZH103,113..STD |
1 | ||
| 27310-72170 |
2RZ..RZH103..5F..GL;2RZ..RZH103,113..STD |
1 | ||
| 27310-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27310-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27310-75160 |
1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S) |
1 | ||
| 27310-75160 |
1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S) |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10170 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10170 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10199 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10199 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10159 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115..03S,06S,12S,15S |
1 | ||
| 90099-10159 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115..03S,06S,12S,15S |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27312-72100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27312-72100 |
1RZ..RZH112..5D;1RZ..RZH112,114..03S,15S;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 |
1 | ||
| 27312-72100 |
1RZ..RZH112..5D;1RZ..RZH112,114..03S,15S;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330-64570 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-64570 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-67100 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 12V 70A |
1 | ||
| 27330-67100 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 12V 70A |
1 | ||
| 27330-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27330-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27330-76030 |
2RZE..RZH103,105,113,115,135,153..CIS,GEN |
1 | ||
| 27330-76030 |
2RZE..RZH103,105,113,115,135,153..CIS,GEN |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2RZE..RZH113..5D;2RZE..RZH113,115..4D..GCC;2L,3L,5L#,2RZE..LH10#,11#,125,154,16#,17#,184,RZH155 |
1 | ||
| 90099-10140 |
2RZE..RZH113..5D;2RZE..RZH113,115..4D..GCC;2L,3L,5L#,2RZE..LH10#,11#,125,154,16#,17#,184,RZH155 |
1 | ||
| 90099-10140 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10154 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10154 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10216 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10216 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10216 |
1RZ..RZH112..5D;1RZ..RZH112,114..03S,15S;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 |
1 | ||
| 90099-10216 |
1RZ..RZH112..5D;1RZ..RZH112,114..03S,15S;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 |
1 | ||
| 90099-10140 |
2RZE..RZH113..4D..GEN;2RZE..RZH103,105,115,135,153..CIS,GEN |
1 | ||
| 90099-10140 |
2RZE..RZH113..4D..GEN;2RZE..RZH103,105,115,135,153..CIS,GEN |
1 | ||
| 90099-10140 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;5L,2RZE..LH172,184,RZH103,113,135,153..GEN;2L,5L,2RZE..LH112,114,166,174,176,RZH105,115..LHD |
1 | ||
| 90099-10140 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;5L,2RZE..LH172,184,RZH103,113,135,153..GEN;2L,5L,2RZE..LH112,114,166,174,176,RZH105,115..LHD |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27357-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27357-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27357-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27357-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27357-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27357-55080 |
3L..LH115..RHD;3L..LH113,115..CIS;3L..LH103..5D..03S;3L..LH103,113,125..4FC;5L,2RZE..LH172,184,RZH103,113,135,153..GEN;2L,3L,5L,2RZE..LH105,112,114,166,174,176,RZH105,115..LHD 12V 80A |
1 | ||
| 27357-55080 |
3L..LH115..RHD;3L..LH113,115..CIS;3L..LH103..5D..03S;3L..LH103,113,125..4FC;5L,2RZE..LH172,184,RZH103,113,135,153..GEN;2L,3L,5L,2RZE..LH105,112,114,166,174,176,RZH105,115..LHD 12V 80A |
1 | ||
| 27357-67100 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115..03S,06S,12S,15S |
1 | ||
| 27357-67100 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115..03S,06S,12S,15S |
1 | ||
| 27357-55080 |
5L..LH172..4D;5L..LH172..5D..03S;2RZE..RZH113..4D..STD..GEN;5L,2RZE..LH162,RZH135,153..5F;3L,5L..LH103,113,125,162..4FC..ARL;3L,2RZE..LH115,RZH105,115..STD..CIS;5L,2RZE..LH174,184,RZH103..06S,10S,14S,15S;2L,3L,5L..LH105,112,113,154,164,166,176..LHD..(CIS,GEN) 12V 80A |
1 | ||
| 27357-55080 |
5L..LH172..4D;5L..LH172..5D..03S;2RZE..RZH113..4D..STD..GEN;5L,2RZE..LH162,RZH135,153..5F;3L,5L..LH103,113,125,162..4FC..ARL;3L,2RZE..LH115,RZH105,115..STD..CIS;5L,2RZE..LH174,184,RZH103..06S,10S,14S,15S;2L,3L,5L..LH105,112,113,154,164,166,176..LHD..(CIS,GEN) 12V 80A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27359-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27359-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27359-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27359-16182 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27359-16182 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27359-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27359-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27359-75160 |
1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S) |
1 | ||
| 27359-75160 |
1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27370-63021 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27370-75060 |
5L..LH172..4D;5L..LH172..5D..03S;5L,2RZE..LH162,RZH135,153..5F;2RZE..RZH113..RHD..4D..STD..GEN;3L,5L..LH103,113,125,162..4FC..ARL;3L,2RZE..LH115,RZH105,115..STD..CIS;5L,2RZE..LH174,184,RZH103..06S,10S,14S,15S;2L,3L,5L..LH105,112,113,154,164,166,176..LHD..(CIS,GEN) 12V 80A |
1 | ||
| 27370-75060 |
5L..LH172..4D;5L..LH172..5D..03S;5L,2RZE..LH162,RZH135,153..5F;2RZE..RZH113..RHD..4D..STD..GEN;3L,5L..LH103,113,125,162..4FC..ARL;3L,2RZE..LH115,RZH105,115..STD..CIS;5L,2RZE..LH174,184,RZH103..06S,10S,14S,15S;2L,3L,5L..LH105,112,113,154,164,166,176..LHD..(CIS,GEN) 12V 80A |
1 | ||
| 27370-35060 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 12V 70A |
1 | ||
| 27370-35060 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 12V 70A |
1 | ||
| 27370-75060 |
3L..LH125..HRF..GEN;2RZE..RZH103,113,135,153..RHD |
1 | ||
| 27370-75060 |
3L..LH125..HRF..GEN;2RZE..RZH103,113,135,153..RHD |
1 | ||
| 27370-75060 |
3L..LH113,115..CIS;3L..LH103,113,125..4FC;5L,2RZE..LH172,184,RZH103,113,135,153..RHD..GEN;2L,3L,5L,2RZE..LH105,112,114,166,174,176,RZH105,115..LHD 12V 80A |
1 | ||
| 27370-75060 |
3L..LH113,115..CIS;3L..LH103,113,125..4FC;5L,2RZE..LH172,184,RZH103,113,135,153..RHD..GEN;2L,3L,5L,2RZE..LH105,112,114,166,174,176,RZH105,115..LHD 12V 80A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
1RZ..RZH112,114..03S,15S;2RZE..RZH103,113,125..ARL;2L,1RZ,2RZ..LH102,112,RZH105,112,115..LHD..SG;3L,1RZ,2RZ..LH103,113,115,125,RZH102,104,113..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
1RZ..RZH112,114..03S,15S;2RZE..RZH103,113,125..ARL;2L,1RZ,2RZ..LH102,112,RZH105,112,115..LHD..SG;3L,1RZ,2RZ..LH103,113,115,125,RZH102,104,113..5F..(ARL,GCC,GEN) |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
1RZ..RZH112,114..03S,15S;2RZE..RZH103,113,125..ARL;2L,1RZ,2RZ..LH102,112,RZH105,112,115..LHD..SG;3L,1RZ,2RZ..LH103,113,115,125,RZH102,104,113..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
1RZ..RZH112,114..03S,15S;2RZE..RZH103,113,125..ARL;2L,1RZ,2RZ..LH102,112,RZH105,112,115..LHD..SG;3L,1RZ,2RZ..LH103,113,115,125,RZH102,104,113..5F..(ARL,GCC,GEN) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 ALTERNATOR 12V 70A |
4 | ||
| 27372-87501 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 ALTERNATOR 12V 70A |
4 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 ALTERNATOR 12V 70A |
4 | ||
| 27372-87501 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 ALTERNATOR 12V 70A |
4 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27387-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27387-70170 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27387-70170 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27387-42020 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 27387-42020 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 27387-70170 |
1RZ..RZH104..STD;1RZ..RZH114..LHD..GEN;1RZ,2RZ..RZH102,103,105,112,113,115,125 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH104..STD;1RZ..RZH114..LHD..GEN;1RZ,2RZ..RZH102,103,105,112,113,115,125 12V 70A |
1 | ||
| 27387-70171 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) 12V 70A |
1 | ||
| 27387-70171 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) 12V 70A |
1 | ||
| 27387-70171 |
3L..LH113,125..STD;2L,3L,1RZ,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27387-70171 |
3L..LH113,125..STD;2L,3L,1RZ,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27387-70171 |
1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S) |
1 | ||
| 27387-70171 |
1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S) |
1 | ||
| 27387-42021 |
2RZE..RZH113..4D..STD..GEN;2RZE..RZH103,135,153..(03S,12S)..GEN 12V 70A |
1 | ||
| 27387-42021 |
2RZE..RZH113..4D..STD..GEN;2RZE..RZH103,135,153..(03S,12S)..GEN 12V 70A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
3L..LH115..RHD;3L..LH113,115..CIS;3L..LH103..5D..03S;3L..LH103,113,125..4FC;5L,2RZE..LH172,184,RZH103,113,135,153..GEN;2L,3L,5L,2RZE..LH105,112,114,166,174,176,RZH105,115..LHD |
1 | ||
| 27388-42010 |
3L..LH115..RHD;3L..LH113,115..CIS;3L..LH103..5D..03S;3L..LH103,113,125..4FC;5L,2RZE..LH172,184,RZH103,113,135,153..GEN;2L,3L,5L,2RZE..LH105,112,114,166,174,176,RZH105,115..LHD |
1 | ||
| 27388-42010 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 27388-42010 |
2RZE..RZH103,113,135,153..RHD |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27411-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27411-16150 |
1RZ..RZH112..5D;1RZ..RZH112,114..03S,15S;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 |
1 | ||
| 27411-16150 |
1RZ..RZH112..5D;1RZ..RZH112,114..03S,15S;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115 |
1 | ||
| 27411-16150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27411-16150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27443-63020 |
2RZE..RZH113..4D..GEN;2RZE..RZH103,105,115,135,153..CIS,GEN |
1 | ||
| 27443-63020 |
2RZE..RZH113..4D..GEN;2RZE..RZH103,105,115,135,153..CIS,GEN |
1 | ||
| 27443-63020 |
2RZE..RZH113..5D;1RZ,2RZE..RZH112,155..LHD..SG;2RZE..RZH113,115..4D..(ARL,GCC);1RZ,2RZE..RZH103,112,114,125..4D..(03S,14S,15S);2L,3L,5L#,1RZ,2RZ..LH10#,11#,125,154,16#,17#,184,RZH102,104,105,113,115 |
1 | ||
| 27443-63020 |
2RZE..RZH113..5D;1RZ,2RZE..RZH112,155..LHD..SG;2RZE..RZH113,115..4D..(ARL,GCC);1RZ,2RZE..RZH103,112,114,125..4D..(03S,14S,15S);2L,3L,5L#,1RZ,2RZ..LH10#,11#,125,154,16#,17#,184,RZH102,104,105,113,115 |
1 | ||
| 27443-63020 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;2L,5L,2RZ#..LH112,114,166,174,176,RZH103,105,113,115..LHD;5L,1RZ,2RZE..LH172,184,RZH102,103,104,112,113,114,125,135,153 |
1 | ||
| 27443-63020 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;2L,5L,2RZ#..LH112,114,166,174,176,RZH103,105,113,115..LHD;5L,1RZ,2RZE..LH172,184,RZH102,103,104,112,113,114,125,135,153 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27700-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27700-75020 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27700-75020 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27700-75020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,114,115 |
1 | ||
| 27700-75020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,114,115 |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
