RZH113L-SBMRSV (1993)
Toyota Hiace Van,Commuter
ILLUST NO. 4 OF 9(9308-9608)LHD

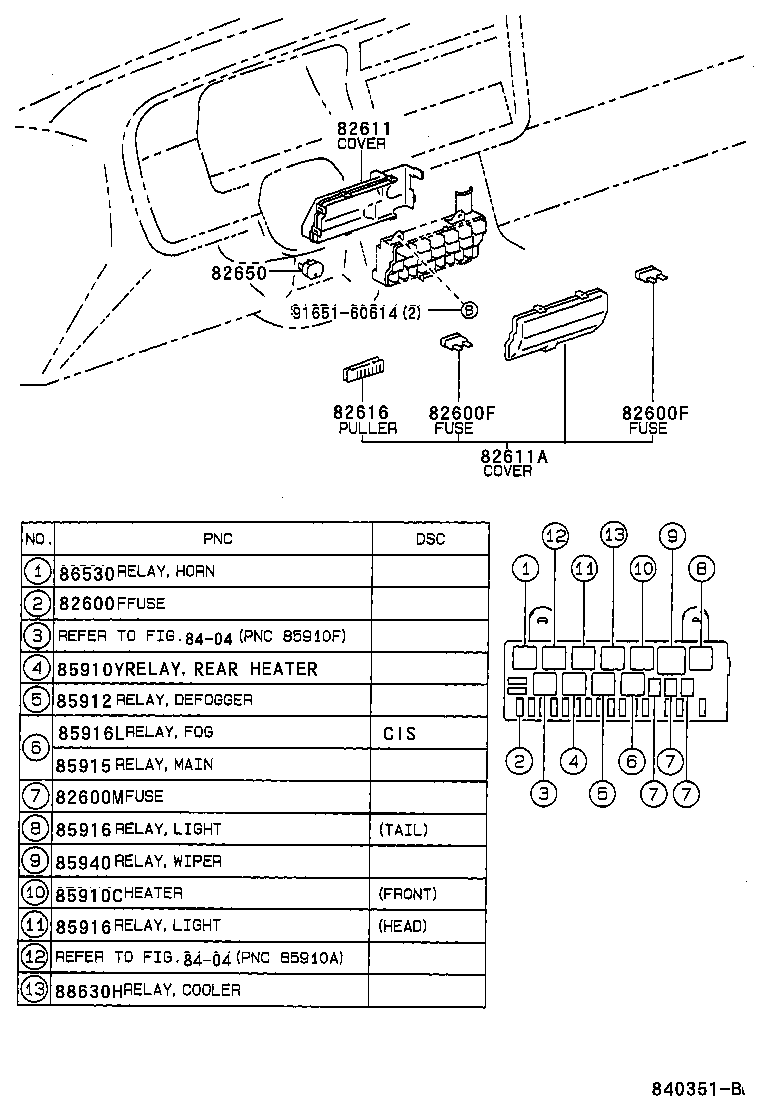

INSTRUMENT PANEL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,125,RZH10#,11#,125 15A |
1 | ||
| 90982-09011 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,125,RZH10#,11#,125 15A |
1 | ||
| 90982-09011 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,125,RZH10#,11#,125 15A |
1 | ||
| 90982-09011 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
LH10#,11#,125,RZH10#,11#,125 30A,PINK |
1 | ||
| 90982-10001 |
LH102,104,105,11#,166,174,176,RZH10#,11#..LHD 30A,PINK |
1 | ||
| 90982-10002 |
LH102,104,105,11#,166,174,176,RZH10#,11#..LHD 40A,GREEN |
1 | ||
| 90982-10001 |
LH102,104,11#,RZH10#,11#..LHD 30A,PINK |
3 | ||
| 90982-10002 |
LH102,104,11#,RZH10#,11#..LHD 40A,GREEN |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-26094 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD |
1 | ||
| 82611-26094 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 82611-26093 |
RZH104..LHD..STD;RZH114..LHD..GEN;LH102,104,11#,RZH102,103,105,112,113,115..LHD |
1 | ||
| 82611-26095 |
RZH105,155..CIS;RZH114,115..12S;RZH115..CIS,GCC;RZH104,114..LHD..STD;LH10#,11#,154,164,166,17#,RZH102,112,113..LHD |
1 | ||
| 82611-26140 |
LH102,104,105,11#,RZH10#,11#..LHD |
1 | ||
| 82611A - COVER, FUSE BLOCK, NO.2 | ||||
| 82611-26091 |
LH102,104,105,11#,RZH104,105,11#..LHD |
1 | ||
| 82611-26092 |
LH102,104,11#,RZH10#,11#..LHD |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 82616-20010 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 82616-20010 |
RZH112,115..LHD..(06S,12S);RZH112,115..(03S,10S,15S)..(SGL,STD);LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,125,135,15# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH10#,11#,125,RZH10#,11#,125 30A |
1 | ||
| 82650-35010 |
LH10#,11#,125,RZH10#,11#,125 20A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 90987-04002 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 90987-04002 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 90987-04002 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90987-04002 |
RZH114..LHD;LH10#,11#,125,RZH10#,112,113,115,125,135,153 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
RZH114..LHD;LH10#,11#,125,RZH10#,112,113,115,125,135,153 |
1 | ||
| 90987-02009 |
LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF |
1 | ||
| 90987-02004 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 90987-02012 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 90987-02024 |
RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90987-02012 |
RZH112..LHD;RZH112..RHD..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 85915-26010 |
LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF |
1 | ||
| 90987-02009 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-26010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 90987-02009 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S HEAD LAMP |
1 | ||
| 90987-01003 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02009 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02012 |
LH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD TAIL LAMP |
1 | ||
| 85915-26010 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02012 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S HEAD LAMP |
1 | ||
| 90987-01003 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02009 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02012 |
LH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD TAIL LAMP |
1 | ||
| 85915-26010 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02012 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD TAIL LAMP |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95J00 |
LH112..(DX,STD)..GEN;LH10#,113,114,115,125,RZH10#,11#,125..ARL,GCC,GEN |
1 | ||
| 85940-95J00 |
LH10#,114,115,RZH10#,11#,125;LH112,113,125..(03S,06S,14S)..STD |
1 | ||
| 85940-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..(DX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02009 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 86530-20070 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 90987-01003 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 85915-26010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
LH10#,11#,RZH10#,11#..CIS,GCC,GEN |
1 | ||
| 90987-04002 |
LH125,RZH125;LH10#,11#,RZH10#,11#..CIS,GCC,GEN |
1 | ||
| 90987-04004 |
RZH105,115..STD..CIS;RZH113..4D..STD..GEN..EFI;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,114,115..(CIS,GCC,GEN)..CBR;LH113,RZH103..(DX,STD)..(CIS,GCC,GEN)..(DSL,EFI);LH10#,112,114,115,166,176,RZH104,112..SRF..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| Common parts | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 4 OF 9(9608- )LHD
INSTRUMENT PANEL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,125,RZH10#,11#,125 15A |
1 | ||
| 90982-09011 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,125,RZH10#,11#,125 15A |
1 | ||
| 90982-09011 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,125,RZH10#,11#,125 15A |
1 | ||
| 90982-09011 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,125,RZH10#,11#,125 15A |
1 | ||
| 90982-09011 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
LH10#,11#,125,RZH10#,11#,125 30A,PINK |
1 | ||
| 90982-10001 |
LH102,104,105,11#,166,174,176,RZH10#,11#..LHD 30A,PINK |
1 | ||
| 90982-10002 |
LH102,104,105,11#,166,174,176,RZH10#,11#..LHD 40A,GREEN |
1 | ||
| 90982-10001 |
LH102,104,11#,RZH10#,11#..LHD 30A,PINK |
3 | ||
| 90982-10002 |
LH102,104,11#,RZH10#,11#..LHD 40A,GREEN |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-26094 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD |
1 | ||
| 82611-26094 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 82611-26093 |
RZH104..LHD..STD;RZH114..LHD..GEN;LH102,104,11#,RZH102,103,105,112,113,115..LHD |
1 | ||
| 82611-26095 |
RZH105,155..CIS;RZH114,115..12S;RZH115..CIS,GCC;RZH104,114..LHD..STD;LH10#,11#,154,164,166,17#,RZH102,112,113..LHD |
1 | ||
| 82611-26140 |
LH102,104,105,11#,RZH10#,11#..LHD |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-26094 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD |
1 | ||
| 82611-26094 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 82611-26093 |
RZH104..LHD..STD;RZH114..LHD..GEN;LH102,104,11#,RZH102,103,105,112,113,115..LHD |
1 | ||
| 82611-26095 |
RZH105,155..CIS;RZH114,115..12S;RZH115..CIS,GCC;RZH104,114..LHD..STD;LH10#,11#,154,164,166,17#,RZH102,112,113..LHD |
1 | ||
| 82611-26140 |
LH102,104,105,11#,RZH10#,11#..LHD |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-26094 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD |
1 | ||
| 82611-26094 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 82611-26093 |
RZH104..LHD..STD;RZH114..LHD..GEN;LH102,104,11#,RZH102,103,105,112,113,115..LHD |
1 | ||
| 82611-26095 |
RZH105,155..CIS;RZH114,115..12S;RZH115..CIS,GCC;RZH104,114..LHD..STD;LH10#,11#,154,164,166,17#,RZH102,112,113..LHD |
1 | ||
| 82611-26140 |
LH102,104,105,11#,RZH10#,11#..LHD |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 82616-20010 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 82616-20010 |
RZH112,115..LHD..(06S,12S);RZH112,115..(03S,10S,15S)..(SGL,STD);LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,125,135,15# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 82616-20010 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 82616-20010 |
RZH112,115..LHD..(06S,12S);RZH112,115..(03S,10S,15S)..(SGL,STD);LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,125,135,15# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28080 |
LH113,115,172,174,RZH105,113,115..GCC |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-26181 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26060 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 90987-04002 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 90987-04002 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 90987-04002 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90987-04002 |
RZH114..LHD;LH10#,11#,125,RZH10#,112,113,115,125,135,153 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 90987-04002 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 90987-04002 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 90987-04002 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90987-04002 |
RZH114..LHD;LH10#,11#,125,RZH10#,112,113,115,125,135,153 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
RZH114..LHD;LH10#,11#,125,RZH10#,112,113,115,125,135,153 |
1 | ||
| 90987-02009 |
LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF |
1 | ||
| 90987-02004 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 90987-02012 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 90987-02024 |
RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90987-02012 |
RZH112..LHD;RZH112..RHD..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 85915-26010 |
LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF |
1 | ||
| 90987-02009 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S HEAD LAMP |
1 | ||
| 90987-01003 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02009 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02012 |
LH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD TAIL LAMP |
1 | ||
| 85915-26010 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02012 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S HEAD LAMP |
1 | ||
| 90987-01003 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02009 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02012 |
LH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD TAIL LAMP |
1 | ||
| 85915-26010 |
LH10#,11#,125,RZH10#,11#,125 TAIL LAMP |
1 | ||
| 90987-02012 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD TAIL LAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
RZH112..LHD;RZH112..RHD..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90987-02012 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 85930A - RELAY ASSY, POWER WINDOW, NO.1 | ||||
| 90987-02012 |
RZH114..LHD;LH10#,11#,125,RZH10#,112,113,115,125,135,153 |
1 | ||
| 90987-02012 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 90987-02024 |
LH172..HRF;RZH112..LHD;LH172..LHD..4D;LH172..ARL,GCC;LH172..GL..DSL;LH172..5D..GEN;RZH112..RHD..SP;LH172,174..4D..(06S,15S);LH10#,11#,154,16#,176,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90987-02012 |
RZH112..LHD;RZH112..RHD..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95J00 |
LH112..(DX,STD)..GEN;LH10#,113,114,115,125,RZH10#,11#,125..ARL,GCC,GEN |
1 | ||
| 85940-95J00 |
LH10#,114,115,RZH10#,11#,125;LH112,113,125..(03S,06S,14S)..STD |
1 | ||
| 85940-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..(DX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02009 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 86530-20070 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 90987-01003 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 85915-26010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
LH10#,11#,RZH10#,11#..CIS,GCC,GEN |
1 | ||
| 90987-04002 |
LH125,RZH125;LH10#,11#,RZH10#,11#..CIS,GCC,GEN |
1 | ||
| 90987-04004 |
RZH105,115..STD..CIS;RZH113..4D..STD..GEN..EFI;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,114,115..(CIS,GCC,GEN)..CBR;LH113,RZH103..(DX,STD)..(CIS,GCC,GEN)..(DSL,EFI);LH10#,112,114,115,166,176,RZH104,112..SRF..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06885 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 5 OF 9(9808- )
IGNITION & COMBINATION SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26100 |
LH102..LHD..STD;LH104,105,11#,RZH102,104,105,11#..LHD |
1 | ||
| 84140-26140 |
RZH115..STD..CBR;RZH115..12S..CBR;RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114..LHD..(CBR,DSL) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-35030 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26450 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-26500 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..STD..(GCC,GEN) |
1 | ||
| 84310-26430 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER) |
1 | ||
| 84310-26440 |
LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER) |
1 | ||
| 84310-26450 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-26430 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER) |
1 | ||
| 84310-26460 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(REAR WIPER) |
1 | ||
| 84310-26440 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(TILT STEERING & INTERMITTENT WIPER) |
1 | ||
| 84310-26490 |
LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-26500 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) |
1 | ||
| 84310-26740 |
RZH115..STD;RZH115..12S;LH102,104,105,11#,166,174,176,RZH10#,112,113,114..LHD W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-6A370 |
RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER) |
1 | ||
| 84310-35830 |
RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(DOUBLE SWING BACK DOOR & REAR WINDOW DEFFOGGER) |
1 | ||
| 84310-2F350 |
LH113,115,RZH105,113,115..GCC W(INTERMITTENT WIPER & REAR WIPER & *80) |
1 | ||
| 84310-35620 |
RZH105..CBR;RZH114..LHD..15S;RZH115..STD..CBR;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH102,104,112,113..LHD..(03S,06S,12S,15S) W(REAR WINDOW DEFOGGER) |
1 | ||
| 84310-35830 |
RZH113..GCC;RZH115..GCC..EFI;RZH113,114..LHD..(03S,15S)..GEN;LH174,RZH104,105..LHD..(12S,15S)..(GCC,GEN);LH102,104,105,11#,172,RZH102,112,115..LHD..STD..(CBR,DSL) W(DOUBLE SWING BACK DOOR & REAR WINDOW DEFFOGGER) |
1 | ||
| 84310-2F370 |
LH113,115,172,174,RZH105,113,115..GCC..(CBR,DSL) W(TILT STEERING & REAR WINDOW DEFOGGER & INTERMITTENT WIPER & *80) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 84312-26010 |
RZH115..STD..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;RZH102,105,112,113,115..SRF..(03S,06S,10S,12S)..CBR;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 84312-26010 |
RZH115..CBR;RZH115..12S;RZH115..(CIS,GCC)..EFI;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,114,125,135,15# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-26050 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26280 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER) |
1 | ||
| 84652-26300 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-26350 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..STD..(GCC,GEN) |
1 | ||
| 84652-26290 |
LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER) |
1 | ||
| 84652-26310 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(REAR WIPER) |
1 | ||
| 84652-26300 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-26350 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) |
1 | ||
| 84652-26340 |
LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-26290 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(TILT STEERING & INTERMITTENT WIPER) |
1 | ||
| 84652-26280 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER) |
1 | ||
| 84652-35550 |
RZH115..STD;RZH113,114..LHD..(03S,06S,15S)..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S) |
1 | ||
| 84652-60830 |
RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER) |
1 | ||
| 84652-26490 |
RZH115..STD;RZH115..12S;LH102,104,105,11#,166,174,176,RZH10#,112,113,114..LHD W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-35510 |
RZH105..CBR;RZH114..LHD..15S;RZH115..STD..CBR;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH102,104,112,113..LHD..(03S,06S,12S,15S) W(REAR WIPER) |
1 | ||
| 84652-35510 |
LH174..CIS;RZH113..GCC;RZH104,113..LHD..4D..GEN;RZH114,115..LHD..15S..CBR;RZH115..STD..(CIS,GCC)..EFI;LH102,104,105,11#,164,166,176,RZH102,105,112..LHD..STD W(REAR WIPER) |
1 | ||
| 89435 - BRACKET, CONNECTOR COVER | ||||
| 89435-26090 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 89435-26090 |
RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 91651-40816 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
ILLUST NO. 5 OF 9(8908-9808) ; (9808- )RZH105,155..GL..EFI ; (9808- )RZH114,115..15S..GEN
IGNITION & COMBINATION SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80032 |
LH102..LHD..STD;LH104,105,11#,RZH102,104,105,11#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26100 |
LH102..LHD..STD;LH104,105,11#,RZH102,104,105,11#..LHD |
1 | ||
| 84140-26140 |
RZH115..STD..CBR;RZH115..12S..CBR;RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114..LHD..(CBR,DSL) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26450 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-26500 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..STD..(GCC,GEN) |
1 | ||
| 84310-26430 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER) |
1 | ||
| 84310-26440 |
LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER) |
1 | ||
| 84310-26450 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-26430 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER) |
1 | ||
| 84310-26460 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(REAR WIPER) |
1 | ||
| 84310-26440 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(TILT STEERING & INTERMITTENT WIPER) |
1 | ||
| 84310-26490 |
LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-26500 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) |
1 | ||
| 84310-26740 |
RZH115..STD;RZH115..12S;LH102,104,105,11#,166,174,176,RZH10#,112,113,114..LHD W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-6A370 |
RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER) |
1 | ||
| 84310-35830 |
RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(DOUBLE SWING BACK DOOR & REAR WINDOW DEFFOGGER) |
1 | ||
| 84310-2F350 |
LH113,115,RZH105,113,115..GCC W(INTERMITTENT WIPER & REAR WIPER & *80) |
1 | ||
| 84310-35620 |
RZH105..CBR;RZH114..LHD..15S;RZH115..STD..CBR;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH102,104,112,113..LHD..(03S,06S,12S,15S) W(REAR WINDOW DEFOGGER) |
1 | ||
| 84310-35830 |
RZH113..GCC;RZH115..GCC..EFI;RZH113,114..LHD..(03S,15S)..GEN;LH174,RZH104,105..LHD..(12S,15S)..(GCC,GEN);LH102,104,105,11#,172,RZH102,112,115..LHD..STD..(CBR,DSL) W(DOUBLE SWING BACK DOOR & REAR WINDOW DEFFOGGER) |
1 | ||
| 84310-2F370 |
LH113,115,172,174,RZH105,113,115..GCC..(CBR,DSL) W(TILT STEERING & REAR WINDOW DEFOGGER & INTERMITTENT WIPER & *80) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 84312-26010 |
RZH115..STD..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;RZH102,105,112,113,115..SRF..(03S,06S,10S,12S)..CBR;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 84312-26010 |
RZH115..CBR;RZH115..12S;RZH115..(CIS,GCC)..EFI;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,114,125,135,15# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-26050 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-26050 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26280 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER) |
1 | ||
| 84652-26300 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-26350 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..STD..(GCC,GEN) |
1 | ||
| 84652-26290 |
LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER) |
1 | ||
| 84652-26310 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(REAR WIPER) |
1 | ||
| 84652-26300 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-26350 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) |
1 | ||
| 84652-26340 |
LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-26290 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(TILT STEERING & INTERMITTENT WIPER) |
1 | ||
| 84652-26280 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER) |
1 | ||
| 84652-35550 |
RZH115..STD;RZH113,114..LHD..(03S,06S,15S)..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S) |
1 | ||
| 84652-60830 |
RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER) |
1 | ||
| 84652-26490 |
RZH115..STD;RZH115..12S;LH102,104,105,11#,166,174,176,RZH10#,112,113,114..LHD W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-35510 |
RZH105..CBR;RZH114..LHD..15S;RZH115..STD..CBR;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH102,104,112,113..LHD..(03S,06S,12S,15S) W(REAR WIPER) |
1 | ||
| 84652-35510 |
LH174..CIS;RZH113..GCC;RZH104,113..LHD..4D..GEN;RZH114,115..LHD..15S..CBR;RZH115..STD..(CIS,GCC)..EFI;LH102,104,105,11#,164,166,176,RZH102,105,112..LHD..STD W(REAR WIPER) |
1 | ||
| 89435 - BRACKET, CONNECTOR COVER | ||||
| 89435-26090 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 89435-26090 |
RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 91651-40816 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
