8714 - HEATING & AIR CONDITIONING - COOLER UNIT

RZH112R-RRMRS (1991)

Toyota Hiace Van,Commuter

Production Aug 1991 - Nov 2002

Engine 1RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(9308- )SMRF,SRF

Click highlighted areas on diagram

REAR UNIT BRACKET(MAKER OPT)

Part #	Description	Period	Qty	Price
Common parts
90119-06882
90179-06274

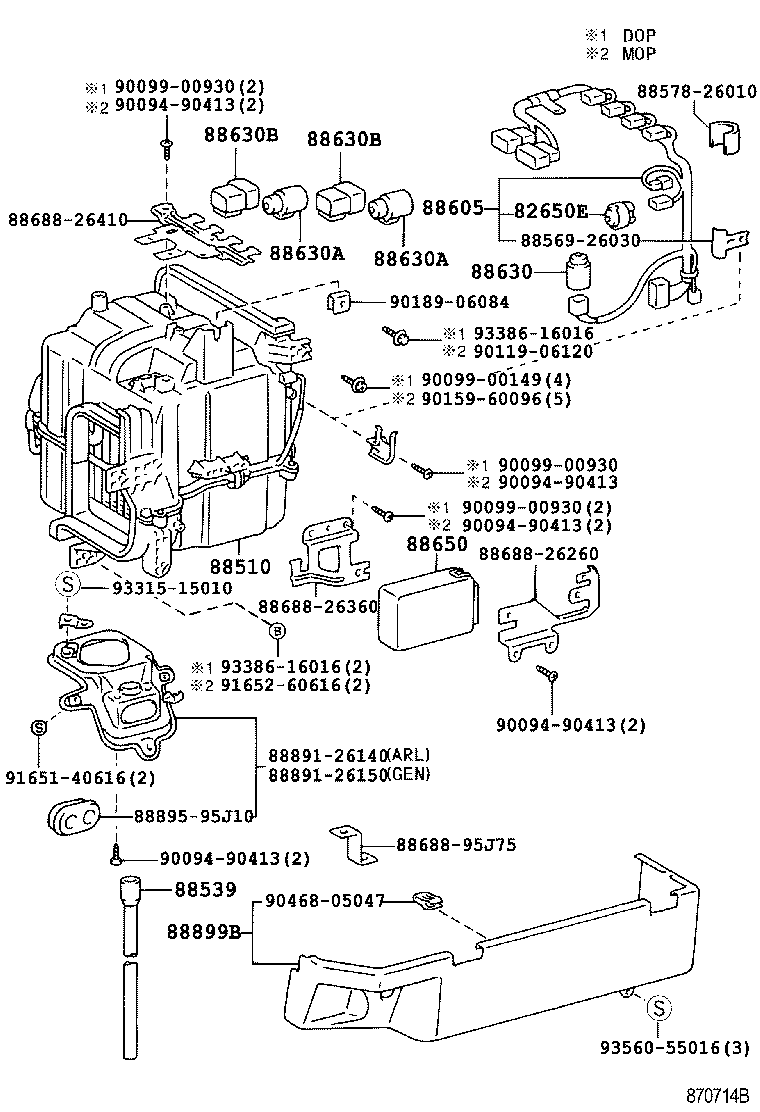

ILLUST NO. 1 OF 4(9308- )RHD

Click highlighted areas on diagram

FRONT--DUAL

Part #	Description	Period	Qty
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010	LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD 20A	08/1989 - 08/1993	1
82650-35010	RZH113..DX;RZH112..4D..06S 20A	07/1999 - 08/2001	1
82650-35010	RZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL) 20A	08/1995 - 08/2001	1
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88510-26510	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1993 - 08/2001	1
88510-26510	RZH112..4D..06S	07/1999 - 08/2001	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1993 - 08/1995	1
88539-95701	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88539-26150	RZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL)	08/1995 - 08/2001	1
88539-26150	RZH112..4D..06S	07/1999 - 08/2001	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J47	RZH102,103,112,113..RHD..STD W(HEATER)	08/1989 - 08/1993	1
88605-95J84	RZH102,112..RHD..4D;RZH102..RHD..5D..03S	08/1989 - 08/1993	1
88605-95N00	LH102,103,112,113..RHD W(HEATER)	08/1989 - 08/1993	1
88605-95N10	LH102,103,112,113..RHD..GEN	08/1989 - 08/1993	1
88605-26400	LH102,103,112,113..RHD W(HEATER)	08/1993 - 08/1995	1
88605-26420	RZH102,103,112,113..RHD W(HEATER)	08/1993 - 08/1995	1
88605-26430	RZH102,112..RHD	08/1993 - 08/1995	1
88605-26410	LH102,103,112,113..RHD..GEN	08/1993 - 08/1995	1
88605-2F050	RZH113..RHD..4D..STD;RZH102,103,112..RHD..STD W(SINGLE AIR CONDITIONER W/HEATER)	08/1995 - 08/2001	1
88605-2F150	LH102,103,112,113,172..RHD..SRF..STD W(SINGLE AIR CONDITIONER W/HEATER)	08/1995 - 08/2000	1
88605-2F160	LH102,103,112..RHD..GEN;LH113,172..RHD..STD..GEN W(SINGLE AIR CONDITIONER)	08/1995 - 08/2000	1
88605-2F060	RZH113..RHD..4D..STD..GEN;RZH102,103,112..RHD..STD..GEN W(SINGLE AIR CONDITIONER W/O HEATER)	08/1995 - 08/2001	1
88605-2F050	RZH112..4D..06S W(SINGLE AIR CONDITIONER W/HEATER)	07/1999 - 08/2001	1
88605-2F060	RZH112..4D..06S W(SINGLE AIR CONDITIONER W/BOOST VENTILATOR)	07/1999 - 08/2001	1
88630 - RELAY ASSY, COOLER
90987-02004	RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S	08/1989 - 08/1995	2
90987-02004	LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)	08/1989 - 08/1995	1
88630-14030	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88630-14030	LH125..5F..ARL;RZH113..GEN..EFI;LH113,RZH115..SRF..STD..(CBR,DSL);RZH103,114..(03S,15S)..(GL,STD)..(CIS,GEN);LH115,RZH103,105,113,125..(ARL,GCC,GEN)..(CBR,DSL);LH102,103,104,112,114,RZH102,104,112..03S,06S,09S,12S,15S DEALER OPTION	08/1995 - 07/1999	1
88630-14030	RZH112..4D..06S	07/1999 - 08/2001	1
88630A - RELAY ASSY, COOLER
88630-95702	LH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#	08/1996 - 07/1999	2
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
90987-03001	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1989 - 08/1995	1
88630-95702	LH10#,11#,RZH10#,11#	08/1995 - 08/1996	2
88630-26040	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	2
88630A - RELAY ASSY, COOLER
88630-95702	LH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#	08/1996 - 07/1999	2
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
90987-03001	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1989 - 08/1995	1
88630-95702	LH10#,11#,RZH10#,11#	08/1995 - 08/1996	2
88630-26040	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	2
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101	RZH102,103,112,113..STD	08/1989 - 08/1993	1
88650-14030	LH113..STD;LH172..RHD..STD;LH102,103,112..GL,STD	08/1989 - 08/2000	1
88650-26100	RZH103,113..ARL..EFI;RZH102,103,112,113..CBR	08/1993 - 07/1999	1
88650-26100	RZH112..4D..06S	07/1999 - 08/2001	1
88899B - COVER, COOLER CONTROL
88891-26050	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88891-95J27	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1989 - 08/2001	1
88891-95J27	RZH112..4D..06S	07/1999 - 08/2001	1
Common parts
88569-26030
88578-26010
88688-26260
88688-26360
88688-26410
88688-95J75
88891-26140
88891-26150
88895-95J10
90094-90413
90099-00149
90099-00930
90119-06120
90159-60096
90189-06084
90468-05047
91651-40616
91652-60616
93315-15010
93386-16016
93560-55016

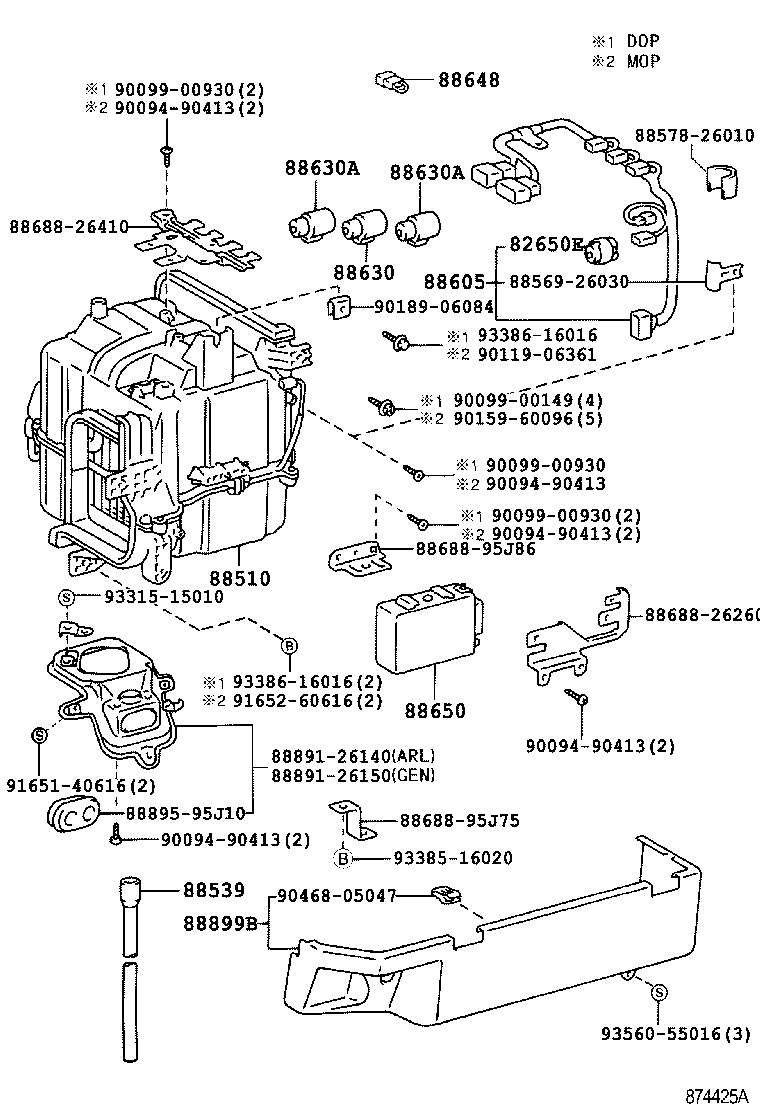

ILLUST NO. 1 OF 4(9308- )

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95J11	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88501-26030	LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN	08/1993 - 11/1994	1
88501-26031	LH172..RHD..SRF..4D..STD..GEN;LH113,125,RZH113..RHD..4D..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,112,114,115,125..RHD	11/1994 - 08/2001	1
88501-26031	RZH112..4D..06S	07/1999 - 08/2001	1
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88510-26510	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1993 - 08/2001	1
88510-26510	RZH112..4D..06S	07/1999 - 08/2001	1
88515 - VALVE, COOLER EXPANSION
88515-28020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88515-20100	RZH112..4D..06S	07/1999 - 08/2001	1
88515-20100	RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL)	08/1993 - 08/2001	1
88578B - PACKING, COOLING UNIT, NO.1
88578-20470	RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL)	08/1993 - 08/2001	1
88578-20470	RZH112..4D..06S	07/1999 - 08/2001	1
88578C - PACKING, COOLING UNIT, NO.2
88578-12490	RZH103..GL,SGL,STD;LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH102,104,105,11#,125	08/1993 - 08/1998	1
88578-12490	RZH112..4D..06S	07/1999 - 08/2001	1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88625-26020	LH113,172..STD;LH10#,112,114,115,166,174,176,RZH10#,11# FRONT	08/1996 - 07/1999	1
88625-26020	RZH112..4D..06S	07/1999 - 08/2001	1
88625-26020	LH125..ARL;LH10#,11#,RZH10#,11#,125 FRONT	08/1993 - 08/1996	1
88626A - HOLDER, THERMISTOR
88626-33010	RZH112..4D..06S	07/1999 - 08/2001	1
88626-33010	RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,05S,06S,09S,10S,12S)..(CBR,DSL)	08/1989 - 08/2001	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-26140	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1993 - 08/2001	1
88710-26140	RZH112..4D..06S	07/1999 - 08/2001	1
88710-26010	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
Common parts
87116-14010
90099-00968
90099-04381
90099-14119
90099-14121

ILLUST NO. 1 OF 4(8908-9308)

Click highlighted areas on diagram

FRONT(DEALER OPT)

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95J11	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88501-26030	LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN	08/1993 - 11/1994	1
88501-26031	LH172..RHD..SRF..4D..STD..GEN;LH113,125,RZH113..RHD..4D..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,112,114,115,125..RHD	11/1994 - 08/2001	1
88501-26031	RZH112..4D..06S	07/1999 - 08/2001	1
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88510-26510	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1993 - 08/2001	1
88510-26510	RZH112..4D..06S	07/1999 - 08/2001	1
88515 - VALVE, COOLER EXPANSION
88515-28020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88515-20100	RZH112..4D..06S	07/1999 - 08/2001	1
88515-20100	RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL)	08/1993 - 08/2001	1
88578B - PACKING, COOLING UNIT, NO.1
88578-20470	RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL)	08/1993 - 08/2001	1
88578-20470	RZH112..4D..06S	07/1999 - 08/2001	1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88625-26020	LH113,172..STD;LH10#,112,114,115,166,174,176,RZH10#,11# FRONT	08/1996 - 07/1999	1
88625-26020	RZH112..4D..06S	07/1999 - 08/2001	1
88625-26020	LH125..ARL;LH10#,11#,RZH10#,11#,125 FRONT	08/1993 - 08/1996	1
88626A - HOLDER, THERMISTOR
88626-33010	RZH112..4D..06S	07/1999 - 08/2001	1
88626-33010	RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,05S,06S,09S,10S,12S)..(CBR,DSL)	08/1989 - 08/2001	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-26140	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1993 - 08/2001	1
88710-26140	RZH112..4D..06S	07/1999 - 08/2001	1
88710-26010	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
Common parts
87116-14010
88899-95J20
90099-00930
90099-00968
90099-04381
93315-15010

ILLUST NO. 1 OF 4(8908-9508)

Click highlighted areas on diagram

FRONT(MAKER OPT)

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95J11	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88501-26030	LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN	08/1993 - 11/1994	1
88501-26031	LH172..RHD..SRF..4D..STD..GEN;LH113,125,RZH113..RHD..4D..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,112,114,115,125..RHD	11/1994 - 08/2001	1
88501-26031	RZH112..4D..06S	07/1999 - 08/2001	1
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88510-26510	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1993 - 08/2001	1
88510-26510	RZH112..4D..06S	07/1999 - 08/2001	1
88515 - VALVE, COOLER EXPANSION
88515-28020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88515-20100	RZH112..4D..06S	07/1999 - 08/2001	1
88515-20100	RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL)	08/1993 - 08/2001	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1993 - 08/1995	1
88539-95701	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88539-26150	RZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL)	08/1995 - 08/2001	1
88539-26150	RZH112..4D..06S	07/1999 - 08/2001	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J47	RZH102,103,112,113..RHD..STD W(HEATER)	08/1989 - 08/1993	1
88605-95J84	RZH102,112..RHD..4D;RZH102..RHD..5D..03S	08/1989 - 08/1993	1
88605-95N00	LH102,103,112,113..RHD W(HEATER)	08/1989 - 08/1993	1
88605-95N10	LH102,103,112,113..RHD..GEN	08/1989 - 08/1993	1
88605-26400	LH102,103,112,113..RHD W(HEATER)	08/1993 - 08/1995	1
88605-26420	RZH102,103,112,113..RHD W(HEATER)	08/1993 - 08/1995	1
88605-26430	RZH102,112..RHD	08/1993 - 08/1995	1
88605-26410	LH102,103,112,113..RHD..GEN	08/1993 - 08/1995	1
88605-2F050	RZH113..RHD..4D..STD;RZH102,103,112..RHD..STD W(SINGLE AIR CONDITIONER W/HEATER)	08/1995 - 08/2001	1
88605-2F150	LH102,103,112,113,172..RHD..SRF..STD W(SINGLE AIR CONDITIONER W/HEATER)	08/1995 - 08/2000	1
88605-2F160	LH102,103,112..RHD..GEN;LH113,172..RHD..STD..GEN W(SINGLE AIR CONDITIONER)	08/1995 - 08/2000	1
88605-2F060	RZH113..RHD..4D..STD..GEN;RZH102,103,112..RHD..STD..GEN W(SINGLE AIR CONDITIONER W/O HEATER)	08/1995 - 08/2001	1
88605-2F050	RZH112..4D..06S W(SINGLE AIR CONDITIONER W/HEATER)	07/1999 - 08/2001	1
88605-2F060	RZH112..4D..06S W(SINGLE AIR CONDITIONER W/BOOST VENTILATOR)	07/1999 - 08/2001	1
88630 - RELAY ASSY, COOLER
90987-02004	RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S	08/1989 - 08/1995	2
90987-02004	LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)	08/1989 - 08/1995	1
88630-14030	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88630-14030	LH125..5F..ARL;RZH113..GEN..EFI;LH113,RZH115..SRF..STD..(CBR,DSL);RZH103,114..(03S,15S)..(GL,STD)..(CIS,GEN);LH115,RZH103,105,113,125..(ARL,GCC,GEN)..(CBR,DSL);LH102,103,104,112,114,RZH102,104,112..03S,06S,09S,12S,15S DEALER OPTION	08/1995 - 07/1999	1
88630-14030	RZH112..4D..06S	07/1999 - 08/2001	1
88630A - RELAY ASSY, COOLER
88630-95702	LH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#	08/1996 - 07/1999	2
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
90987-03001	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1989 - 08/1995	1
88630-95702	LH10#,11#,RZH10#,11#	08/1995 - 08/1996	2
88630-26040	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	2
88630A - RELAY ASSY, COOLER
88630-95702	LH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#	08/1996 - 07/1999	2
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
90987-03001	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1989 - 08/1995	1
88630-95702	LH10#,11#,RZH10#,11#	08/1995 - 08/1996	2
88630-26040	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	2
88648 - WIRING, COOLER, NO.1
88648-95J24	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH113..LHD..STD;LH10#,11#,RZH104,105,112,114,115..(GL,STD)..(GCC,GEN)	08/1989 - 08/1995	1
88648-95J24	RZH112..5D;RZH112..03S;LH172..STD..(GCC,GEN)..DSL;LH102,103,104,11#,154,162,174,RZH10#,113,114,115..(GL,STD)..(GCC,GEN)	07/1999 - 12/2999	1
88648-95J24	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	1
88648-95J24	RZH115..CBR;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN;LH113,RZH103..(DX,STD)..(GCC,GEN)..(DSL,EFI);LH102,103,104,112,114,115,RZH102,104,112,114..GCC,GEN;LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(GCC,GEN)..(CBR,DSL)	08/1995 - 11/2000	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101	RZH102,103,112,113..STD	08/1989 - 08/1993	1
88650-14030	LH113..STD;LH172..RHD..STD;LH102,103,112..GL,STD	08/1989 - 08/2000	1
88650-26100	RZH103,113..ARL..EFI;RZH102,103,112,113..CBR	08/1993 - 07/1999	1
88650-26100	RZH112..4D..06S	07/1999 - 08/2001	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-26140	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1993 - 08/2001	1
88710-26140	RZH112..4D..06S	07/1999 - 08/2001	1
88710-26010	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88899B - COVER, COOLER CONTROL
88891-26050	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88891-95J27	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1989 - 08/2001	1
88891-95J27	RZH112..4D..06S	07/1999 - 08/2001	1
Common parts
82715-95J27
82715-95J28
88688-95J75
88688-95J85
88899-26030
90119-06361
90159-60096
90189-06084
90468-05047
91651-40616
93560-55016

ILLUST NO. 2 OF 4(8908-9308)

Click highlighted areas on diagram

REAR UNIT(MAKER OPT)

Part #	Description	Period	Qty	Price
Common parts
88515-95J00
88578-95J01
90413-15001
90480-26022
93530-55016
Linked diagrams
8718

ILLUST NO. 2 OF 4(9308- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

REAR UNIT

Part #	Description	Period	Qty	Price
Common parts
63249-95700
82711-95704
88899-95J19
90099-00931
90099-02210
90099-05164
90099-32138
90183-06020
90480-20013
90480-26022
93530-55016
93540-55014
Linked diagrams
8718

ILLUST NO. 1 OF 4(9308- )RHD

Click highlighted areas on diagram

FRONT--SINGLE

Part #	Description	Period	Qty
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010	LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD 20A	08/1989 - 08/1993	1
82650-35010	RZH113..DX;RZH112..4D..06S 20A	07/1999 - 08/2001	1
82650-35010	RZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL) 20A	08/1995 - 08/2001	1
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88510-26510	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1993 - 08/2001	1
88510-26510	RZH112..4D..06S	07/1999 - 08/2001	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1993 - 08/1995	1
88539-95701	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88539-26150	RZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL)	08/1995 - 08/2001	1
88539-26150	RZH112..4D..06S	07/1999 - 08/2001	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J47	RZH102,103,112,113..RHD..STD W(HEATER)	08/1989 - 08/1993	1
88605-95J84	RZH102,112..RHD..4D;RZH102..RHD..5D..03S	08/1989 - 08/1993	1
88605-95N00	LH102,103,112,113..RHD W(HEATER)	08/1989 - 08/1993	1
88605-95N10	LH102,103,112,113..RHD..GEN	08/1989 - 08/1993	1
88605-26400	LH102,103,112,113..RHD W(HEATER)	08/1993 - 08/1995	1
88605-26420	RZH102,103,112,113..RHD W(HEATER)	08/1993 - 08/1995	1
88605-26430	RZH102,112..RHD	08/1993 - 08/1995	1
88605-26410	LH102,103,112,113..RHD..GEN	08/1993 - 08/1995	1
88605-2F050	RZH113..RHD..4D..STD;RZH102,103,112..RHD..STD W(SINGLE AIR CONDITIONER W/HEATER)	08/1995 - 08/2001	1
88605-2F150	LH102,103,112,113,172..RHD..SRF..STD W(SINGLE AIR CONDITIONER W/HEATER)	08/1995 - 08/2000	1
88605-2F160	LH102,103,112..RHD..GEN;LH113,172..RHD..STD..GEN W(SINGLE AIR CONDITIONER)	08/1995 - 08/2000	1
88605-2F060	RZH113..RHD..4D..STD..GEN;RZH102,103,112..RHD..STD..GEN W(SINGLE AIR CONDITIONER W/O HEATER)	08/1995 - 08/2001	1
88605-2F050	RZH112..4D..06S W(SINGLE AIR CONDITIONER W/HEATER)	07/1999 - 08/2001	1
88605-2F060	RZH112..4D..06S W(SINGLE AIR CONDITIONER W/BOOST VENTILATOR)	07/1999 - 08/2001	1
88630 - RELAY ASSY, COOLER
90987-02004	RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S	08/1989 - 08/1995	2
90987-02004	LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)	08/1989 - 08/1995	1
88630-14030	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88630-14030	LH125..5F..ARL;RZH113..GEN..EFI;LH113,RZH115..SRF..STD..(CBR,DSL);RZH103,114..(03S,15S)..(GL,STD)..(CIS,GEN);LH115,RZH103,105,113,125..(ARL,GCC,GEN)..(CBR,DSL);LH102,103,104,112,114,RZH102,104,112..03S,06S,09S,12S,15S DEALER OPTION	08/1995 - 07/1999	1
88630-14030	RZH112..4D..06S	07/1999 - 08/2001	1
88630A - RELAY ASSY, COOLER
88630-95702	LH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#	08/1996 - 07/1999	2
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
90987-03001	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1989 - 08/1995	1
88630-95702	LH10#,11#,RZH10#,11#	08/1995 - 08/1996	2
88630-26040	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	2
88630A - RELAY ASSY, COOLER
88630-95702	LH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#	08/1996 - 07/1999	2
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
90987-03001	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1989 - 08/1995	1
88630-95702	LH10#,11#,RZH10#,11#	08/1995 - 08/1996	2
88630-26040	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	2
88648 - WIRING, COOLER, NO.1
88648-95J24	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH113..LHD..STD;LH10#,11#,RZH104,105,112,114,115..(GL,STD)..(GCC,GEN)	08/1989 - 08/1995	1
88648-95J24	RZH112..5D;RZH112..03S;LH172..STD..(GCC,GEN)..DSL;LH102,103,104,11#,154,162,174,RZH10#,113,114,115..(GL,STD)..(GCC,GEN)	07/1999 - 12/2999	1
88648-95J24	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	1
88648-95J24	RZH115..CBR;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN;LH113,RZH103..(DX,STD)..(GCC,GEN)..(DSL,EFI);LH102,103,104,112,114,115,RZH102,104,112,114..GCC,GEN;LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(GCC,GEN)..(CBR,DSL)	08/1995 - 11/2000	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101	RZH102,103,112,113..STD	08/1989 - 08/1993	1
88650-14030	LH113..STD;LH172..RHD..STD;LH102,103,112..GL,STD	08/1989 - 08/2000	1
88650-26100	RZH103,113..ARL..EFI;RZH102,103,112,113..CBR	08/1993 - 07/1999	1
88650-26100	RZH112..4D..06S	07/1999 - 08/2001	1
88899B - COVER, COOLER CONTROL
88891-26050	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88891-95J27	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1989 - 08/2001	1
88891-95J27	RZH112..4D..06S	07/1999 - 08/2001	1
Common parts
88569-26030
88578-26010
88688-26260
88688-26410
88688-95J75
88688-95J86
88891-26140
88891-26150
88895-95J10
90094-90413
90099-00149
90099-00930
90119-06361
90159-60096
90189-06084
90468-05047
91651-40616
91652-60616
93315-15010
93385-16020
93386-16016
93560-55016

ILLUST NO. 4 OF 4(9308- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 3 OF 4(8908-9308)

Click highlighted areas on diagram

REAR UNIT BRACKET(MAKER OPT)

Part #	Description	Period	Qty	Price
Common parts
90119-06572
90179-06274

ILLUST NO. 1 OF 4(8908-9308)

Click highlighted areas on diagram

FRONT--SINGLE(DEALER OPT)

Part #	Description	Period	Qty
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010	LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD 20A	08/1989 - 08/1993	1
82650-35010	RZH113..DX;RZH112..4D..06S 20A	07/1999 - 08/2001	1
82650-35010	RZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL) 20A	08/1995 - 08/2001	1
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88510-26510	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1993 - 08/2001	1
88510-26510	RZH112..4D..06S	07/1999 - 08/2001	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1993 - 08/1995	1
88539-95701	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88539-26150	RZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL)	08/1995 - 08/2001	1
88539-26150	RZH112..4D..06S	07/1999 - 08/2001	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J47	RZH102,103,112,113..RHD..STD W(HEATER)	08/1989 - 08/1993	1
88605-95J84	RZH102,112..RHD..4D;RZH102..RHD..5D..03S	08/1989 - 08/1993	1
88605-95N00	LH102,103,112,113..RHD W(HEATER)	08/1989 - 08/1993	1
88605-95N10	LH102,103,112,113..RHD..GEN	08/1989 - 08/1993	1
88605-26400	LH102,103,112,113..RHD W(HEATER)	08/1993 - 08/1995	1
88605-26420	RZH102,103,112,113..RHD W(HEATER)	08/1993 - 08/1995	1
88605-26430	RZH102,112..RHD	08/1993 - 08/1995	1
88605-26410	LH102,103,112,113..RHD..GEN	08/1993 - 08/1995	1
88605-2F050	RZH113..RHD..4D..STD;RZH102,103,112..RHD..STD W(SINGLE AIR CONDITIONER W/HEATER)	08/1995 - 08/2001	1
88605-2F150	LH102,103,112,113,172..RHD..SRF..STD W(SINGLE AIR CONDITIONER W/HEATER)	08/1995 - 08/2000	1
88605-2F160	LH102,103,112..RHD..GEN;LH113,172..RHD..STD..GEN W(SINGLE AIR CONDITIONER)	08/1995 - 08/2000	1
88605-2F060	RZH113..RHD..4D..STD..GEN;RZH102,103,112..RHD..STD..GEN W(SINGLE AIR CONDITIONER W/O HEATER)	08/1995 - 08/2001	1
88605-2F050	RZH112..4D..06S W(SINGLE AIR CONDITIONER W/HEATER)	07/1999 - 08/2001	1
88605-2F060	RZH112..4D..06S W(SINGLE AIR CONDITIONER W/BOOST VENTILATOR)	07/1999 - 08/2001	1
88630 - RELAY ASSY, COOLER
90987-02004	RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S	08/1989 - 08/1995	2
90987-02004	LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)	08/1989 - 08/1995	1
88630-14030	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88630-14030	LH125..5F..ARL;RZH113..GEN..EFI;LH113,RZH115..SRF..STD..(CBR,DSL);RZH103,114..(03S,15S)..(GL,STD)..(CIS,GEN);LH115,RZH103,105,113,125..(ARL,GCC,GEN)..(CBR,DSL);LH102,103,104,112,114,RZH102,104,112..03S,06S,09S,12S,15S DEALER OPTION	08/1995 - 07/1999	1
88630-14030	RZH112..4D..06S	07/1999 - 08/2001	1
88630A - RELAY ASSY, COOLER
88630-95702	LH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#	08/1996 - 07/1999	2
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
90987-03001	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1989 - 08/1995	1
88630-95702	LH10#,11#,RZH10#,11#	08/1995 - 08/1996	2
88630-26040	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	2
88630A - RELAY ASSY, COOLER
88630-95702	LH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#	08/1996 - 07/1999	2
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
90987-03001	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1989 - 08/1995	1
88630-95702	LH10#,11#,RZH10#,11#	08/1995 - 08/1996	2
88630-26040	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	2
88630C - BRACKET, COOLER RELAY
88631-95J00	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD	08/1989 - 08/1993	1
88648 - WIRING, COOLER, NO.1
88648-95J24	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH113..LHD..STD;LH10#,11#,RZH104,105,112,114,115..(GL,STD)..(GCC,GEN)	08/1989 - 08/1995	1
88648-95J24	RZH112..5D;RZH112..03S;LH172..STD..(GCC,GEN)..DSL;LH102,103,104,11#,154,162,174,RZH10#,113,114,115..(GL,STD)..(GCC,GEN)	07/1999 - 12/2999	1
88648-95J24	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	1
88648-95J24	RZH115..CBR;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN;LH113,RZH103..(DX,STD)..(GCC,GEN)..(DSL,EFI);LH102,103,104,112,114,115,RZH102,104,112,114..GCC,GEN;LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(GCC,GEN)..(CBR,DSL)	08/1995 - 11/2000	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101	RZH102,103,112,113..STD	08/1989 - 08/1993	1
88650-14030	LH113..STD;LH172..RHD..STD;LH102,103,112..GL,STD	08/1989 - 08/2000	1
88650-26100	RZH103,113..ARL..EFI;RZH102,103,112,113..CBR	08/1993 - 07/1999	1
88650-26100	RZH112..4D..06S	07/1999 - 08/2001	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-95J86	LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD	08/1989 - 08/1993	1
88899B - COVER, COOLER CONTROL
88891-26050	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88891-95J27	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1989 - 08/2001	1
88891-95J27	RZH112..4D..06S	07/1999 - 08/2001	1
Common parts
82715-95J27
88569-95J01
88578-26010
88578-26020
88688-95J75
88688-95N04
88895-95J10
90099-00149
90099-00930
93385-16020
93386-16016
93560-55016

ILLUST NO. 1 OF 4(8908-9308)

Click highlighted areas on diagram

FRONT--DUAL(DEALER OPT)

Part #	Description	Period	Qty
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010	LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD 20A	08/1989 - 08/1993	1
82650-35010	RZH113..DX;RZH112..4D..06S 20A	07/1999 - 08/2001	1
82650-35010	RZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL) 20A	08/1995 - 08/2001	1
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010	LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD 20A	08/1989 - 08/1993	1
82650-35010	RZH113..DX;RZH112..4D..06S 20A	07/1999 - 08/2001	1
82650-35010	RZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL) 20A	08/1995 - 08/2001	1
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88510-26510	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1993 - 08/2001	1
88510-26510	RZH112..4D..06S	07/1999 - 08/2001	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1993 - 08/1995	1
88539-95701	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88539-26150	RZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL)	08/1995 - 08/2001	1
88539-26150	RZH112..4D..06S	07/1999 - 08/2001	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J47	RZH102,103,112,113..RHD..STD W(HEATER)	08/1989 - 08/1993	1
88605-95J84	RZH102,112..RHD..4D;RZH102..RHD..5D..03S	08/1989 - 08/1993	1
88605-95N00	LH102,103,112,113..RHD W(HEATER)	08/1989 - 08/1993	1
88605-95N10	LH102,103,112,113..RHD..GEN	08/1989 - 08/1993	1
88605-26400	LH102,103,112,113..RHD W(HEATER)	08/1993 - 08/1995	1
88605-26420	RZH102,103,112,113..RHD W(HEATER)	08/1993 - 08/1995	1
88605-26430	RZH102,112..RHD	08/1993 - 08/1995	1
88605-26410	LH102,103,112,113..RHD..GEN	08/1993 - 08/1995	1
88605-2F050	RZH113..RHD..4D..STD;RZH102,103,112..RHD..STD W(SINGLE AIR CONDITIONER W/HEATER)	08/1995 - 08/2001	1
88605-2F150	LH102,103,112,113,172..RHD..SRF..STD W(SINGLE AIR CONDITIONER W/HEATER)	08/1995 - 08/2000	1
88605-2F160	LH102,103,112..RHD..GEN;LH113,172..RHD..STD..GEN W(SINGLE AIR CONDITIONER)	08/1995 - 08/2000	1
88605-2F060	RZH113..RHD..4D..STD..GEN;RZH102,103,112..RHD..STD..GEN W(SINGLE AIR CONDITIONER W/O HEATER)	08/1995 - 08/2001	1
88605-2F050	RZH112..4D..06S W(SINGLE AIR CONDITIONER W/HEATER)	07/1999 - 08/2001	1
88605-2F060	RZH112..4D..06S W(SINGLE AIR CONDITIONER W/BOOST VENTILATOR)	07/1999 - 08/2001	1
88630 - RELAY ASSY, COOLER
90987-02004	RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S	08/1989 - 08/1995	2
90987-02004	LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)	08/1989 - 08/1995	1
88630-14030	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88630-14030	LH125..5F..ARL;RZH113..GEN..EFI;LH113,RZH115..SRF..STD..(CBR,DSL);RZH103,114..(03S,15S)..(GL,STD)..(CIS,GEN);LH115,RZH103,105,113,125..(ARL,GCC,GEN)..(CBR,DSL);LH102,103,104,112,114,RZH102,104,112..03S,06S,09S,12S,15S DEALER OPTION	08/1995 - 07/1999	1
88630-14030	RZH112..4D..06S	07/1999 - 08/2001	1
88630A - RELAY ASSY, COOLER
88630-95702	LH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#	08/1996 - 07/1999	2
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
90987-03001	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1989 - 08/1995	1
88630-95702	LH10#,11#,RZH10#,11#	08/1995 - 08/1996	2
88630-26040	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	2
88630A - RELAY ASSY, COOLER
88630-95702	LH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#	08/1996 - 07/1999	2
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
90987-03001	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1989 - 08/1995	1
88630-95702	LH10#,11#,RZH10#,11#	08/1995 - 08/1996	2
88630-26040	RZH113..DX;RZH112..4D..06S	07/1999 - 08/2001	2
88630C - BRACKET, COOLER RELAY
88631-95J00	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD	08/1989 - 08/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101	RZH102,103,112,113..STD	08/1989 - 08/1993	1
88650-14030	LH113..STD;LH172..RHD..STD;LH102,103,112..GL,STD	08/1989 - 08/2000	1
88650-26100	RZH103,113..ARL..EFI;RZH102,103,112,113..CBR	08/1993 - 07/1999	1
88650-26100	RZH112..4D..06S	07/1999 - 08/2001	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-95J86	LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD	08/1989 - 08/1993	1
88899B - COVER, COOLER CONTROL
88891-26050	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88891-95J27	LH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,RZH102,103,104,112,114,115..RHD..GEN	08/1989 - 08/2001	1
88891-95J27	RZH112..4D..06S	07/1999 - 08/2001	1
Common parts
82715-95J27
88569-95J00
88578-26010
88578-26020
88688-95J31
88688-95J75
88688-95N04
88895-95J10
90099-00149
90099-00930
93385-16020
93386-16016
93560-55016

RZH112R-RRMRS (1991)

ILLUST NO. 3 OF 4(9308- )SMRF,SRF

ILLUST NO. 1 OF 4(9308- )RHD

ILLUST NO. 1 OF 4(9308- )

ILLUST NO. 1 OF 4(8908-9308)

ILLUST NO. 1 OF 4(8908-9508)

ILLUST NO. 2 OF 4(8908-9308)

ILLUST NO. 2 OF 4(9308- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

ILLUST NO. 1 OF 4(9308- )RHD

ILLUST NO. 4 OF 4(9308- )

ILLUST NO. 3 OF 4(8908-9308)

ILLUST NO. 1 OF 4(8908-9308)

ILLUST NO. 1 OF 4(8908-9308)

Part Price Details
