RZH105R-BFMRE (1999)

Toyota Hiace Van,Commuter

Production Jul 1999 - Aug 2004
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(0308- )DEFI ; (0308- )LH172,RZH113..GCC ;(0308- )LH104,114,164,166,174,1

Click highlighted areas on diagram

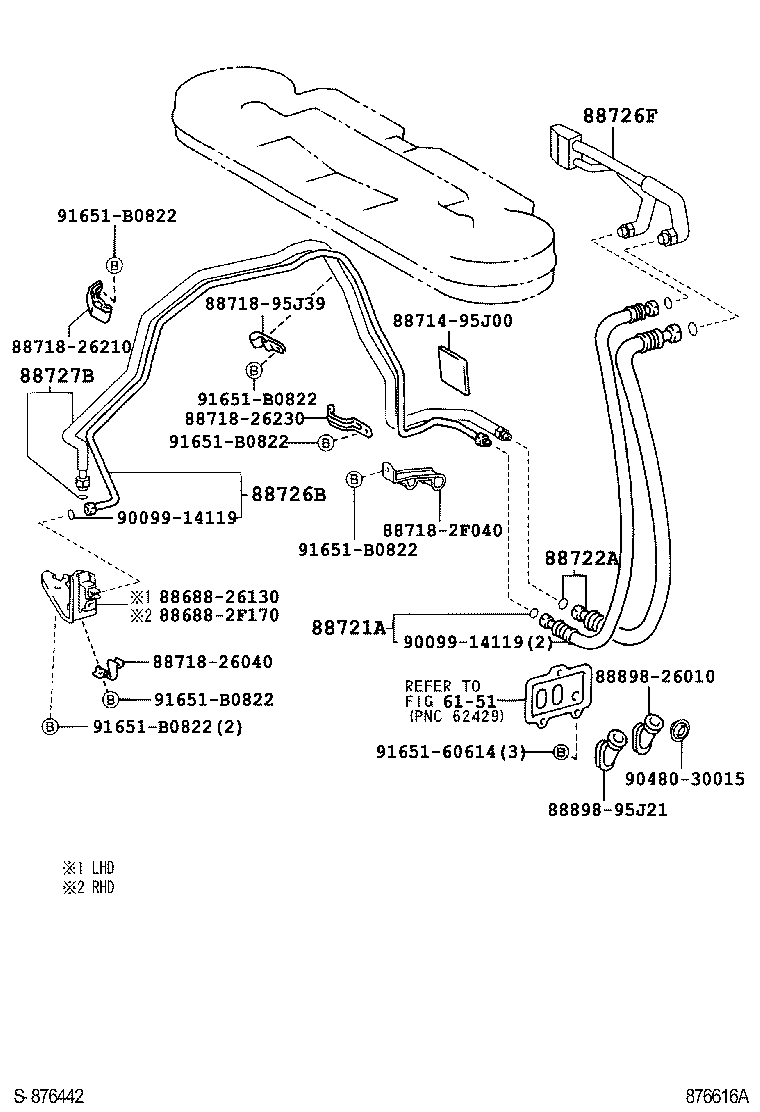

REAR PIPING

diagram 6151 8868826130 886882F170 8871495J00 8871826040 8871826210 8871826230 887182F040 8871895J39 88721A 88722A 88726B 88726F 88727B 8889826010 8889895J21 9009914119 9009914119 9048030015 9165160614 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822
Part # Description Qty Price
88721A - HOSE, LIQUID, A
88721-95J05

LH104,105,114,115,RZH103,104,114..SRF..4D..SG

 1
88722A - HOSE, SUCTION, A
88712-95J16

LH104,105,114,115,RZH103,104,114..SRF..4D..SG

 1
88712-26220

LH172..06S..GL;LH172,RZH113..GCC;LH172,RZH113..4D..SG..(DX,STD)..(DEFI,EFI);LH104,105,113,164,166,176,RZH103,115..LHD..SRF;LH114,115,174,RZH102,104,105,114..SRF..(10S,12S,15S)

 1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95N00

LH104,105,114,115,125,RZH103,104,114,125..4D..SG

 1
88726F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-95J61

LH102,104,105,112,114,115,RZH10#,113,114,115..09S,12S,15S

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95J50

LH104,105,114,115,125,RZH103,104,114,125..4D..SG

 1
88717-2F270

LH172..06S..GL;LH172,RZH113..GCC;LH172,RZH113..4D..SG..(DX,STD)..(DEFI,EFI);LH104,105,113,154,164,166,176,RZH103,155..LHD..SRF;LH114,115,174,RZH102,104,105,112,114,115..SG..(03S,10S,12S,15S)

 1
Common parts
88688-26130
88688-2F170
88714-95J00
88718-26040
88718-26210
88718-26230
88718-2F040
88718-95J39
88898-26010
88898-95J21
90099-14119
90480-30015
91651-60614
91651-B0822
Linked diagrams
6151
