RZH105R-BFMRE (1999)
Toyota Hiace Van,Commuter

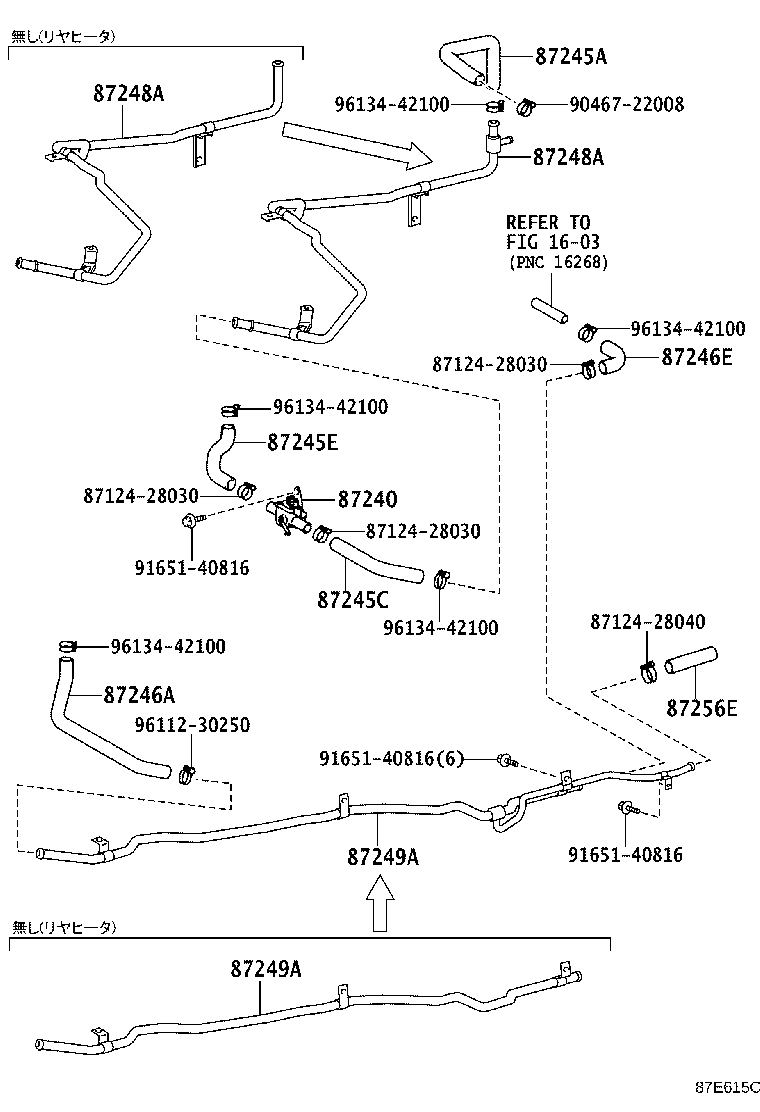

ILLUST NO. 1 OF 2(9907- )RZH112..RHD..SRF ; (9907- )RZH103,104,105,113,114,125,135,153..RHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-26090 |
LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..RHD..(03S,06S,15S)..STD;LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 87240-95J08 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J48 |
RZH112..LHD;RZH112..RHD..SP;RZH10#,113,114,115,125,155 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-95J50 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 87245-2F440 |
LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..RHD..(03S,06S,15S)..STD;LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J49 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 87245-2F180 |
LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..RHD..(03S,06S,15S)..STD;LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2F490 |
LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..RHD..(03S,06S,15S)..STD;LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99556-30300 |
RZH10#,11#,125 L=300 |
1 | ||
| 99556-30300 |
RZH10#,11#,125,155 *H,L=260 |
1 | ||
| 99556-30300 |
RZH112..LHD;RZH112..RHD..SP;RZH10#,113,114,115,125,155 *H,L=270 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-95J52 |
RZH10#,11#,125 |
1 | ||
| 87208-2F270 |
RZH112..RHD..SP;RZH103,104,105,113,114,125..RHD |
1 | ||
| 87208-2F290 |
RZH104,105,113,114..RHD..(08S,12S,15S) W(REAR HEATER) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-95J52 |
RZH10#,11#,125 |
1 | ||
| 87208-2F270 |
RZH112..RHD..SP;RZH103,104,105,113,114,125..RHD |
1 | ||
| 87208-2F290 |
RZH104,105,113,114..RHD..(08S,12S,15S) W(REAR HEATER) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-2F280 |
RZH112..RHD..SP;RZH103,104,105,113,114,125..RHD |
1 | ||
| 87208-95J45 |
RZH112,113..GL,STD;RZH10#,114,115,125..ARL,GCC,GEN |
1 | ||
| 87208-2F210 |
RZH104,105,113,114..RHD..(08S,12S,15S) W(REAR HEATER) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-2F280 |
RZH112..RHD..SP;RZH103,104,105,113,114,125..RHD |
1 | ||
| 87208-95J45 |
RZH112,113..GL,STD;RZH10#,114,115,125..ARL,GCC,GEN |
1 | ||
| 87208-2F210 |
RZH104,105,113,114..RHD..(08S,12S,15S) W(REAR HEATER) |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH104,105,114,115 *H,L=180 |
1 | ||
| 99556-20200 |
RZH104,105,113,114..RHD..(08S,12S,15S) *H,L=160 |
1 | ||
| 99556-20200 |
RZH105,113,114..RHD..(08S,12S,15S) *H,L=150 |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 87124-28040 | ||||
| 90467-22008 | ||||
| 91651-40816 | ||||
| 96112-30250 | ||||
| 96134-42100 | ||||
| Linked diagrams | ||||
| 1603 | ||||
