RZH105R-BFMRE (1999)

Toyota Hiace Van,Commuter

Production Jul 1999 - Aug 2004
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-0008) ; (0008- )LH10#,11#,16#,17#,184,RZH10#,11#,125,135,155..03S,06S,08S,

Click highlighted areas on diagram

CENTER CONSOLE BOX

diagram 55539A 55539J 55539K 55547B 55604A 58811B 58825A 58834A 58839A 58856A 58902B 58903B 58905 58907 58919B 58941A 58959B 58959B 58968C 58969A 58976 58991 58995A 7456 7456 9017604015 9017910073 9017910073 9018304006 9018304027 9038610027 9331914008 9354013008 9356054014 9356055014 9356055014 9356754512 9356755012 9356815012 9356815012
Part # Description Qty Price
58811B - BOX, CONSOLE
58811-95J04B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 1
58919B - PLATE, CONSOLE BOX
58919-95J01B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 1
58941A - COVER, PARKING BRAKE HOLE
58904-95J0203

LH10#,11#,125,RZH10#,11#,125..RHD

GRAY,TRIM1#

 1
58904-95J02B0

RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(GL,STD)..(CBR,DSL,EFI)

BLUISH GRAY,TRIM1#

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-95J03

RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-95J02

RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD

 1
Common parts
90176-04015
90179-10073
90183-04006
90183-04027
90386-10027
93319-14008
93540-13008
93560-54014
93560-55014
93567-54512
93567-55012
93568-15012
Linked diagrams
7456

(8908-0008)RZH102..RHD..SG ; (8908-0008)LH103,113,125,184,RZH103,104,105,113,125..R

Click highlighted areas on diagram

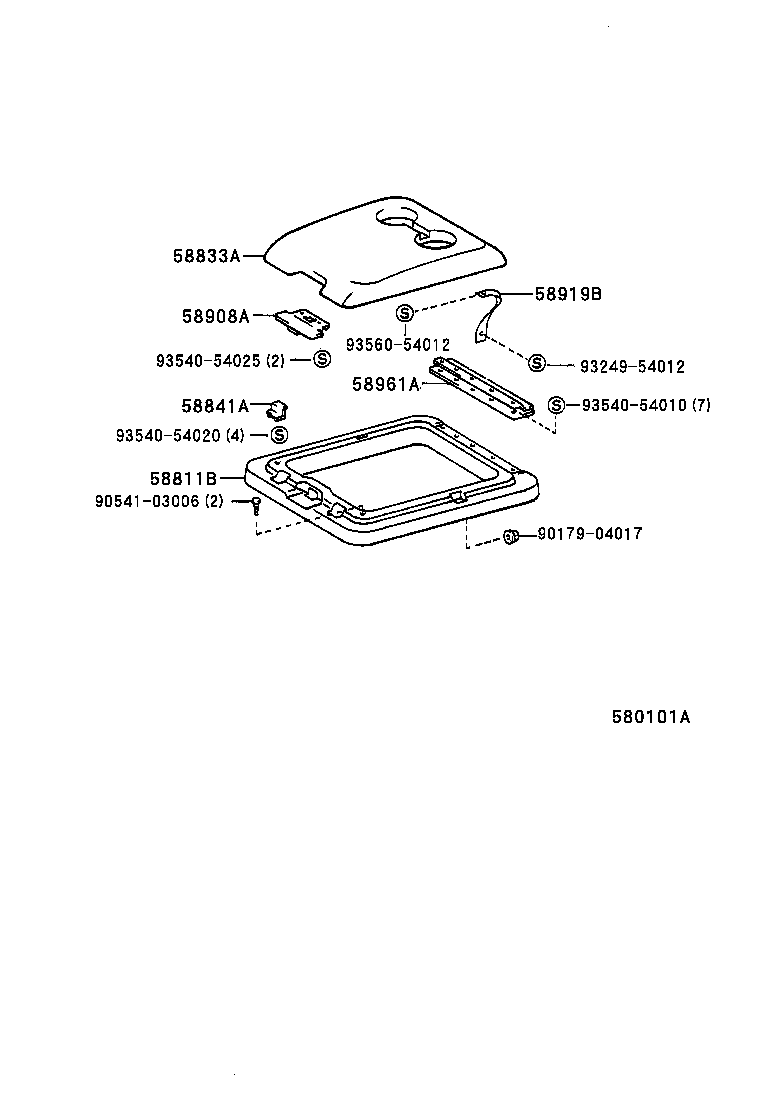

SEAT BACK TYPE

diagram 58811B 58833A 58841A 58908A 58919B 58961A 9017904017 9054103006 9324954012 9354054010 9354054020 9354054025 9356054012
Part # Description Qty Price
58811B - BOX, CONSOLE
58811-95J04B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 1
58833A - COVER, CONSOLE, UPPER
58833-95J00B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 1
58841A - COVER, SHIFTING HOLE
58841-95J07B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 4
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12010

LH162,RZH103..5F..ARL;LH162,RZH103,105..SG..STD..GEN

 1
58919B - PLATE, CONSOLE BOX
58919-95J01B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-95J02B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 1
Common parts
90179-04017
90541-03006
93249-54012
93540-54010
93540-54020
93540-54025
93560-54012

(0008- )SG..03S ; (0008- )LH162,172,174,184,RZH103,104,105,113,125..RHD..GL,S

Click highlighted areas on diagram

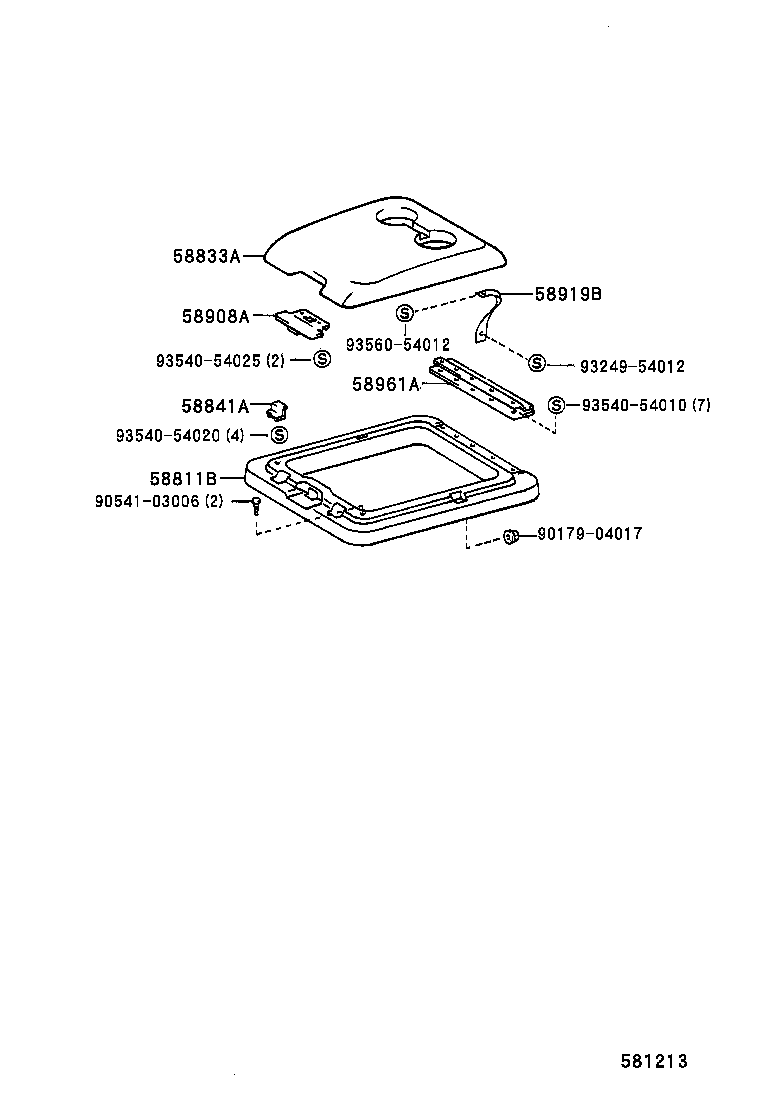

SEAT BACK TYPE

diagram 58811B 58833A 58841A 58908A 58919B 58961A 9017904017 9054103006 9324954012 9354054010 9354054020 9354054025 9356054012
Part # Description Qty Price
58811B - BOX, CONSOLE
58811-95J04B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 1
58833A - COVER, CONSOLE, UPPER
58833-95J00B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 1
58841A - COVER, SHIFTING HOLE
58841-95J07B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 4
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12010

LH162,RZH103..5F..ARL;LH162,RZH103,105..SG..STD..GEN

 1
58919B - PLATE, CONSOLE BOX
58919-95J01B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-95J02B0

LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,162,184,RZH103,113..RHD..SG..(GL,STD);LH125,174,RZH104,105,112,125..RHD..SG..(03S,12S,14S)

BLUISH GRAY,TRIM1#

 1
Common parts
90179-04017
90541-03006
93249-54012
93540-54010
93540-54020
93540-54025
93560-54012
