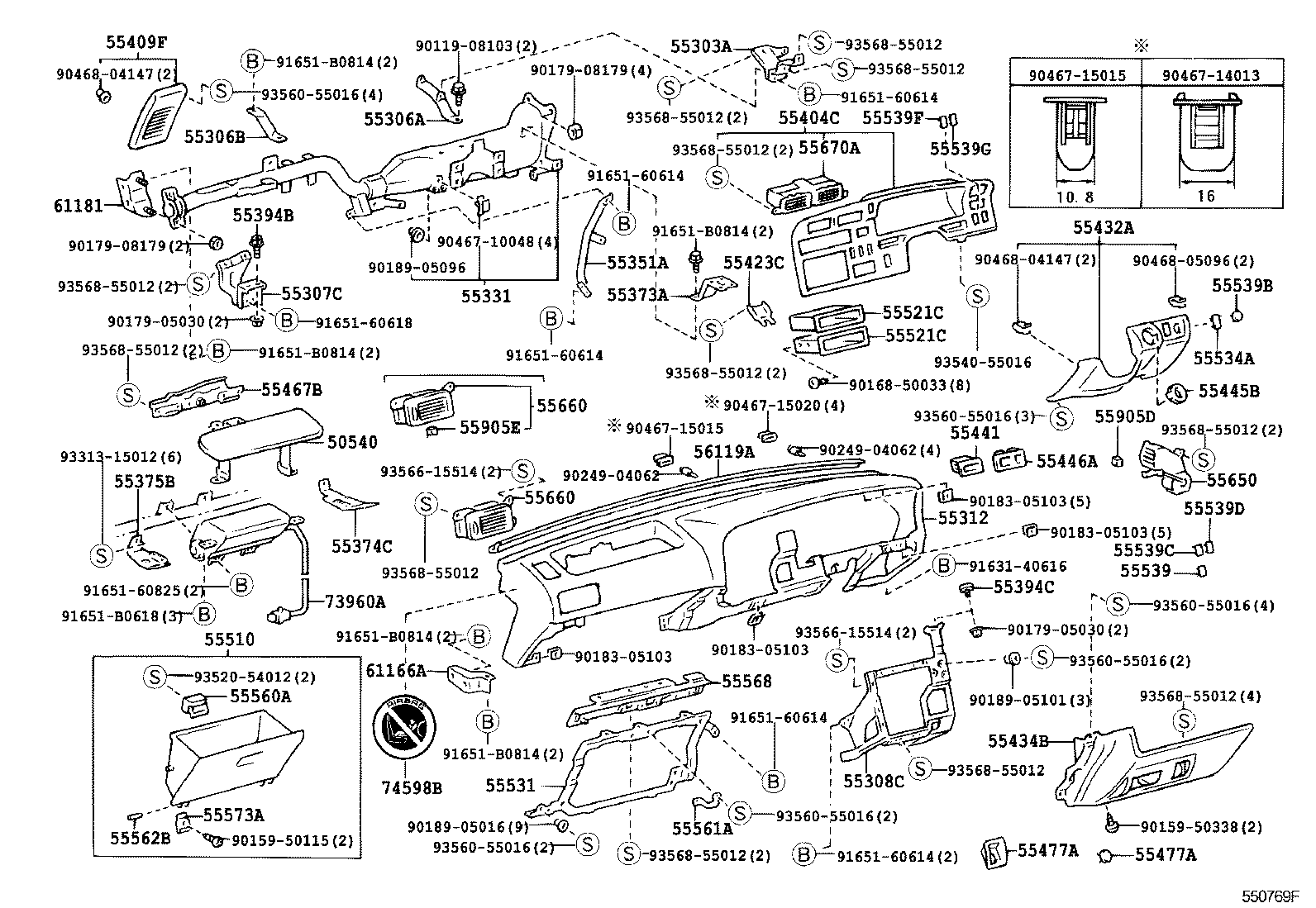

RZH105R-BFMRE (1999)
Toyota Hiace Van,Commuter
(0008- )LH174..RHD..15S ; (0008- )LH162,172,184,RZH103,105,113,125..RHD
W(*80,DRIVER SIDE & PASSENGER SIDE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-95J05 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-95J01 |
LH162..5F..ARL;RZH103..5F..STD;LH162,RZH105..STD..GEN |
1 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-26060 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-95J05 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-26021 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-95J0903 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1# |
1 | ||
| 55312-26110B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-95J02 |
LH103,104,105,11#,125,RZH10#,11#,125..RHD..STD |
1 | ||
| 55330-26042 |
LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135..RHD |
1 | ||
| 55330-26043 |
RZH112..RHD..03S;LH11#,162,172,174,184,RZH103,105,113,114,125,135..RHD |
1 | ||
| 55373A - BRACKET, OIL RESERVOIR TANK | ||||
| 55373-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 55394-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 55394-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-26280 |
RZH112..RHD..03S;LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..STD..GEN..(CBR,DSL,EFI) |
1 | ||
| 55404-26270 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) W(FRONT HEATER) |
1 | ||
| 55404-95J03 |
LH10#,11#,125,RZH10#,11#,125..RHD W(FRONT HEATER) |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-95J0103 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1# |
1 | ||
| 55473-26010B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55423C - COVER, CLOCK OPENING | ||||
| 55423-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 55423-95J03 |
RZH112..5D;RZH112..03S;LH174,RZH102..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,114,115,125..(03S,06S,10S,12S,14S,15S)..(GL,STD) |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-95J0303 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD GRAY,TRIM1# |
1 | ||
| 55432-95J0203 |
LH10#,11#,125,RZH10#,11#,125..RHD W(FUEL LID OPENER),GRAY,TRIM1# |
1 | ||
| 55432-26021B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-95J0103 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1# |
1 | ||
| 55434-26032B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-26050 |
LH162..5F..ARL;RZH103..5F..STD;LH162,RZH105..STD..GEN |
2 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 55445-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 W(ILLUMINATION) |
1 | ||
| 55477-95J00 |
RZH112..5D;RZH112,114..03S,15S;LH174,RZH102,115..STD;LH10#,11#,16#,172,176,184,RZH103,104,105,113..(03S,06S,10S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| 55477-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155 W(ILLUMINATION) |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 W(ILLUMINATION) |
1 | ||
| 55477-95J00 |
RZH112..5D;RZH112,114..03S,15S;LH174,RZH102,115..STD;LH10#,11#,16#,172,176,184,RZH103,104,105,113..(03S,06S,10S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| 55477-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155 W(ILLUMINATION) |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-95J0503 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 55501-26010B0 |
RZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155 BLUISH GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..(03S,06S,09S,12S,14S,15S)..(ARL,GCC,GEN) |
2 | ||
| 55521-16030 |
RZH103..DX;RZH113..LHD..EFI;LH10#,11#,RZH102,104,105,112,114,115,125;LH125,RZH103,113..(03S,05S,06S,09S,14S)..(CBR,DSL) W(RADIO) |
1 | ||
| 55521-16030 |
RZH112..5D;RZH112..03S;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH113..LHD..03S..GEN;LH10#,11#,125,154,16#,17#,184,RZH10#,114,115,125,155 W(RADIO) |
1 | ||
| 55521-16030 |
RZH112..5D;RZH112,114..03S,15S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,115,125,135,15# |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..(03S,06S,09S,12S,14S,15S)..(ARL,GCC,GEN) |
2 | ||
| 55521-16030 |
RZH103..DX;RZH113..LHD..EFI;LH10#,11#,RZH102,104,105,112,114,115,125;LH125,RZH103,113..(03S,05S,06S,09S,14S)..(CBR,DSL) W(RADIO) |
1 | ||
| 55521-16030 |
RZH112..5D;RZH112..03S;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH113..LHD..03S..GEN;LH10#,11#,125,154,16#,17#,184,RZH10#,114,115,125,155 W(RADIO) |
1 | ||
| 55521-16030 |
RZH112..5D;RZH112,114..03S,15S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,115,125,135,15# |
2 | ||
| 55531 - PANEL, GLOVE COMPARTMENT | ||||
| 55305-26040 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 55534-95J00 |
RZH112..RHD..03S;LH103,11#,162,172,174,184,RZH103,104,105,113,114,135,153..RHD..5F..GEN |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
RZH112..5D;RZH112..03S;RZH115..GL,SGL;LH114,115,174,RZH104,105,114..RHD;LH174,RZH102,114..SRF..(03S,06S,10S,12S);LH102,103,112,113,125,154,162,172,184,RZH103,113,125,135,155..03S,06S,08S,09S,11S,12S,14S,15S BLACK,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-95J02 |
RZH103,104,112,113,114,125;LH10#,11#,RZH102,105,115..GCC,GEN |
1 | ||
| 55539-95J02C0 |
RZH112..5D;RZH112,115..03S,10S,12S,15S;LH154,RZH103,105,113,125,155..03S,06S,08S,09S,11S,12S,14S;LH102,103,104,11#,162,172,174,184,RZH102,104,114,135..GCC,GEN BLACK,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
LH10#,11#,125,RZH10#,11#,125 BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
RZH112..5D;LH174..GCC,GEN;LH115,154,RZH105,112,115..(03S,11S,12S,15S)..(GCC,GEN);LH102,103,104,112,113,114,125,162,172,184,RZH102,103,104,113,114,125,135 BLACK,TRIM1# |
1 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
LH10#,11#,125,RZH10#,11#,125..RHD BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,125,135 BLACK,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-95J0003 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 55560-26010B0 |
RZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155 BLUISH GRAY,TRIM1# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 55561-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 55562-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 55568 - PLATE, GLOVE COMPARTMENT DOOR PAD | ||||
| 55568-95J0103 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1# |
1 | ||
| 55568-26010 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 55573-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-95J08 |
LH172..GL..DEFI;RZH112..RHD..03S;LH103,11#,162,172,174,184,RZH103,104,105,113,114,135,153..RHD..(GL,STD)..GEN..(CBR,DSL,EFI) |
1 | ||
| 55650-95J09 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) W(FRONT HEATER) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-95J1503 |
LH10#,11#,125,RZH10#,11#,125..RHD W(FRONT HEATER),GRAY,TRIM1# |
1 | ||
| 55660-26010B0 |
LH172..GL..DEFI;RZH112..RHD..03S;LH162,172,184..RHD..DSL;LH103,11#,174,RZH103,104,105,113,114..RHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 55660-26030B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) W(FRONT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-95J1503 |
LH10#,11#,125,RZH10#,11#,125..RHD W(FRONT HEATER),GRAY,TRIM1# |
1 | ||
| 55660-26010B0 |
LH172..GL..DEFI;RZH112..RHD..03S;LH162,172,184..RHD..DSL;LH103,11#,174,RZH103,104,105,113,114..RHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 55660-26030B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) W(FRONT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-95J03 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2023001 |
LH10#,11#,125,RZH10#,11#,125 BLACK,TRIM1#,BLACK |
1 | ||
| 55905-2023013 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 55905-20230C0 |
RZH112..5D;RZH112..03S;LH174,RZH102,115;LH10#,11#,125,16#,172,176,184,RZH113,125..DX,STD;LH154,RZH103,104,105,114,155..03S,06S,09S,11S,12S,15S BLACK,TRIM1# |
1 | ||
| 55905E - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2023001 |
LH10#,11#,125,RZH10#,11#,125 BLACK,TRIM1#,BLACK |
1 | ||
| 55905-2023013 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 61166A - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-95J00 |
LH162..5F..ARL;RZH103..5F..STD;LH162,RZH105..STD..GEN |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-95J04 |
LH162..5F..ARL;RZH103..5F..STD;LH162,RZH105..STD..GEN |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90159-50115 | ||||
| 90159-50338 | ||||
| 90168-50033 | ||||
| 90179-05030 | ||||
| 90179-08179 | ||||
| 90183-05103 | ||||
| 90189-05016 | ||||
| 90189-05096 | ||||
| 90189-05101 | ||||
| 90249-04062 | ||||
| 90467-10048 | ||||
| 90467-14013 | ||||
| 90467-15015 | ||||
| 90467-15020 | ||||
| 90468-04147 | ||||
| 90468-05096 | ||||
| 91631-40616 | ||||
| 91651-60614 | ||||
| 91651-60618 | ||||
| 91651-60825 | ||||
| 91651-B0618 | ||||
| 91651-B0814 | ||||
| 93313-15012 | ||||
| 93520-54012 | ||||
| 93540-55016 | ||||
| 93560-55016 | ||||
| 93566-15514 | ||||
| 93568-55012 | ||||
