LH70RB-QRQ (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )LH7#,YH7#

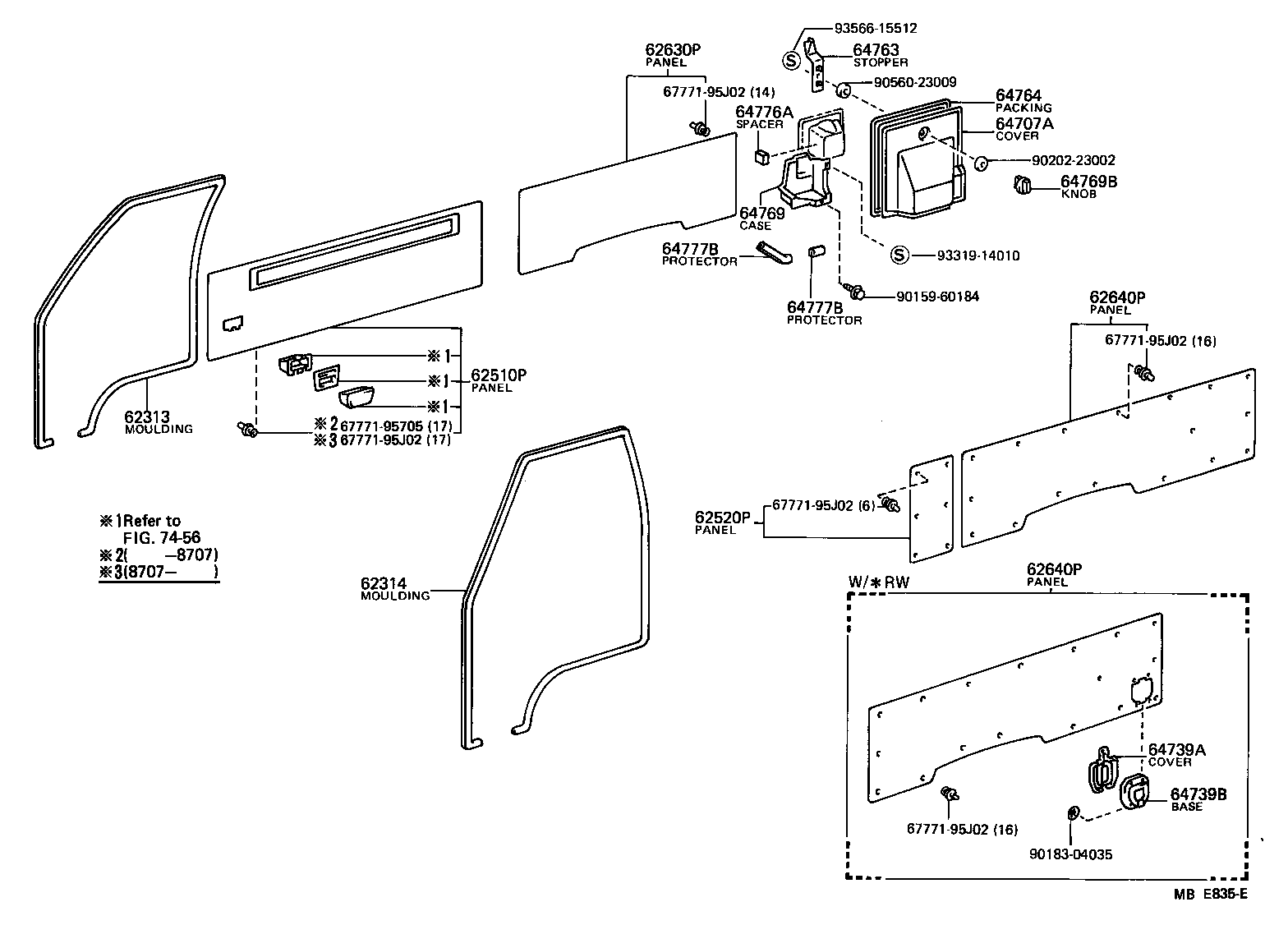

Click highlighted areas on diagram

diagram 62313 62314 62510P 62520P 62630P 62640P 62640P 64707A 64739A 64739B 64763 64764 64769 64769B 64776A 64777B 64777B 6777195705 6777195J02 6777195J02 6777195J02 6777195J02 6777195J02 7456 9015960184 9018304035 9020223002 9056023009 9331914010 9356615512
Part # Description Qty Price
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95J0005

LH5#,6#,7#,YH5#,6#,71

BEIGE,BEIGE

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95J0005

LH5#,6#,7#,YH5#,6#,71

BEIGE,BEIGE

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-90C0005

LH70,YH71

BEIGE,BEIGE

 1
62520P - PANEL ASSY, QUARTER TRIM, FRONT LH
62520-90C0005

LH70,YH71

BEIGE,BEIGE

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-90C0005

LH70,YH71

BEIGE,BEIGE

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-95J0905

LH60,70,YH6#,71..15S

BEIGE,BEIGE

 1
62640-95J0705

LH70,YH71

W/*RW,BEIGE,BEIGE

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-95J0905

LH60,70,YH6#,71..15S

BEIGE,BEIGE

 1
62640-95J0705

LH70,YH71

W/*RW,BEIGE,BEIGE

 1
64707A - COVER SUB-ASSY, QUARTER TRIM TOOL
64707-95J01

LH5#,6#,7#,YH5#,6#,7#

 1
64739A - COVER, DECK TRIM REAR WASHER
85365-95J0005

LH50,60,70,YH50,6#,71..ARL,EUR

BEIGE,BEIGE

 1
64739B - BASE, REAR WASHER TANK, SERVICE HOLE COVER
85366-95J0005

LH50,60,70,YH50,6#,71..ARL,EUR

BEIGE,BEIGE

 1
64763 - STOPPER, TOOL COVER
64763-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
64764 - PACKING, TOOL COVER
64764-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
64769 - CASE SUB-ASSY, TOOL BAG
64709-95J01

LH60,61,7#,YH60,61,71

 1
64769B - KNOB, TOOL COVER
64769-1301001

LH5#,6#,7#,YH5#,6#,7#

BLACK,BLACK

 1
64776A - SPACER, TOOL BAG CASE
64776-95J00

LH50,51,60,61,7#,YH50,51,60,61,71

 1
64777B - PROTECTOR, QUARTER, INNER
58426-95701

LH50,51,60,61,7#,YH50,51,60,61,71

L=40

 1
58426-95700

LH50,51,60,61,7#,YH50,51,60,61,71

L=170

 1
64777B - PROTECTOR, QUARTER, INNER
58426-95701

LH50,51,60,61,7#,YH50,51,60,61,71

L=40

 1
58426-95700

LH50,51,60,61,7#,YH50,51,60,61,71

L=170

 1
Common parts
67771-95705
67771-95J02
90159-60184
90183-04035
90202-23002
90560-23009
93319-14010
93566-15512
Linked diagrams
7456
