LH66LV-MRBFW (1986)
Toyota Hiace Van,Commuter
Production
Aug 1986
-
Aug 1987
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

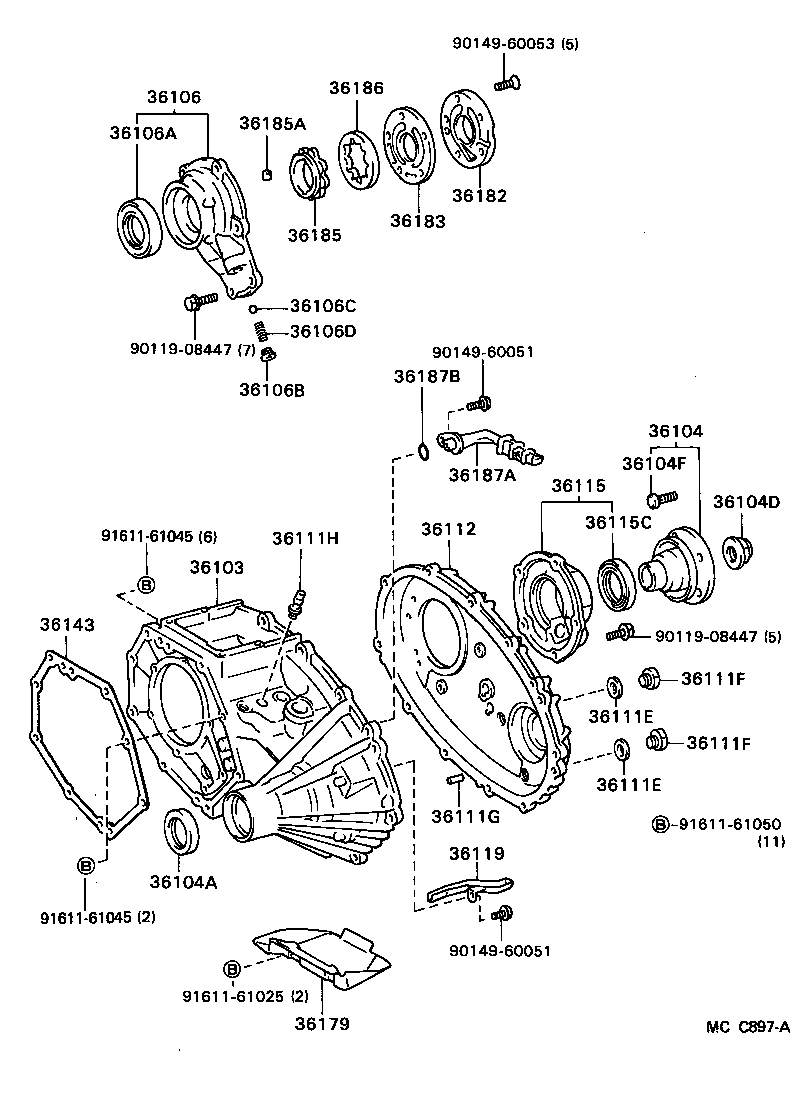

(8608-8708)LH56,66,YH56,66
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-28011 |
LH56,66,YH56,66 |
1 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33309-28010 |
LH56,66,YH56,66 |
1 | ||
| 36104A - SEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90311-38026 |
LH56,66,YH56,66 |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20010 |
LH56,66,YH56,66 |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
LH56,66,YH56,66 |
4 | ||
| 36106 - BODY SUB-ASSY, TRANSFER OIL PUMP | ||||
| 36106-28020 |
LH56,66,YH56,66 |
1 | ||
| 36106A - SEAL, OIL (FOR TRANSFER OIL PUMP BODY) | ||||
| 90310-40002 |
LH56,66,YH56,66 |
1 | ||
| 36106B - PLUG (FOR TRANSFER OIL PUMP BODY) | ||||
| 90341-12014 |
LH56,66,YH56,66 |
1 | ||
| 36106C - BALL (FOR TRANSFER OIL PUMP BODY) | ||||
| 90360-10003 |
LH56,66,YH56,66 |
1 | ||
| 36106D - SPRING, COMPRESSION (FOR TRANSFER OIL PUMP BODY) | ||||
| 90501-09068 |
LH56,66,YH56,66 |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LH56,66,YH56,66 |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LH56,66,YH56,66 |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LH56,66,YH56,66 FILLER |
1 | ||
| 90341-18057 |
LH56,66,YH56,66 DRAIN |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LH56,66,YH56,66 FILLER |
1 | ||
| 90341-18057 |
LH56,66,YH56,66 DRAIN |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
LH56,66,YH56,66 L=14,OD=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03085 |
LH56,66,YH56,66 |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-28010 |
LH56,66,YH56,66 |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-28010 |
LH56,66,YH56,66 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-54001 |
LH56,66,YH56,66 |
1 | ||
| 36119 - RECEIVER, TRANSFER OIL, NO.1 | ||||
| 36119-28010 |
LH56,66,YH56,66 |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-28020 |
LH56,66,YH56,66 |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-28011 |
LH56,66,YH56,66 |
1 | ||
| 36182 - COVER, TRANSFER OIL PUMP | ||||
| 36182-28010 |
LH56,66,YH56,66 |
1 | ||
| 36183 - PLATE, TRANSFER OIL PUMP | ||||
| 36183-28010 |
LH56,66,YH56,66 |
1 | ||
| 36185 - ROTOR, TRANSFER OIL PUMP DRIVE | ||||
| 36185-28010 |
LH56,66,YH56,66 |
1 | ||
| 36185A - PIN, STRAIGHT(FOR TRANSFER OIL PUMP DRIVE ROTOR) | ||||
| 90250-05025 |
LH56,66,YH56,66 |
2 | ||
| 36186 - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-28010 |
LH56,66,YH56,66 |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-28010 |
LH56,66,YH56,66 |
1 | ||
| 36187B - RING, O (FOR TRANSFER OIL STRAINER) | ||||
| 96711-24017 |
LH56,66 |
1 | ||
| 96721-24017 |
LH56,66,YH56,66 |
1 | ||
| Common parts | ||||
| 90119-08447 | ||||
| 90149-60051 | ||||
| 90149-60053 | ||||
| 91611-61025 | ||||
| 91611-61045 | ||||
| 91611-61050 | ||||
