LH61RV-SRBQ (1987)
Toyota Hiace Van,Commuter
(8806- )

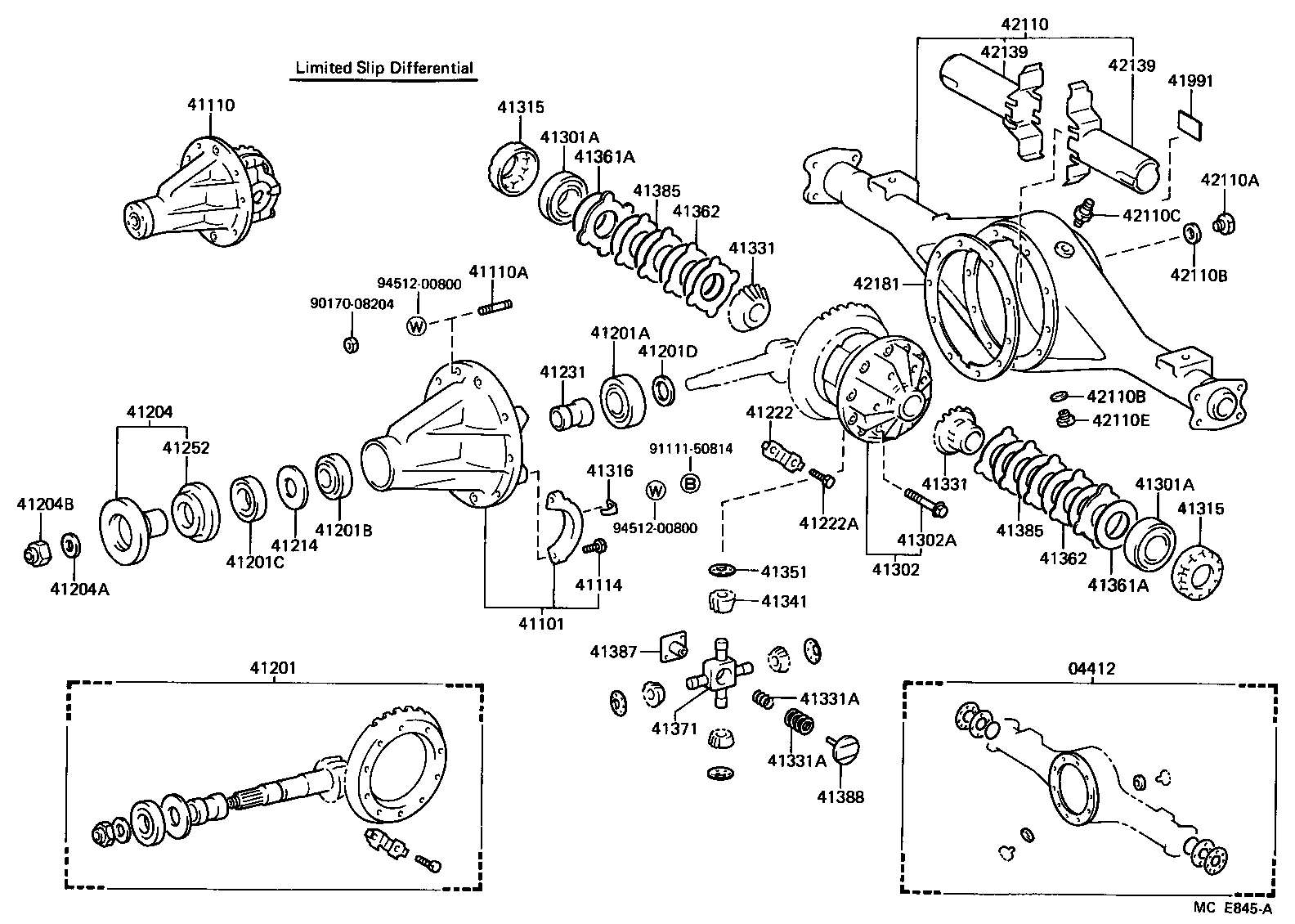

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-26010 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35040 |
YH63..15S;YH53..4FC,4HC,5H;LH51,61,YH61,63..4HC |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35045 |
LH51,61..4HC *FGR=37:7=5.285 |
1 | ||
| 41110-35044 |
LH51,61..4HC *FGR=37:7=5.285 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08180 |
LH51,61,71,YH5#,6#,73 L=44 |
2 | ||
| 90116-08285 |
LH51,61,71,YH5#,6#,73 L=38 |
8 | ||
| 90116-08179 |
LH51,61,71,YH5#,6#,73 L=36 |
8 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
LH51,61,71,YH5#,6#,73 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29825 |
LH51,61..4HC *FGR=37:7=5.285 |
1 | ||
| 41201-29815 |
YH63..4HC;YH63..15S;YH53,61..RHD..(4FC,4HC,5H) *FGR=39:8=4.875 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35044 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
YH53,6#;LH51,61,71,YH51,73..MTM |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35506 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.97 |
1 | ||
| 90201-35502 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.85 |
1 | ||
| 90201-35501 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.82 |
1 | ||
| 90201-35511 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.12 |
1 | ||
| 90201-35507 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.00 |
1 | ||
| 90201-35510 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.09 |
1 | ||
| 90201-35499 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.76 |
1 | ||
| 90201-35498 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.73 |
1 | ||
| 90201-35500 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.79 |
1 | ||
| 90201-35497 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.70 |
1 | ||
| 90201-35503 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.88 |
1 | ||
| 90201-35512 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.15 |
1 | ||
| 90201-35504 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.91 |
1 | ||
| 90201-35513 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.18 |
1 | ||
| 90201-35514 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.21 |
1 | ||
| 90201-35508 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.03 |
1 | ||
| 90201-35509 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.06 |
1 | ||
| 90201-35505 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.94 |
1 | ||
| 90201-35517 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35516 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35518 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35515 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.24,MARK 01 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
YH53,6#;LH51,61,71,YH51,73..MTM |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
YH53,6#;LH51,61,71,YH51,73..MTM |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
LH51,61,71,YH5#,6#,73 |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LH51,61,71,YH5#,6#,73 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-40011 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
YH53,6#;LH51,61,71,YH51,73..MTM |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-40020 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
YH53,6#;LH51,61,71,YH51,73..MTM |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-26151 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
YH63..ARL;YH63..4HC..GEN;LH51,61,71,YH5#,61,73 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
YH63..ARL;YH63..4HC..GEN;LH51,61,71,YH5#,61,73 |
2 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
YH63..ARL;YH63..4HC..GEN;LH51,61,71,YH5#,61,73 |
2 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
YH63..ARL;YH63..4HC..GEN;LH51,61,71,YH5#,61,73 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-40010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-40010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
YH63..ARL;YH63..4HC..GEN;LH51,61,71,YH5#,61,73 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91111-50814 | ||||
| 94512-00800 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-26010 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35040 |
YH63..15S;YH53..4FC,4HC,5H;LH51,61,YH61,63..4HC |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35045 |
LH51,61..4HC *FGR=37:7=5.285 |
1 | ||
| 41110-35044 |
LH51,61..4HC *FGR=37:7=5.285 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08180 |
LH51,61,71,YH5#,6#,73 L=44 |
2 | ||
| 90116-08285 |
LH51,61,71,YH5#,6#,73 L=38 |
8 | ||
| 90116-08179 |
LH51,61,71,YH5#,6#,73 L=36 |
8 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08180 |
LH51,61,71,YH5#,6#,73 L=44 |
2 | ||
| 90116-08285 |
LH51,61,71,YH5#,6#,73 L=38 |
8 | ||
| 90116-08179 |
LH51,61,71,YH5#,6#,73 L=36 |
8 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
LH51,61,71,YH5#,6#,73 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29825 |
LH51,61..4HC *FGR=37:7=5.285 |
1 | ||
| 41201-29815 |
YH63..4HC;YH63..15S;YH53,61..RHD..(4FC,4HC,5H) *FGR=39:8=4.875 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35044 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
YH53,6#;LH51,61,71,YH51,73..MTM |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35506 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.97 |
1 | ||
| 90201-35502 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.85 |
1 | ||
| 90201-35501 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.82 |
1 | ||
| 90201-35511 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.12 |
1 | ||
| 90201-35507 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.00 |
1 | ||
| 90201-35510 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.09 |
1 | ||
| 90201-35499 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.76 |
1 | ||
| 90201-35498 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.73 |
1 | ||
| 90201-35500 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.79 |
1 | ||
| 90201-35497 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.70 |
1 | ||
| 90201-35503 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.88 |
1 | ||
| 90201-35512 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.15 |
1 | ||
| 90201-35504 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.91 |
1 | ||
| 90201-35513 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.18 |
1 | ||
| 90201-35514 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.21 |
1 | ||
| 90201-35508 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.03 |
1 | ||
| 90201-35509 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.06 |
1 | ||
| 90201-35505 |
LH51,61,71,YH5#,6#,73 OD=47,T=1.94 |
1 | ||
| 90201-35517 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35516 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35518 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35515 |
LH51,61,71,YH5#,6#,73 OD=47,T=2.24,MARK 01 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
YH53,6#;LH51,61,71,YH51,73..MTM |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
YH53,6#;LH51,61,71,YH51,73..MTM |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
LH51,61,71,YH5#,6#,73 |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LH51,61,71,YH5#,6#,73 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-40011 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
YH53,6#;LH51,61,71,YH51,73..MTM |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-40020 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
YH53,6#;LH51,61,71,YH51,73..MTM |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39610 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06085 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
LH51,61,71,YH5#,6#,73 T=1.6 |
2 | ||
| 41363-40021 |
LH51,61,71,YH5#,6#,73 T=1.8 |
2 | ||
| 41362-40021 |
LH51,61,71,YH5#,6#,73 T=1.7 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
LH51,61,71,YH5#,6#,73 T=1.6 |
2 | ||
| 41363-40021 |
LH51,61,71,YH5#,6#,73 T=1.8 |
2 | ||
| 41362-40021 |
LH51,61,71,YH5#,6#,73 T=1.7 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-26151 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
YH63..ARL;YH63..4HC..GEN;LH51,61,71,YH5#,61,73 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
YH63..ARL;YH63..4HC..GEN;LH51,61,71,YH5#,61,73 |
2 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
YH63..ARL;YH63..4HC..GEN;LH51,61,71,YH5#,61,73 |
2 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
YH63..ARL;YH63..4HC..GEN;LH51,61,71,YH5#,61,73 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-40010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-40010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
YH63..ARL;YH63..4HC..GEN;LH51,61,71,YH5#,61,73 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91611-60814 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
