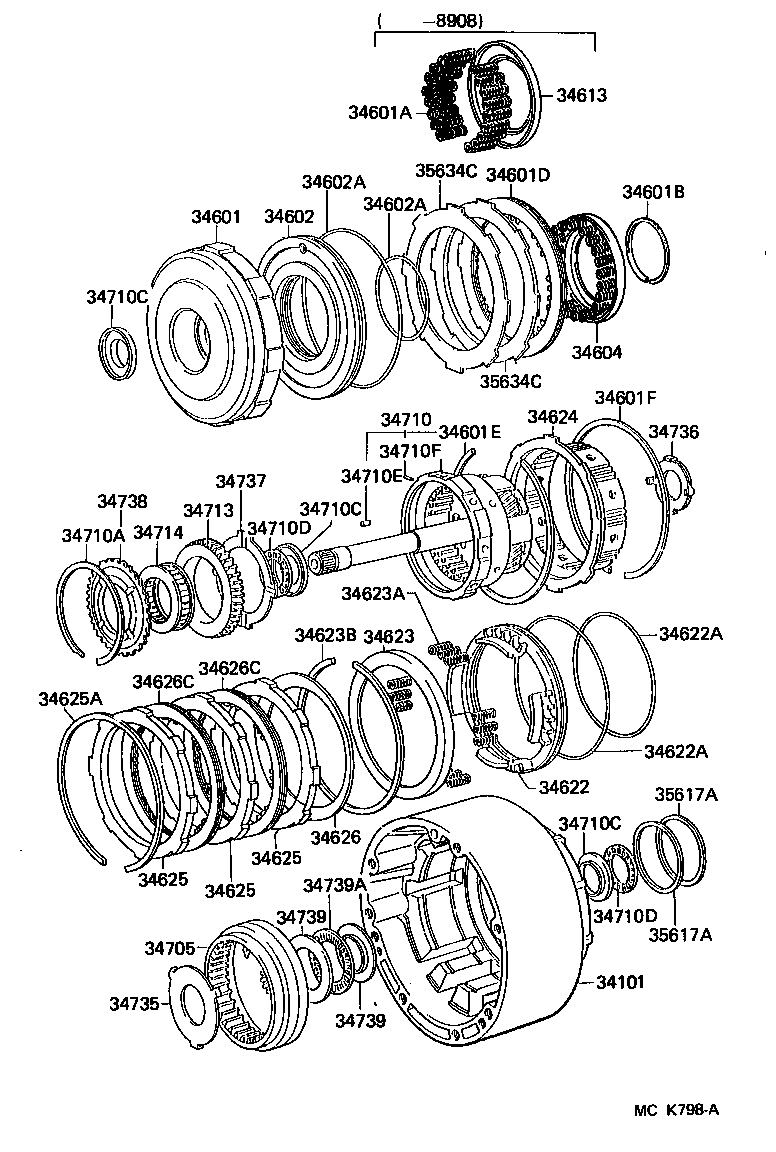

LH61RV-SRBQ (1987)
Toyota Hiace Van,Commuter
(8708- )ATM
A44DL,A45DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-30062 |
LH51,61,YH53,63..ATM |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-30022 |
LH51,61..4HC |
1 | ||
| 34601A - SPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90501-11023 |
LH51,61,YH53,61,63..ATM |
18 | ||
| 34601B - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90520-52262 |
LH51,61,YH53,63..ATM |
1 | ||
| 34601D - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-24010 |
LH51,61,YH53,61,63..ATM |
2 | ||
| 34601E - RING, HOLE SNAP, NO.1 (FOR OVERDRIVE) | ||||
| 90521-99146 |
LH51,61,YH53,63..ATM |
1 | ||
| 34601F - RING, HOLE SNAP, NO.2 (FOR OVERDRIVE) | ||||
| 90521-99001 |
LH51,61,YH53,63..ATM |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30011 |
LH51,61..4HC |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
LH51,61,YH53,63..ATM OUTER |
1 | ||
| 90301-57188 |
LH51,61,YH53,6#..ATM INNER |
1 | ||
| 90301-99016 |
LH51,61,YH53,6#..ATM OUTER |
1 | ||
| 90301-57188 |
LH51,61,YH53,63..ATM INNER |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
LH51,61,YH53,63..ATM OUTER |
1 | ||
| 90301-57188 |
LH51,61,YH53,6#..ATM INNER |
1 | ||
| 90301-99016 |
LH51,61,YH53,6#..ATM OUTER |
1 | ||
| 90301-57188 |
LH51,61,YH53,63..ATM INNER |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-22010 |
LH51,61,YH53,61,63..ATM |
1 | ||
| 34613 - SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING | ||||
| 34613-30010 |
LH51,61,YH53,61,63..ATM |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-30040 |
LH51,61,YH53,63..ATM |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99009 |
LH51,61,YH53,63..ATM OUTER |
1 | ||
| 90301-99009 |
LH51,61,YH53,6#..ATM OUTER |
1 | ||
| 90301-99008 |
LH51,61,YH53,6#..ATM INNER |
1 | ||
| 90301-99008 |
LH51,61,YH53,63..ATM INNER |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99009 |
LH51,61,YH53,63..ATM OUTER |
1 | ||
| 90301-99009 |
LH51,61,YH53,6#..ATM OUTER |
1 | ||
| 90301-99008 |
LH51,61,YH53,6#..ATM INNER |
1 | ||
| 90301-99008 |
LH51,61,YH53,63..ATM INNER |
1 | ||
| 34623 - SEAT, OVERDRIVE BRAKE RETURN SPRING | ||||
| 34623-30020 |
LH51,61,YH53,63..ATM |
1 | ||
| 34623A - SPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING | ||||
| 90501-10671 |
LH51,61,YH53,63..ATM |
12 | ||
| 34623B - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT | ||||
| 90521-99004 |
LH51,61,YH53,63..ATM |
1 | ||
| 34624 - HUB, OVERDRIVE BRAKE | ||||
| 34624-26010 |
LH51,61..4HC |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-26010 |
LH51,61,YH53,63..ATM T=4.0 |
3 | ||
| 34625-26010 |
LH51,61,YH53,6#..ATM T=4.0 |
3 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-26010 |
LH51,61,YH53,63..ATM T=4.0 |
3 | ||
| 34625-26010 |
LH51,61,YH53,6#..ATM T=4.0 |
3 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-26010 |
LH51,61,YH53,63..ATM T=4.0 |
3 | ||
| 34625-26010 |
LH51,61,YH53,6#..ATM T=4.0 |
3 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99004 |
LH51,61,YH53,63..ATM |
1 | ||
| 34626 - PLATE, OVERDRIVE BRAKE CUSHION | ||||
| 34626-30050 |
LH51,61,YH53,63..ATM |
1 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30040 |
LH51,61,YH53,63..ATM |
2 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30040 |
LH51,61,YH53,63..ATM |
2 | ||
| 34705 - GEAR SUB-ASSY, OVERDRIVE PLANETARY RING | ||||
| 34705-30021 |
LH51,61,YH53,63..ATM |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-14011 |
LH51,61..4HC |
1 | ||
| 34710A - RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90521-99003 |
LH51,61,YH53,63..ATM |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30041 |
LH51,61,YH53,63..ATM RR |
1 | ||
| 34739-30031 |
LH51,61..4HC CTR |
1 | ||
| 35789-22010 |
LH51,61,YH53,63..ATM FR |
1 | ||
| 35789-22010 |
LH51,61,YH53,6#..ATM FR |
1 | ||
| 34739-30041 |
LH51,61,YH53,6#..ATM RR |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30041 |
LH51,61,YH53,63..ATM RR |
1 | ||
| 34739-30031 |
LH51,61..4HC CTR |
1 | ||
| 35789-22010 |
LH51,61,YH53,63..ATM FR |
1 | ||
| 35789-22010 |
LH51,61,YH53,6#..ATM FR |
1 | ||
| 34739-30041 |
LH51,61,YH53,6#..ATM RR |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30041 |
LH51,61,YH53,63..ATM RR |
1 | ||
| 34739-30031 |
LH51,61..4HC CTR |
1 | ||
| 35789-22010 |
LH51,61,YH53,63..ATM FR |
1 | ||
| 35789-22010 |
LH51,61,YH53,6#..ATM FR |
1 | ||
| 34739-30041 |
LH51,61,YH53,6#..ATM RR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24001 |
LH51,61..4HC FR |
1 | ||
| 90374-23012 |
LH51,61,YH53,63..ATM RR |
1 | ||
| 90374-23012 |
LH51,61,YH53,6#..ATM RR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24001 |
LH51,61..4HC FR |
1 | ||
| 90374-23012 |
LH51,61,YH53,63..ATM RR |
1 | ||
| 90374-23012 |
LH51,61,YH53,6#..ATM RR |
1 | ||
| 34710E - PLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90334-03001 |
LH51,61..4HC |
4 | ||
| 34710F - PIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90250-03024 |
LH51,61,YH53,63..ATM |
4 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-30020 |
LH51,61..4HC |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-30030 |
LH51,61..4HC |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34735-30020 |
LH51,61,YH53,63..ATM |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34736-30010 |
LH51,61,YH53,63..ATM |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-30020 |
LH51,61..4HC |
1 | ||
| 34738 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4 | ||||
| 34738-30020 |
LH51,61..4HC |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 35789-22030 |
LH51,61,YH53,6#..ATM RR |
1 | ||
| 34739-30020 |
LH51,61,YH53,63..ATM FR |
1 | ||
| 34739-30020 |
LH51,61,YH53,6#..ATM FR |
1 | ||
| 35789-22030 |
LH51,61,YH53,63..ATM RR |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 35789-22030 |
LH51,61,YH53,6#..ATM RR |
1 | ||
| 34739-30020 |
LH51,61,YH53,63..ATM FR |
1 | ||
| 34739-30020 |
LH51,61,YH53,6#..ATM FR |
1 | ||
| 35789-22030 |
LH51,61,YH53,63..ATM RR |
1 | ||
| 34739A - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE) | ||||
| 90374-28014 |
LH51,61,YH53,63..ATM |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-16010 |
LH51,61,YH53,63..ATM |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-16010 |
LH51,61,YH53,63..ATM |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-22040 |
LH51,61,YH53,63..ATM T=1.8 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-22040 |
LH51,61,YH53,63..ATM T=1.8 |
2 | ||
